Toyota COROLLA 后组合灯 — Figure 8111

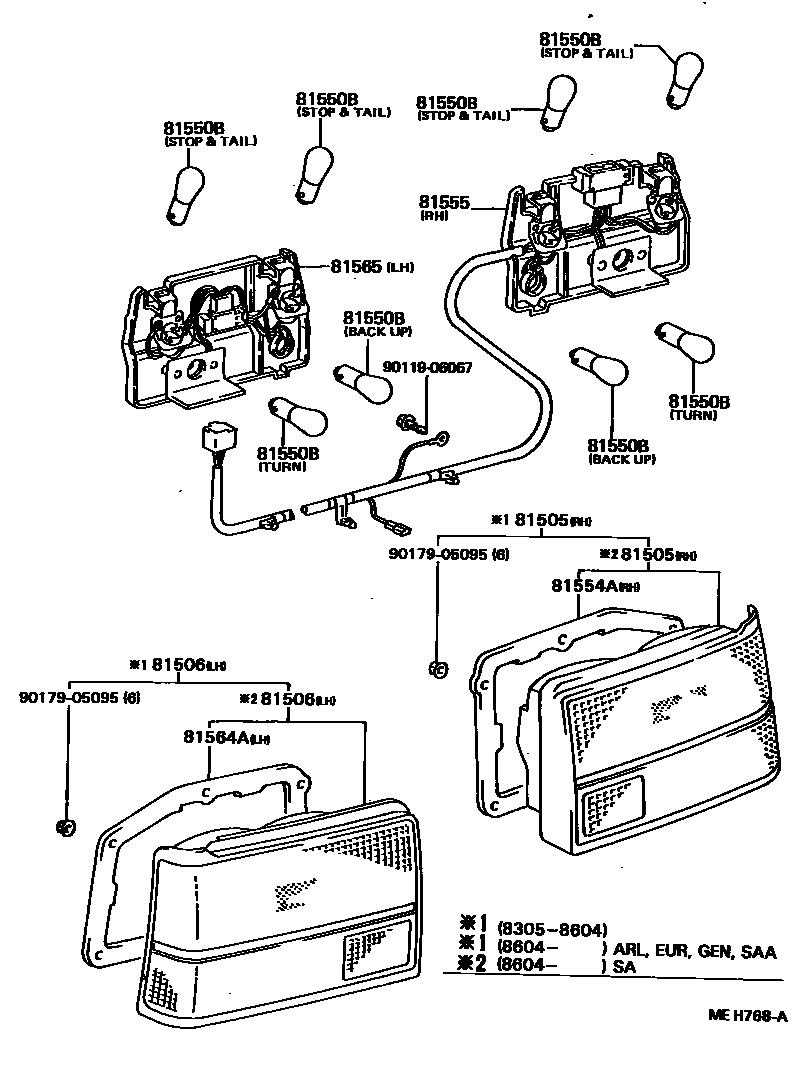

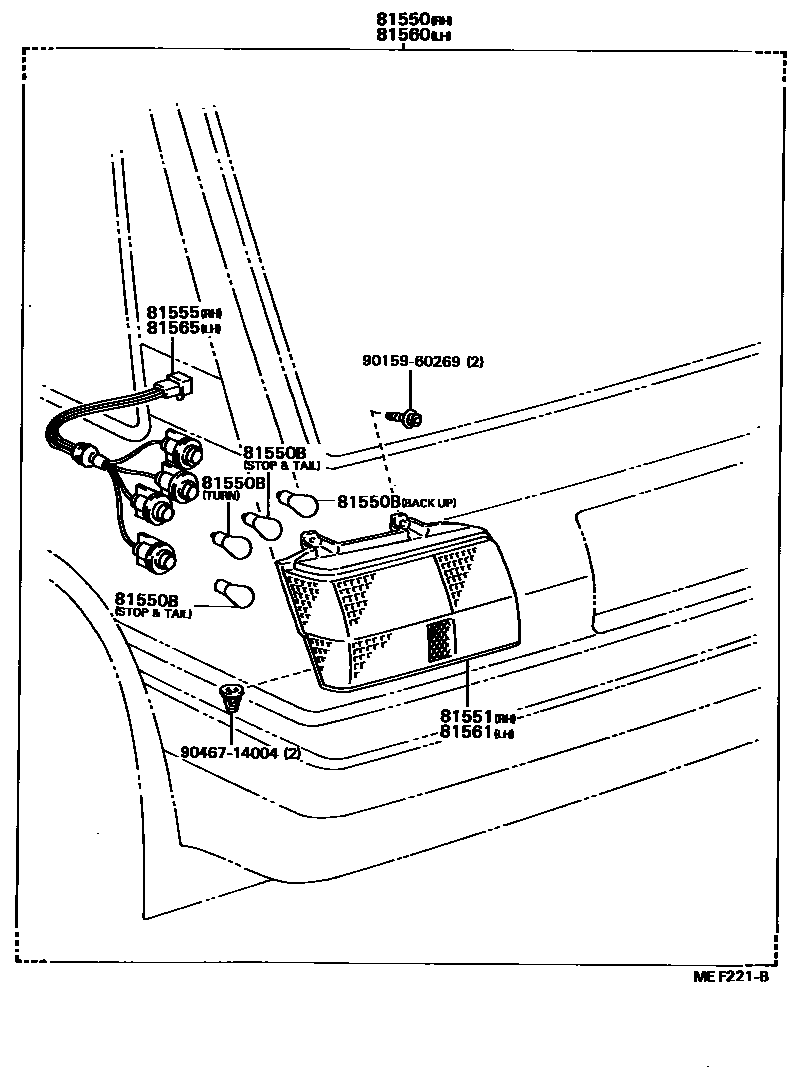

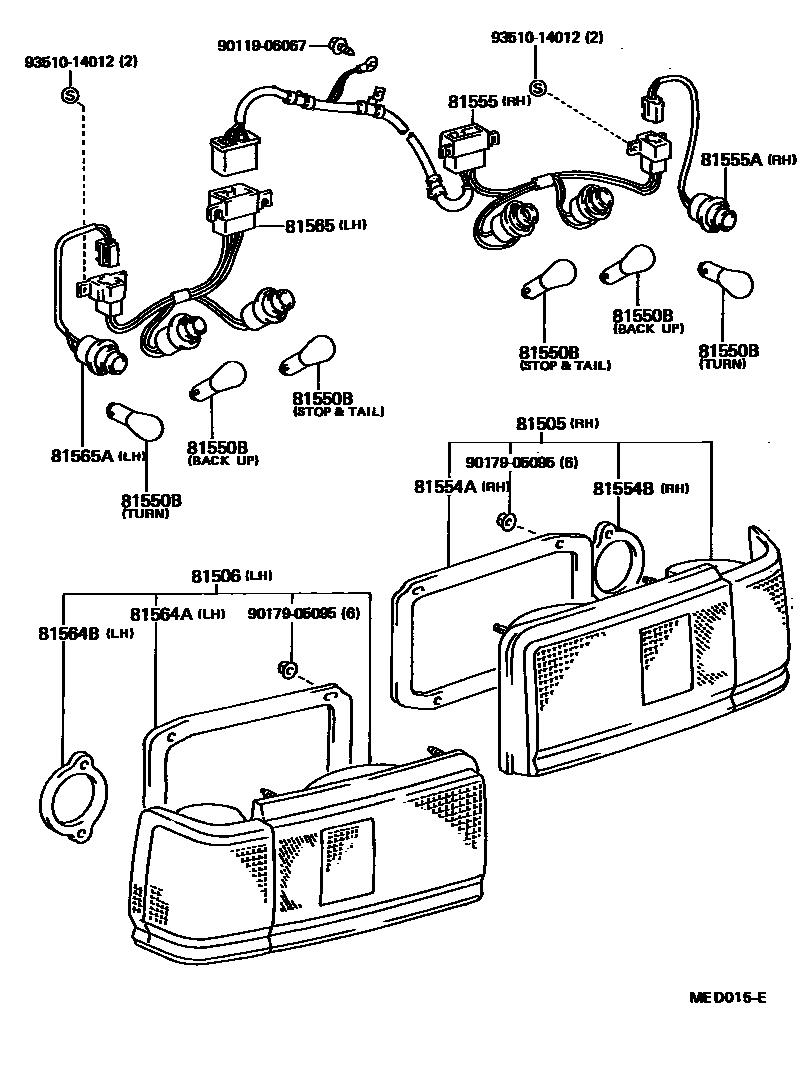

Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81505 | Right rear combination lamp sub-assembly | 81505-12650 · 81505-12700 · 81505-12780 · 81505-19645 · 81505-19655 · 81505-19665 · 81505-19705 · 81505-19725 |
| 81506 | Left rear combination lamp sub-assembly | 81506-12570 · 81506-12700 · 81506-19505 · 81506-19515 · 81506-19525 · 81506-19565 · 81506-19585 |
| 81550 | Right rear combination light assembly | 81550-80249 · 81550-80250 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-11230 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-1A340 · 81551-1A350 |
| 81554A | No. 1 right rear combination lamp body gasket | 81554-1A150 · 81554-1A180 · 81554-1A310 |
| 81554B | No. 2 right rear combination lamp body gasket | 81552-1A180 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A100 · 81555-1A150 · 81555-1A160 · 81555-1A161 · 81555-1A180 · 81555-1A181 · 81555-1A190 · 81555-1A191 · 81555-1A310 · 81555-1A311 · 81555-1A330 · 81555-1A340 · 81555-1A350 |
| 81555A | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81558-1A180 · 81558-1A190 |
| 81560 | Left rear combination light assembly | 81560-80259 · 81560-80260 |
| 81561 | Left rear combination lamp shade | 81561-1A340 · 81561-1A350 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81554-1A150 · 81554-1A180 · 81554-1A310 |
| 81564B | No. 2 left rear combination lamp body gasket | 81552-1A180 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A181 · 81555-1A340 · 81555-1A350 · 81565-12630 · 81565-1A150 · 81565-1A160 · 81565-1A180 · 81565-1A181 · 81565-1A190 · 81565-1A191 · 81565-1A310 |
| 81565A | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81558-1A180 · 81558-1A190 |
