Toyota COROLLA 挡泥板和扰流板 — Figure 7601

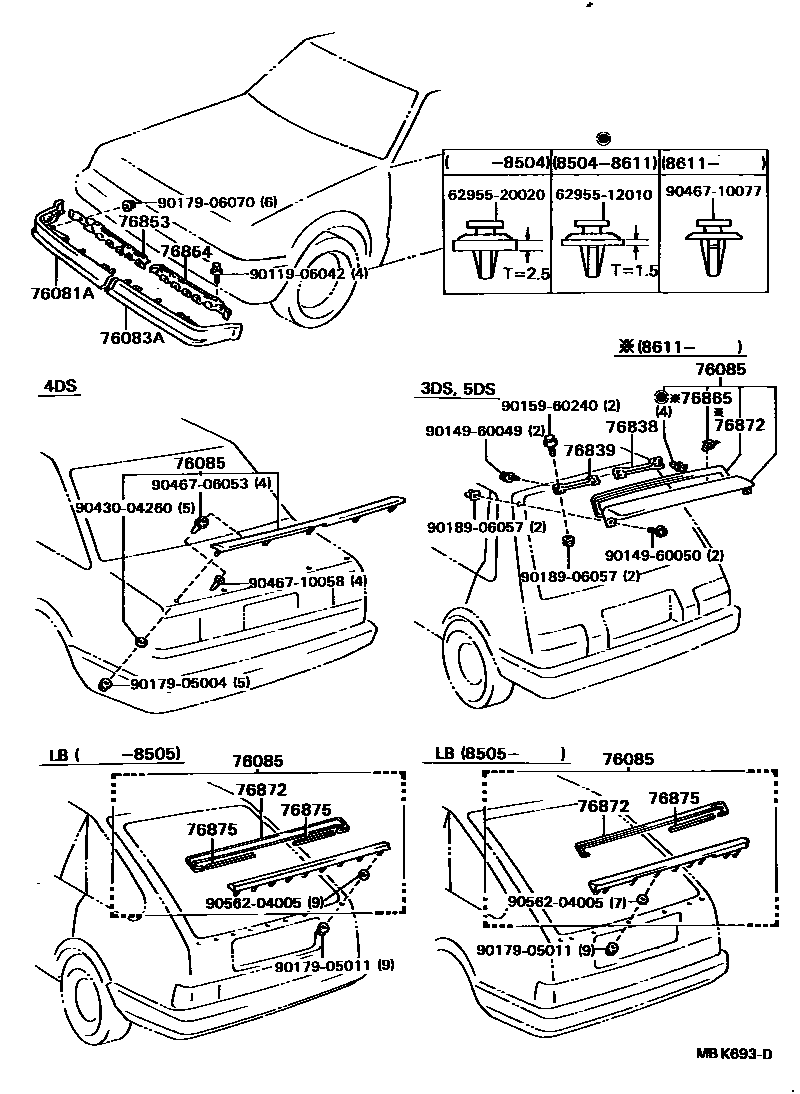

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081A | Right front spoiler sub-assembly | 76081-12040 |
| 76083A | Left front spoiler sub-assembly | 76083-12010 |
| 76085 | Rear spoiler sub-assembly | 76085-12020 · 76085-12040 · 76085-12060 · 76085-12080 |
| 76603 | Right front fender fender sub-assembly | 76621-19085 · 76621-19086 |
| 76604 | Left front fender fender sub-assembly | 76622-19085 · 76622-19086 |
| 76607 | Right rear side fender sub-assembly | 76625-19025 · 76625-19026 · 76625-19045 · 76625-19055 · 76625-19085 · 76625-19115 |
| 76608 | Left rear side fender sub-assembly | 76626-19035 · 76626-19036 · 76626-19055 · 76626-19065 · 76626-19095 · 76626-19125 |
| 76838 | Rear door right trim panel fixing | 76838-12020 |
| 76839 | Rear door left trim panel fixing | 76838-12020 |
| 76853 | Fixing piece on right front spoiler | 76853-12010 |
| 76854 | Fixing bracket on left front spoiler | 76854-12010 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-12050 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12040 · 76872-12900 · 76872-12901 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12010 · 76875-12050 |
