Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 4 images and 28 PNC and OE references.

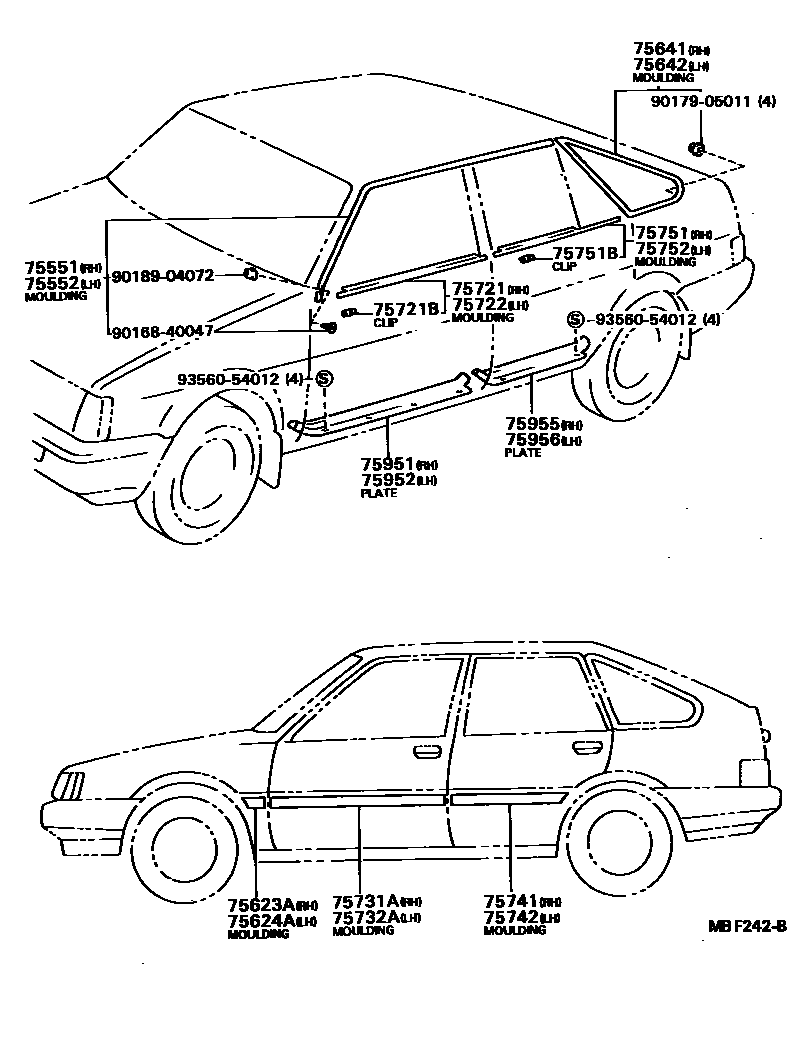

Toyota COROLLA 侧防护条 EPC diagram — MBF242B
侧防护条 — MBF242B (198305 – 999999)

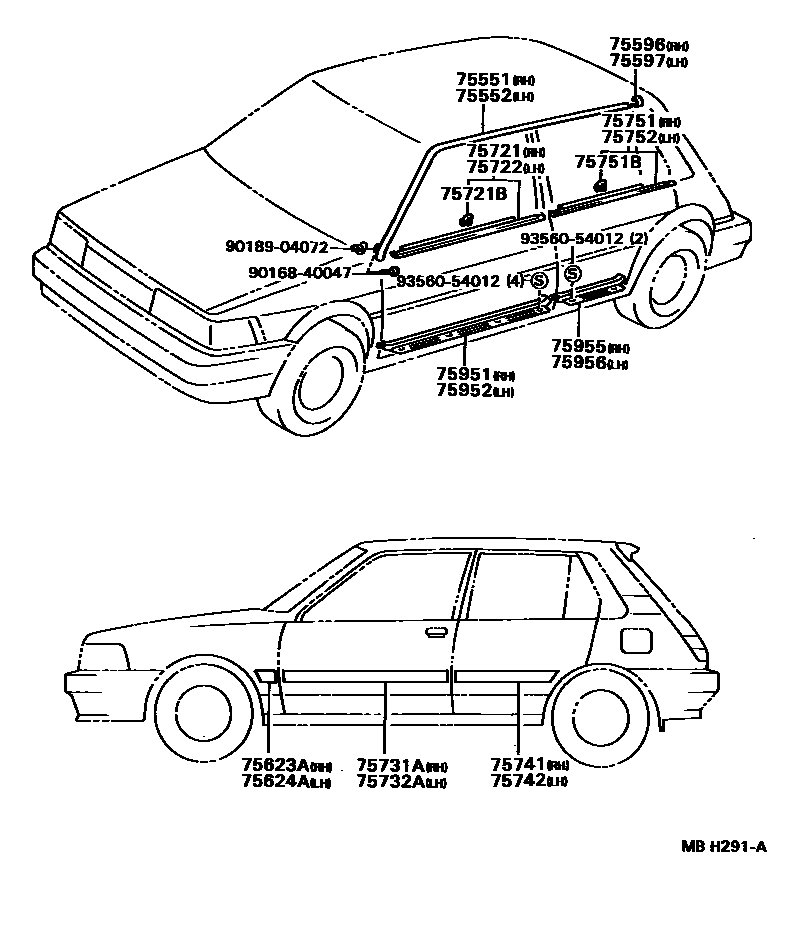

Toyota COROLLA 侧防护条 EPC diagram — MBH291A
侧防护条 — MBH291A (198410 – 999999)

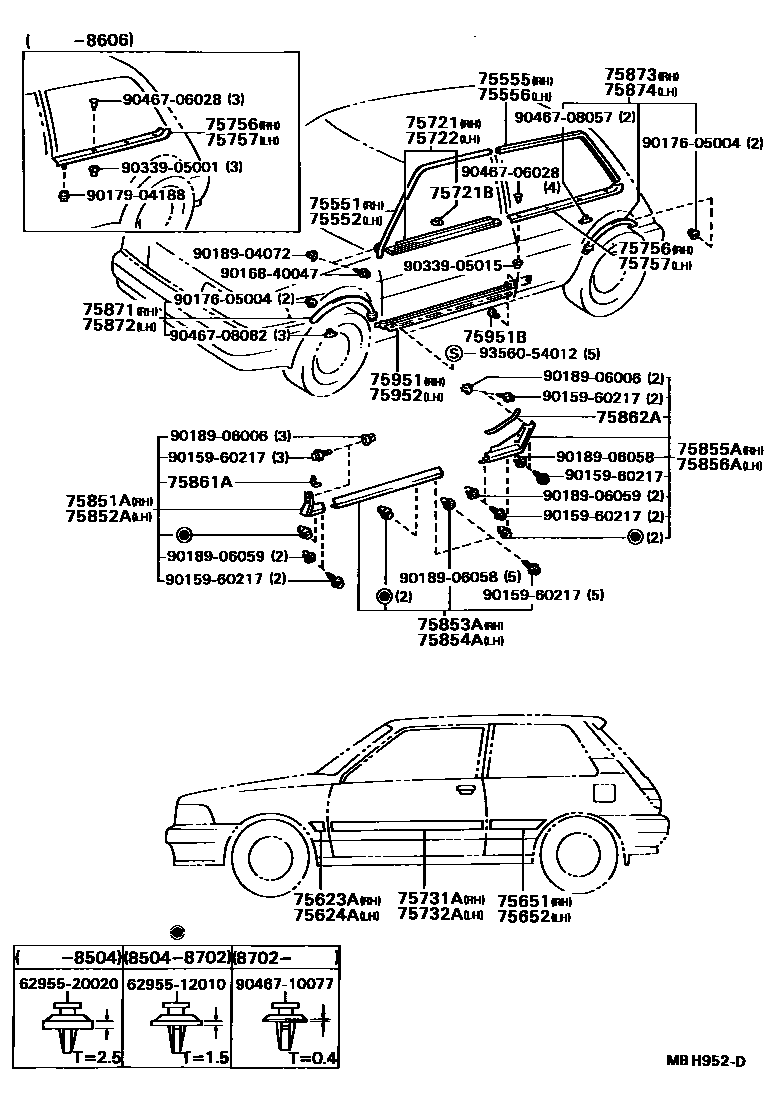

Toyota COROLLA 侧防护条 EPC diagram — MBH952D
侧防护条 — MBH952D (198410 – 999999)

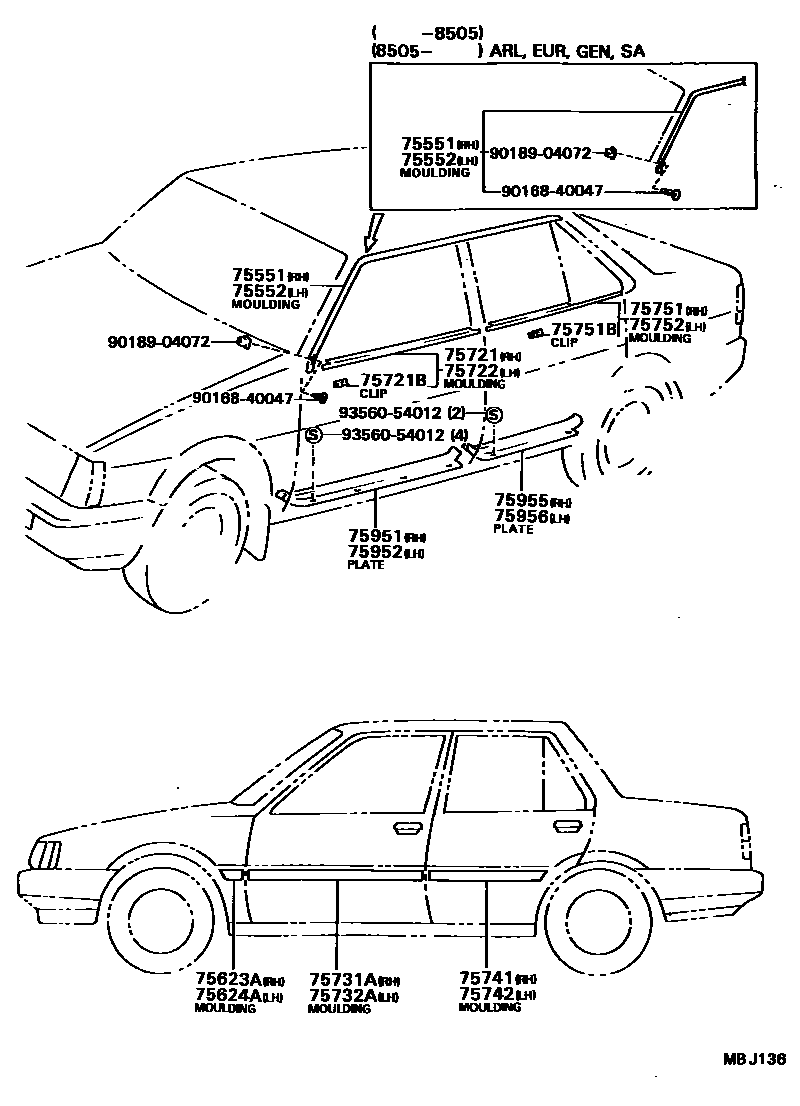

Toyota COROLLA 侧防护条 EPC diagram — MBJ136
侧防护条 — MBJ136 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
75551Drainage groove side decorative strip on the right side of the roof75551-12291 · 75551-12330 · 75551-12340 · 75551-19125 · 75551-19165
75552Drainage groove side decorative strip on the left side of the roof75552-12291 · 75552-12330 · 75552-12340 · 75552-19125 · 75552-19165
75555Decorative strip on the right side of the roof, rear gutter side75055-12040
75556Decorative strip on the left side of the roof, rear gutter side75056-12040
75596Drainage channel side decorative strip joint cover on the right side of the roof75596-12130
75597Drainage channel side decorative strip joint cover on the left side of the roof75596-12130
75641Right front corner window outer protective strip68153-19035
75642Left front corner window protection strip68154-19035
75721Right front door waistline protection strip75710-12360 · 75710-12380 · 75710-12390 · 75710-12391
75721BClip (for front door waistline protective strip assembly)68211-12090 · 68211-12121 · 68211-12122
75722Left front door waistline protection strip75720-12360 · 75720-12380 · 75720-12390 · 75720-12391
75751Right rear door waistline protection strip75730-12050 · 75730-12060
75751BClip (for rear door waistline protection strip assembly)68211-12080
75752Left rear door waistline protection strip75740-12140 · 75740-12150
75756Right corner window decorative strip75660-12180 · 75660-12181
75757Left corner window decorative strip75670-12190 · 75670-12191
75851ARight front door sill panel protective strip75851-19045 · 75851-19075
75852ALeft front door sill panel protective strip75852-19045 · 75852-19075
75853ARight side door sill panel center protective strip75853-19065 · 75853-19095
75854ALeft side door sill panel center protective strip75854-19065 · 75854-19095
75855ARight rear door sill panel protective strip75855-19025 · 75855-19055
75856ALeft rear door sill panel protective strip75856-19025 · 75856-19055
75861ANo. 1 door sill panel protective strip protective cover75861-12030
75862ANo. 2 door sill panel protective cover75862-12030
75871Right front fender wheel well protection strip75871-19085 · 75871-19125 · 75871-19145
75872Left front fender wheel well protection strip75872-19085 · 75872-19125 · 75872-19145
75873Right side panel wheel mouth protection strip75873-19045 · 75873-19065 · 75873-19075
75874Left side panel wheel mouth protection strip75874-19045 · 75874-19065 · 75874-19075
