Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

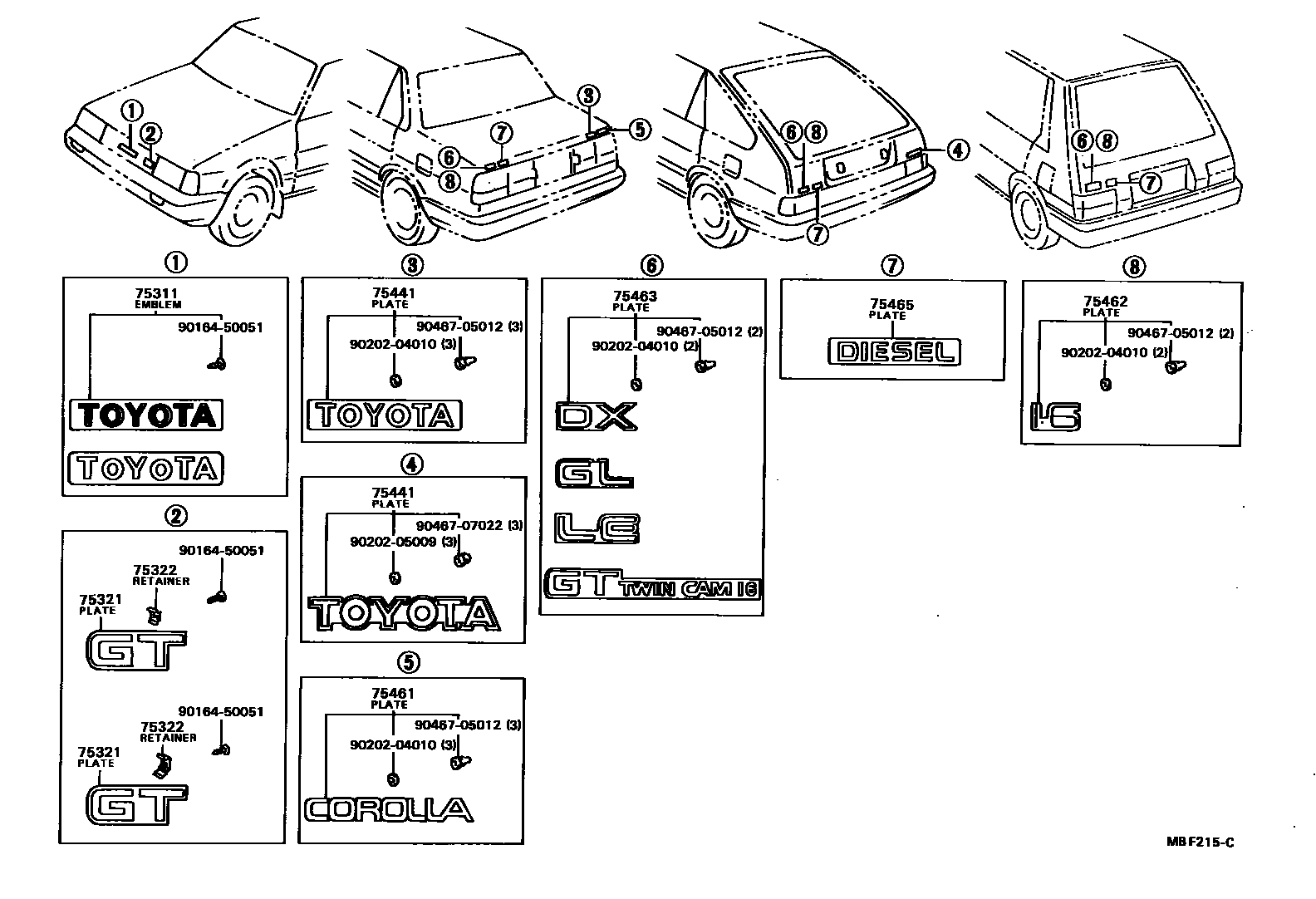

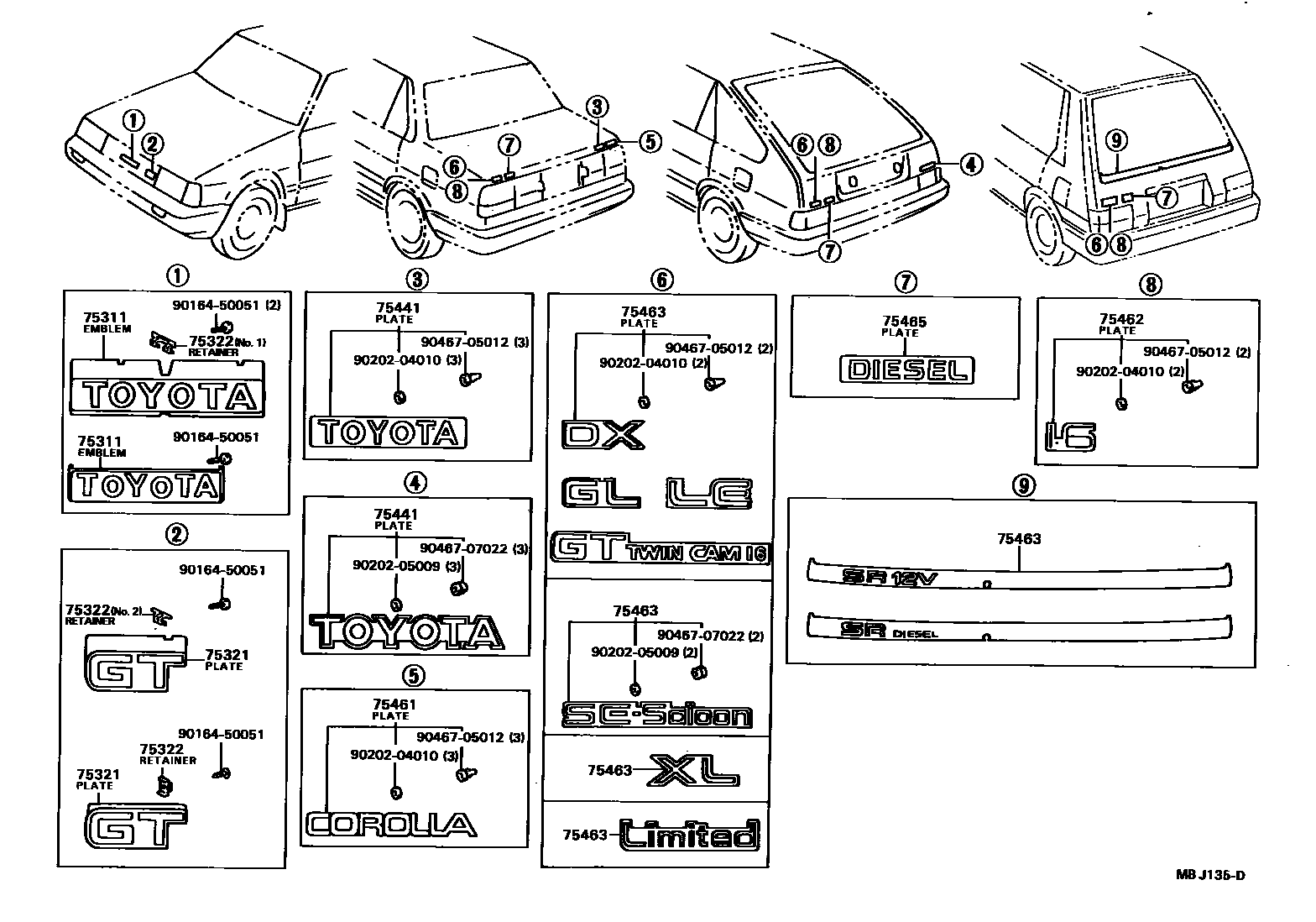

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A290 · 75311-1A380 · 75311-1A400 · 75311-80030 |
| 75321 | Radiator grille or front plate | 75321-12150 · 75321-12160 · 75321-12180 |
| 75322 | Radiator grille nameplate fasteners | 75324-12030 · 75324-12050 · 75324-12070 · 75324-12080 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-12290 · 75441-12300 · 75441-12340 · 75441-12341 · 75441-12350 · 75441-12351 |
| 75461 | Rear No. 2 nameplate (model mark) | 75442-12770 · 75442-12810 · 75442-12811 |
| 75462 | Rear No. 3 nameplate (displacement) | 75444-12150 · 75444-12180 · 75444-12181 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75443-12410 · 75443-12420 · 75443-12470 · 75443-12620 · 75443-12621 · 75443-12630 · 75443-12631 · 75443-12640 · 75443-12641 · 75443-12660 · 75443-12700 · 75443-12701 · 75443-12730 · 75443-12731 · 75446-12121 · 75446-12240 · 75446-12270 |
| 75465 | No. 5 nameplate (organization) | 75445-12050 · 75445-12090 · 75445-12091 |
