Toyota COROLLA 锁芯组件 — Figure 6712

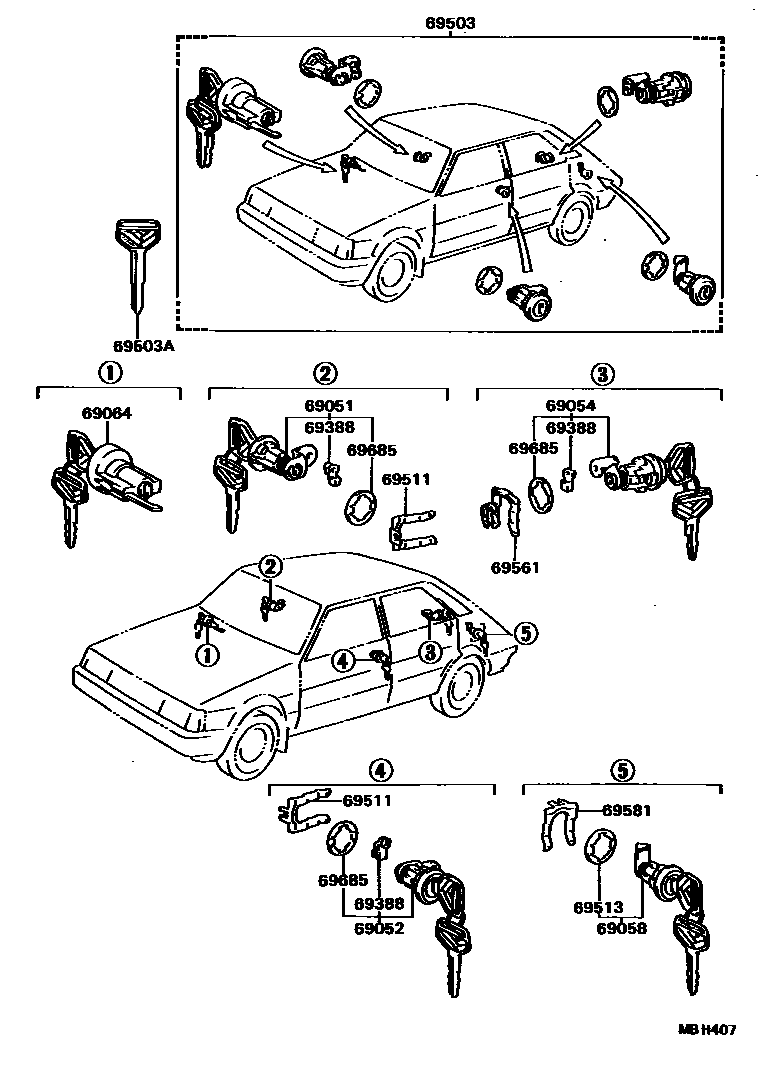

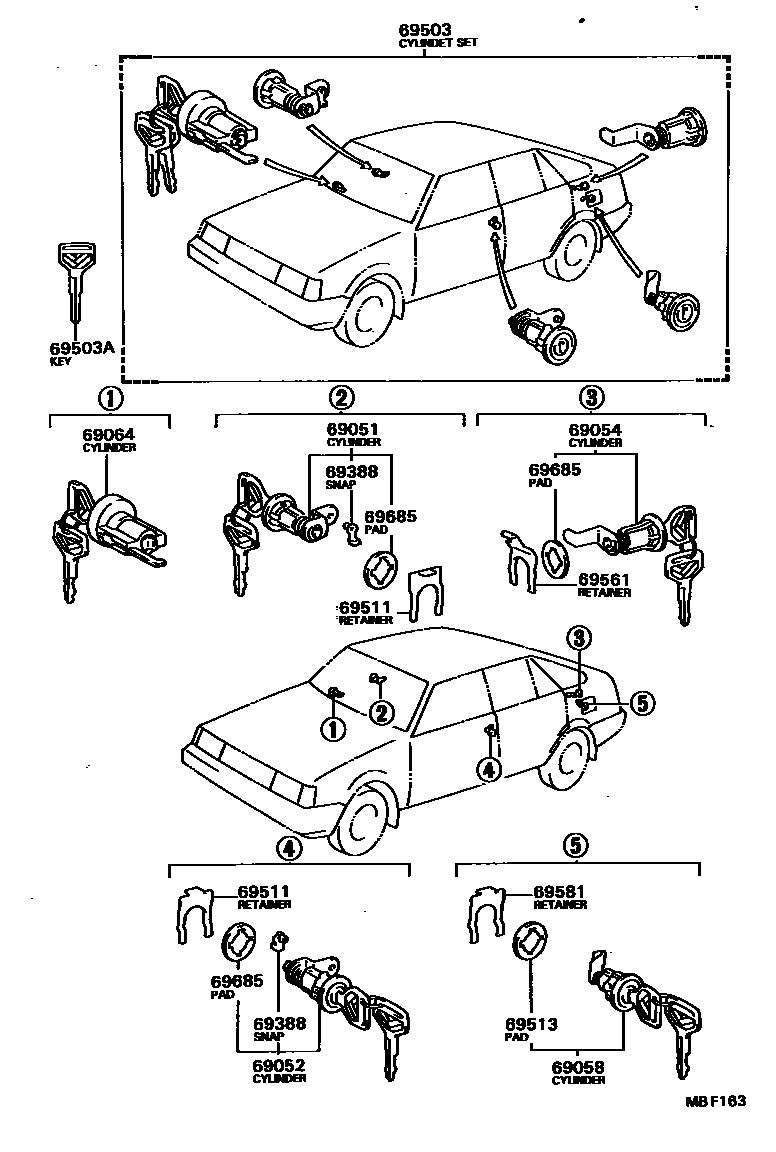

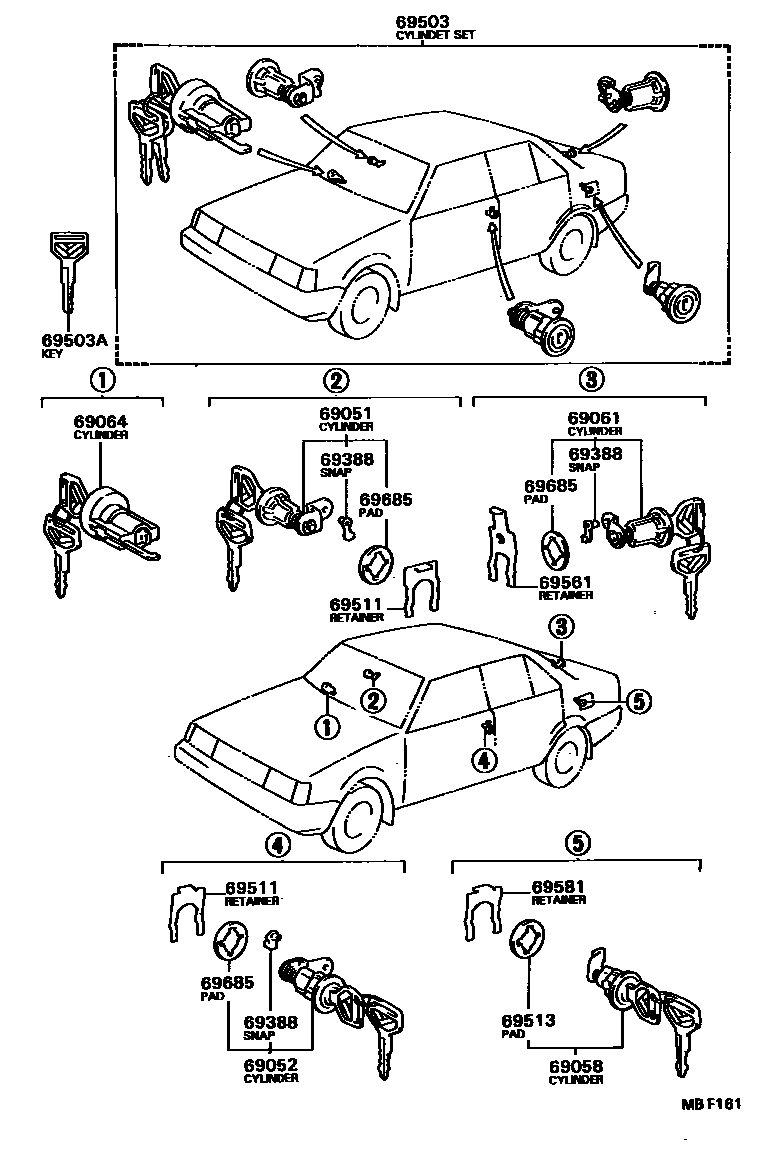

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12160 · 69051-12170 |
| 69052 | Left door lock cylinder and key assembly | 69052-12160 · 69052-12170 |
| 69054 | Rear door lock cylinder and key assembly | 69055-12260 · 69055-12270 · 69055-12360 · 69055-12370 · 69055-12390 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12100 · 69058-16040 |
| 69061 | Luggage lock cylinder and key assembly | 69055-12220 · 69055-12230 · 69055-12310 · 69055-12330 · 69055-12340 · 69055-12380 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-12120 · 69057-12140 · 69057-16040 · 69057-16050 |
| 69388 | Lever clip (for door lock) | 69759-20080 · 69759-20090 |
| 69503 | Door lock cylinder components | 69005-12320 · 69005-12330 · 69005-12331 · 69005-12360 · 69005-12370 · 69005-12371 · 69005-12520 · 69005-12530 · 69005-12531 · 69005-12560 · 69005-12580 · 69005-12581 · 69005-12590 · 69005-12591 · 69005-12620 · 69005-12621 · 69005-12630 · 69005-12631 · 69005-12640 · 69005-12641 · 69005-12660 · 69005-12661 · 69005-12670 · 69005-12671 · 69005-12690 · 69005-12691 · 69005-12700 · 69005-12701 · 69005-12710 · 69005-12711 |
| 69503A | external tooth key | 90999-00084 · 90999-00085 · 90999-00088 · 90999-00094 |
| 69511 | Front door lock cylinder fixing parts | 69511-32010 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69561 | Trunk or tailgate lock cylinder fixings | 69501-12010 · 69561-12120 · 69561-12150 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
| 69685 | Lock cylinder liner | 69513-32010 · 69563-12010 · 69563-32010 |
