Toyota COROLLA 背门锁和背门把手 — Figure 6709

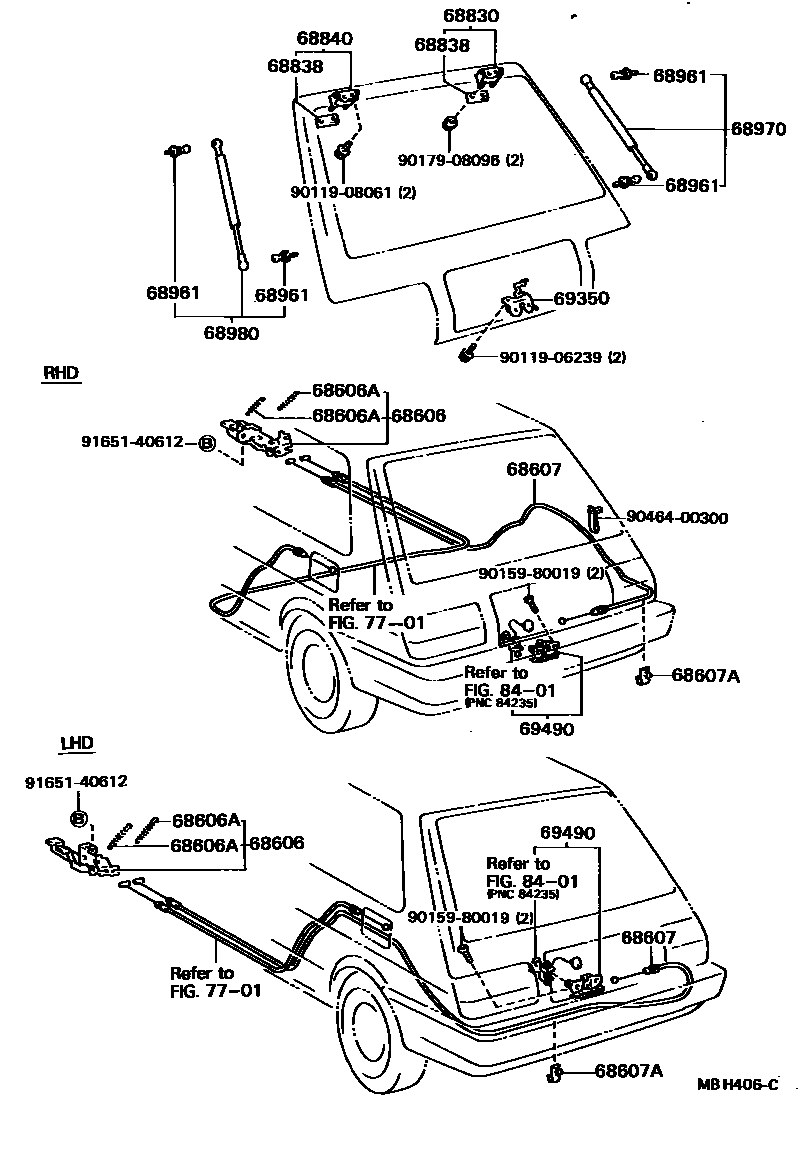

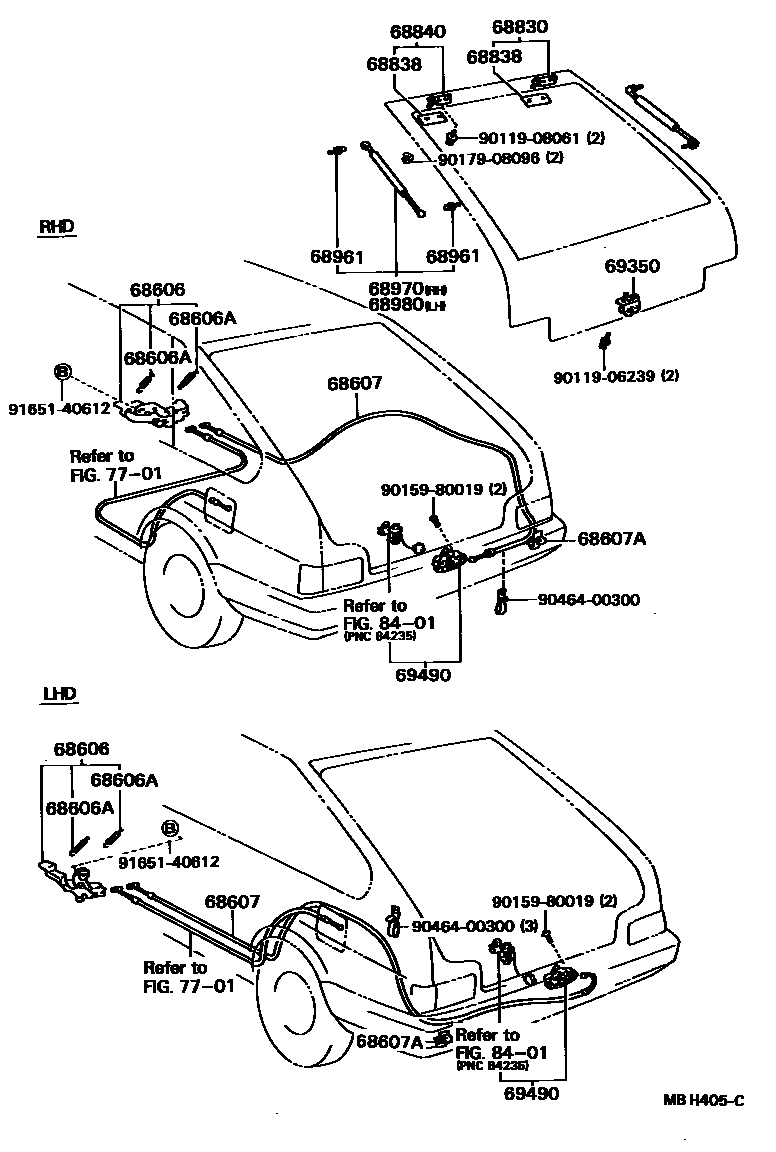

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-12050 · 64606-12060 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12170 · 64607-12180 · 64607-12280 · 64607-12290 |
| 68607A | Clip No. 1 (for rear door lock control cable) | 69749-12010 |
| 68830 | Back door right hinge assembly | 68801-12020 · 68801-20020 |
| 68838 | Back door hinge No. 1 gasket | 68838-14021 |
| 68840 | Back door left hinge assembly | 68801-12020 · 68801-20020 |
| 68961 | Rear door support rod bolts | 68961-16010 · 68961-32010 |
| 68970 | Back door right support rod assembly | 68950-19415 · 68950-19425 · 68950-19545 |
| 68980 | Back door support rod assembly | 68950-19415 · 68950-19425 · 68950-19545 |
| 69350 | Rear door lock assembly | 69350-12040 · 69350-12090 · 69350-12100 |
| 69490 | Back door lock assembly | 69430-12100 · 69430-12110 · 69430-12140 · 69430-12180 · 69430-12210 · 69430-12220 · 69430-16100 · 69430-16110 |
