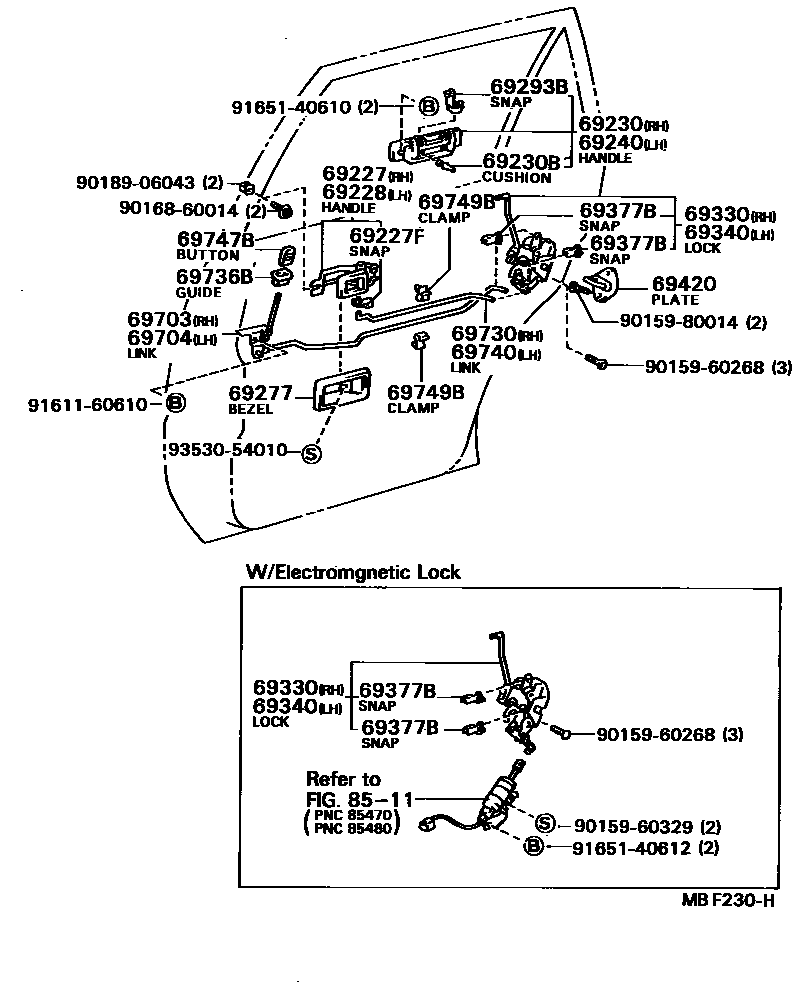

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69227F | Buckle (for rear door inner handle) | 69759-20060 · 69759-20070 |
| 69230 | Right rear door outer handle assembly | 69230-12070 · 69230-12080 · 69230-12090 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-03021 |
| 69240 | Left rear door outer handle assembly | 69240-12070 · 69240-12080 · 69240-12090 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69330 | Right rear door door lock assembly | 69330-12080 · 69330-12090 · 69330-12100 · 69330-12110 · 69330-12150 |
| 69340 | Left rear door lock assembly | 69340-12080 · 69340-12090 · 69340-12100 · 69340-12110 · 69340-12150 |
| 69377B | Rear door lock lever buckle | 69759-20040 · 69759-20050 |
| 69420 | Rear door lock plate assembly | 69410-87001 |
| 69703 | Right rear door lock control link sub-assembly | 69770-12020 · 69770-12030 |
| 69704 | Left rear door lock control link sub-assembly | 69780-12020 · 69780-12030 |
| 69730 | Right rear door opening control linkage assembly | 69713-12030 |
| 69736B | Rear door lock link guide block | 69736-12030 · 69736-22021 |
| 69740 | Left rear door opening control linkage assembly | 69714-12040 |
| 69749B | Rear door lock link clamp | 69749-20010 |
