Toyota COROLLA 前门板和前门玻璃 — Figure 6701

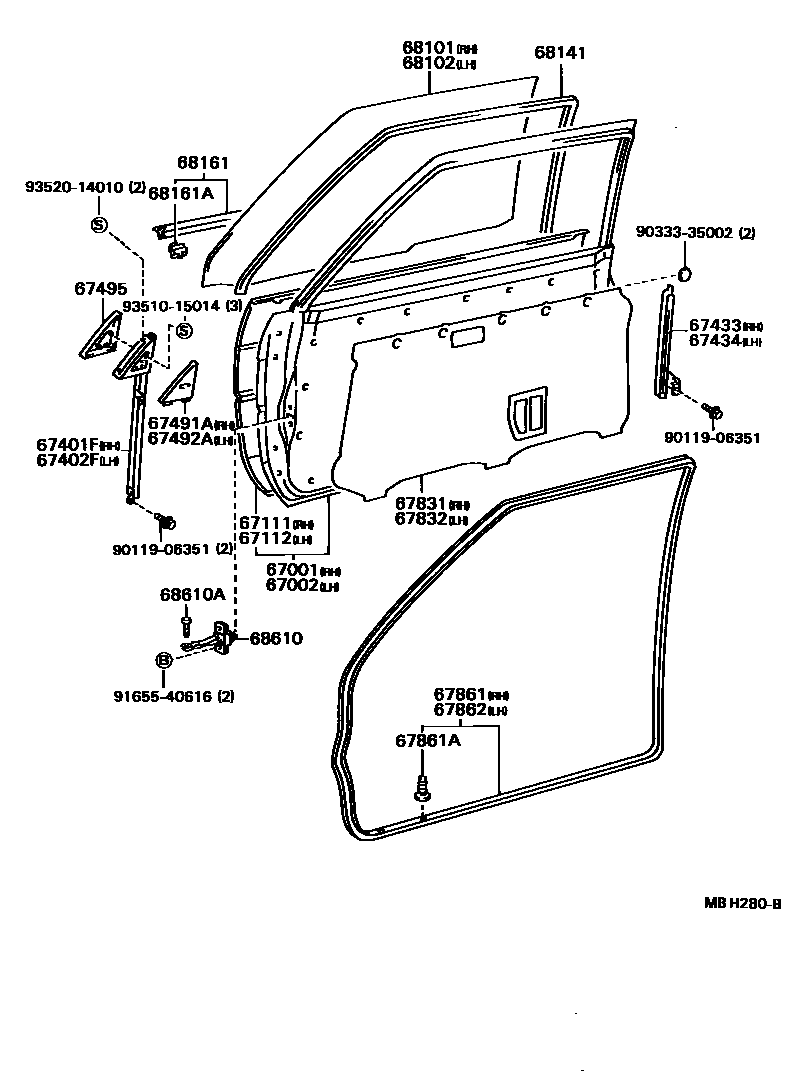

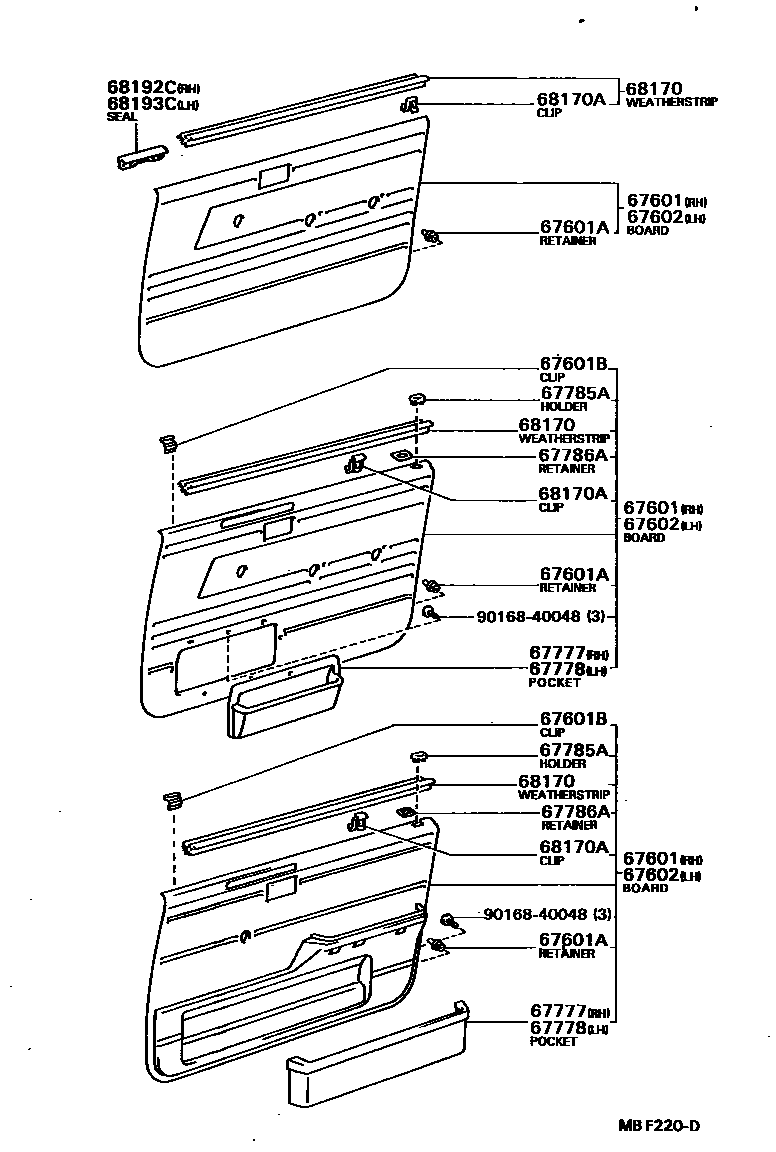

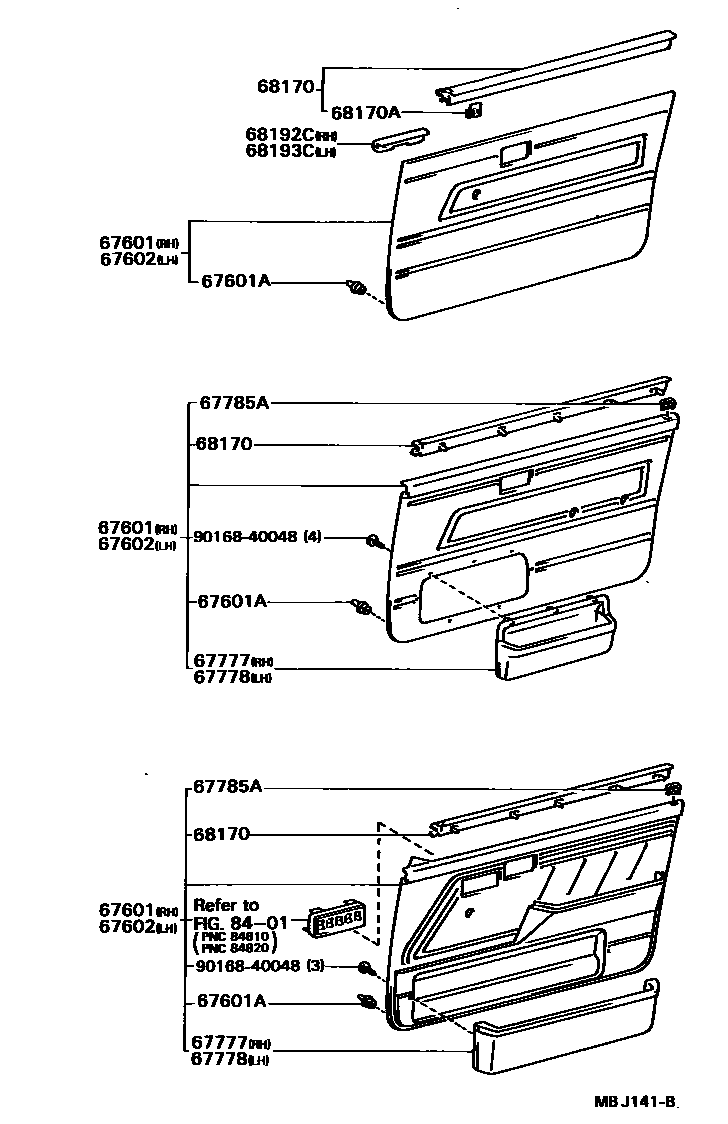

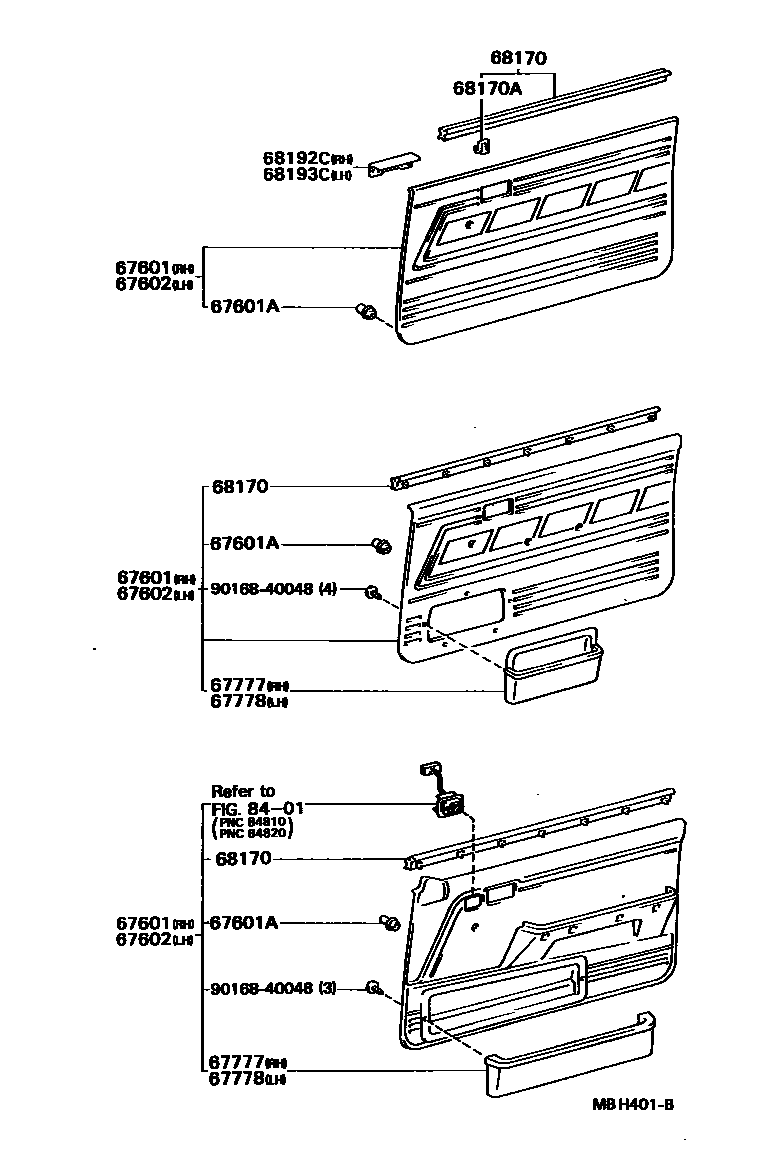

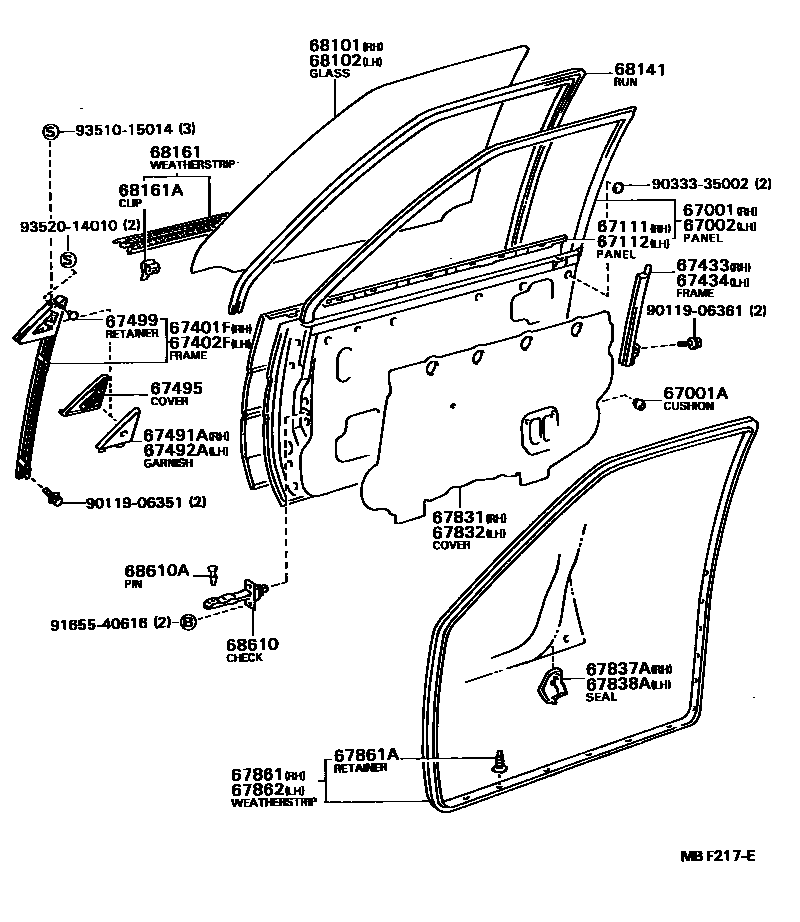

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12780 · 67001-12800 · 67001-12830 · 67001-12850 · 67001-1A080 · 67001-1A081 |
| 67001A | Front door panel cushion | 90541-09006 |
| 67002 | Left front door panel sub-assembly | 67002-12760 · 67002-12780 · 67002-12810 · 67002-12830 · 67002-1A060 · 67002-1A061 |
| 67111 | Outer right front door panel | 67111-12390 · 67111-12430 · 67111-12431 |
| 67112 | Outer left front door panel | 67112-12380 · 67112-12420 · 67112-12421 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12200 · 67401-12210 · 67401-12220 · 67401-12230 · 67401-12240 · 67401-12241 · 67401-12250 · 67401-12251 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12190 · 67402-12200 · 67402-12240 · 67402-12250 · 67402-12260 · 67402-12261 · 67402-12270 · 67402-12271 |
| 67433 | Right front door window rear lower frame | 67403-12050 · 67403-12060 |
| 67434 | Left front door window rear lower frame | 67404-12050 · 67404-12060 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12090 · 67491-12100 · 67491-12110 · 67491-12120 · 67491-12130 · 67491-12131 · 67491-12140 · 67491-12141 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12090 · 67492-12100 · 67492-12110 · 67492-12120 · 67492-12140 · 67492-12141 · 67492-12150 · 67492-12151 |
| 67495 | Front door lower door frame upper cover | 67495-12050 · 67495-12060 · 67495-12070 · 67495-12080 · 67495-12100 · 67495-12110 · 67496-12050 · 67496-12060 · 67496-12070 · 67496-12080 · 67496-12100 · 67496-12110 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-30010 |
| 67601A | Fixings (for front door trim) | 67771-12010 |
| 67601B | Catch (for front door trim panel) | 67774-10010 |
| 67786A | Door lock button collar fastener (for front doors) | 67786-12010 |
| 67831 | Right front door access hole cover | 67831-12270 · 67831-12280 · 67831-12290 · 67831-12300 · 67831-12310 |
| 67832 | Left front door access hole cover | 67831-12290 · 67831-12310 · 67832-12140 · 67832-12150 · 67832-12160 |
| 67837A | Right front door ventilator seal | 67837-12030 |
| 67838A | Left front door ventilator seal | 67838-12020 |
| 67861 | Right front door seal | 67861-12490 · 67861-12530 · 67861-12580 · 67861-12581 |
| 67861A | Fixing piece (for front door sealing strip) | 67868-30040 |
| 67862 | Left front door seal | 67862-12470 · 67862-12510 · 67862-12560 · 67862-12561 |
| 68101 | Right front door glass sub-assembly | 68111-12500 · 68111-12510 · 68111-12560 · 68111-12570 · 68111-1A210 · 68111-1A220 |
| 68102 | Left front door glass sub-assembly | 68112-12500 · 68112-12510 · 68112-12560 · 68112-12570 · 68112-1A210 · 68112-1A220 |
| 68141 | Front door glass lift chute | 68141-12190 · 68141-12210 · 68141-12240 |
| 68161 | Front door glass outer seal strip | 68160-12140 · 68160-12150 · 68160-12151 · 68210-12100 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12080 · 68211-12121 · 68211-12122 |
| 68170 | Front door glass inner sealing strip assembly | 68170-12250 · 68170-12260 · 68171-12080 · 68171-12100 · 68171-12110 · 68172-12040 · 68220-12180 |
| 68170A | Catch (for front door glass inner sealing strip assembly) | 67773-12010 · 68211-10030 |
| 68192C | Right front door beltline front seal | 68192-12020 |
| 68193C | Left front door beltline front seal | 68192-12020 |
| 68610 | Front door opening limiter assembly | 68610-12030 |
| 68610A | Pin (for front door opening limiter) | 68617-12010 · 68617-22010 · 68617-90A00 |
