Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

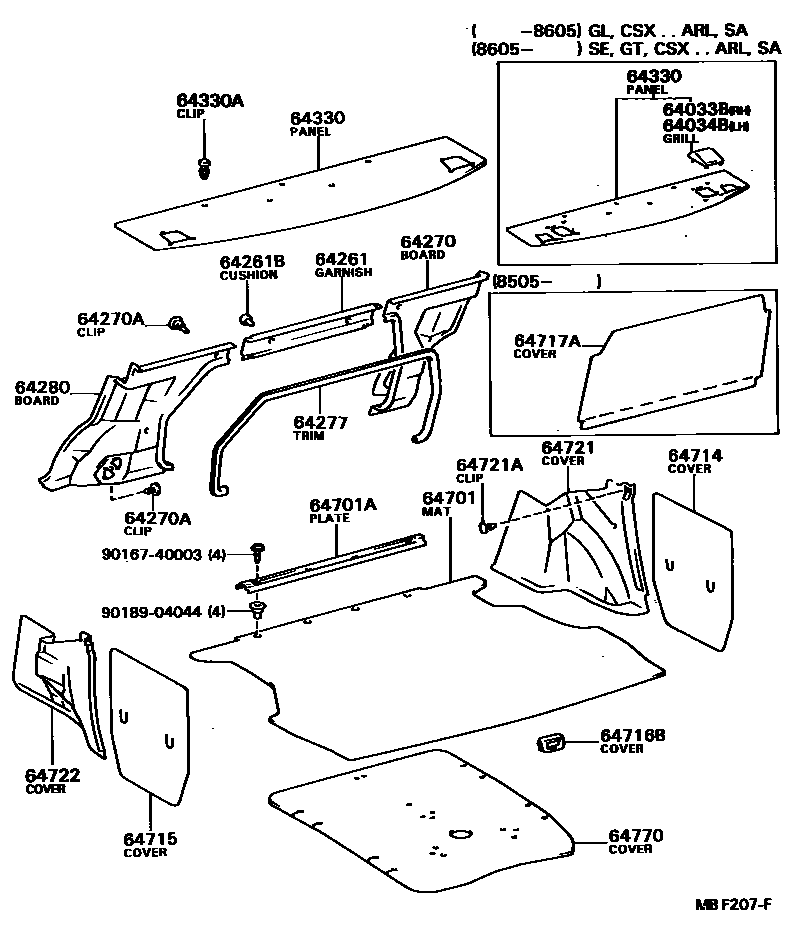

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64261B | Cushion pad (for cabin partition trim) | 90541-09010 |
| 64701 | Luggage pad assembly | 64711-12090 · 64711-12100 · 64711-12101 · 64711-12110 · 64711-12130 · 64711-12150 |
| 64701A | Suitcase fixing plate | 58573-16020 |
| 64714 | Decorative cover on right side of luggage compartment door | 64714-12090 |
| 64715 | Luggage door left decorative cover | 64714-12090 |
| 64716B | Trunk door latch cover | 64749-12040 |
| 64717A | Luggage front decorative cover | 64717-12010 |
| 64721 | Luggage trunk right inner decorative cover | 64721-12010 |
| 64722 | Luggage compartment left inner decorative cover | 64722-12020 |
| 64770 | Spare tire cover assembly | 64770-12050 · 64770-16070 |
