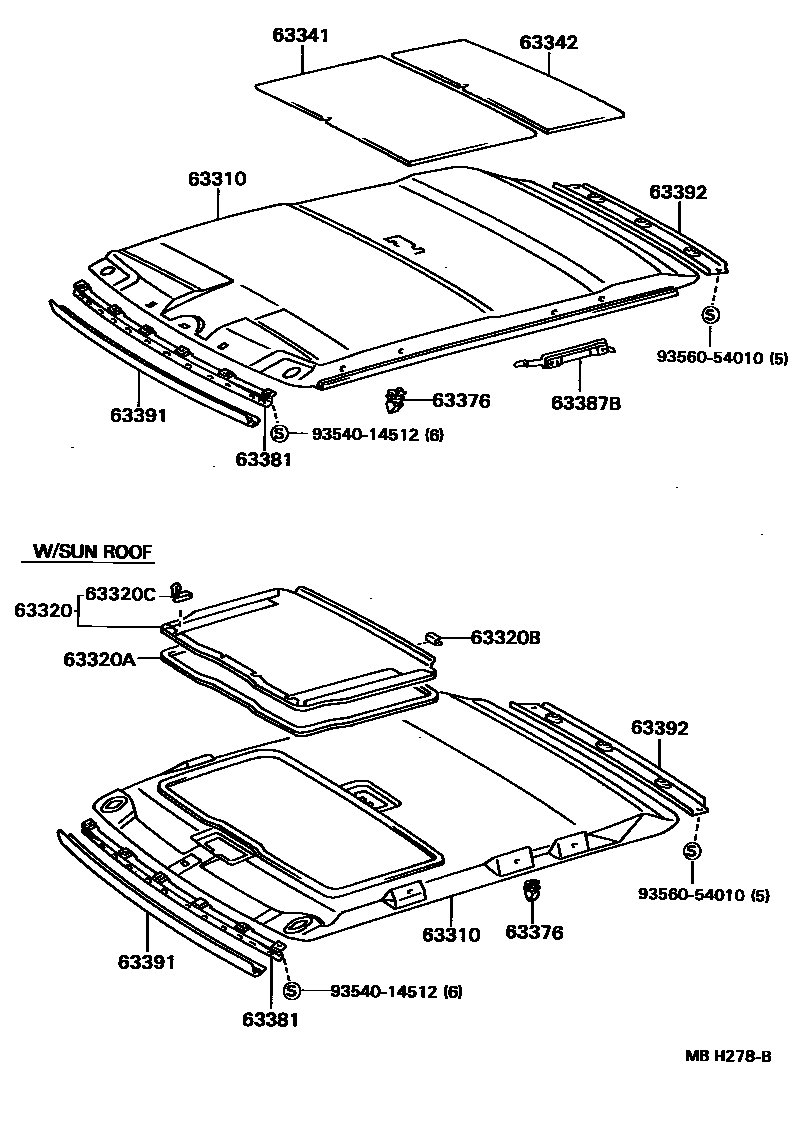

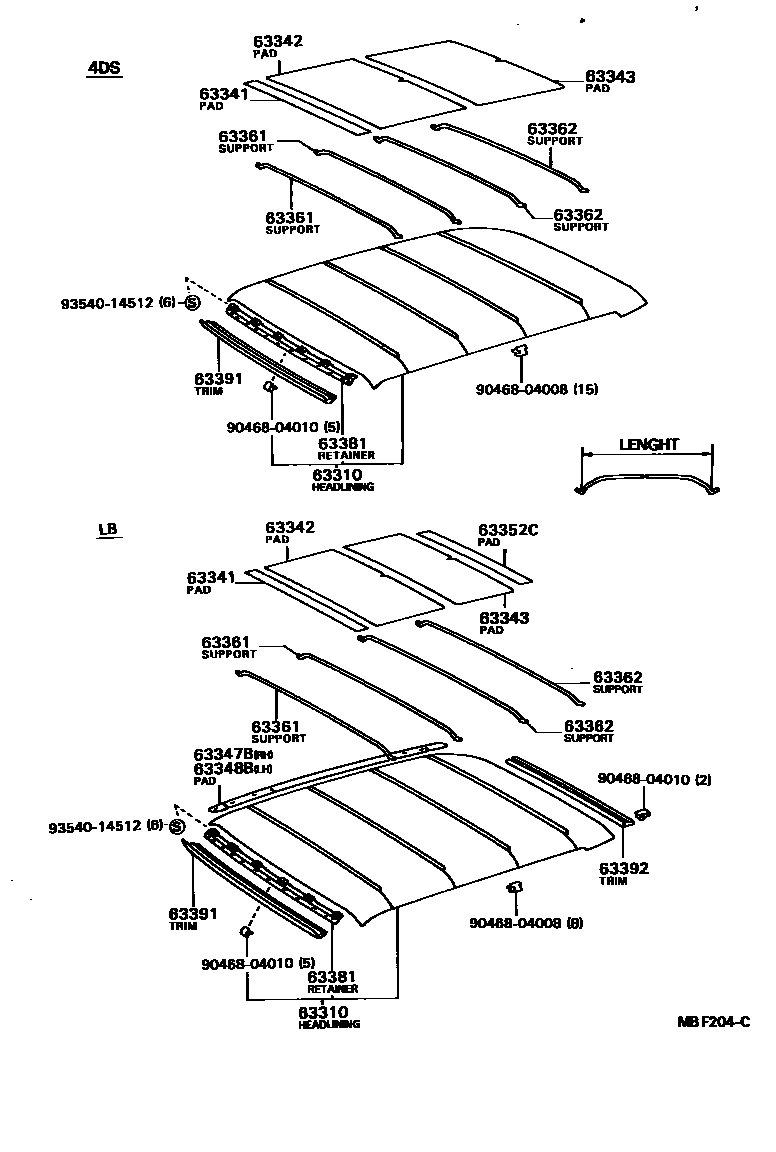

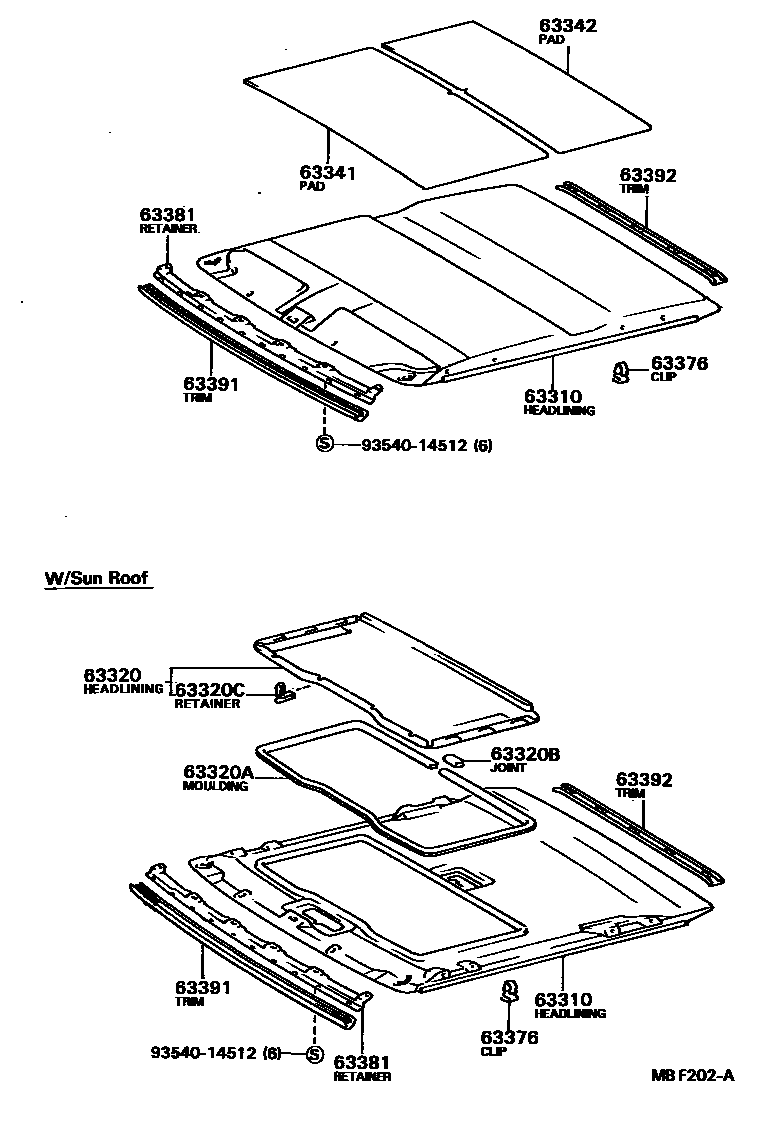

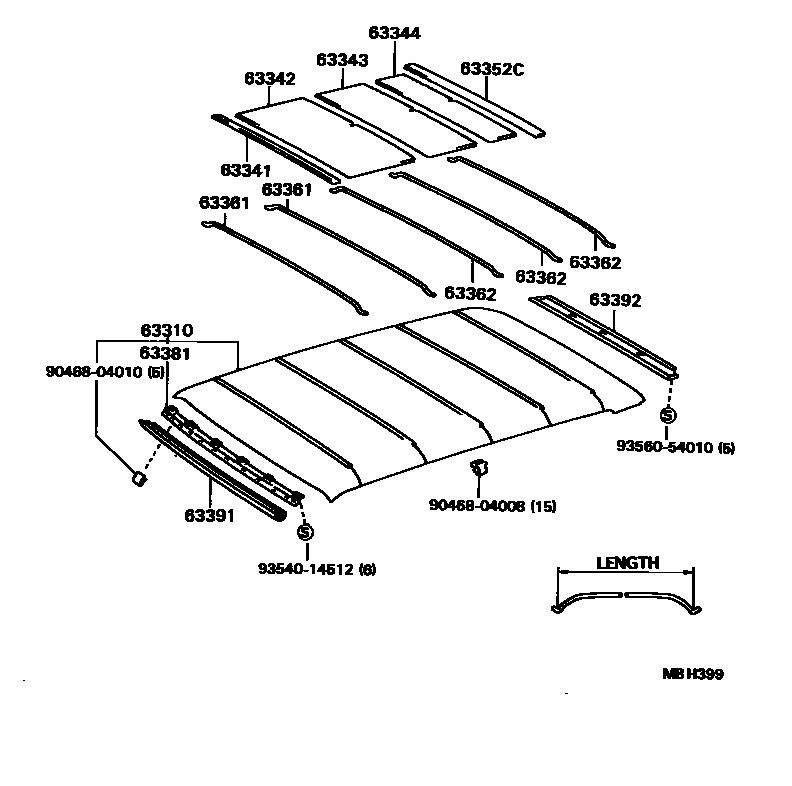

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310 | Headlining assembly | 63310-12660 · 63310-12680 · 63310-12690 · 63310-12700 |
| 63320B | Skylight opening decorative strip joint | 63319-14011 |
| 63320C | Decorative panel fixings (for skylights) | 63317-20030 |
| 63341 | No. 1 roof silencer mat | 63341-12100 · 63341-12110 |
| 63342 | No. 2 roof muffler pad | 63341-12100 · 63342-12040 · 63343-12050 · 63343-12060 |
| 63343 | No. 3 roof muffler pad | 63341-12100 · 63342-12040 |
| 63344 | No. 4 roof silencer mat | 63343-12060 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-12010 |
| 63348B | Roof left side rail silencer pad | 63347-12010 |
| 63352C | Headlining end pads | 63352-12050 · 63352-12060 |
| 63361 | Headlining bracket No. 1 | 63361-12150 · 63361-12160 · 63361-12170 · 63361-12180 |
| 63362 | Headlining bracket No. 2 | 63362-12110 · 63362-12120 · 63362-12130 · 63362-12140 |
| 63376 | Lined clips | 63395-12020 |
| 63381 | Front lining fastener | 63381-12070 · 63381-12080 · 63381-12090 · 63381-12100 |
| 63387B | Headlining fastener bracket | 63387-12010 |
