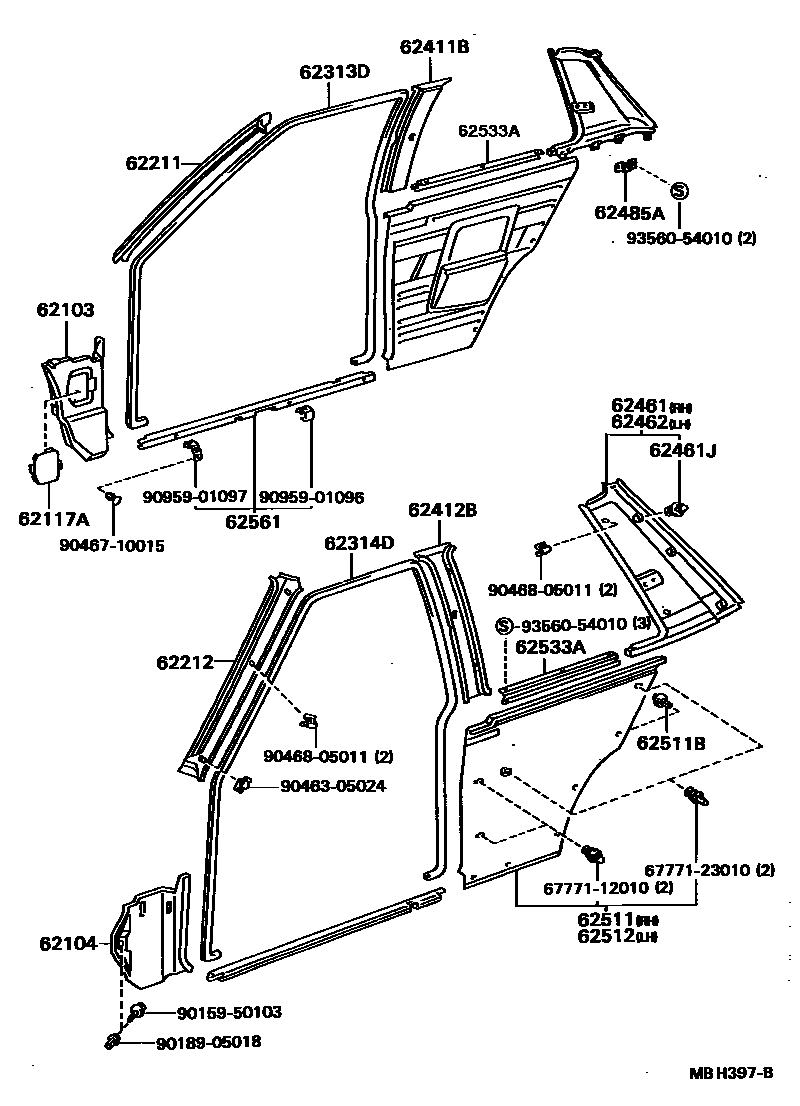

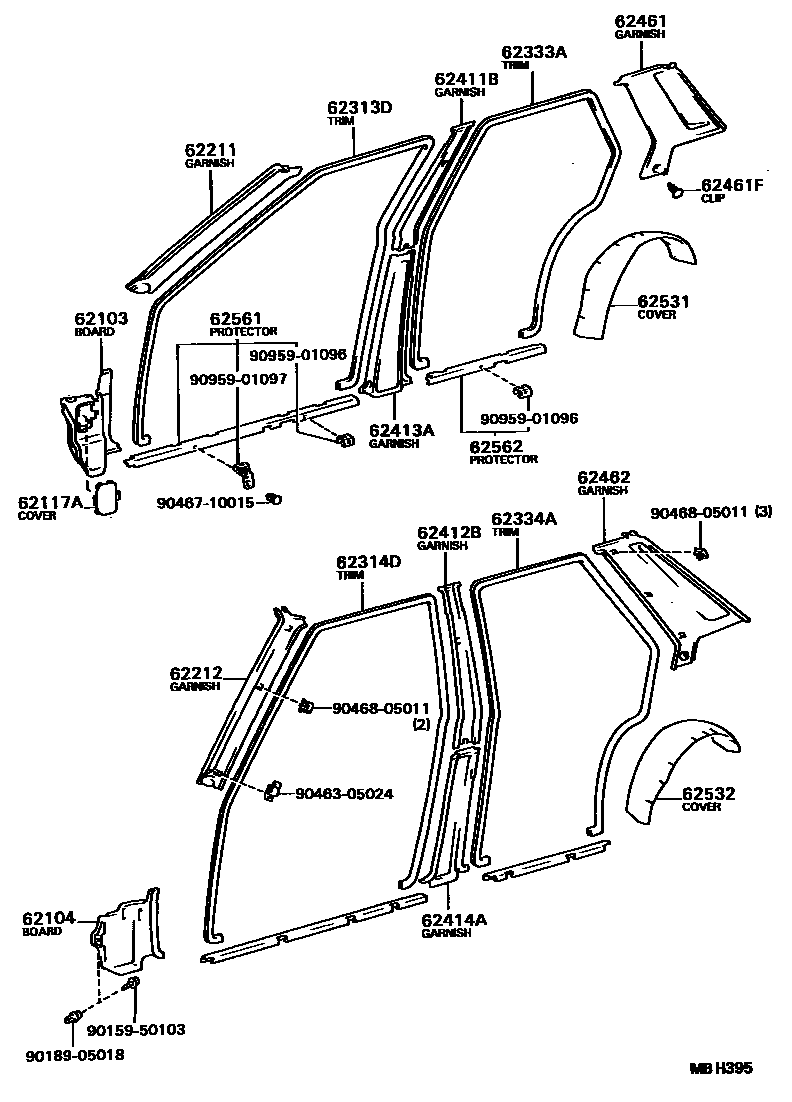

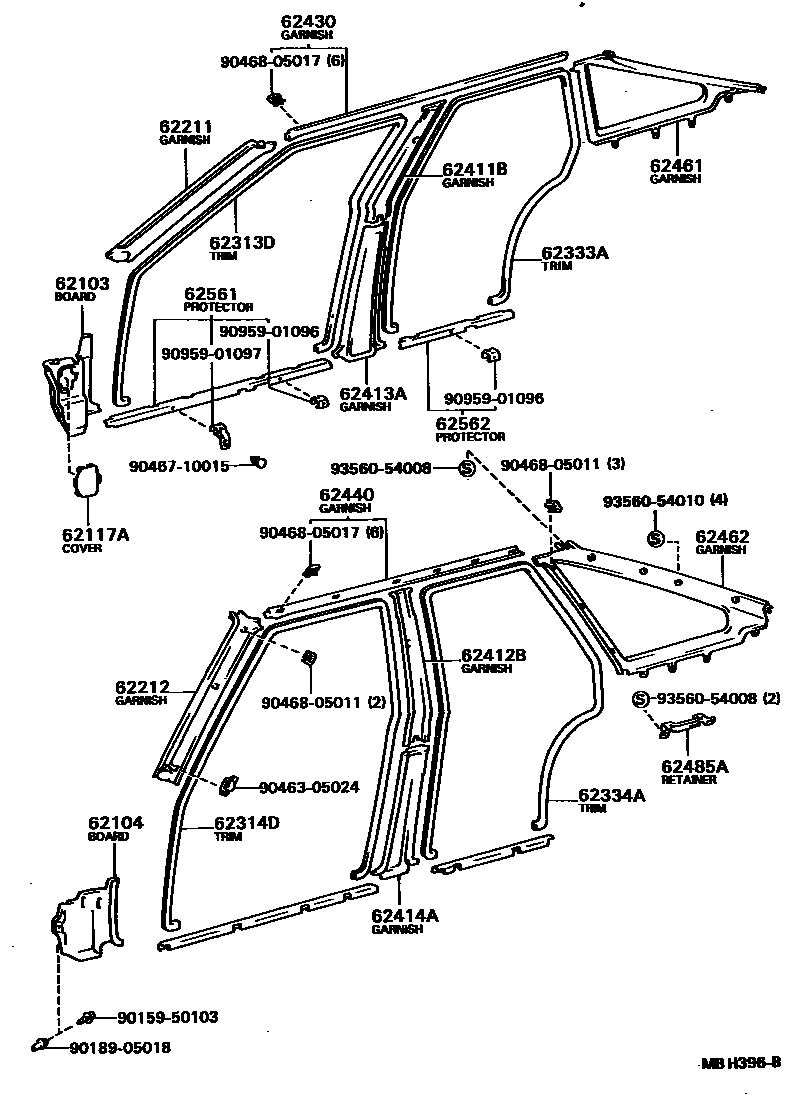

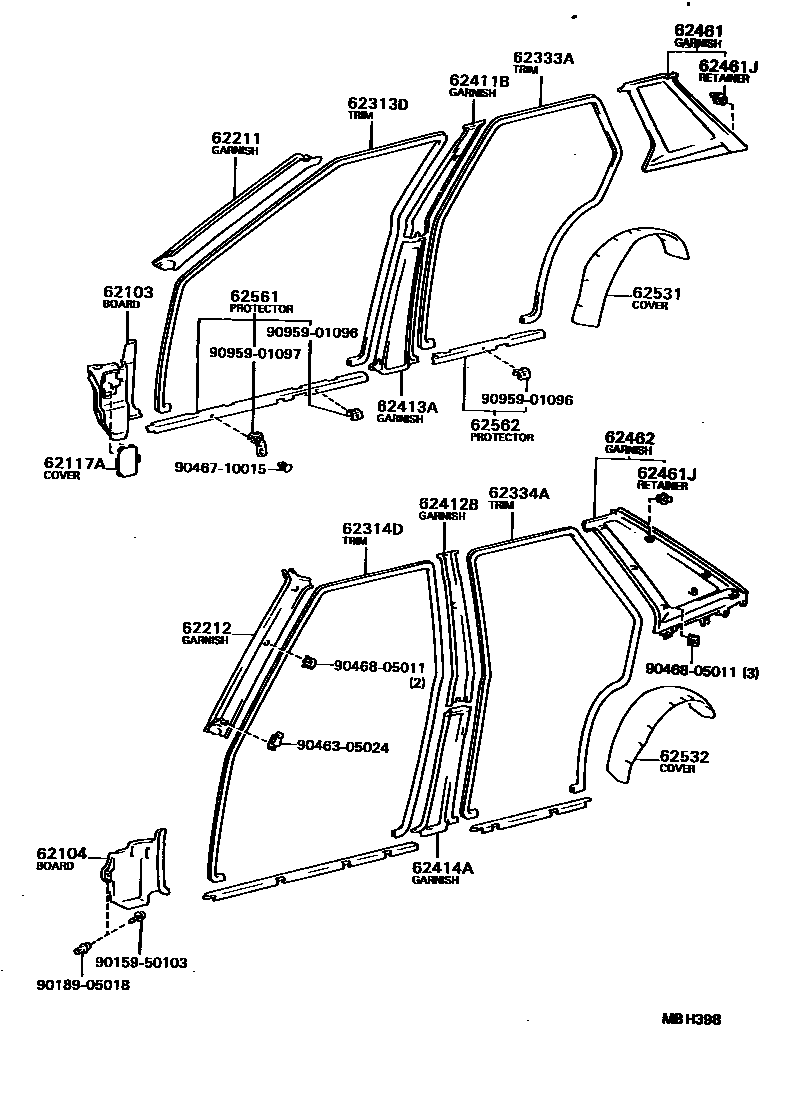

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62461J | Roof side trim trim fixings | 67771-23010 |
| 62485A | Roof side interior panel fixings | 62485-12030 · 62485-12050 |
| 62533A | Side decorative panel clip bracket | 62533-12110 |
| 62561 | Front door inner sill protection strip | 62561-12030 · 62561-12040 · 62562-12010 · 62562-12020 |
| 62562 | Rear door inner sill protection strip | 62563-12020 · 62564-12020 |
