Toyota COROLLA 侧梁 — Figure 6101

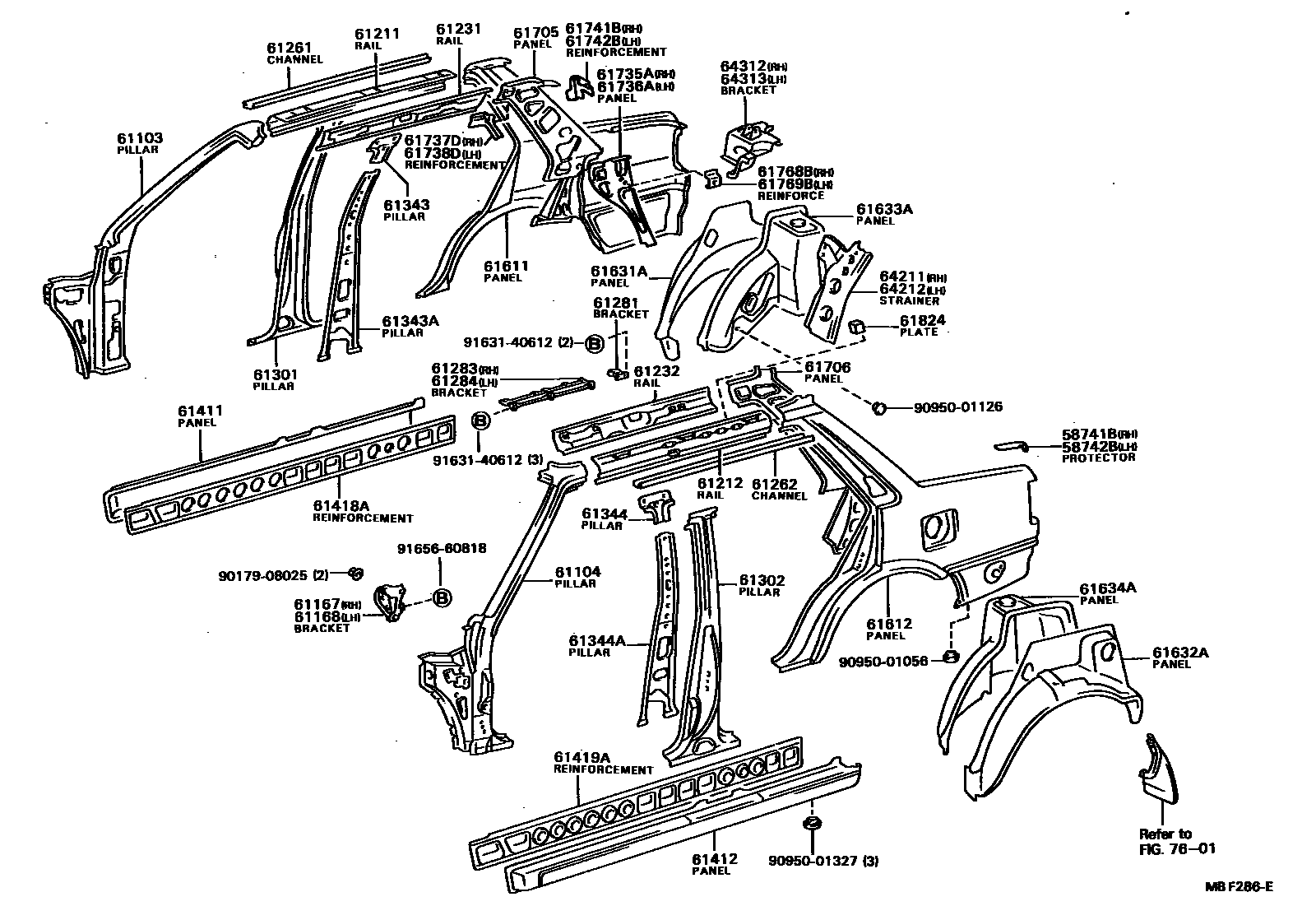

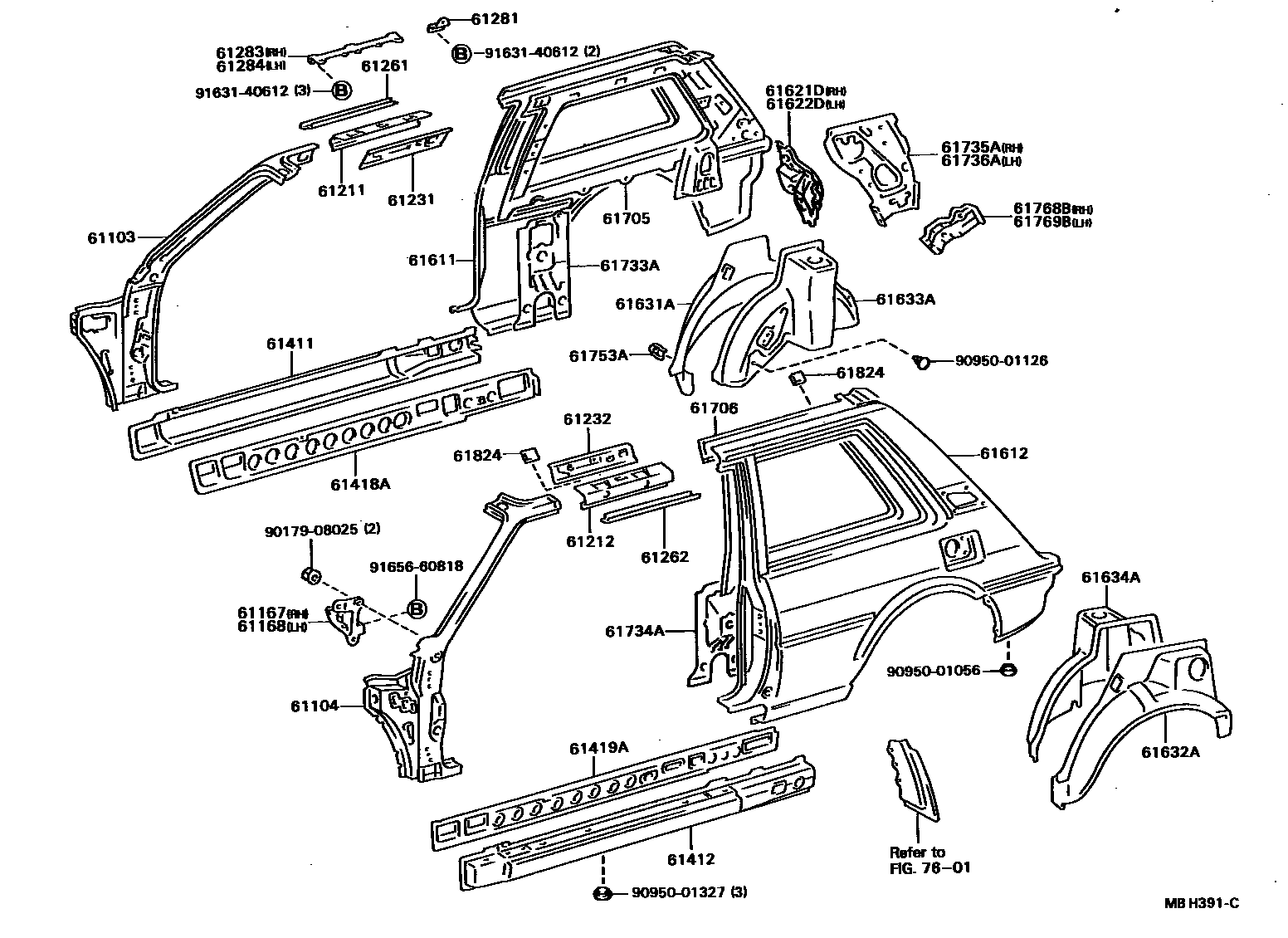

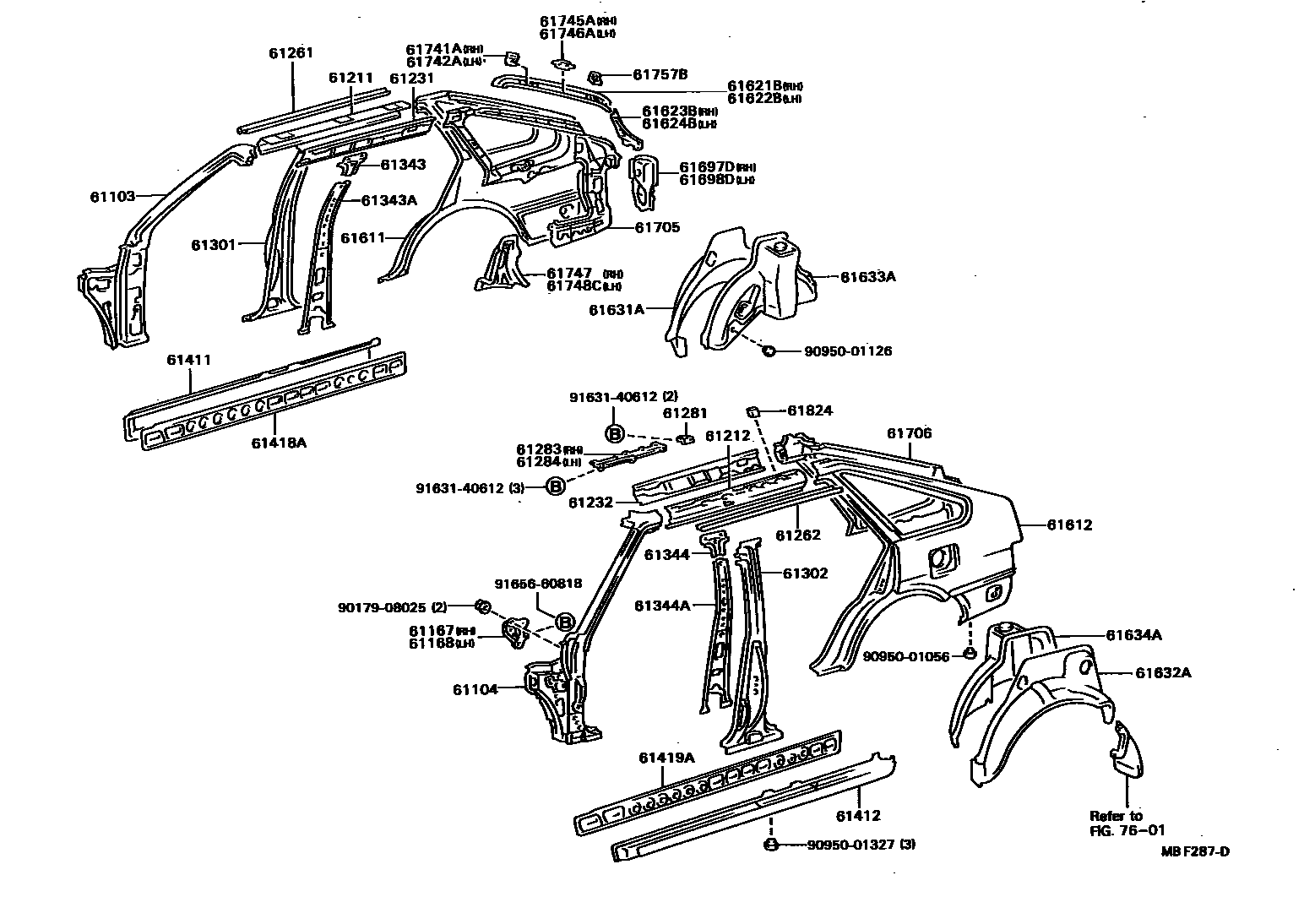

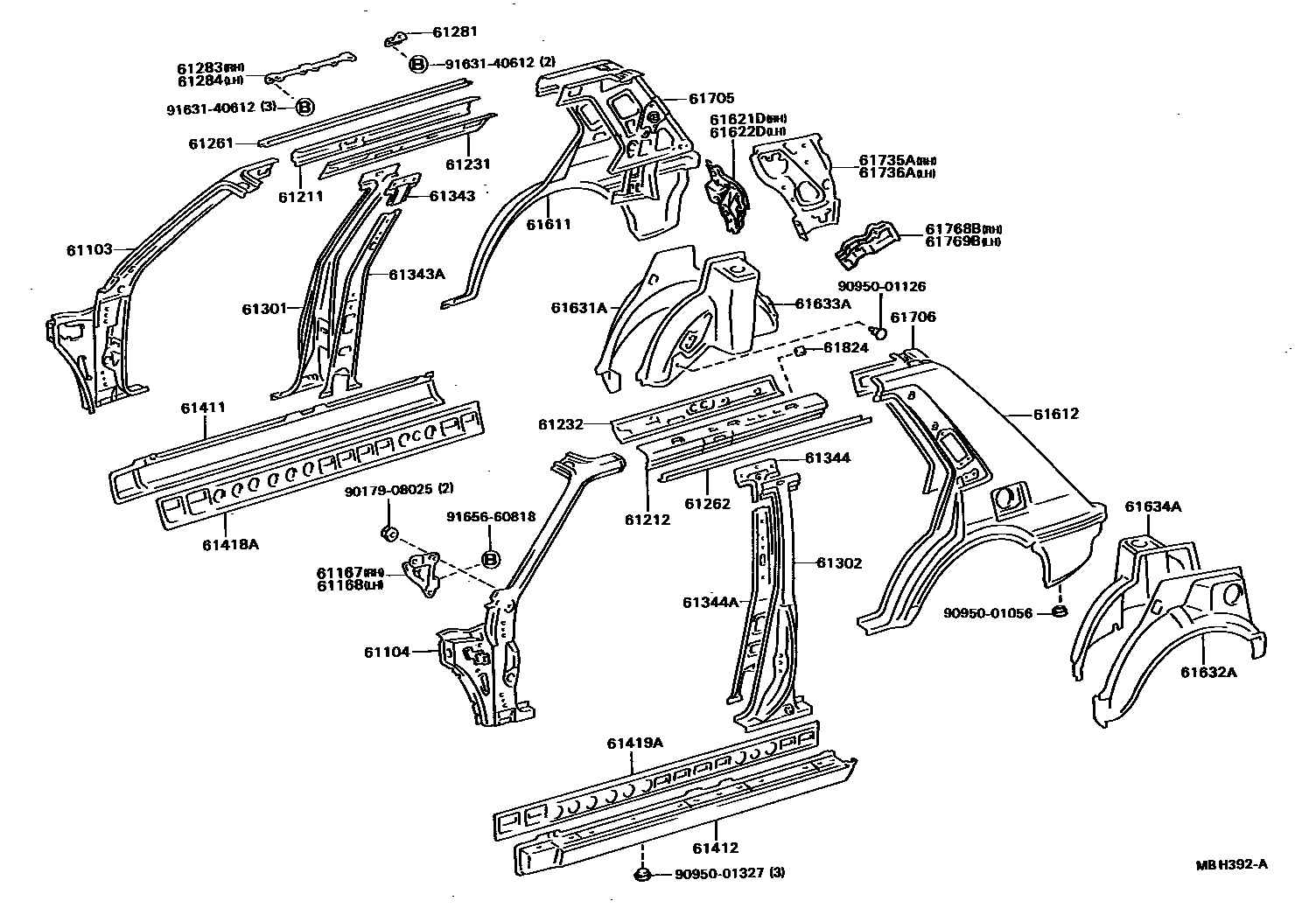

Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12020 |
| 58742B | Left side enclosure protection panel | 58742-12020 |
| 61103 | Right body front pillar sub-assembly | 61021-12390 · 61021-12400 · 61021-12410 · 61021-12440 · 61021-12450 · 61021-12460 · 61021-12470 · 61021-12480 · 61021-12540 · 61021-12550 · 61021-12720 · 61021-12730 |
| 61104 | Left body front pillar sub-assembly | 61022-12450 · 61022-12460 · 61022-12470 · 61022-12490 · 61022-12500 · 61022-12510 · 61022-12520 · 61022-12530 · 61022-12540 · 61022-12560 · 61022-12570 · 61022-12580 · 61022-12590 · 61022-12600 · 61022-12730 · 61022-12740 |
| 61167 | Dashboard to right front wall side bracket | 61035-12030 |
| 61168 | Dashboard to left front wall side bracket | 61036-12030 |
| 61211 | Roof right outer longitudinal beam | 61211-12190 · 61211-12200 · 61211-12210 |
| 61212 | Roof left outer longitudinal beam | 61212-12190 · 61212-12200 · 61212-12210 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12330 · 61231-12340 · 61231-12350 · 61231-12360 · 61231-12370 · 61231-12380 · 61231-12390 · 61231-12400 · 61231-12570 |
| 61232 | Roof left inner longitudinal beam | 61232-12230 · 61232-12240 · 61232-12250 · 61232-12260 · 61232-12270 · 61232-12280 · 61232-12290 · 61232-12300 · 61232-12420 |
| 61261 | Drainage channel on the right side of the roof | 61265-12060 · 61265-12080 · 61265-12090 · 61265-12100 |
| 61262 | Drainage channel on the left side of the roof | 61266-12060 · 61266-12080 · 61266-12090 · 61266-12100 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-12020 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-12020 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-12020 |
| 61301 | Right body center pillar sub-assembly | 61301-12150 |
| 61302 | Left body center pillar sub-assembly | 61302-12180 · 61302-12190 · 61302-12200 · 61302-12210 |
| 61343 | Right inner middle pillar | 61341-12060 |
| 61343A | Right body inner center pillar | 61343-12900 · 61343-12901 |
| 61344 | Left side inner center pillar | 61342-12060 |
| 61344A | Left body inner center pillar | 61344-12900 · 61344-12901 |
| 61411 | Right door outer sill panel | 61411-12290 · 61411-12320 · 61411-12330 |
| 61412 | Left door outer sill panel | 61412-12290 · 61412-12310 · 61412-12320 |
| 61418A | Right side door sill panel reinforcement | 61418-12070 · 61418-12090 |
| 61419A | Left side rocker panel reinforcement | 61419-12070 · 61419-12090 |
| 61611 | Right side hoarding | 61601-12905 · 61601-12906 · 61601-12907 · 61601-12908 · 61601-12910 · 61601-12911 · 61601-12912 · 61601-12913 · 61601-12914 · 61601-1A780 · 61601-1A790 · 61601-1A800 · 61601-1A810 · 61601-1A830 · 61601-1A840 · 61601-1A850 · 61601-1E120 |
| 61612 | left side panel | 61602-12905 · 61602-12906 · 61602-12907 · 61602-12908 · 61602-12909 · 61602-12911 · 61602-12912 · 61602-12913 · 61602-12914 · 61602-12915 · 61602-12916 · 61602-12917 · 61602-12918 · 61602-12919 · 61602-12920 · 61602-12922 · 61602-1A360 · 61602-1A370 · 61602-1A380 · 61602-1A390 · 61602-1A410 · 61602-1A420 · 61602-1A430 · 61602-1A460 · 61602-1A470 · 61602-1A480 · 61602-1A490 · 61602-1A500 · 61602-1A520 · 61602-1A530 · 61602-1A680 |
| 61621B | Back door right front opening slot | 61621-12250 |
| 61621D | Back door right opening slot | 61621-12900 |
| 61622B | Back door left front opening slot | 61622-12250 |
| 61622D | Rear door left opening slot | 61622-12900 |
| 61623B | Back door right rear opening slot | 61623-12050 |
| 61624B | Back door left rear opening slot | 61624-12050 |
| 61631A | Right wheel cover outer panel | 61631-12160 · 61631-12170 · 61631-12180 |
| 61632A | Left side wheel cover outer panel | 61632-12160 · 61632-12170 · 61632-12180 |
| 61633A | Right wheel housing lining panel | 61607-12900 · 61607-12901 · 61607-12902 |
| 61634A | Left side wheel housing lining panel | 61608-12900 · 61608-12901 · 61608-12902 |
| 61697D | Right side enclosure end cover | 61697-12030 |
| 61698D | Left side enclosure end cover | 61698-12030 |
| 61705 | Roof right inner panel sub-assembly | 61705-12939 · 61705-12941 · 61705-12943 · 61705-12944 · 61705-12947 · 61705-12948 |
| 61706 | Roof left inner panel sub-assembly | 61706-12941 · 61706-12943 · 61706-12945 · 61706-12946 · 61706-12952 · 61706-12953 |
| 61733A | Right front roof inner panel | 61733-12110 |
| 61734A | Left front roof inner panel | 61734-12110 |
| 61735A | Right rear roof inner panel | 61735-12190 · 61735-12220 · 61735-12230 |
| 61736A | Left rear roof inner panel | 61736-12160 · 61736-12190 · 61736-12200 |
| 61737D | Roof right inner reinforcement | 61737-12080 |
| 61738D | Roof left inner reinforcement | 61738-12090 |
| 61741A | Rear door opening upper right reinforcement | 61741-12040 |
| 61741B | Rear window opening right reinforcement | 61741-12060 |
| 61742A | Rear door opening upper left reinforcement | 61741-12040 |
| 61742B | Rear window opening left reinforcement | 61742-12040 |
| 61745A | Back door opening lower right reinforcement | 61745-32010 |
| 61746A | Rear door opening lower left reinforcement | 61745-32010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12070 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12070 |
| 61753A | Side panel lower fixings | 61753-16010 |
| 61757B | Decoration fixings for lower side of floor panel | 61757-32010 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-12090 · 61768-12110 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-12060 · 61769-12080 |
| 61824 | Noise Control Panel No. 1 | 61824-12010 |
| 64211 | Glove box to floor right filter | 64211-12060 |
| 64212 | Glove box to floor left filter | 64212-12060 |
| 64312 | Glove box right bracket | 64312-12900 |
| 64313 | Glove box left bracket | 64313-12900 |
