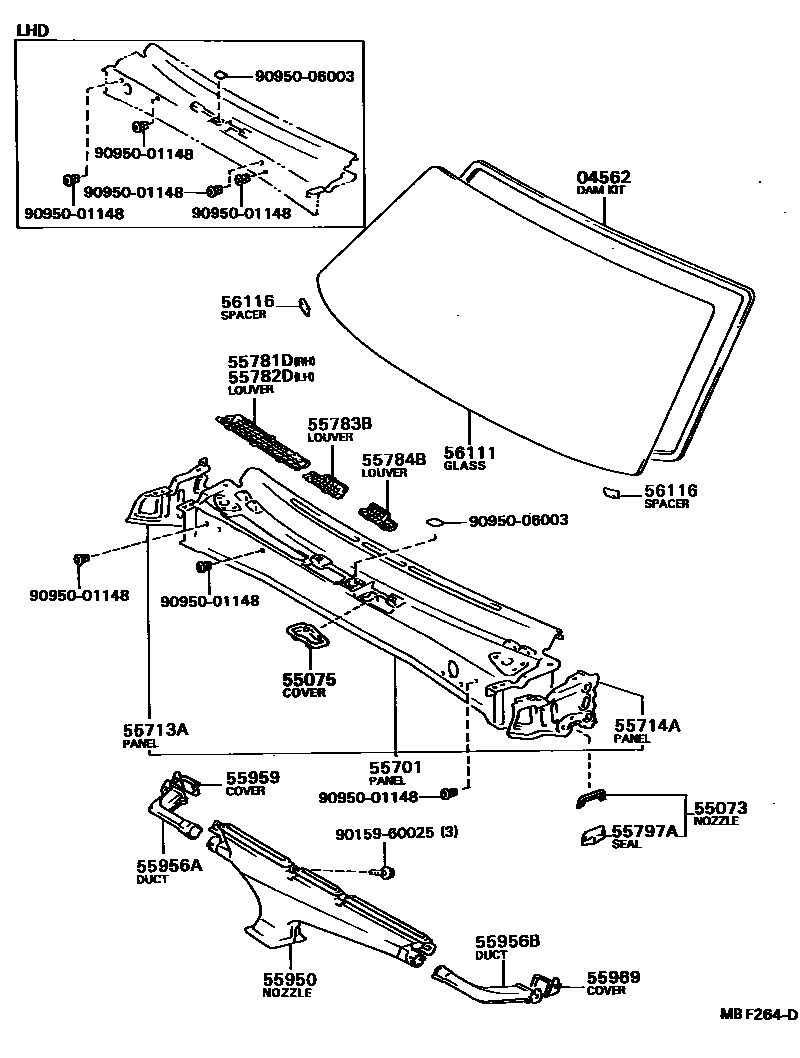

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30030 · 04562-30040 |
| 55073 | Front wall water pumping nozzle sub-assembly | 55073-20020 |
| 55075 | Heater air duct hole cover sub-assembly | 55077-12060 · 55077-12070 |
| 55701 | Front apron sub-assembly | 55700-12270 · 55700-12280 · 55700-12290 · 55700-12300 · 55700-12340 · 55700-12350 · 55700-12360 · 55700-12370 · 55700-12380 |
| 55713A | Right front wall upper side panel | 55713-12060 |
| 55714A | Left front wall upper side panel | 55714-12060 |
| 55781D | Ventilation grille on right front apron | 55781-12130 |
| 55782D | Ventilation grille on left front apron | 55782-12020 · 55782-12050 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-12160 · 55783-12190 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-12030 · 55784-12060 |
| 55797A | Front wall pumping device seal | 55797-20030 |
| 55950 | Defroster nozzle assembly | 55950-12060 · 55950-12070 |
| 55956A | Side defroster No. 1 nozzle air duct | 55970-12040 |
| 55956B | Side defroster No. 2 nozzle air duct | 55980-12030 |
| 55959 | Defroster No. 1 nozzle opening cover | 55959-12020 |
| 55969 | Defroster No. 2 nozzle opening cover | 55969-12020 |
| 56111 | windshield | 56111-12530 · 56111-12540 · 56111-12550 · 56111-12560 · 56111-12580 · 56111-12590 · 56111-12600 · 56111-12610 · 56111-12680 · 56111-12690 · 56111-12740 · 56111-12750 |
| 56116 | windshield spacer | 56116-24010 |
