Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

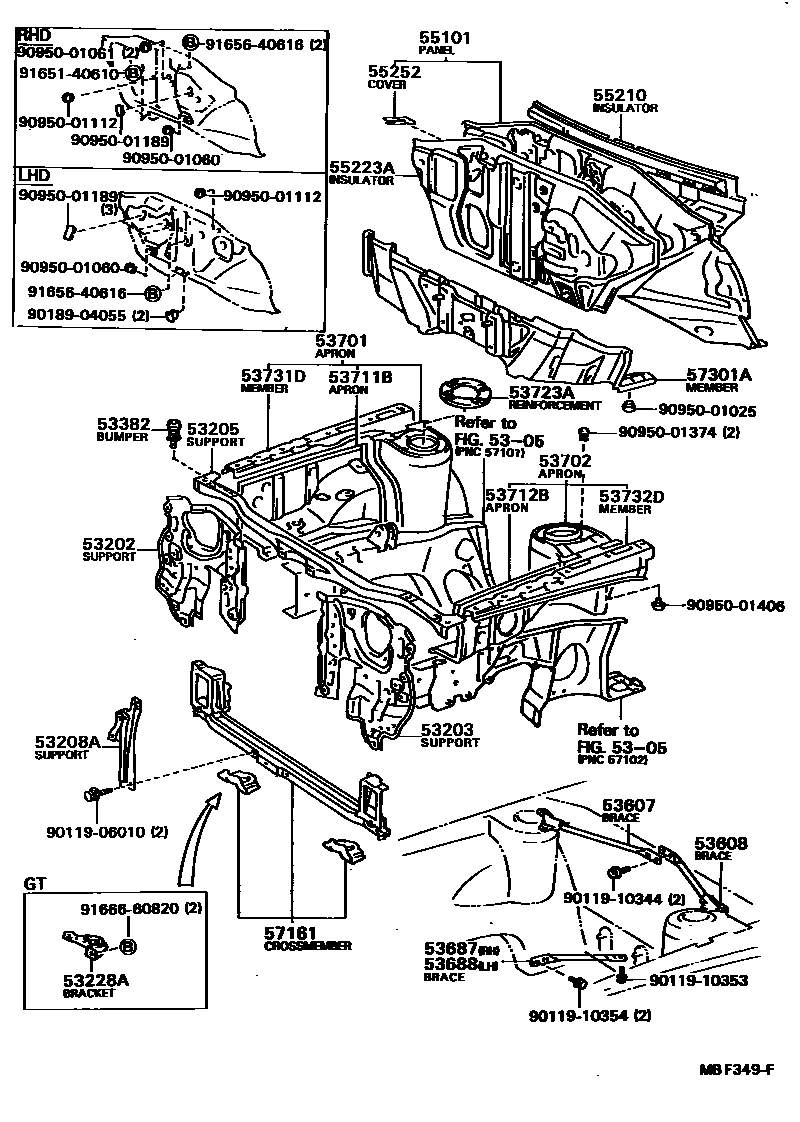

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53211-12230 · 53211-12231 · 53211-12240 · 53211-12241 · 53211-12250 · 53211-12251 · 53211-12300 |
| 53203 | Radiator left bracket sub-assembly | 53203-12210 · 53203-12220 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12905 · 53216-12907 · 53216-12908 · 53216-12911 · 53216-12912 · 53216-12915 · 53216-12916 · 53216-12917 · 53216-12918 · 53216-12919 · 53216-12920 · 53216-12921 · 53216-12923 · 53216-12925 · 53216-12926 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12250 · 53208-12310 · 53208-12320 · 53208-12330 |
| 53228A | Radiator No. 1 lower mounting bracket | 53228-12070 |
| 53382 | Engine cover front buffer block | 53382-12050 |
| 53607 | Front suspension upper side to right front wall bracket sub-assembly | 53607-12010 |
| 53608 | Front suspension upper side to left front wall bracket sub-assembly | 53608-12010 |
| 53687 | Right side bracket (underside of front suspension to steering beam) | 53687-12010 · 53687-12020 |
| 53688 | Left side bracket (underside of front suspension to steering beam) | 53688-12010 |
| 53701 | Right front fender fender sub-assembly | 53701-12770 · 53701-12820 |
| 53702 | Left front fender fender sub-assembly | 53702-12760 · 53702-12820 |
| 53711B | Right front fender front fender | 53711-12180 |
| 53712B | Left front fender front fender | 53712-12160 |
| 53723A | Front spring bracket right side reinforcement | 53723-20020 |
| 53731D | Right front fender to cowl side upper beam | 53731-12110 · 53731-12111 |
| 53732D | Left front fender to cowl side upper beam | 53732-12100 · 53732-12101 |
| 55101 | Front apron sub-assembly | 55101-12590 · 55101-12591 · 55101-12601 · 55101-12611 · 55101-12621 · 55101-12631 · 55101-12641 · 55101-12650 · 55101-12651 · 55101-12661 · 55101-12670 · 55101-12681 · 55101-12691 · 55101-12720 · 55101-12770 · 55101-12781 · 55101-12801 · 55101-12810 · 55101-12811 · 55101-12821 · 55101-12890 · 55101-12891 · 55101-1A010 · 55101-1A011 · 55101-1A020 · 55101-1A021 · 55101-1A040 · 55101-1A050 |
| 55210 | Front wall insulation pad assembly | 55210-12250 · 55210-12260 · 55210-12320 · 55210-12330 |
| 55223A | Front wall outer heat insulation pad | 55223-12020 · 55223-12030 |
| 55252 | Front panel hole cover | 55129-16010 |
| 57161 | front cross member | 57104-12900 · 57104-12901 · 57161-12906 · 57161-12907 · 57161-12908 · 57161-12909 · 57161-12910 · 57161-20903 |
| 57301A | Steering housing support beam sub-assembly | 57301-12010 · 57301-12020 · 57301-12030 · 57301-12040 · 57301-12041 · 57301-12050 · 57301-12051 |
