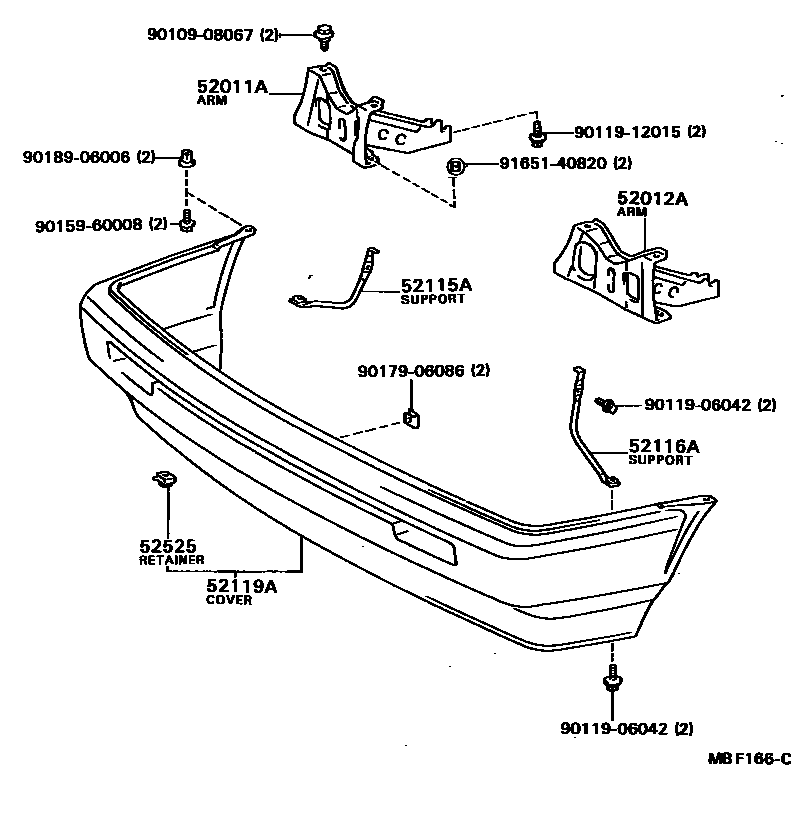

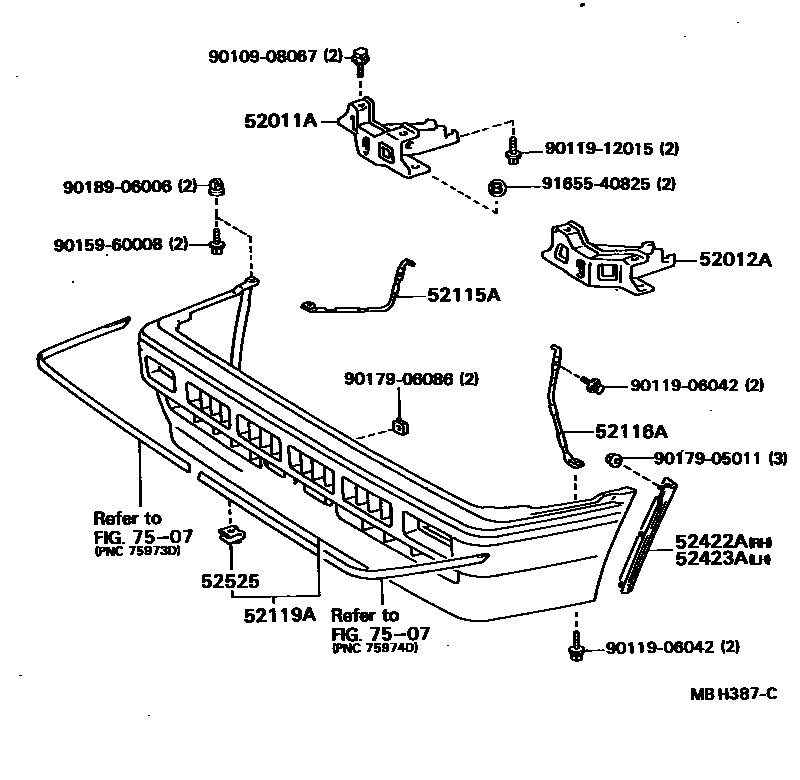

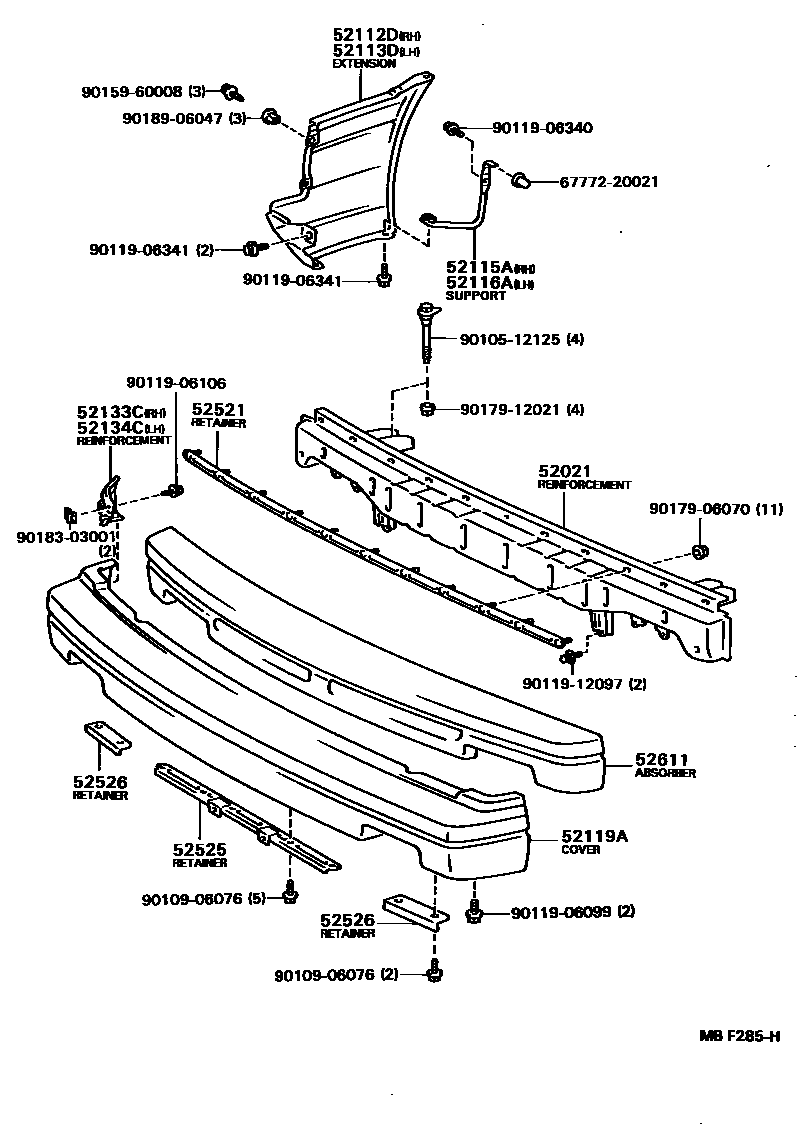

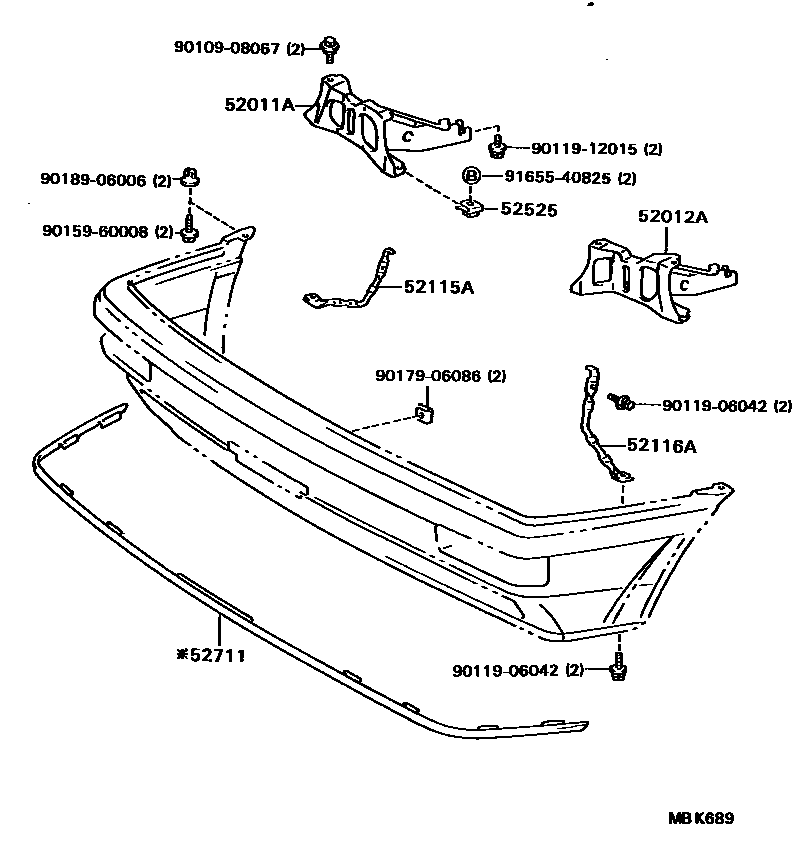

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-12250 · 52011-12310 · 52011-12330 |
| 52012A | Front bumper left arm sub-assembly | 52012-12250 · 52012-12310 · 52012-12340 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-12110 · 52021-12140 |
| 52112D | Front bumper right extension | 52112-12110 · 52112-12170 |
| 52113D | Front bumper left extension | 52113-12110 · 52113-12170 |
| 52115A | Front bumper right side bracket | 52115-12180 · 52115-12200 · 52115-12220 · 52115-12230 |
| 52116A | Front bumper left bracket | 52116-12130 · 52116-12150 · 52116-12170 · 52116-12180 |
| 52119A | front bumper cover | 52119-12180 · 52119-12181 · 52119-12190 · 52119-12191 · 52119-12240 · 52119-12380 · 52119-12410 · 52119-12750 · 52119-12902 |
| 52133C | Front bumper right reinforcement | 52133-12070 |
| 52134C | Front bumper left reinforcement | 52134-12030 |
| 52422A | Front bumper right side lining | 52422-12050 · 52422-12070 |
| 52423A | Front bumper left lining | 52423-12040 · 52423-12060 |
| 52521 | Front bumper upper center fixing bracket | 52521-12050 |
| 52525 | Front bumper lower center fixing bracket | 52506-12020 · 52506-12021 · 52506-12040 · 52565-12040 |
| 52526 | Front bumper lower side fixing bracket | 52526-12010 |
| 52611 | front bumper energy absorber | 52611-12100 |
| 52711 | Front bumper protection strip | 52711-12070 |
