Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 3 images and 11 PNC and OE references.

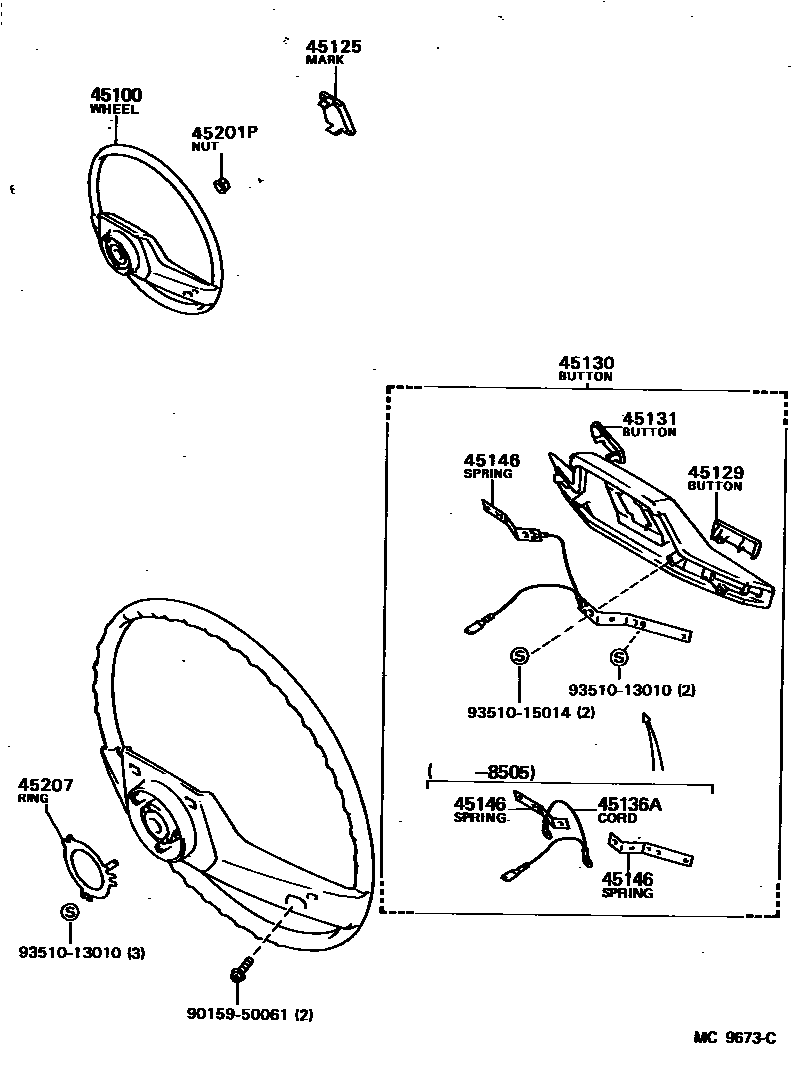

Toyota COROLLA Steering Wheel EPC diagram — MC9673C
Steering Wheel — MC9673C (198305 – 999999)
Toyota COROLLA Steering Wheel EPC diagram — MC9674D
Steering Wheel — MC9674D (198305 – 999999)

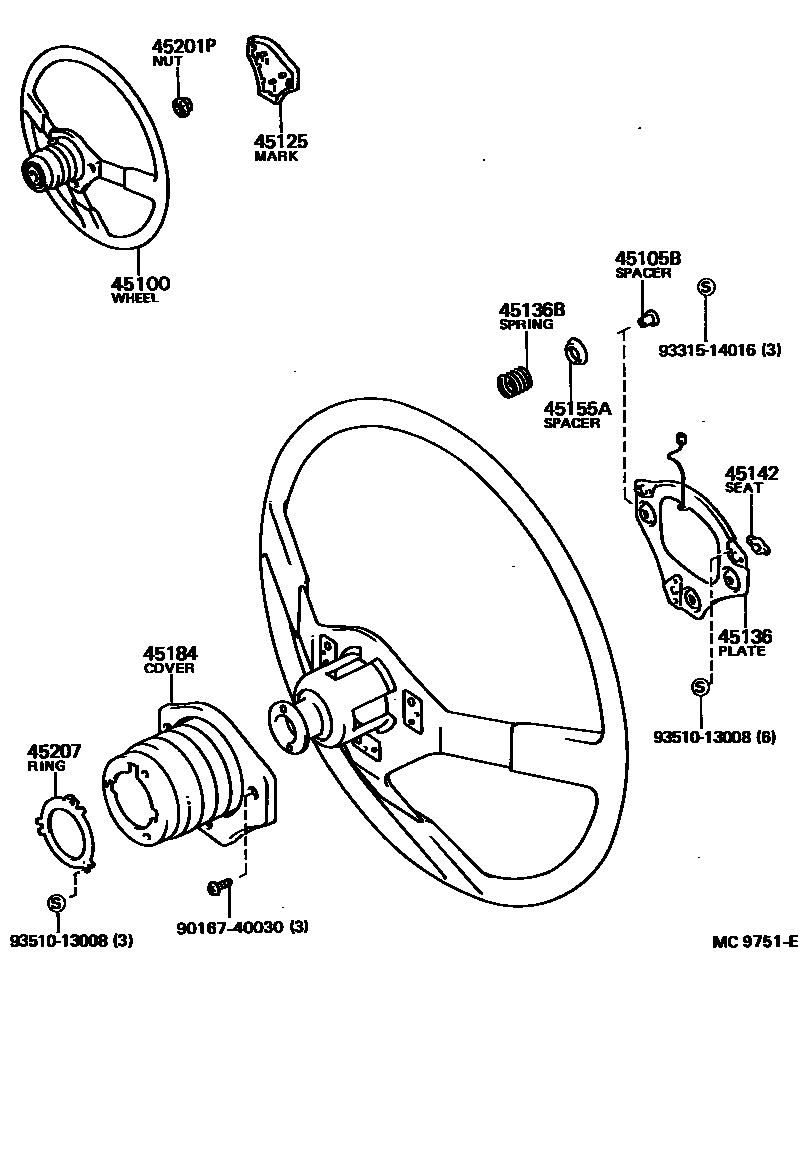

Toyota COROLLA Steering Wheel EPC diagram — MC9751E
Steering Wheel — MC9751E (198402 – 999999)

PNC and OE references

PNCPart nameOE numbers
45100Steering wheel assembly45100-12450
45105BSpacer (for horn button contact piece)90561-04010
45125Steering wheel trim cover markings45125-12360 · 45125-12440 · 45125-12460 · 45125-12470
45136horn button contact piece45136-12110 · 45136-12120
45136AWire (for speaker contact ring)90945-02058
45136BCompression spring (for horn button contact piece)90501-10083
45142No. 1 horn button contact seat45142-12050
45146Horn button contact spring45146-12090 · 45146-12100 · 45146-12110
45155ASpeaker contact spacer45155-12030
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-14050 · 45176-20030
