Toyota COROLLA 点火线圈和火花塞 — Figure 1901

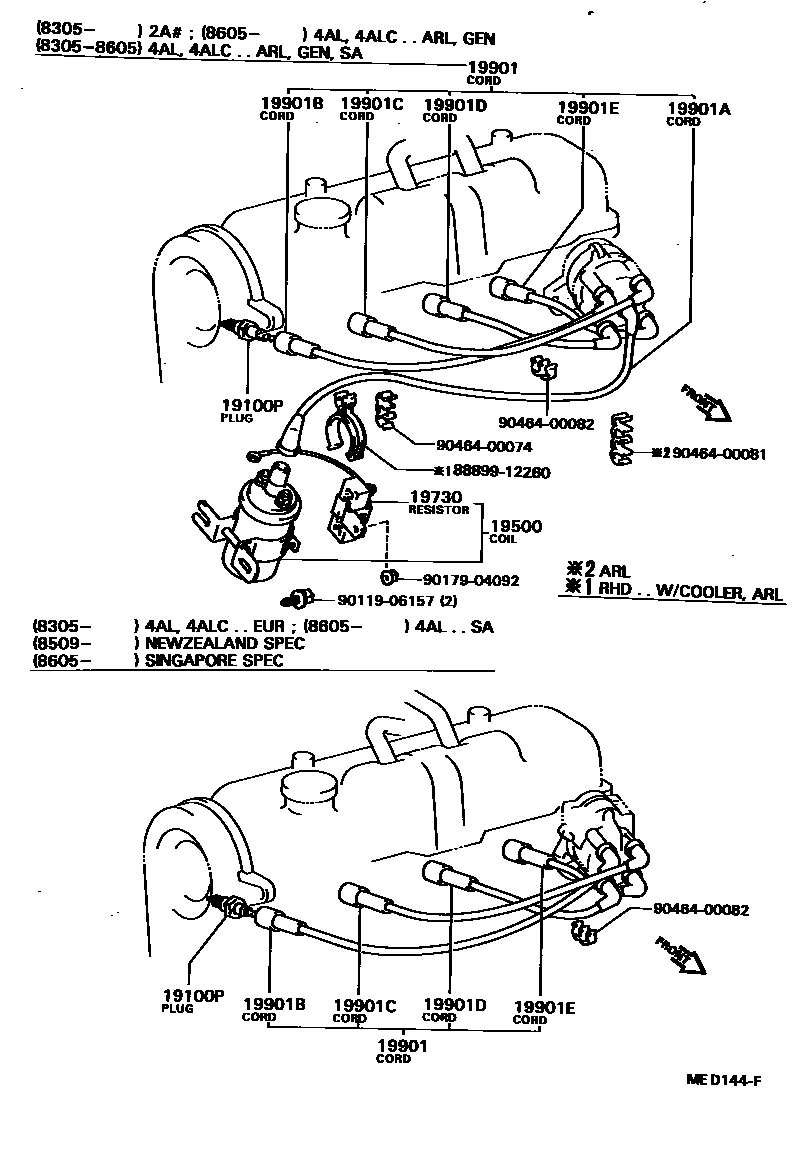

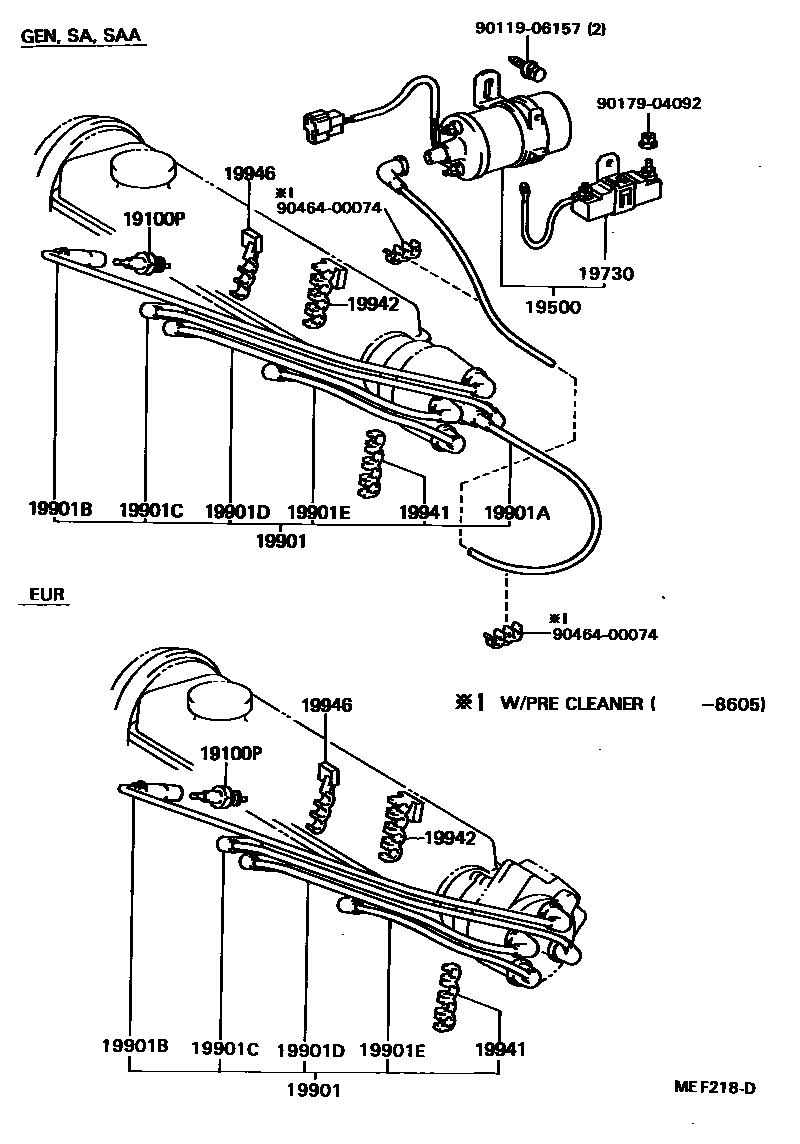

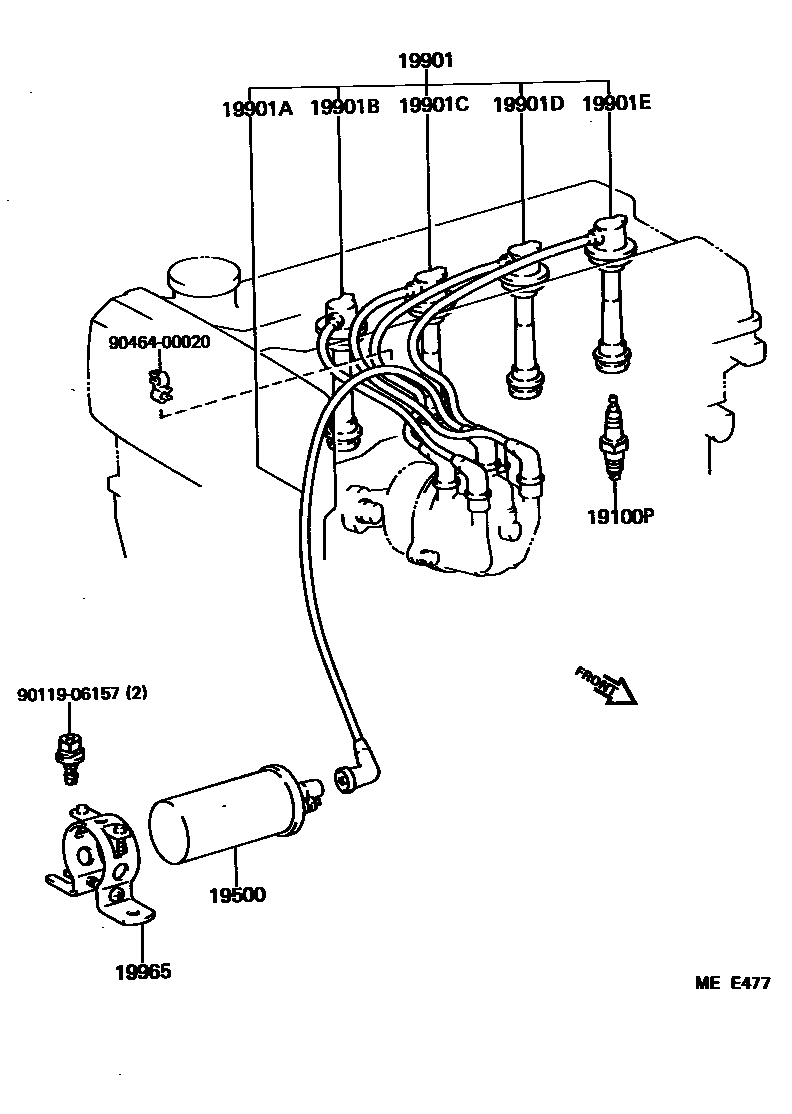

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01059 · 90919-01064 · 90919-01083 · 90919-01084 · 90919-01091 · 90919-01094 · 90919-01121 · 90919-01125 · 90919-01131 · 90919-01137 |
| 19500 | Ignition coil assembly | 90919-02113 · 90919-02148 |
| 19730 | Ignition coil resistor | 90919-04040 |
| 19850 | Glow plug assembly | 19850-64010 · 19850-64030 · 19850-68010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64020 · 19871-64021 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21327 · 90919-21350 · 90919-21365 · 90919-21366 · 90919-21418 · 90919-22105 · 90919-22147 · 90919-22168 |
| 19901A | coil damping line | 90919-13214 · 90919-13239 · 90919-13240 · 90919-13245 · 90919-13280 |
| 19901B | No. 1 spark plug damper wire | 90919-12356 · 90919-12506 · 90919-12514 · 90919-12550 · 90919-12606 · 90919-12607 · 90919-12733 |
| 19901C | No. 2 spark plug damper wire | 90919-12357 · 90919-12507 · 90919-12515 · 90919-12551 · 90919-12569 · 90919-12573 · 90919-12734 |
| 19901D | No. 3 spark plug damper wire | 90919-12358 · 90919-12475 · 90919-12508 · 90919-12552 · 90919-12570 · 90919-12574 · 90919-12735 |
| 19901E | No. 4 spark plug damper wire | 90919-12359 · 90919-12476 · 90919-12509 · 90919-12553 · 90919-12571 · 90919-12575 · 90919-12736 |
| 19941 | No. 1 damping wire clip | 90464-00358 |
| 19942 | No. 2 damping wire clip | 90464-00372 |
| 19946 | No. 3 impedance wire clip | 90464-00404 |
| 19965 | No. 1 ignition coil band | 90919-03086 |
