Toyota COROLLA vacuum tube — Figure 1708

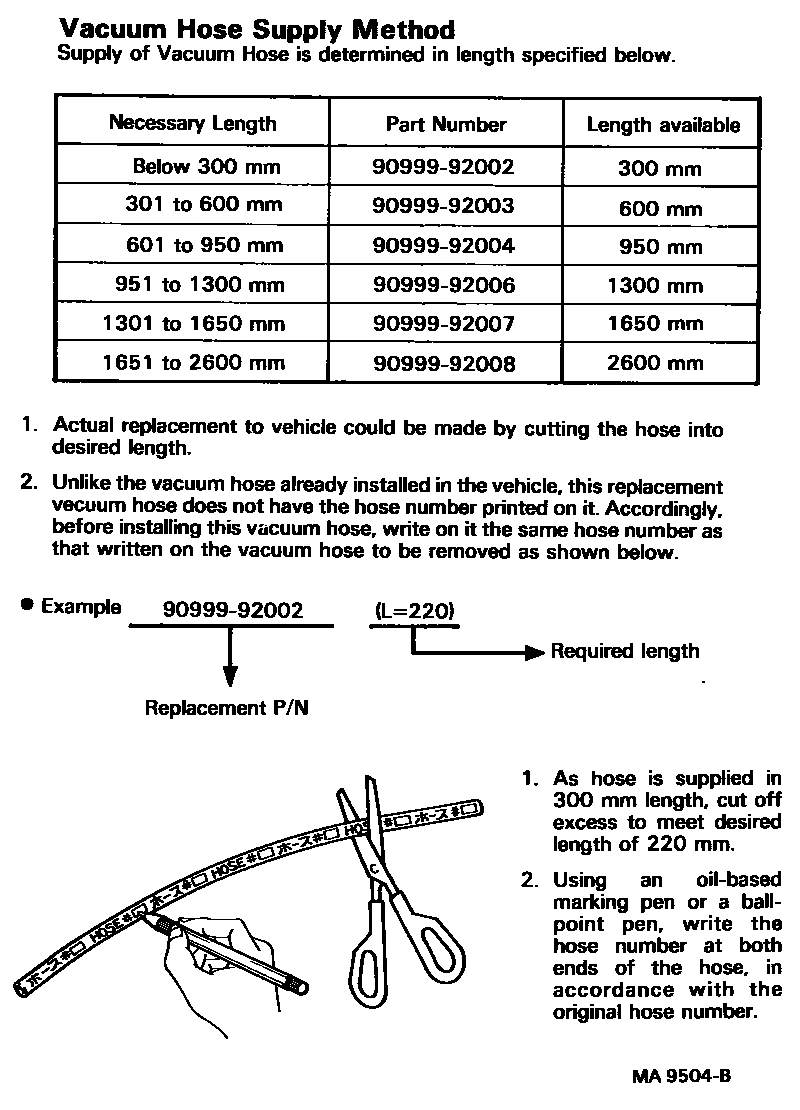

Toyota COROLLA EPC diagram 1708, vacuum tube, with 17 images and 32 PNC and OE references.

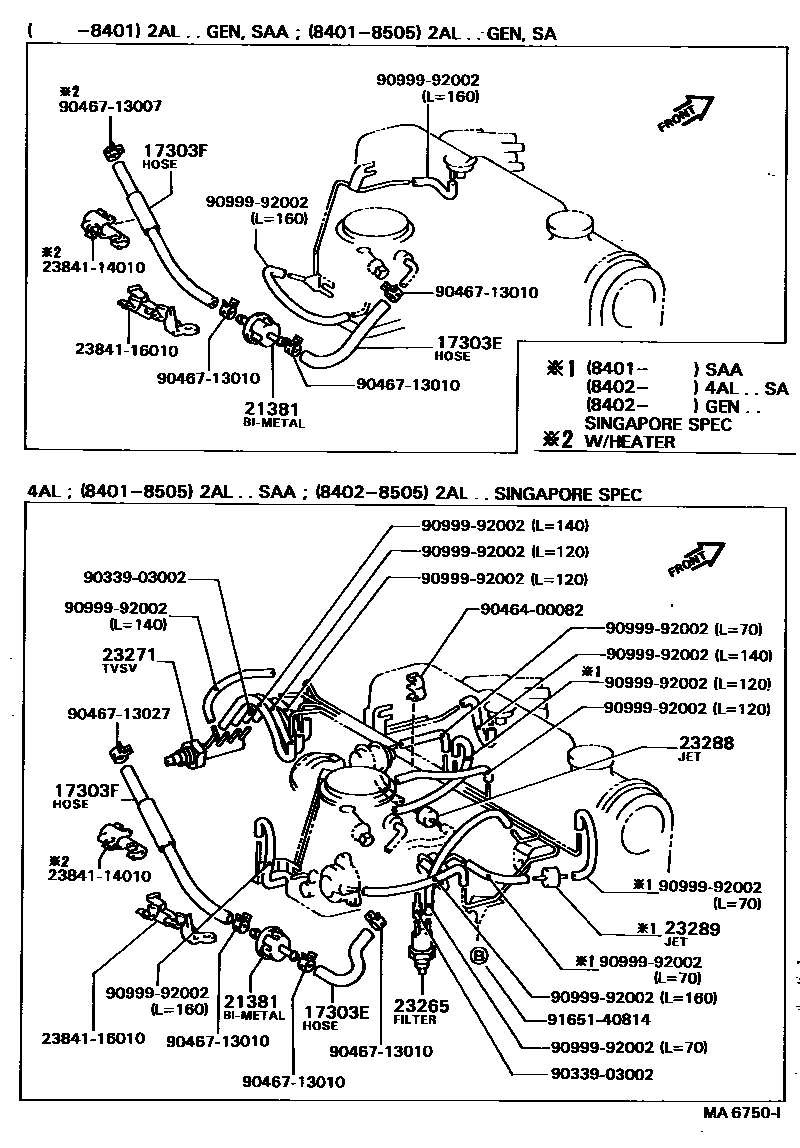

Toyota COROLLA vacuum tube EPC diagram — MA6750I — vacuum tube — MA6750I (198305 – 999999)

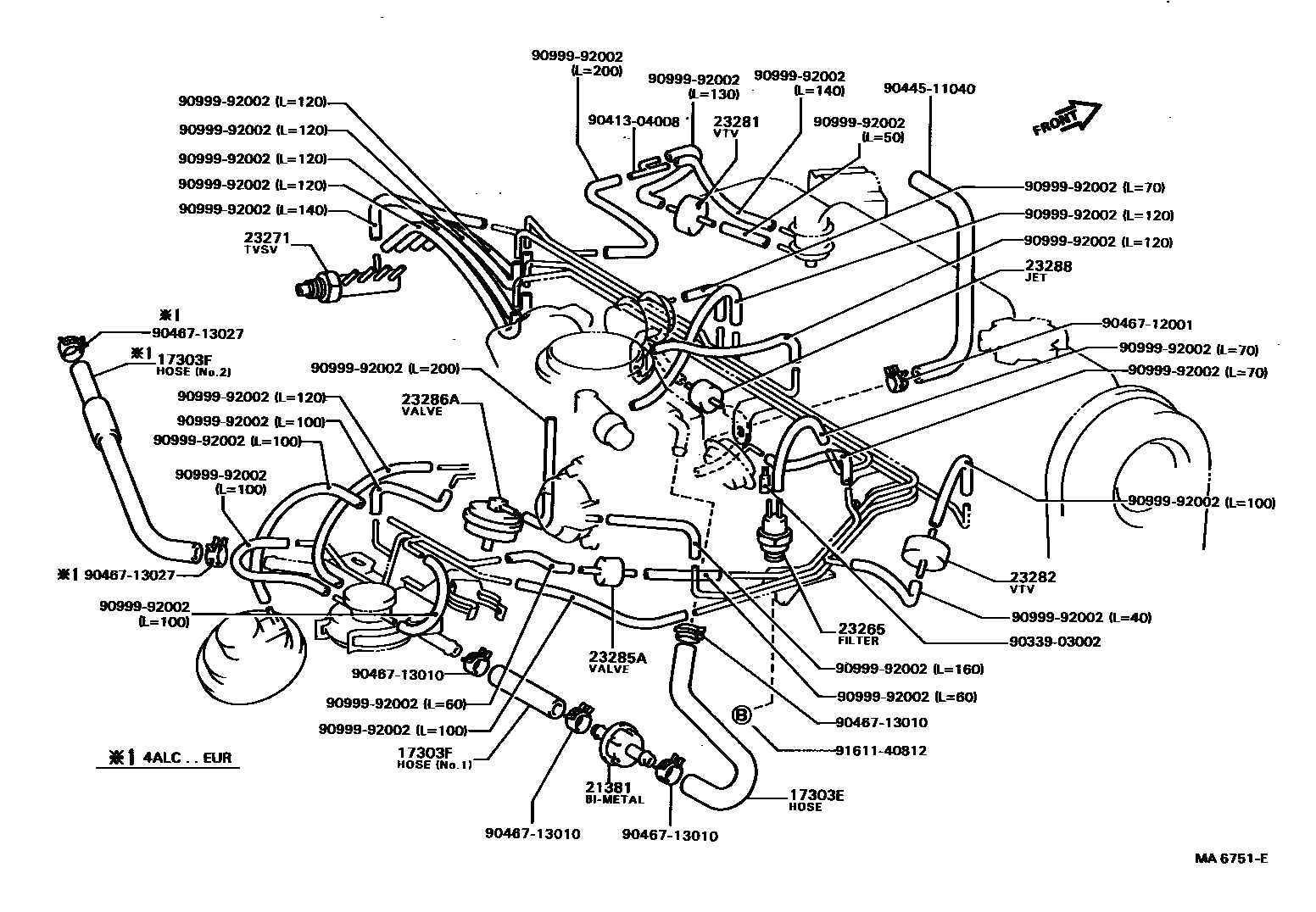

Toyota COROLLA vacuum tube EPC diagram — MA6751E — vacuum tube — MA6751E (198305 – 999999)

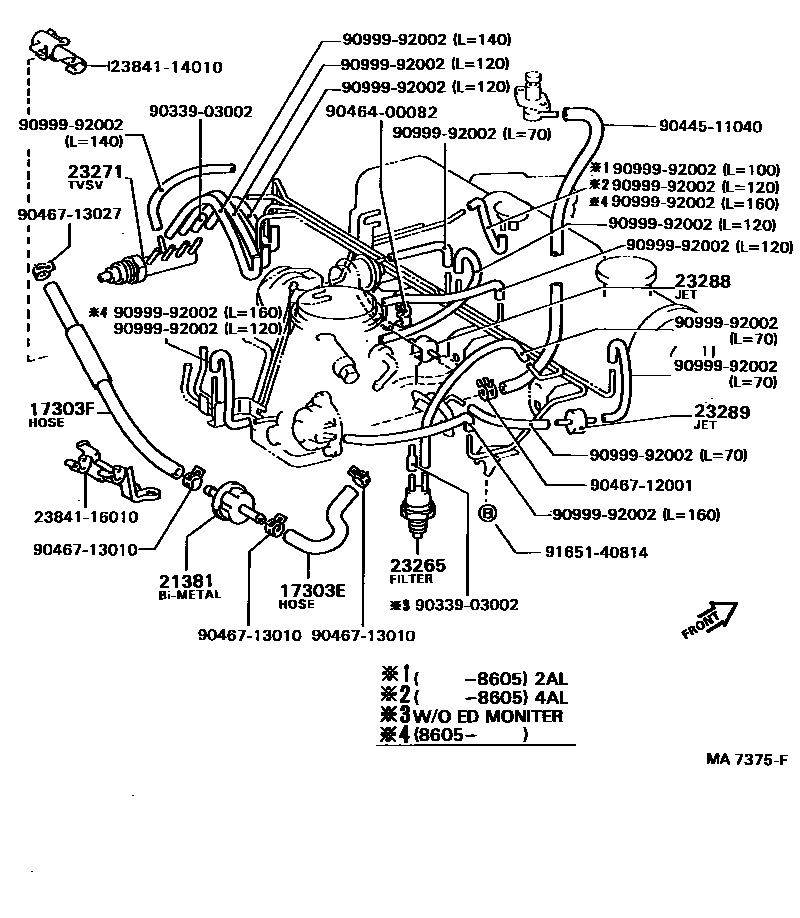

Toyota COROLLA vacuum tube EPC diagram — MA7375F — vacuum tube — MA7375F (198305 – 999999)

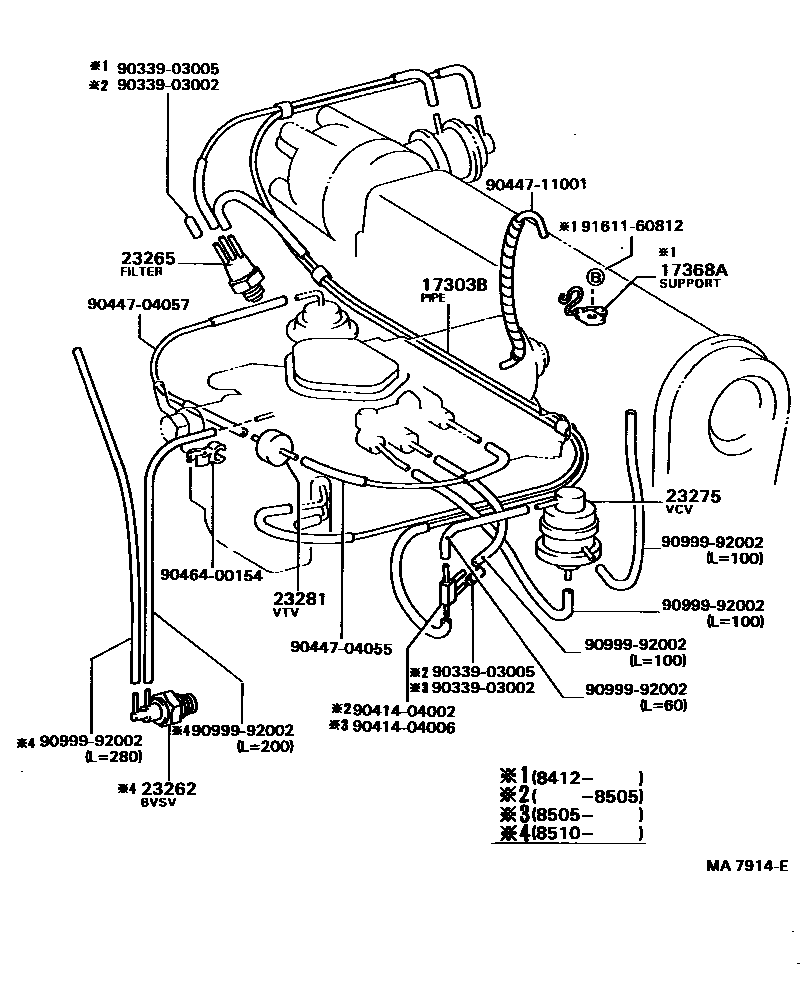

Toyota COROLLA vacuum tube EPC diagram — MA7914E — vacuum tube — MA7914E (198410 – 198605)

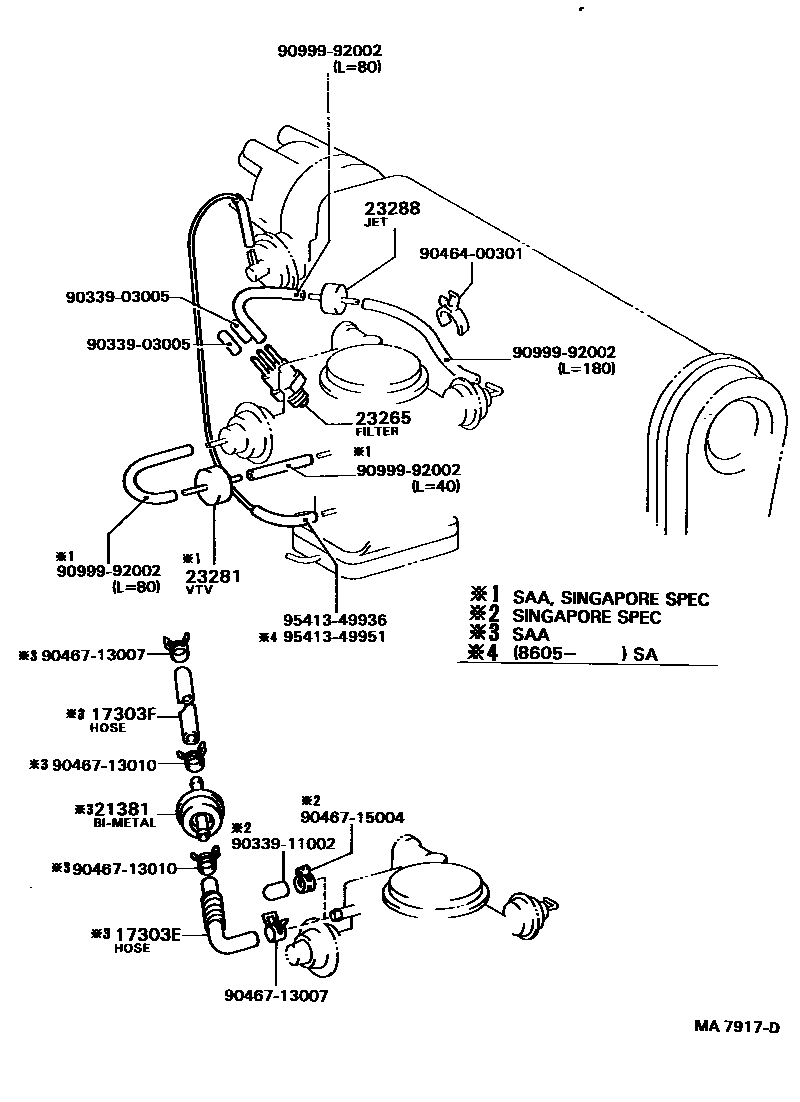

Toyota COROLLA vacuum tube EPC diagram — MA7917D — vacuum tube — MA7917D (198410 – 999999)

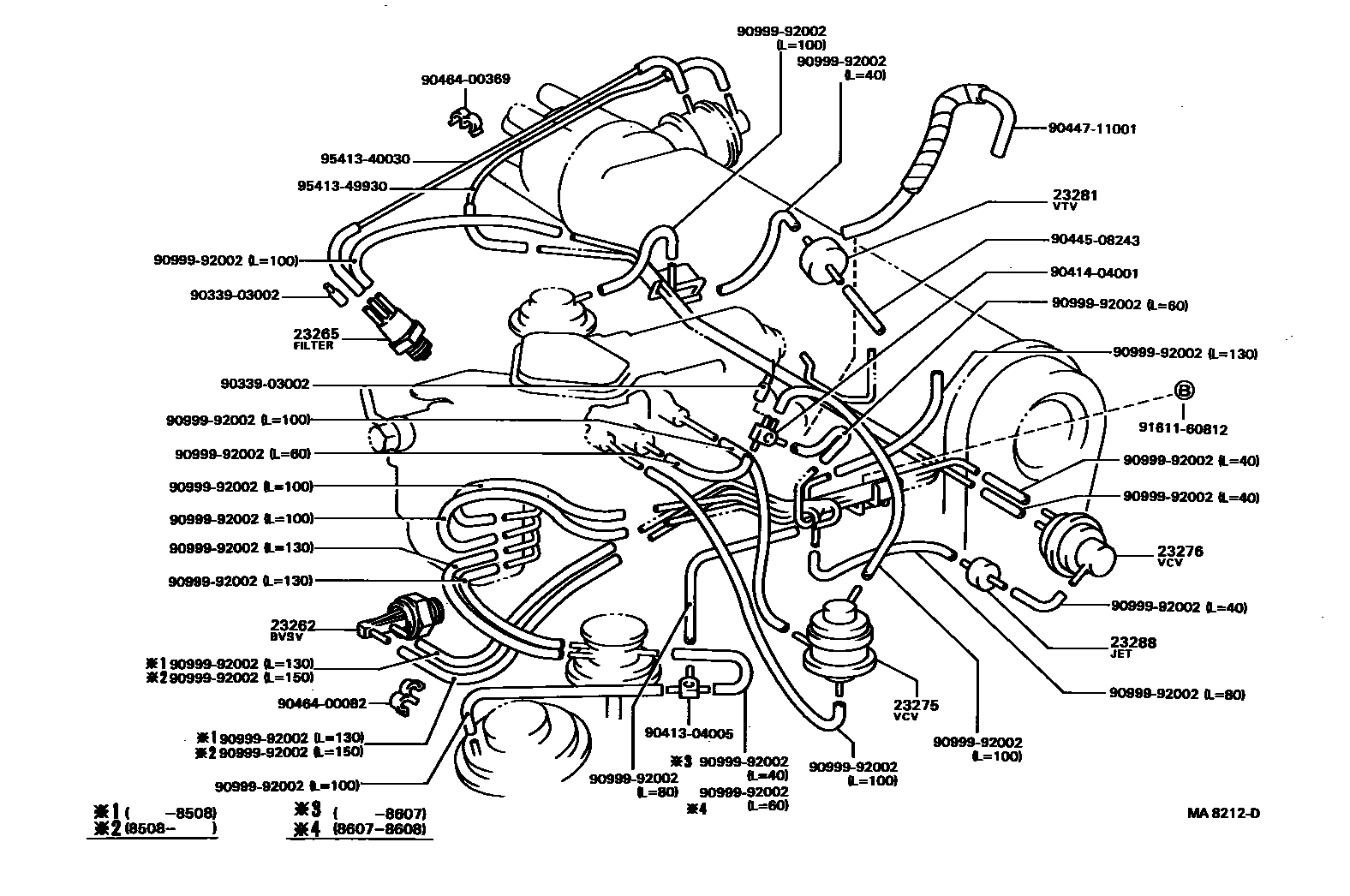

Toyota COROLLA vacuum tube EPC diagram — MA8212D — vacuum tube — MA8212D (198505 – 198608)

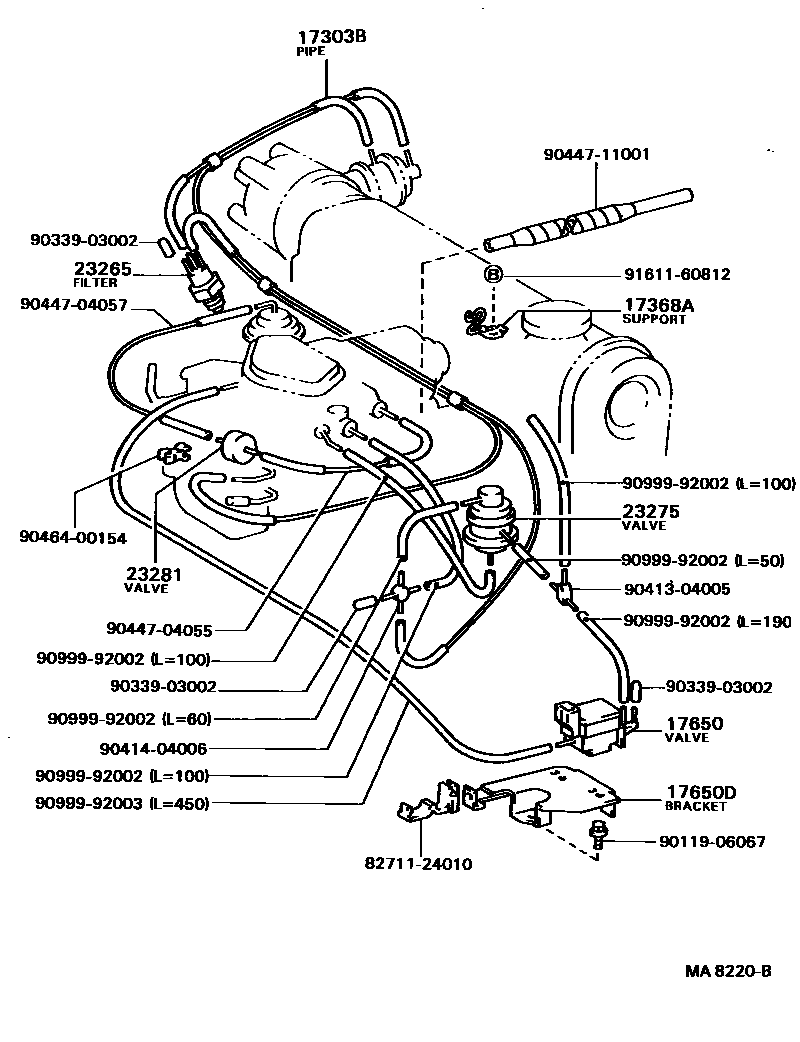

Toyota COROLLA vacuum tube EPC diagram — MA8220B — vacuum tube — MA8220B (198505 – 198511)

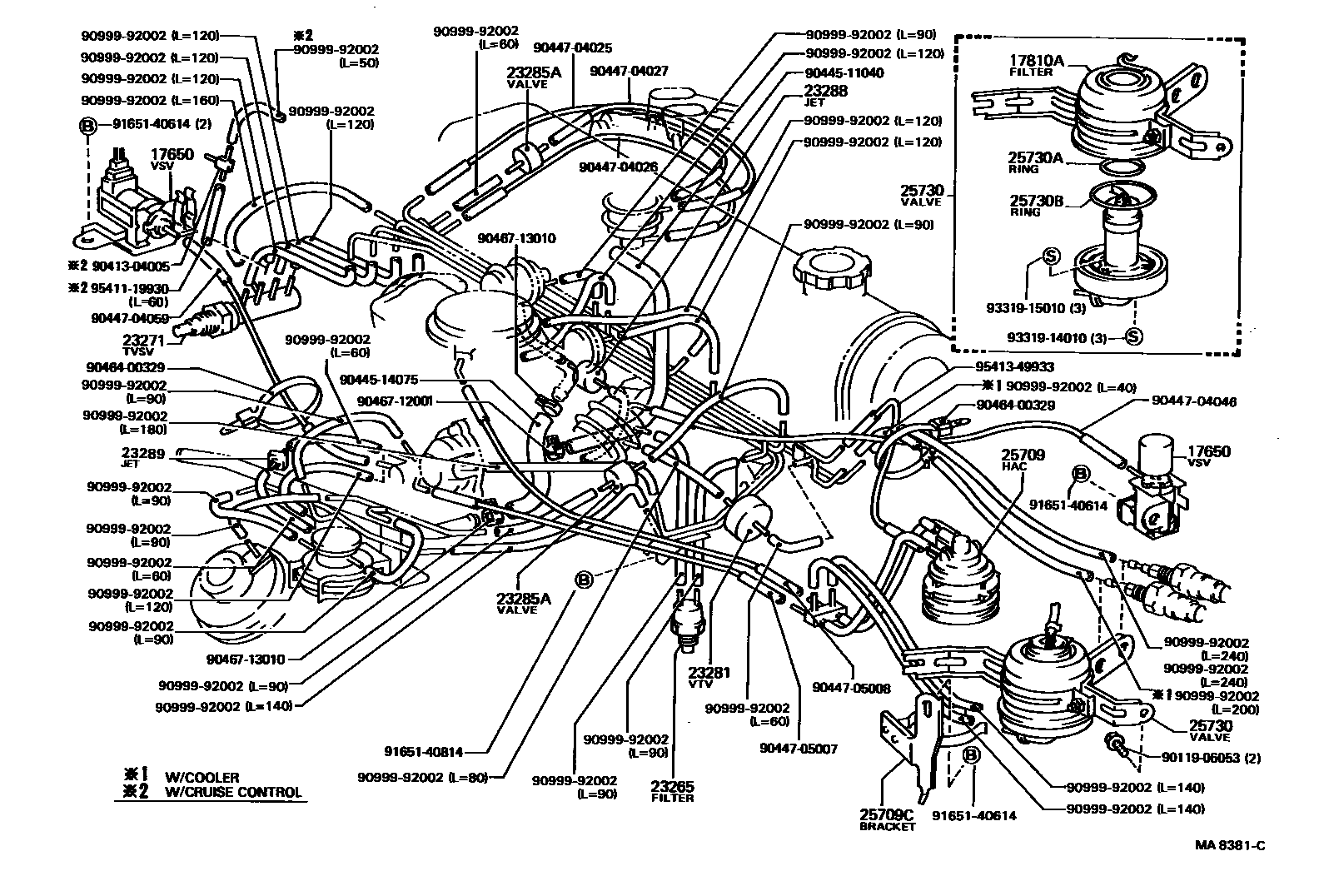

Toyota COROLLA vacuum tube EPC diagram — MA8381C — vacuum tube — MA8381C (198504 – 999999)

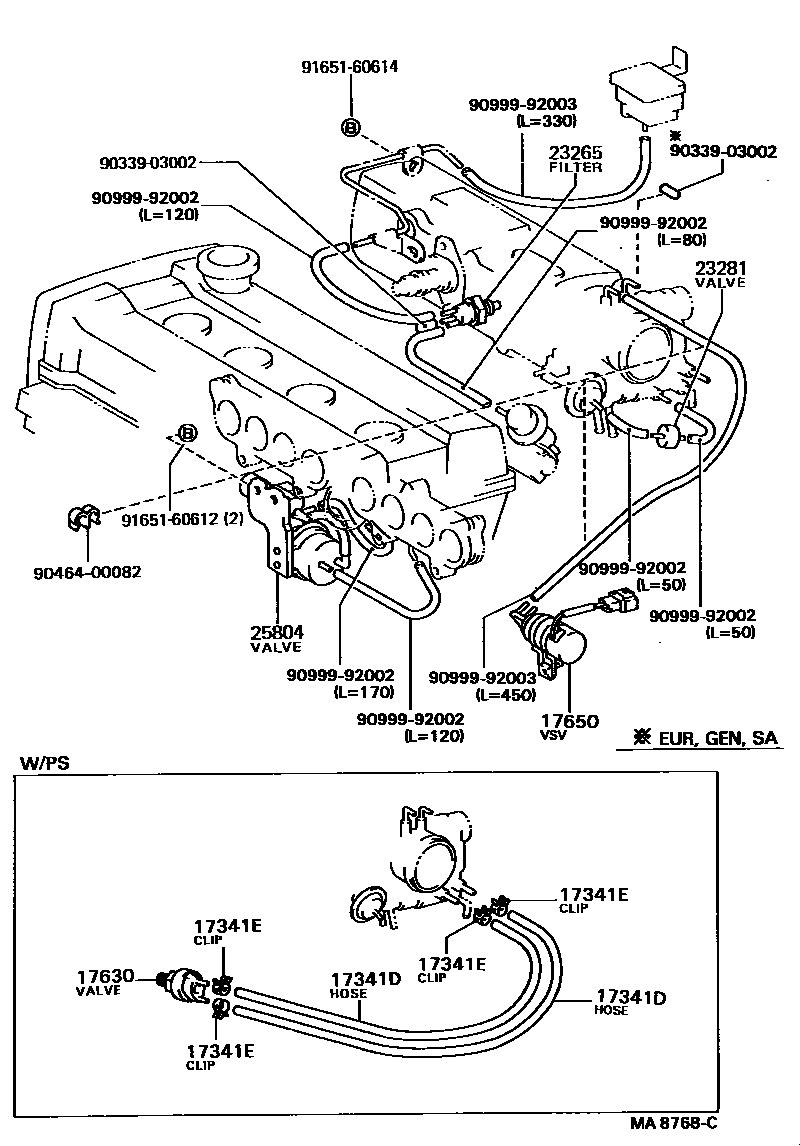

Toyota COROLLA vacuum tube EPC diagram — MA8768C — vacuum tube — MA8768C (198410 – 198708)

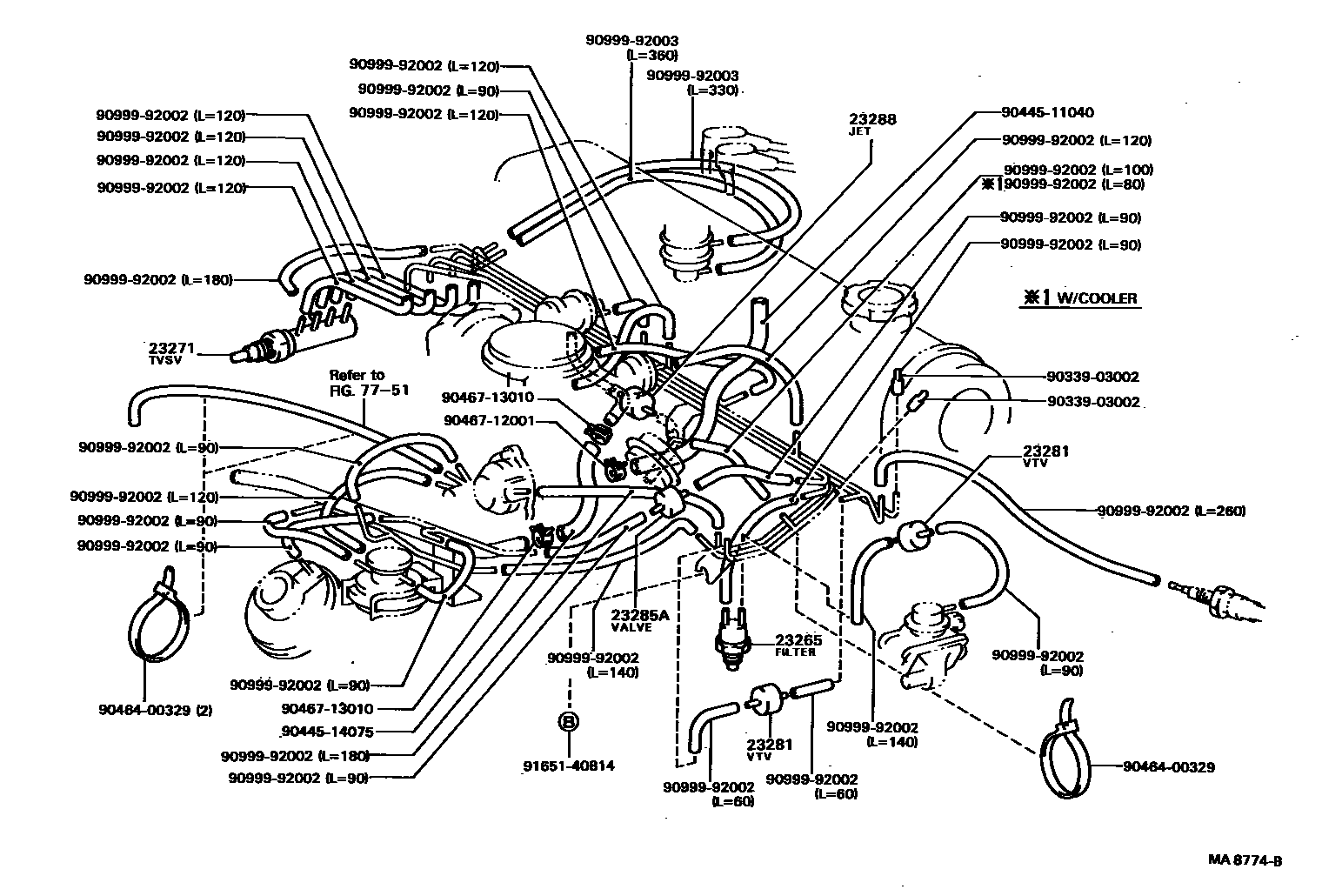

Toyota COROLLA vacuum tube EPC diagram — MA8774B — vacuum tube — MA8774B (198511 – 999999)

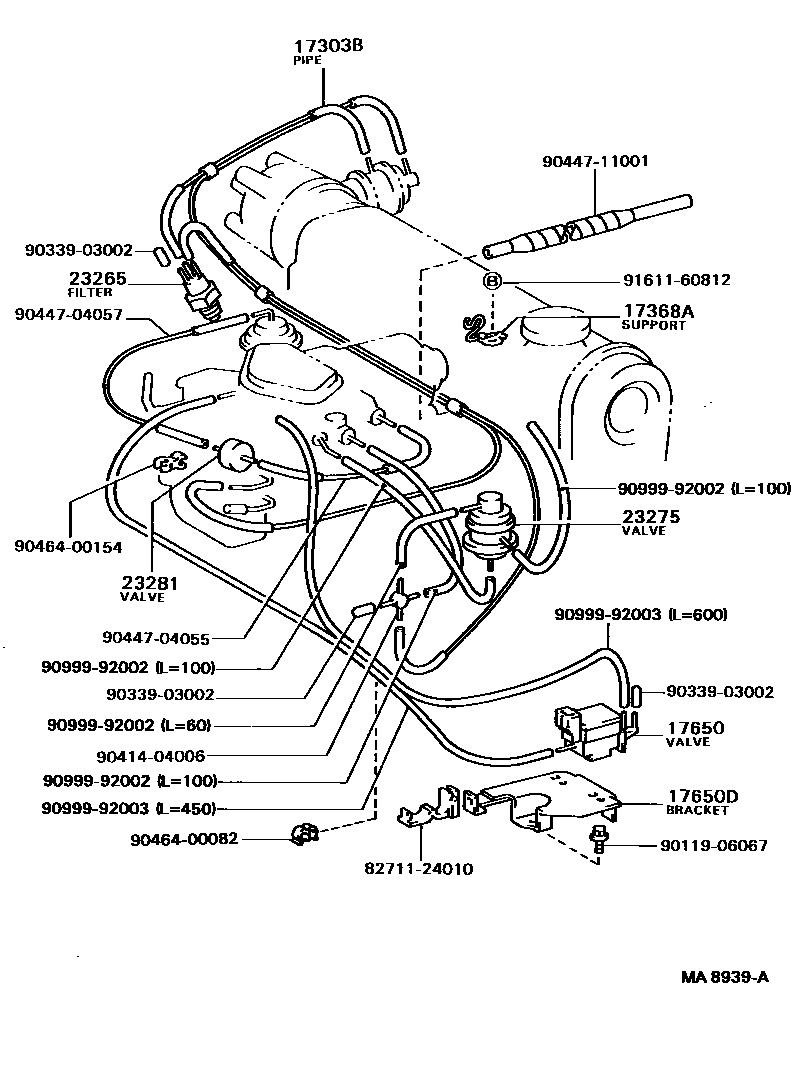

Toyota COROLLA vacuum tube EPC diagram — MA8939A — vacuum tube — MA8939A (198511 – 198605)

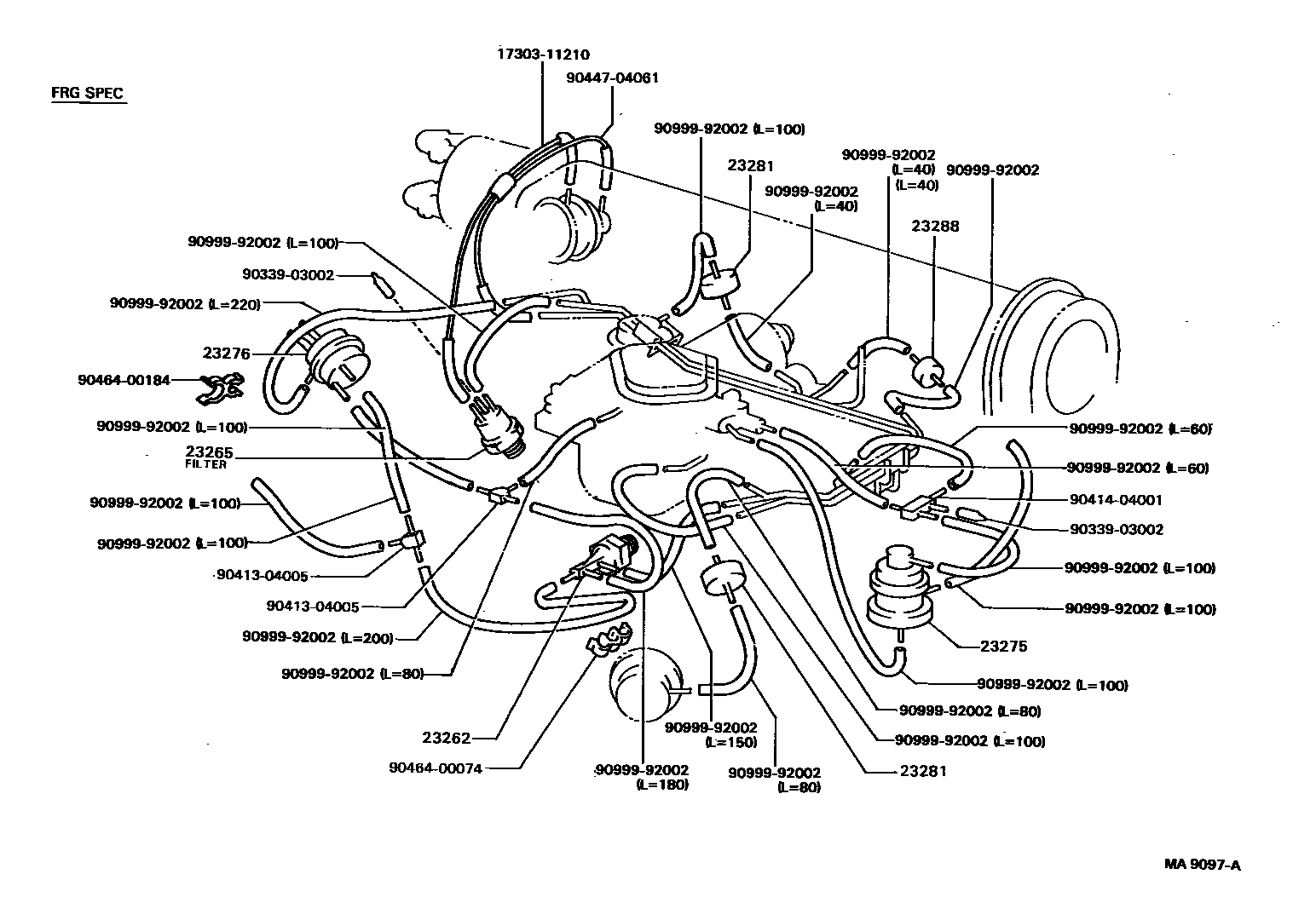

Toyota COROLLA vacuum tube EPC diagram — MA9097A — vacuum tube — MA9097A (198605 – 999999)

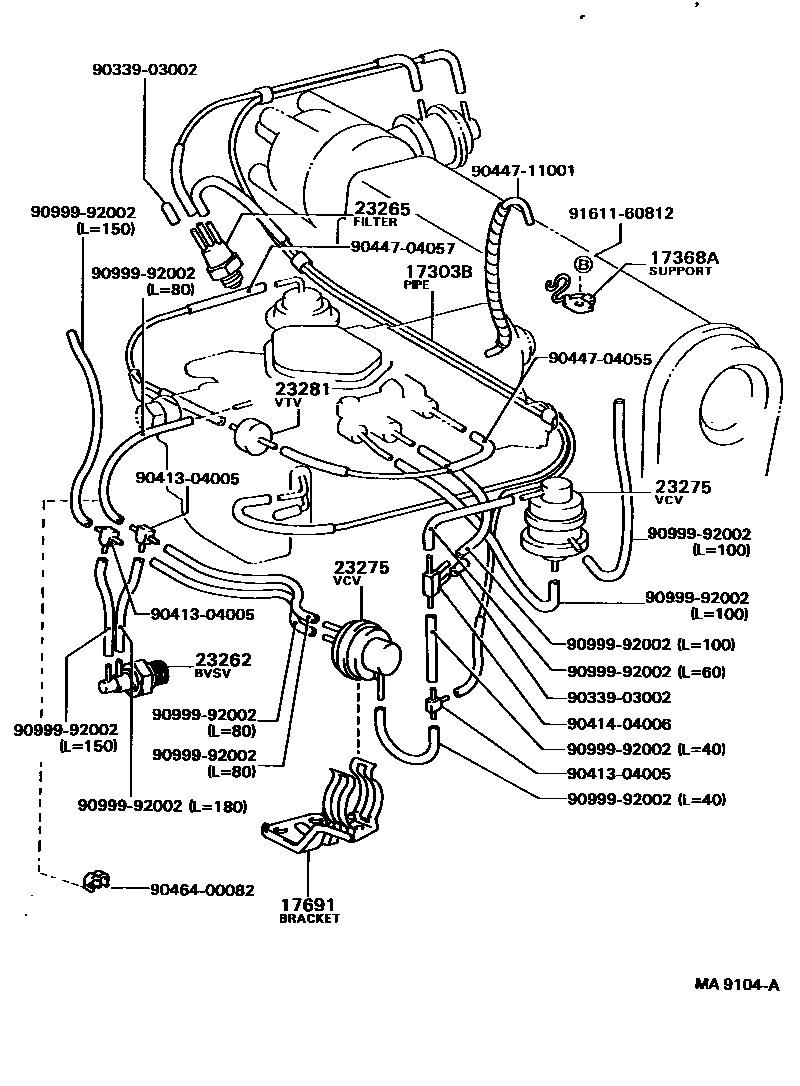

Toyota COROLLA vacuum tube EPC diagram — MA9104A — vacuum tube — MA9104A (198605 – 999999)

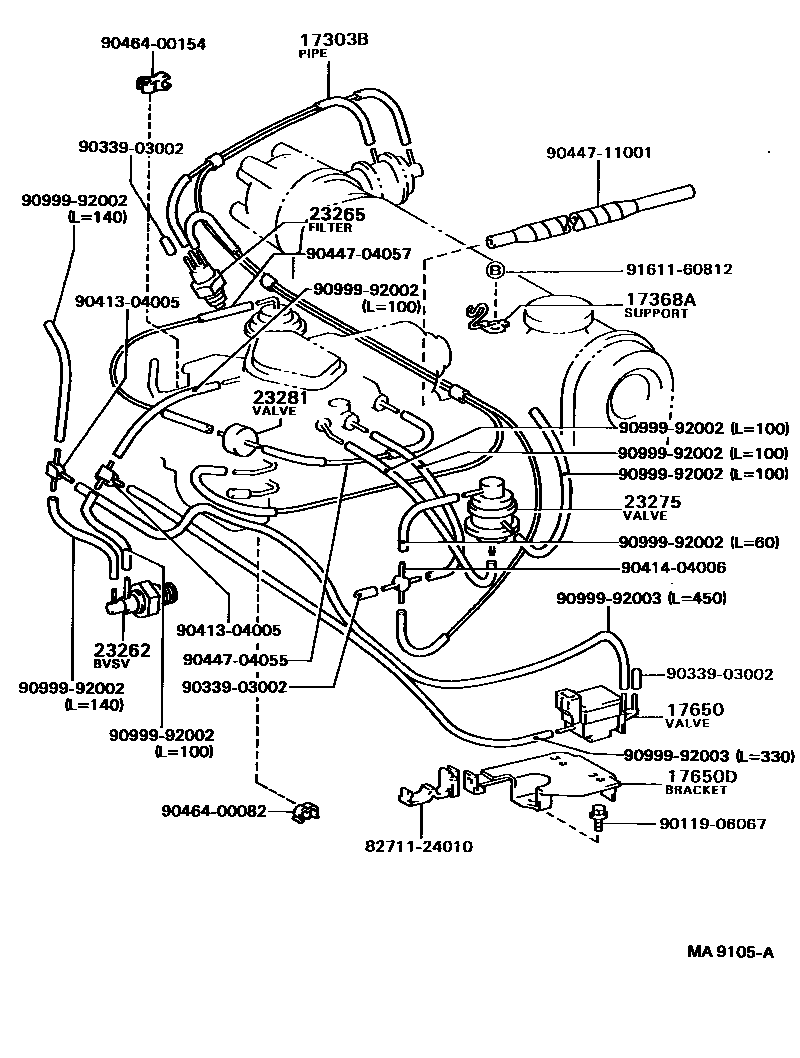

Toyota COROLLA vacuum tube EPC diagram — MA9105A — vacuum tube — MA9105A (198605 – 999999)

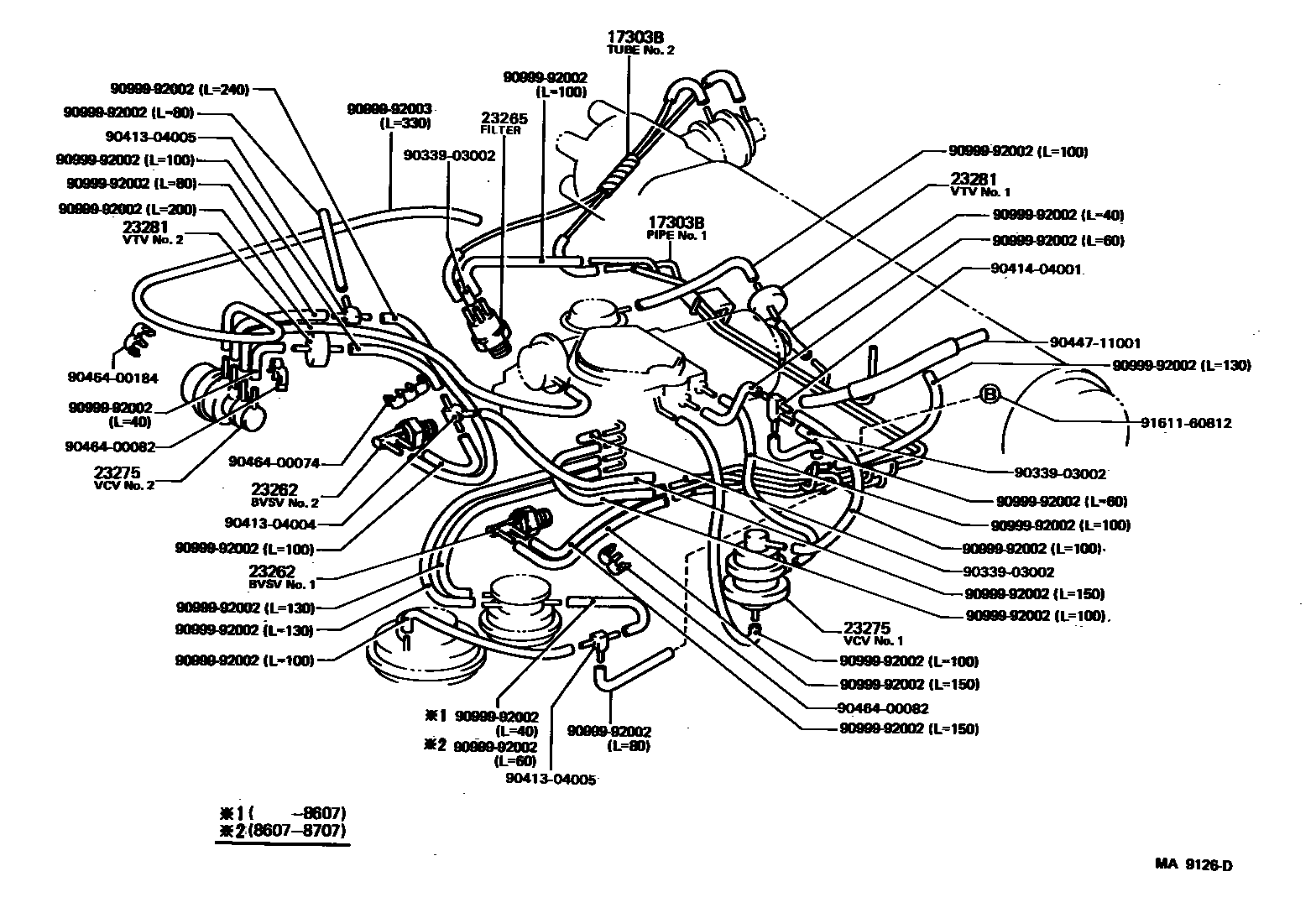

Toyota COROLLA vacuum tube EPC diagram — MA9126D — vacuum tube — MA9126D (198605 – 999999)

Toyota COROLLA vacuum tube EPC diagram — MA9504B — vacuum tube — MA9504B (198305 – 999999)

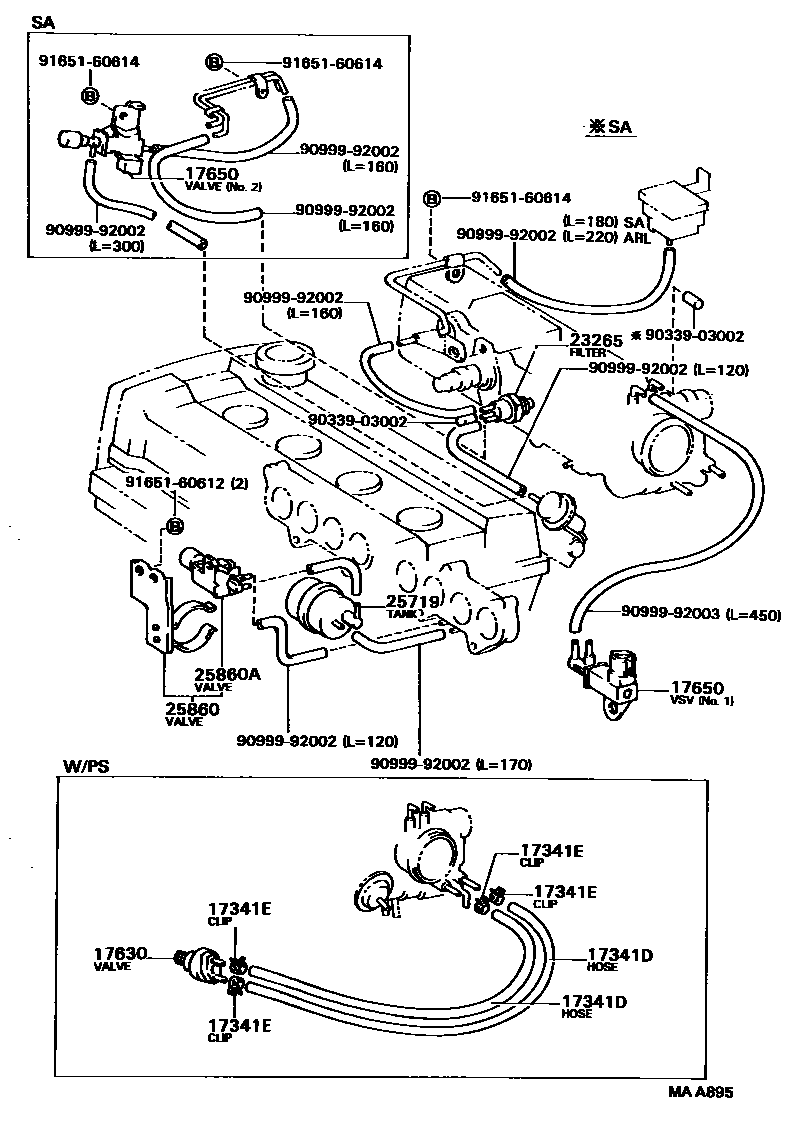

Toyota COROLLA vacuum tube EPC diagram — MAA895 — vacuum tube — MAA895 (198708 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17303B	No. 1 air pipe sub-assembly	17303-11050 · 17303-11051 · 17303-11210 · 17303-11220
17303E	No. 1 hose (for air pipe)	77791-11010 · 77791-12040 · 77791-12041 · 77791-12050 · 77791-12051 · 77791-12080
17303F	No. 2 hose (for air pipe)	90445-14102 · 90445-14139 · 90447-14009 · 90447-14010 · 90447-14017
17341D	No. 1 hose (for idle boost)	17341-16070
17341E	Clamp No. 1 (for idle lift hose)	96132-30400
17368A	Air tube support	17368-11010
17630	Air control valve assembly	17630-16040 · 17630-70010
17650	Vacuum switch valve assembly	25860-16090 · 89570-12301 · 89570-12320 · 89570-16060 · 90910-12006 · 90910-12007 · 90910-12061
17650D	Vacuum switch valve bracket	21999-11010
17691	No. 1 vacuum control valve bracket	17691-11020
17810A	air filter assembly	17810-16010
21381	thermostat bimetal	21381-11010 · 21381-71010
23262	No. 1 bimetallic vacuum switch valve	25820-11020 · 90925-05016 · 90925-05035 · 90925-05051 · 90925-05076 · 90925-05077
23265	No. 1 gas filter	90917-11023 · 90917-11024 · 90917-11027
23271	No. 1 thermostatic vacuum switching valve	90925-02076
23275	Vacuum control valve No. 1	90925-03155 · 90925-03174 · 90925-03175
23276	Vacuum control valve No. 2	90925-03161
23281	Vacuum Transfer Valve No. 1	90925-01014 · 90925-01029 · 90925-01041 · 90925-01071
23282	Vacuum Transfer Valve No. 2	90925-01043
23285A	No. 1 one-way valve	90917-10049
23286A	No. 2 one-way valve	90917-10064
23288	Nozzle No. 1	90925-04003 · 90925-04006 · 90925-04012 · 90925-04017 · 90925-04018
23289	Nozzle No. 2	90925-04005 · 90925-04034
25709	High altitude compensator valve sub-assembly	25708-16020 · 25708-16060
25709C	High Altitude Compensator Bracket	25792-16010 · 25792-16020
25719	Vacuum pressure tank	25719-16020
25730	Electronic exhaust control valve assembly	25730-16010 · 25730-16040
25730A	No. 1 O-ring (for electronic exhaust control valve)	90096-80002
25730B	No. 2 O-ring (for electronic exhaust control valve)	90099-06032
25804	Vacuum control valve assembly	25804-16010
25860	No. 1 vacuum switch valve assembly	25860-16070
25860A	No. 1 vacuum switch valve	90910-12052
