Toyota COROLLA Air Cleaner — Figure 1703

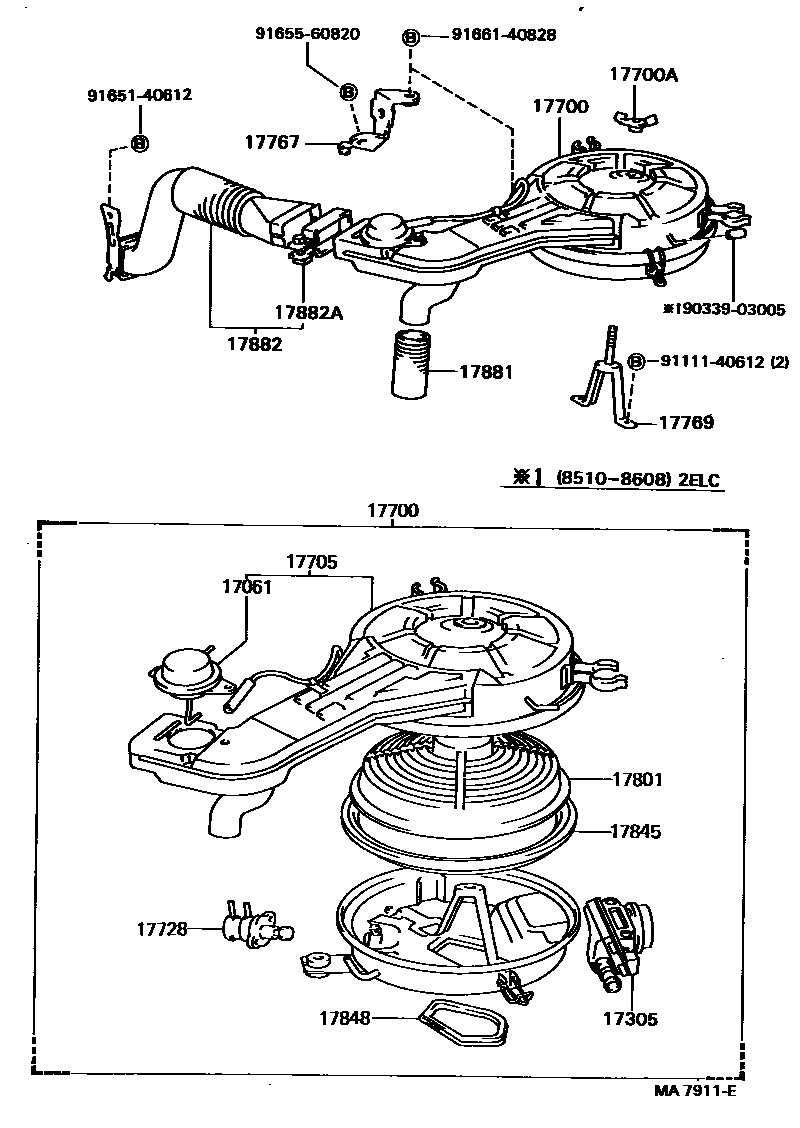

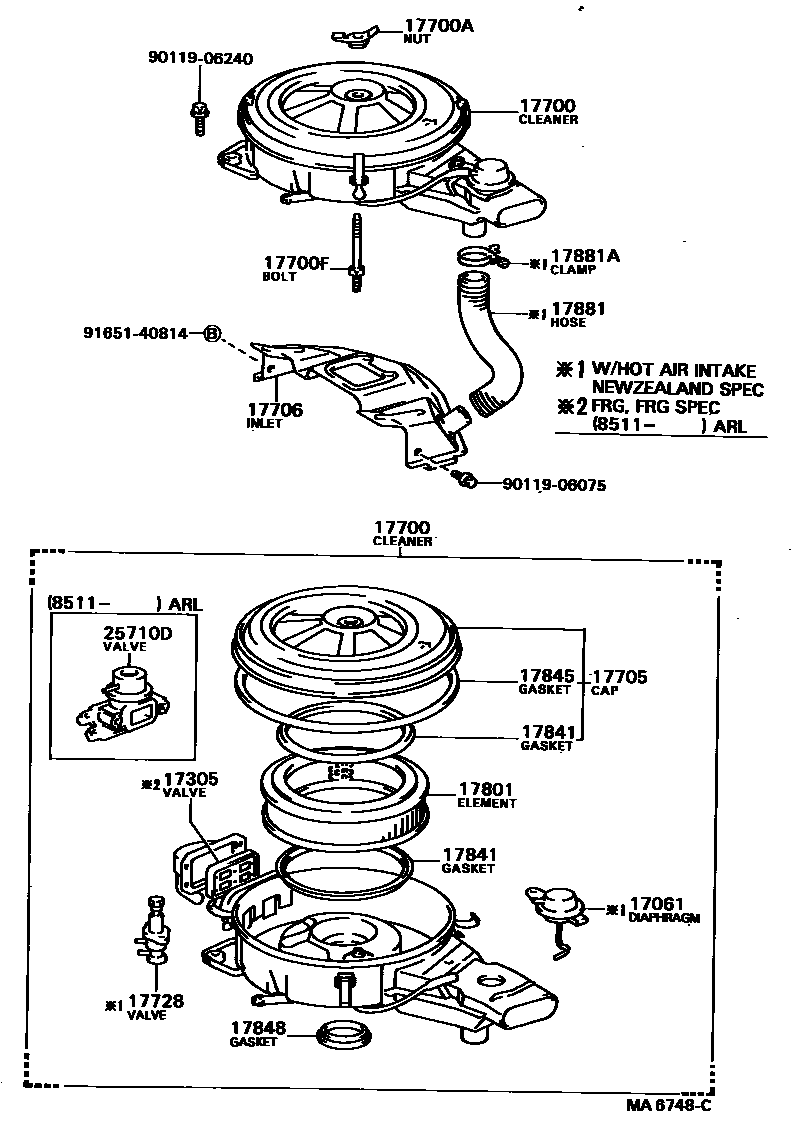

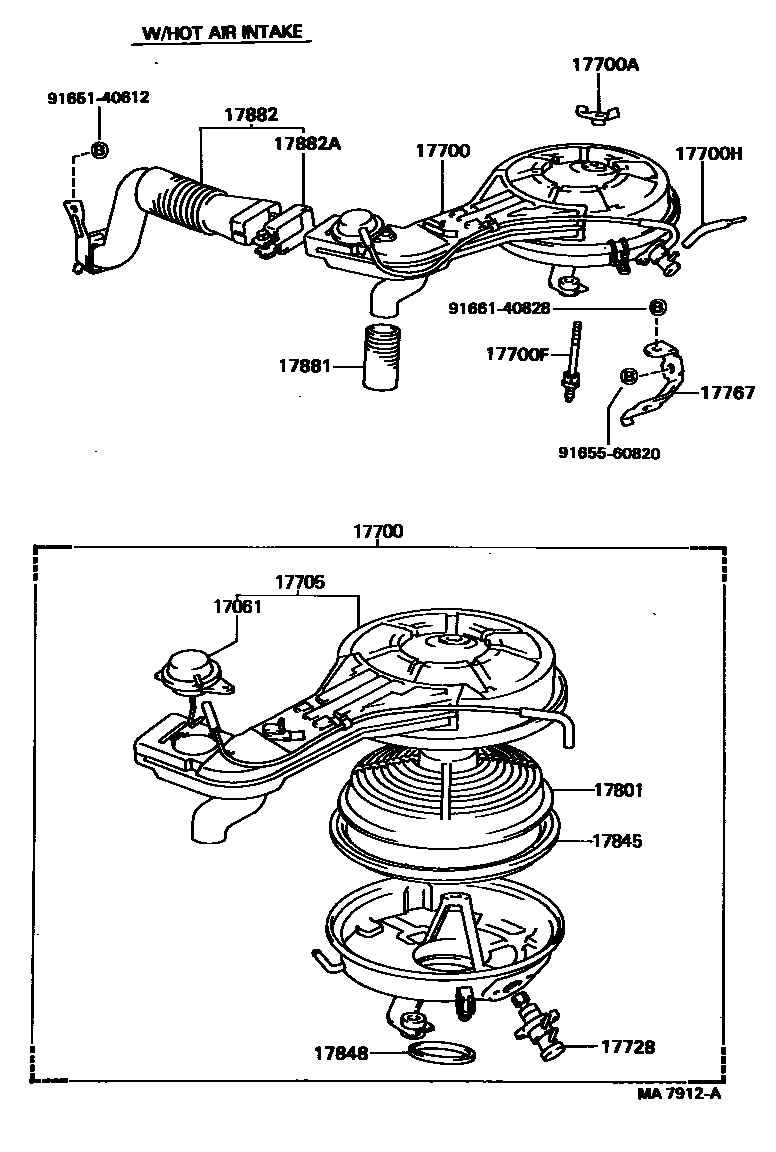

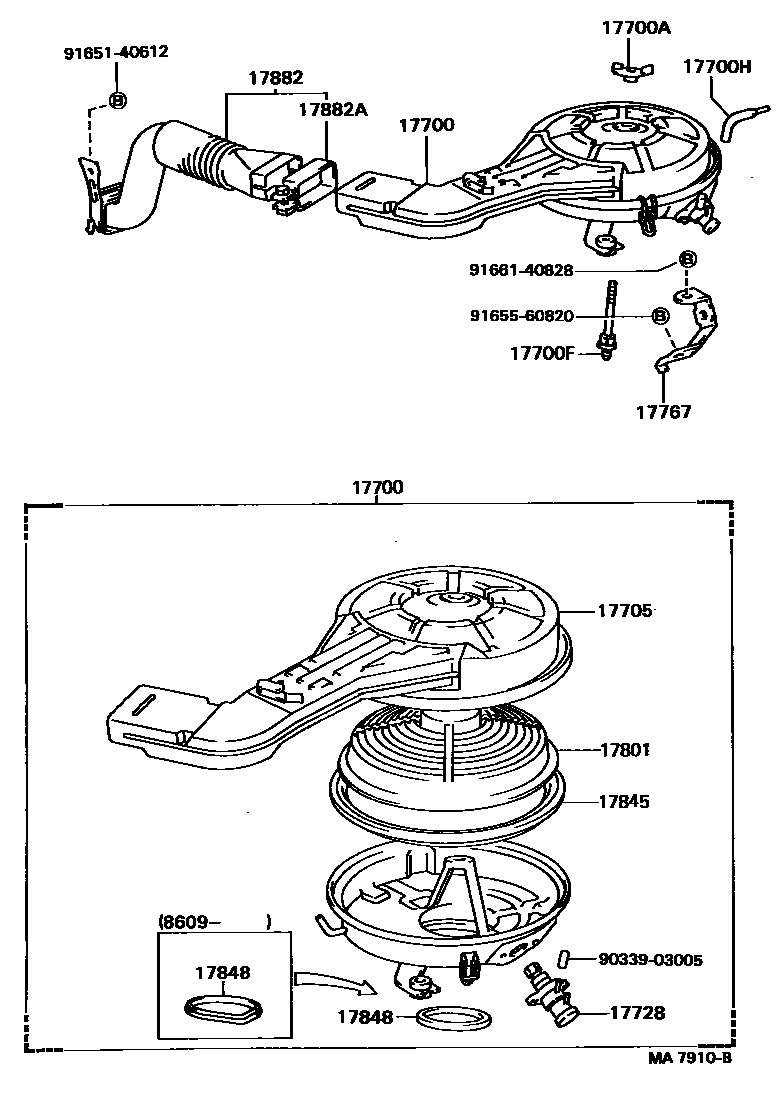

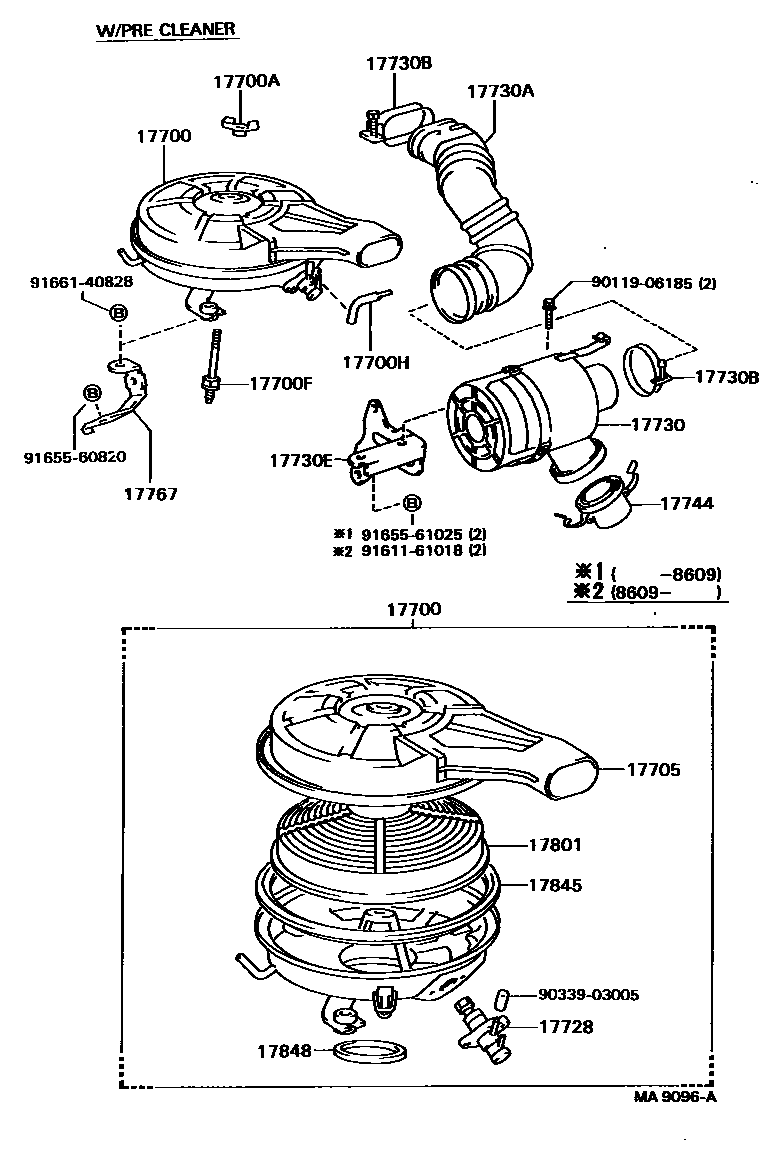

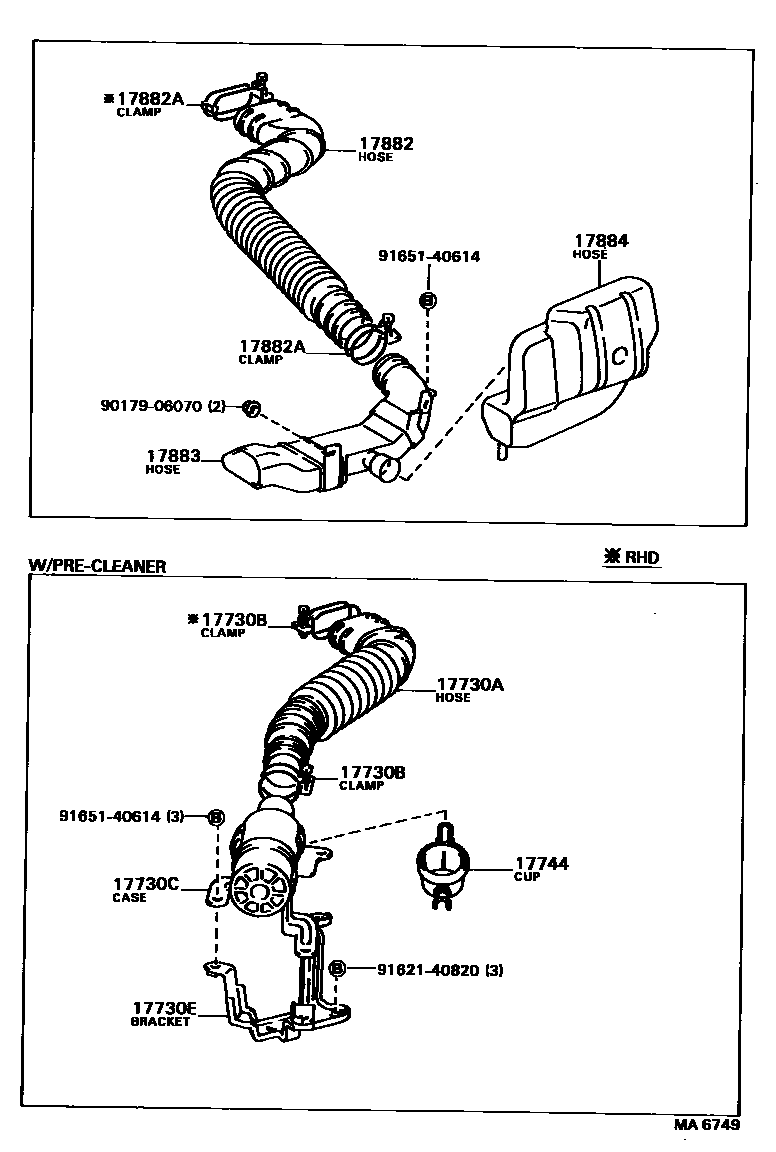

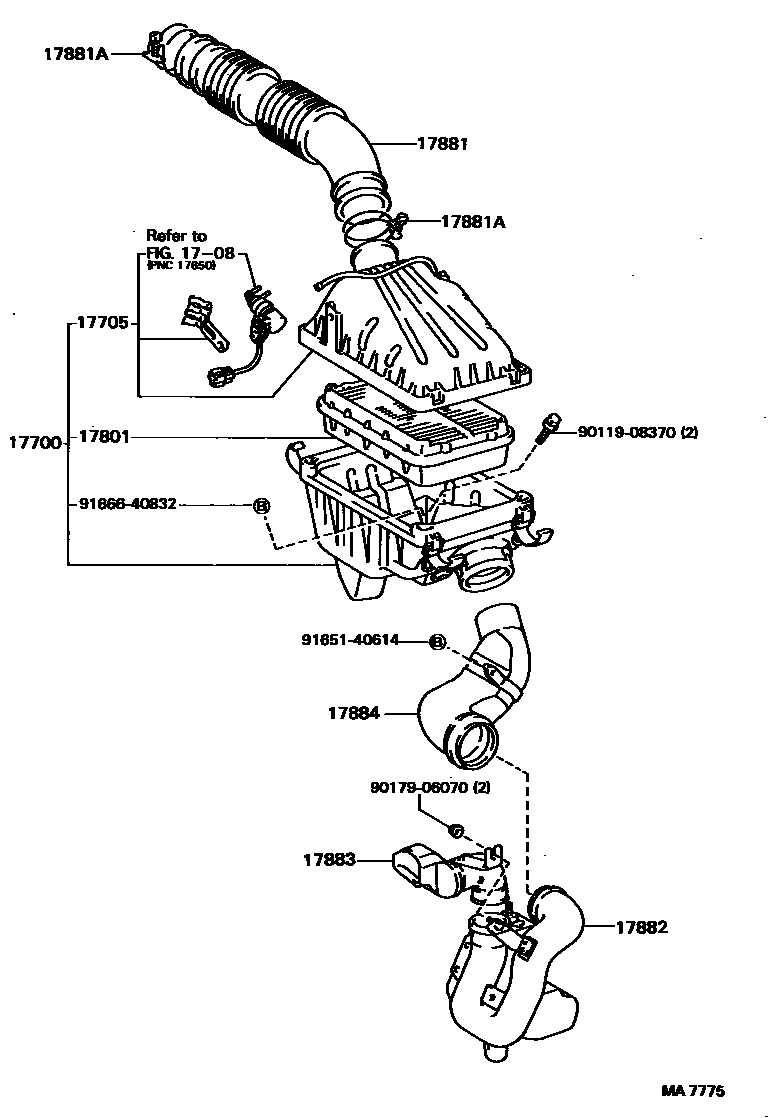

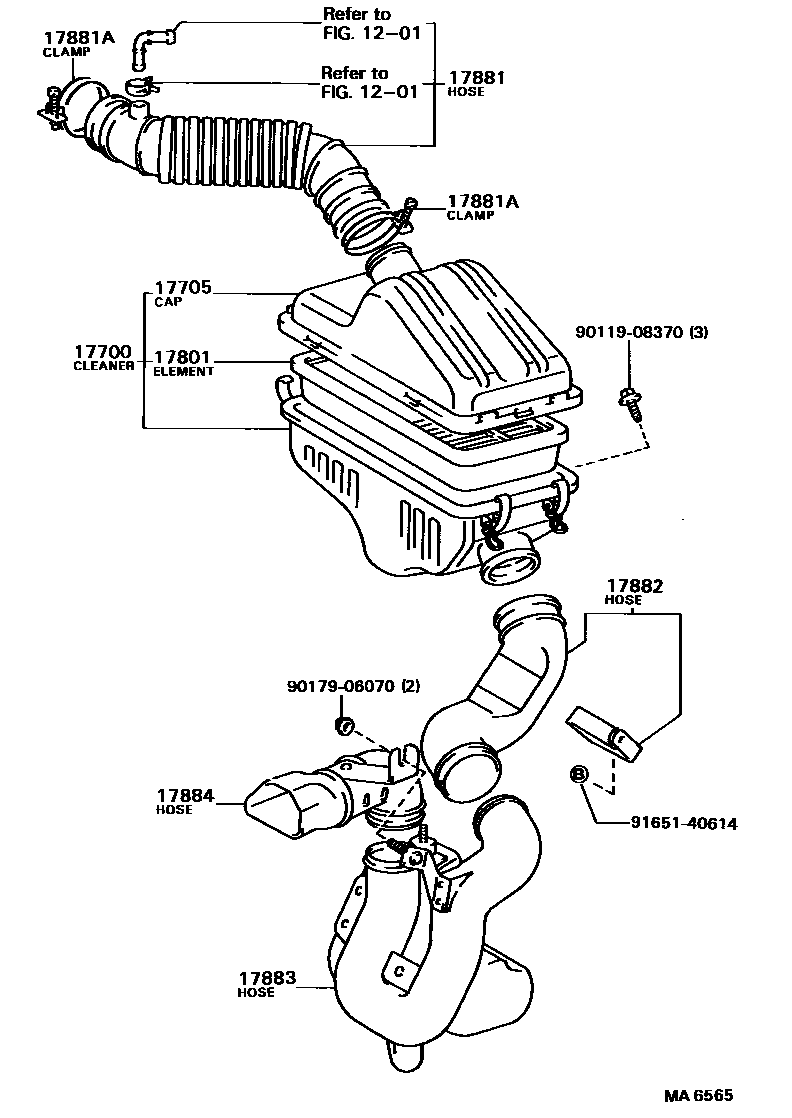

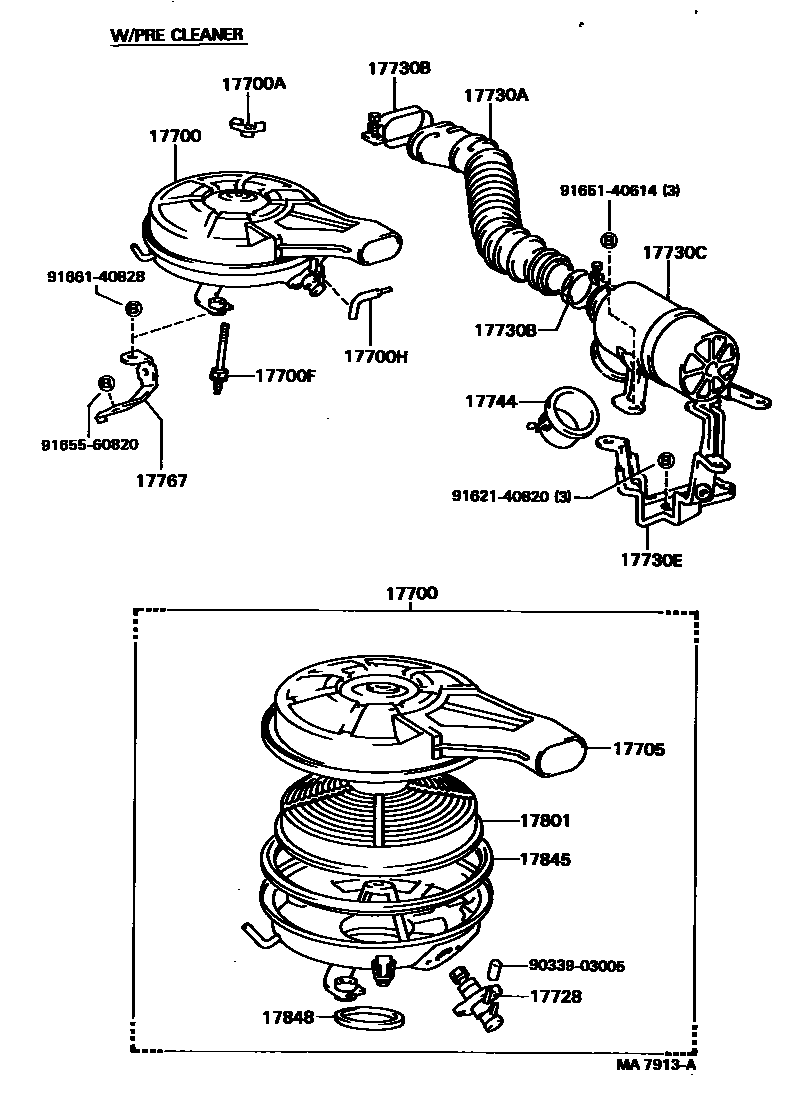

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 9 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-10010 · 17061-11010 · 17061-15030 |
| 17305 | Reed valve sub-assembly | 17305-15010 · 17305-16010 · 17350-11020 |
| 17700 | air filter assembly | 17700-11190 · 17700-11191 · 17700-11200 · 17700-11210 · 17700-11220 · 17700-11330 · 17700-11331 · 17700-16040 · 17700-16050 · 17700-16070 · 17700-16130 · 17700-16190 · 17700-16240 · 17700-16280 · 17700-64040 · 17700-64041 · 17700-64080 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-06009 |
| 17700F | Stud bolt (for securing air filter) | 90116-06039 · 90116-06142 |
| 17700H | air hose | 17341-10010 |
| 17705 | Air filter cover sub-assembly | 17705-11170 · 17705-11180 · 17705-11190 · 17705-11200 · 17705-11270 · 17705-16050 · 17705-16100 · 17705-64030 · 17705-64080 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17902-16010 · 17902-16020 |
| 17728 | thermostat valve | 17728-10010 · 17728-11020 · 17728-15020 · 17728-24010 · 17728-24011 |
| 17730 | Air pre-filter assembly with hose | 17730-11010 |
| 17730A | Coarse filter hose | 17881-11080 · 17881-16050 |
| 17730B | Hose clamp (for primary filter hose) | 90460-01005 · 90460-01034 · 96111-10600 |
| 17730C | Coarse filter housing | 17736-16020 |
| 17730E | No. 1 coarse filter holder | 17741-11010 · 17741-16010 |
| 17744 | Coarse filter cup | 17744-16010 · 17744-35010 |
| 17767 | air filter bracket | 17771-11010 · 17771-11020 |
| 17769 | air filter bracket | 17769-11020 |
| 17801 | Air filter element sub-assembly | 17801-10030 · 17801-15010 · 17801-64010 · 17801-64020 · 17801-74010 |
| 17841 | filter liner | 17841-15010 |
| 17845 | air cleaner cover gasket | 17845-10020 · 17845-61011 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10020 · 17848-10021 · 17848-15010 · 90430-63001 |
| 17881 | No. 1 air cleaner hose | 17880-64030 · 17881-10030 · 17881-16090 · 17881-16110 · 17881-63010 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90929-01117 · 90929-01145 · 96111-10460 · 96111-10650 · 96111-10750 |
| 17882 | No. 2 air cleaner hose | 17880-12040 · 17880-12050 · 17881-12050 · 17881-12060 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 · 90460-01034 · 96111-10650 |
| 17883 | No. 3 air cleaner hose | 17880-12030 · 17882-12020 · 17884-12020 |
| 17884 | No. 4 air cleaner hose | 17881-12080 · 17883-12020 · 17884-12010 |
| 25710D | Air switch valve assembly | 25710-15050 |
