Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 8 PNC and OE references.

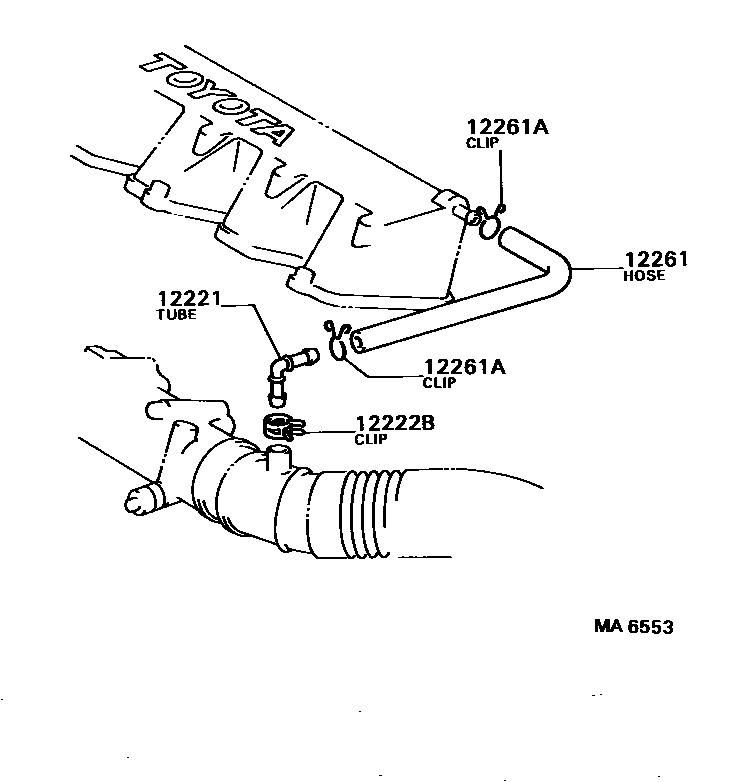

Toyota COROLLA Ventilation Hose EPC diagram — MA6553
Ventilation Hose — MA6553 (198305 – 999999)

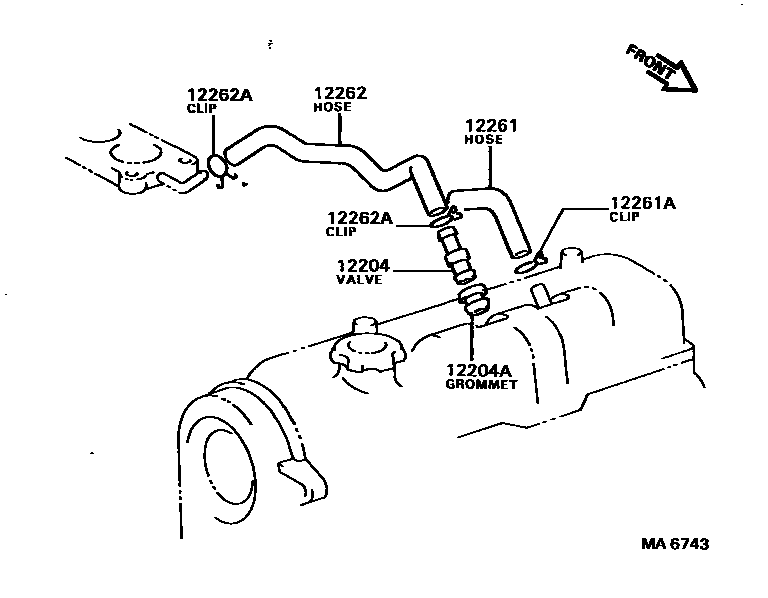

Toyota COROLLA Ventilation Hose EPC diagram — MA6743
Ventilation Hose — MA6743 (198305 – 999999)

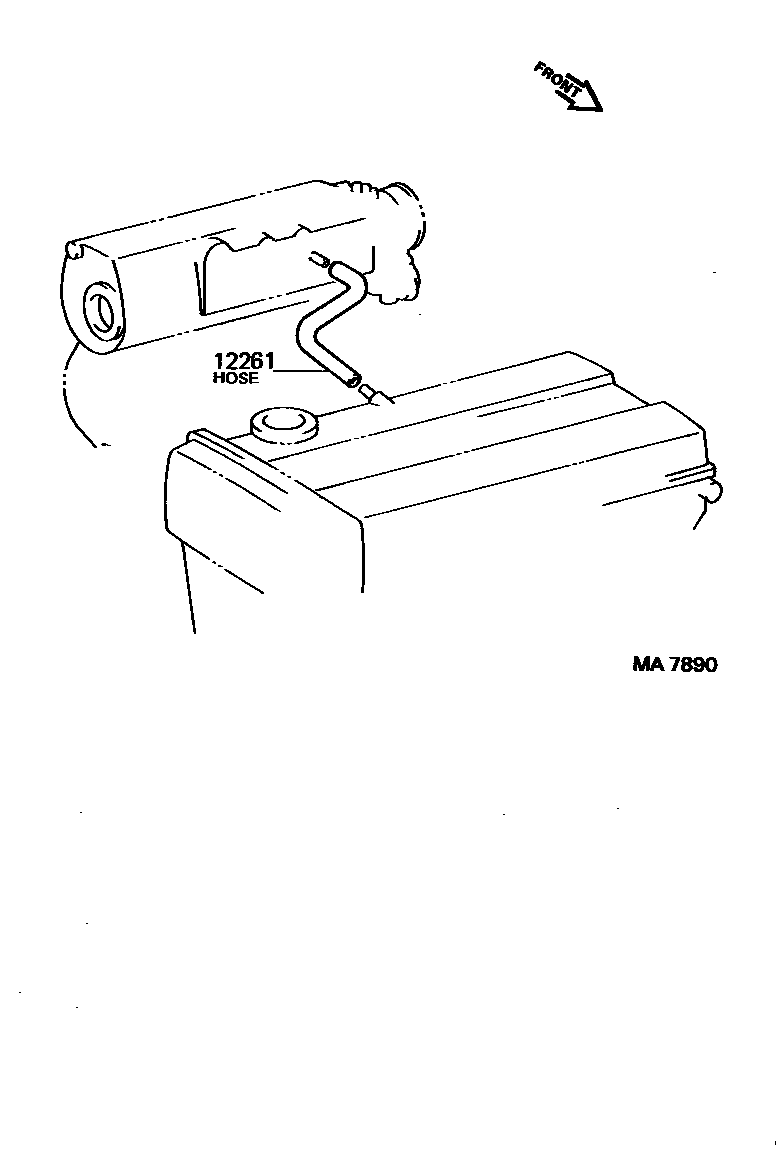

Toyota COROLLA Ventilation Hose EPC diagram — MA7890
Ventilation Hose — MA7890 (198410 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — MA7907
Ventilation Hose — MA7907 (198410 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-10020 · 12204-11040 · 12204-15022 · 12204-15030 · 12204-71010
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-12002
12222BClip (for ventilation duct)96132-31000
12261Ventilation Hose12261-10010 · 12261-11020 · 12261-15020 · 12261-15070 · 12261-16030 · 12261-16031 · 12261-64030
12261AClip or clip (for vent hose)90467-15120 · 90467-16010
12262Ventilation hose No. 212262-10020 · 12262-15030 · 12262-15060
12262AClamp (for vent hose No. 2)90467-13103
