Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

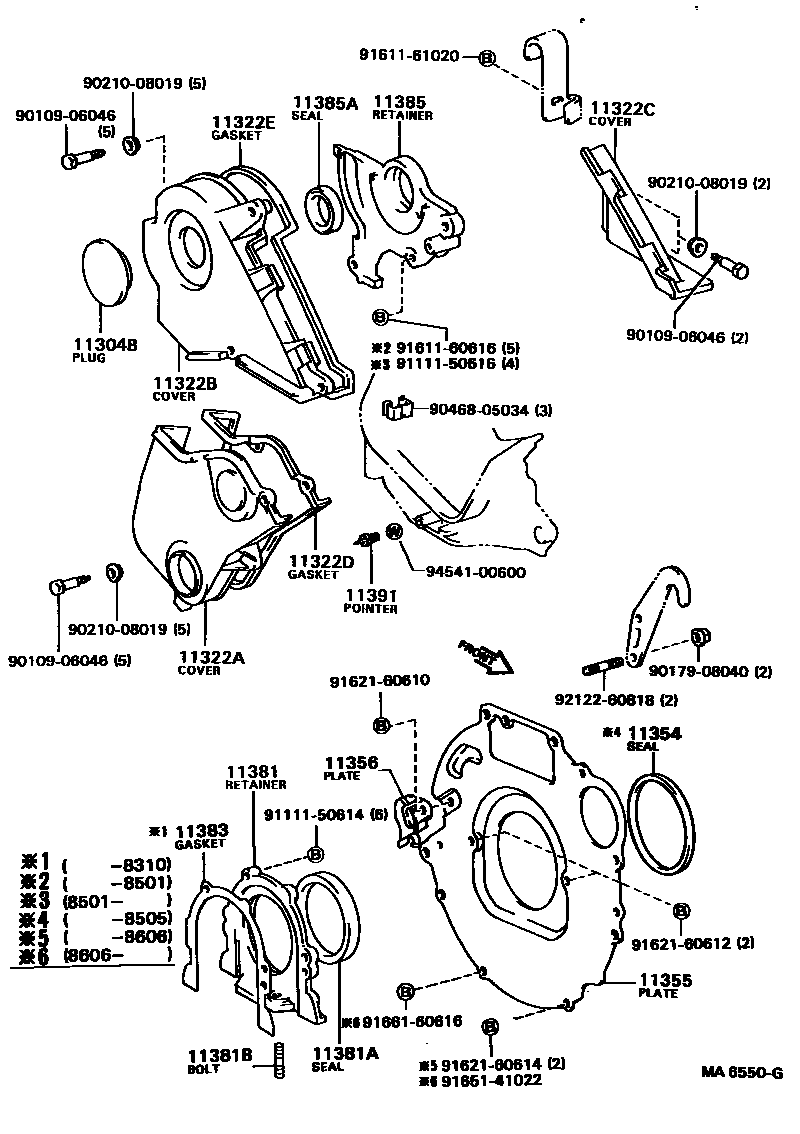

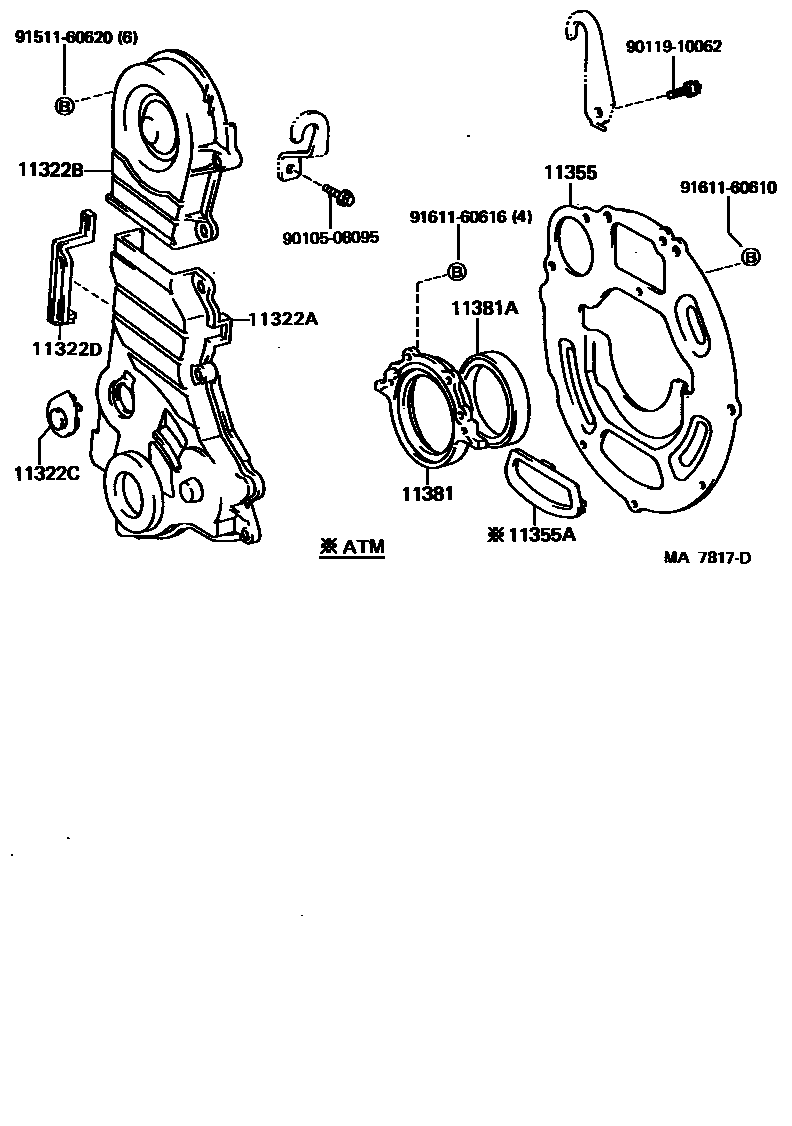

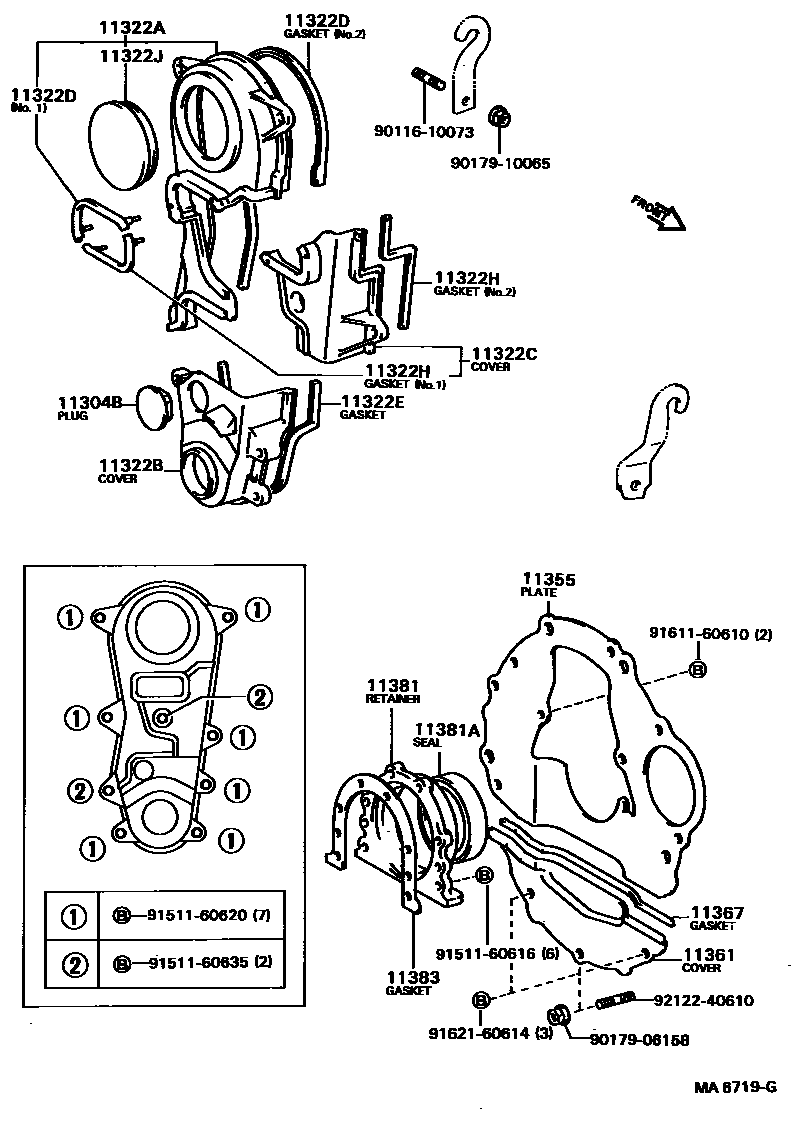

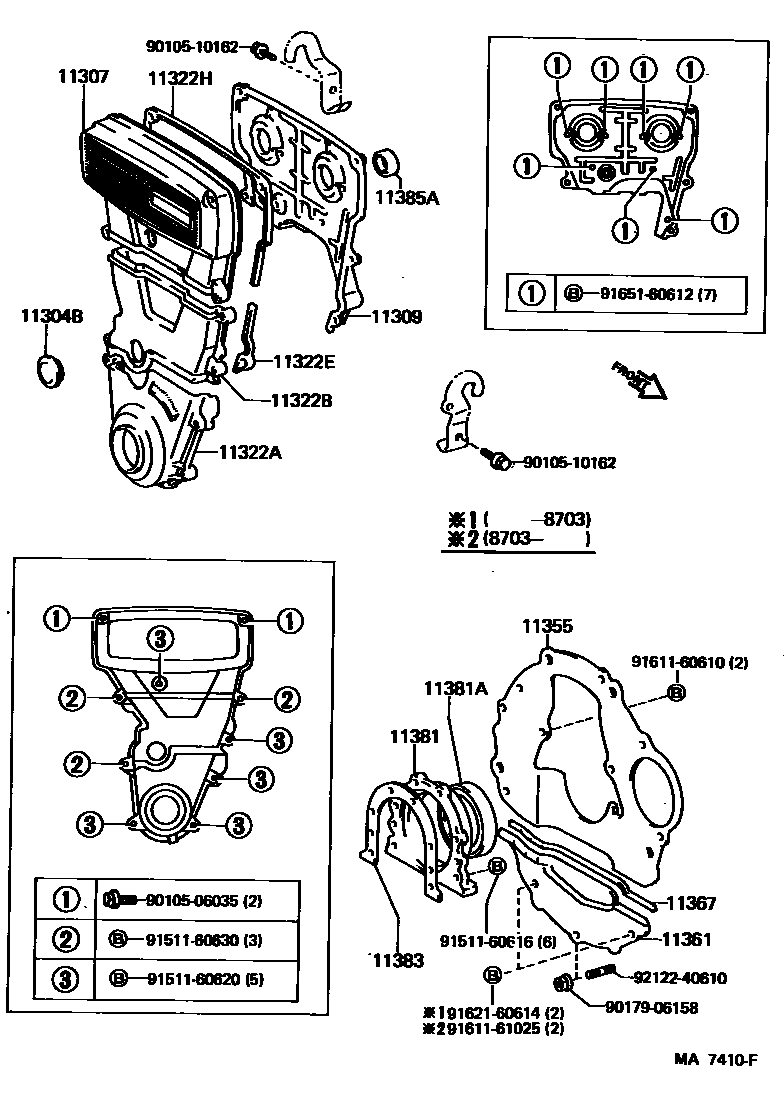

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01357 · 90950-01391 · 90950-01535 |
| 11307 | No. 3 timing belt cover sub-assembly | 11304-16020 |
| 11309 | No. 4 timing belt cover sub-assembly | 11325-16011 |
| 11322A | No. 1 timing belt cover | 11302-11020 · 11302-11040 · 11302-11041 · 11302-11042 · 11302-15030 · 11302-15031 · 11302-16010 · 11302-16011 · 11321-64010 |
| 11322B | No. 2 timing belt cover | 11303-10020 · 11303-10021 · 11303-10022 · 11303-15030 · 11303-15031 · 11303-16020 · 11303-16021 · 11322-64010 |
| 11322C | No. 3 timing belt cover | 11304-15010 · 11323-10010 · 11323-10011 · 11323-64010 · 11323-64011 |
| 11322D | No. 1 timing belt cover gasket | 11328-11031 · 11328-15030 · 11328-64020 · 11346-15010 |
| 11322E | No. 2 timing belt cover gasket | 11329-15030 · 11329-16010 · 11329-64020 |
| 11322H | No. 3 timing belt cover gasket | 11319-15010 · 11319-16010 · 11319-16011 · 11346-15010 |
| 11322J | Fastener (for timing belt cover) | 90950-01390 |
| 11354 | Flywheel housing dust seal | 11354-64010 |
| 11355 | rear end plate | 11355-10010 · 11355-10011 · 11355-11010 · 11355-11011 · 11355-15050 · 11355-15060 · 11355-64030 · 11355-64031 · 11355-64032 |
| 11355A | Hole plug (for rear end plate) | 90950-01358 · 90950-01548 |
| 11356 | No. 2 rear end plate | 11356-64010 |
| 11361 | Flywheel housing bottom cover | 11361-15020 · 11361-15021 · 11361-16020 · 11361-16040 |
| 11367 | Flywheel housing lower gasket | 11367-15030 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-10010 · 11381-10020 · 11381-15010 · 11381-64010 · 11381-64011 · 11381-64012 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-70004 · 90311-75004 · 90311-90002 · 90311-90003 |
| 11381B | Stud bolts (for engine rear oil seal race) | 90116-06033 |
| 11383 | Engine rear oil seal seat gasket | 11383-15010 · 11383-64010 |
| 11385 | Camshaft oil seal race | 11382-64010 · 11382-64011 |
| 11385A | Oil seal (for camshaft) | 90311-35013 · 90311-38017 · 90311-38025 |
| 11391 | Timing pointer | 11391-64020 |
