Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 6 PNC and OE references.

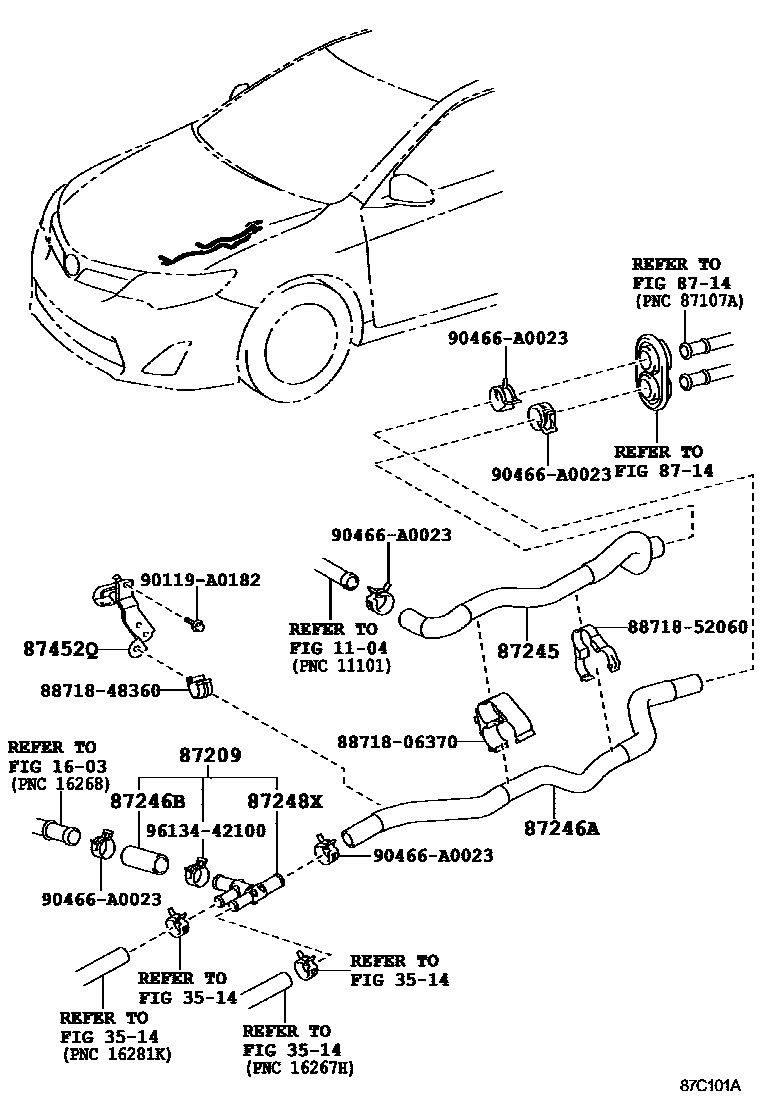

Toyota CAMRY 暖风和空调系统 - 水管 EPC diagram — 87C101A
暖风和空调系统 - 水管 — 87C101A (201109 – 999999)

PNC and OE references

PNCPart nameOE numbers
87209Water hose sub-assembly87209-06020
87245Heater water inlet hose87245-06830
87246AHeater outlet hose A87245-06840
87246BHeater outlet hose B87245-06820
87248Xheater water pipe87248-06020
87452QHeater Bracket No. 187121-06010 · 87452-06040
