Toyota CAMRY 后视镜 — Figure 8701

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

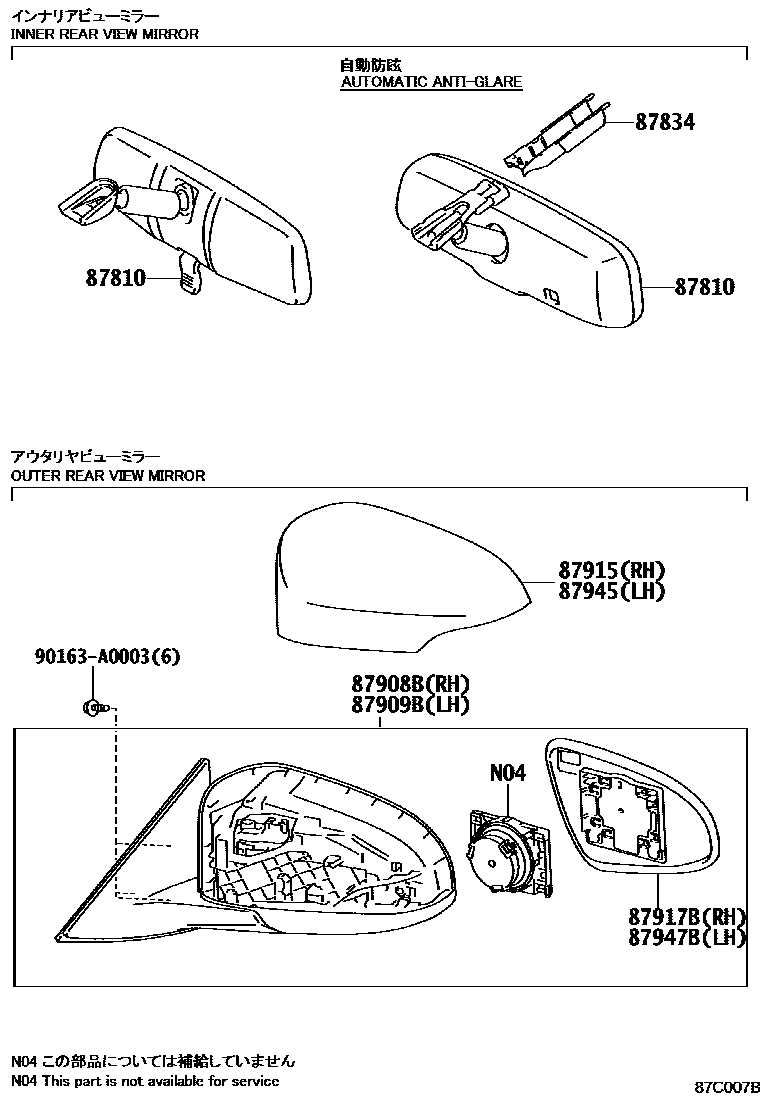

Toyota CAMRY 后视镜 EPC diagram — 87C007B
后视镜 — 87C007B (201109 – 201409)

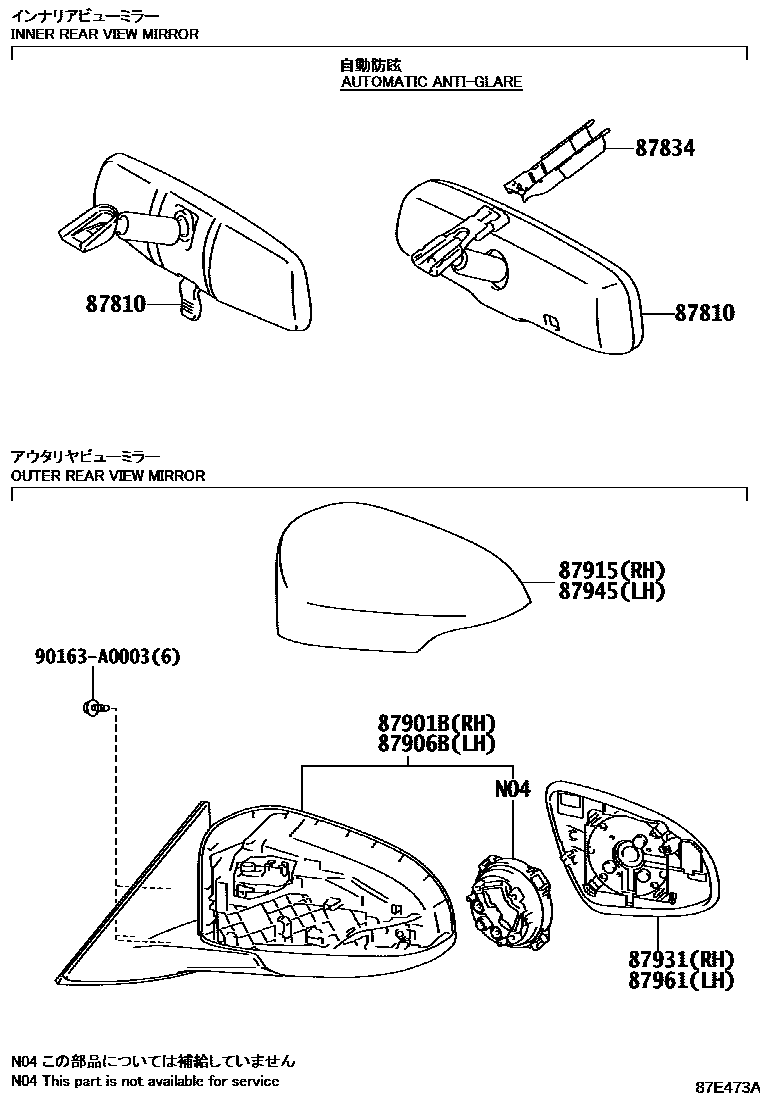

Toyota CAMRY 后视镜 EPC diagram — 87E473A
后视镜 — 87E473A (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06051 · 87810-06080 · 87810-06140 · 87810-06180
87834Interior rearview mirror stay fixing cover87818-06020 · 87818-AC010
87901BRight exterior rearview mirror sub-assembly87901-06080 · 87901-06081
87906BLeft exterior rearview mirror sub-assembly87906-06080 · 87906-06081
87908BRight rearview mirror sub-assembly87908-06400 · 87908-06401 · 87908-06410 · 87908-06411
87909BLeft rearview mirror sub-assembly87909-06400 · 87909-06401 · 87909-06410 · 87909-06411
87917BRight exterior rearview mirror87917-06400 · 87917-06410
87931Right exterior rearview mirror87902-06050
87947BLeft exterior rearview mirror87947-06400 · 87947-06410
87961Left exterior rearview mirror87907-06040
