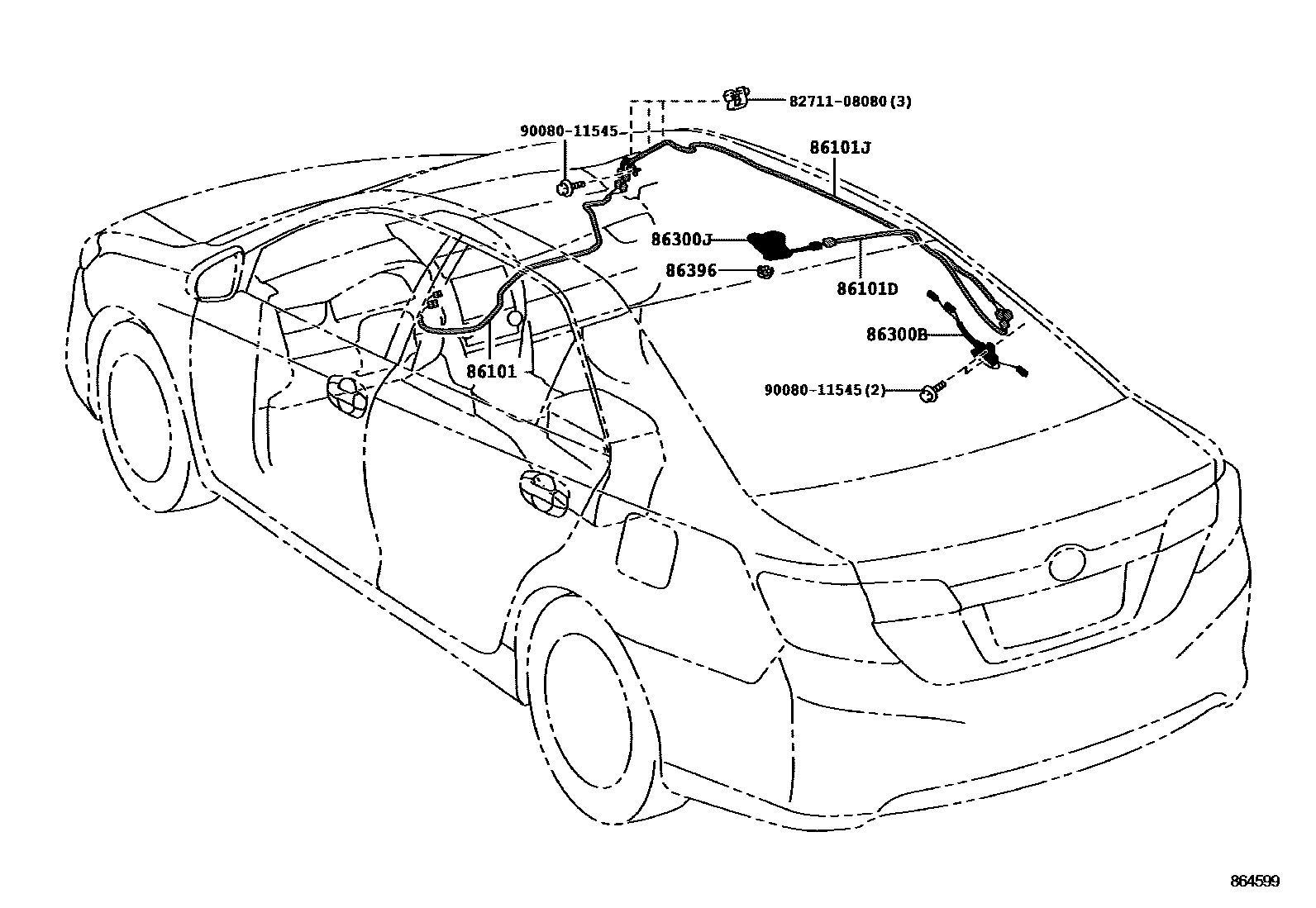

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-06550 · 86101-06560 · 86101-06690 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-06450 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-06480 · 86101-06500 · 86101-06630 |
| 86300B | Amplifier antenna assembly | 86300-06160 |
| 86396 | Antenna nut | 86396-47010 |
