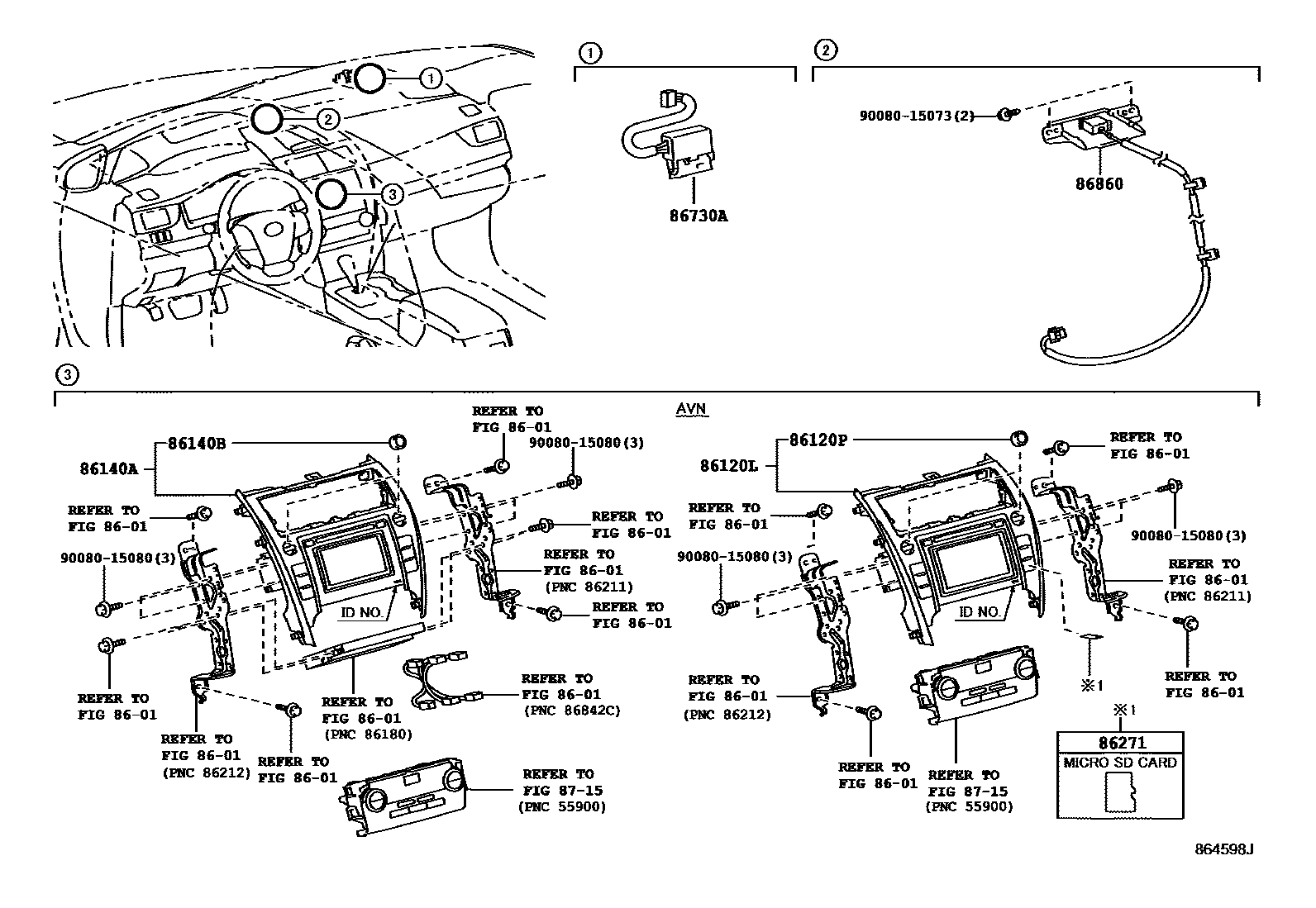

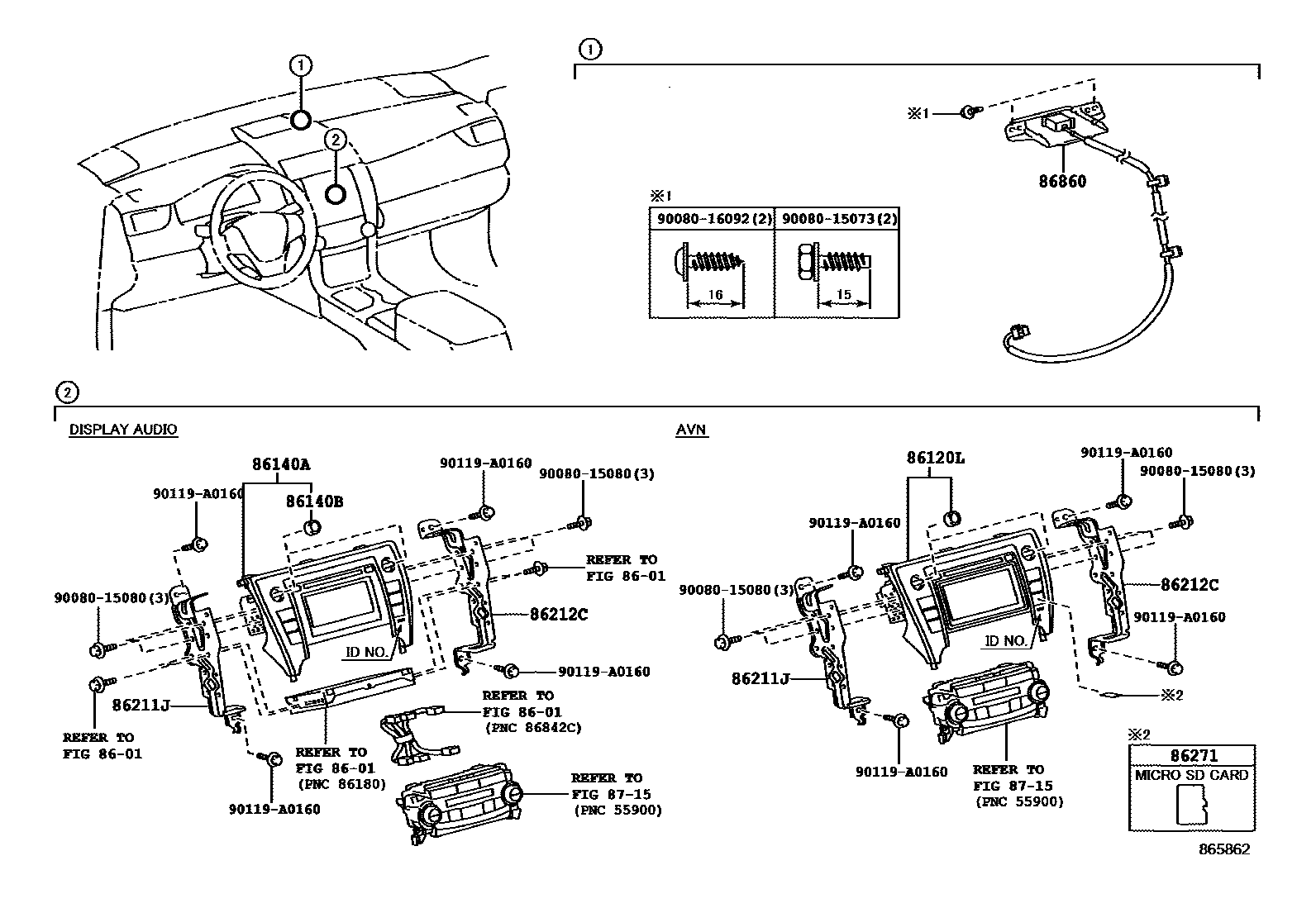

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-06100 · 86804-06140 · 86804-06180 |
| 86120P | Navigation receiver switch button | 90011-23038 |
| 86140A | Radio and display receiver assembly | 86140-06010 · 86140-06011 · 86140-06020 · 86140-06021 · 86140-06190 · 86140-06200 · 86140-06210 · 86140-06390 · 86140-06660 · 86140-06690 |
| 86140B | Radio and display receiver switch button | 86128-06100 · 86128-06110 · 90011-23038 · 90011-25212 · 90011-25213 |
| 86211J | No. 1 radio bracket | 86211-06210 |
| 86212C | No. 2 radio bracket | 86212-06210 |
| 86271 | CD | 86271-0E181 · 86271-0E183 |
| 86730A | Telephone amplifier assembly | 86730-48040 |
| 86860 | Navigation antenna assembly | 86860-06070 · 86860-06080 · 86860-33120 |
