Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

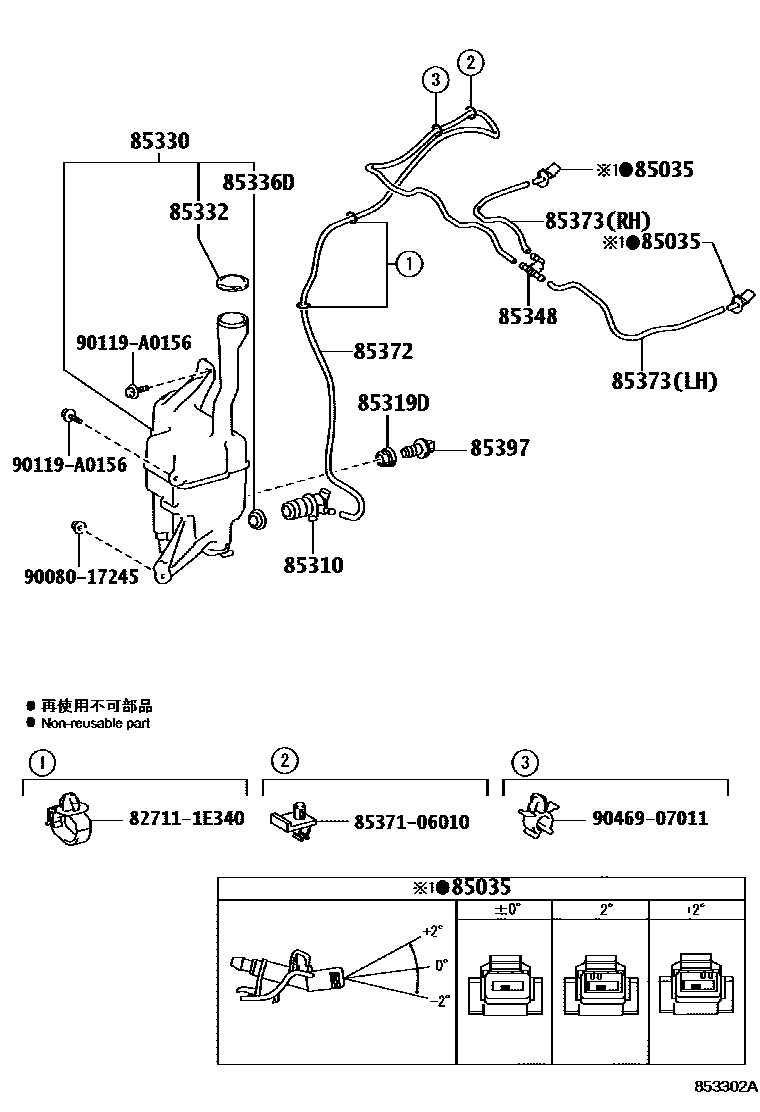

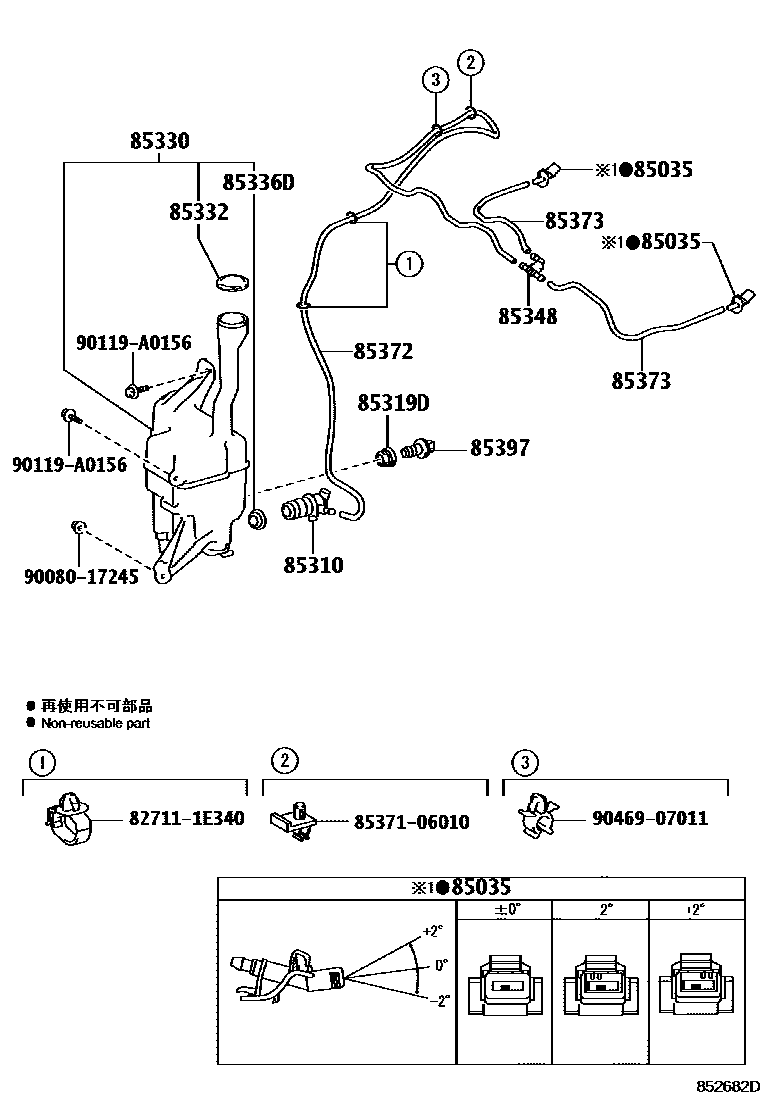

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30150 · 85381-30160 · 85381-33080 |
| 85310 | Windshield washer motor and pump assembly | 85330-06070 · 85330-60190 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-06220 |
| 85332 | Windshield washer fluid tank cap | 85386-0C010 |
| 85336D | Windshield washer fluid tank seal | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85321-08010 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-06160 · 85374-06180 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33161 · 90068-33247 · 90068-33248 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
