Toyota CAMRY 防盗装置 — Figure 8424

Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 3 PNC and OE references.

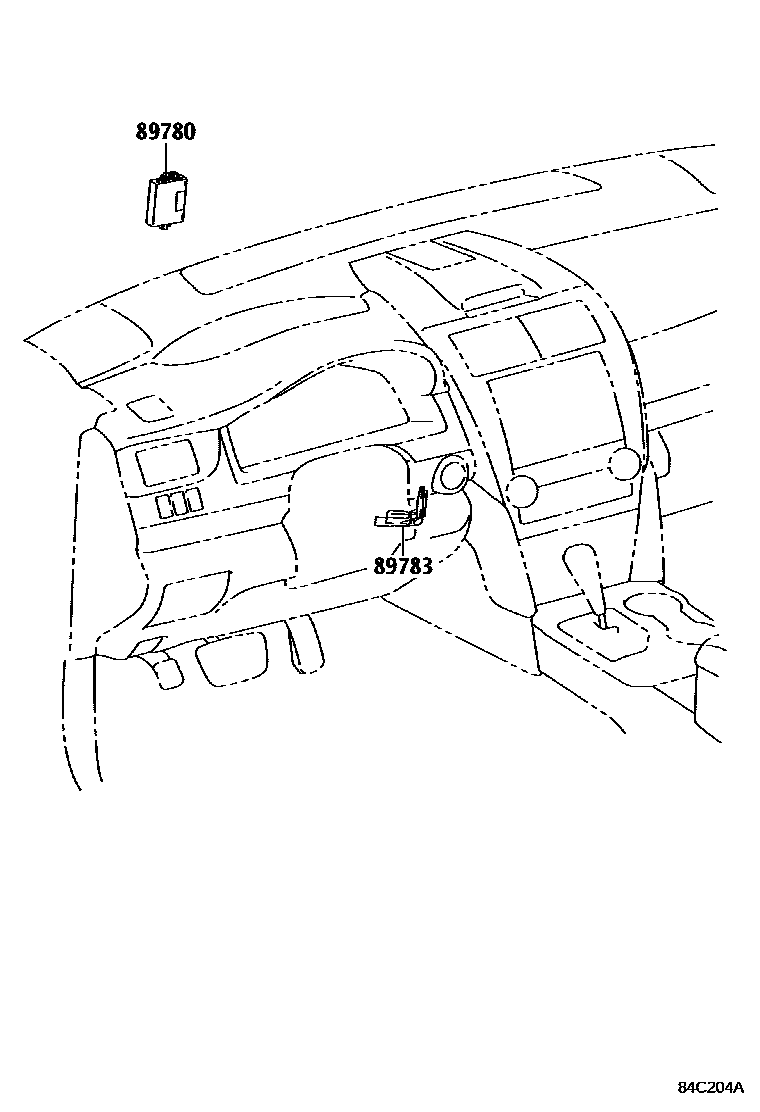

Toyota CAMRY 防盗装置 EPC diagram — 84C204A
防盗装置 — 84C204A (201109 – 201409)

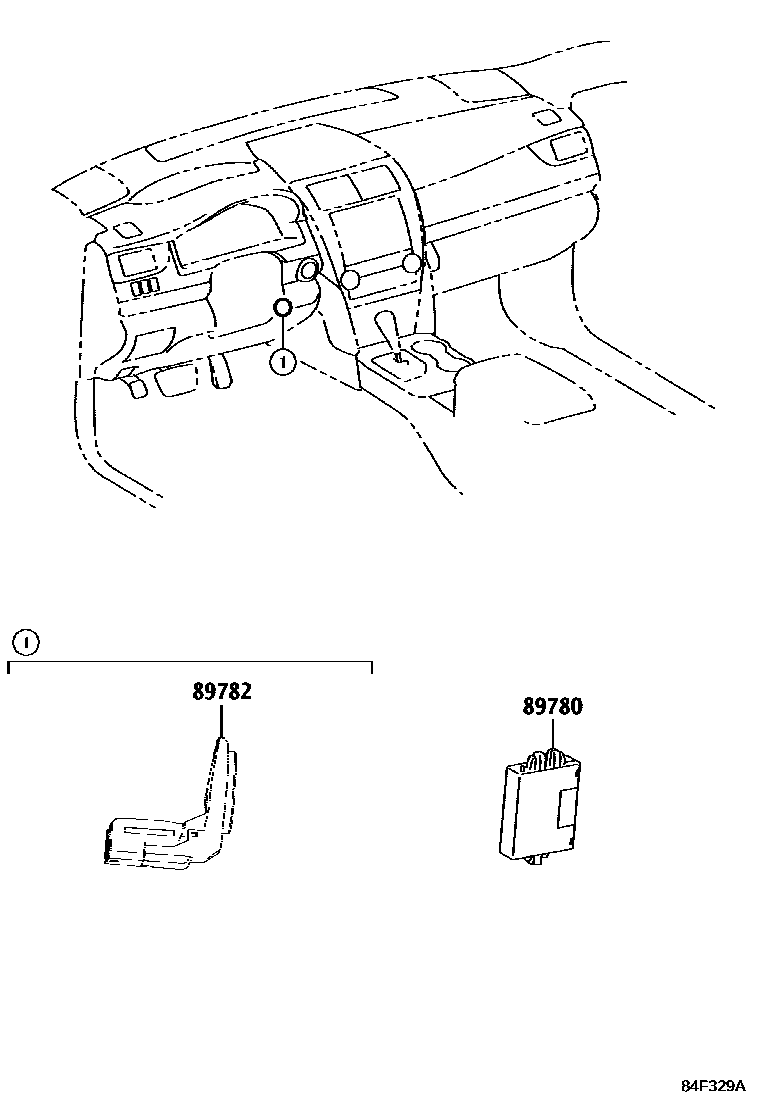

Toyota CAMRY 防盗装置 EPC diagram — 84F329A
防盗装置 — 84F329A (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
89780Transceiver key ECU assembly89780-06040 · 89780-06041
89782transceiver key coil89782-0E010
89783transceiver key amplifier89783-06050
