Toyota CAMRY 空气囊 — Figure 8421

Toyota CAMRY EPC diagram 8421, 空气囊, with 2 images and 11 PNC and OE references.

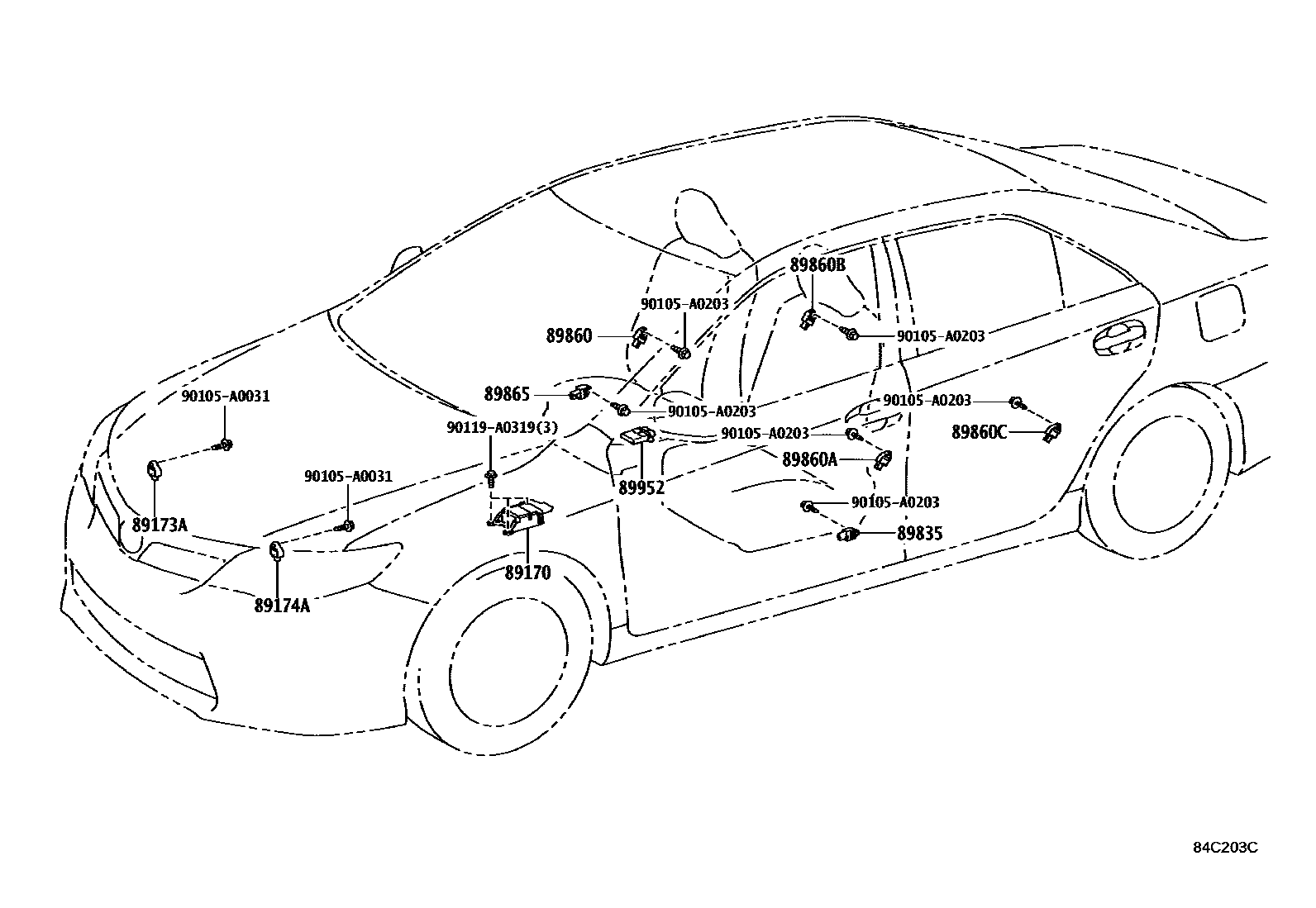

Toyota CAMRY 空气囊 EPC diagram — 84C203C
空气囊 — 84C203C (201109 – 201206)

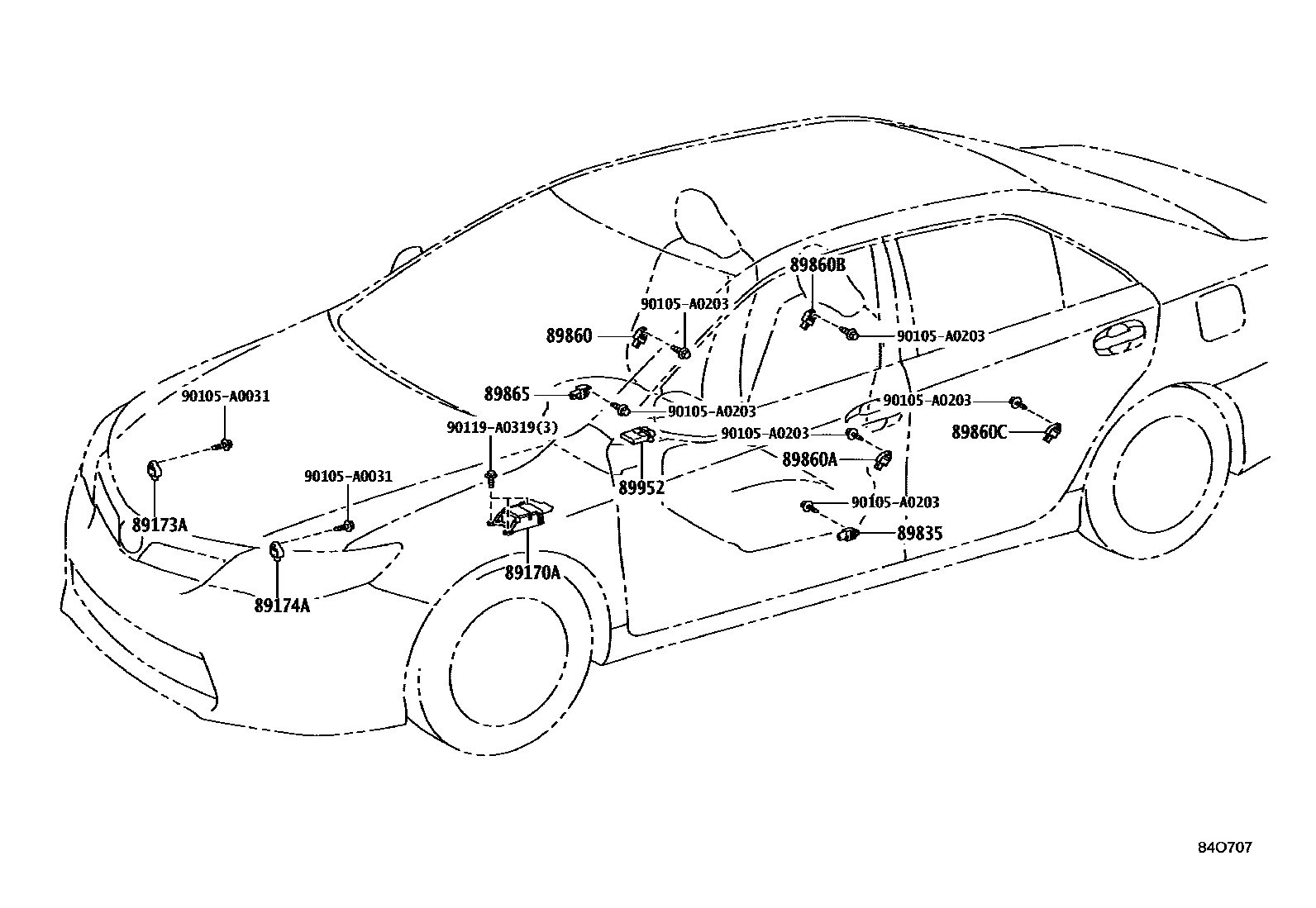

Toyota CAMRY 空气囊 EPC diagram — 84O707
空气囊 — 84O707 (201206 – 999999)

PNC and OE references

PNCPart nameOE numbers
89170air bag sensor assembly89170-06660
89170AAir bag ECU assembly89170-06390 · 89170-06411 · 89170-06720 · 89170-06770
89173ARight front air bag sensor89173-09820 · 89173-09A00
89174ALeft front air bag sensor89173-09820 · 89173-09A00
89835Left door side air bag sensor89831-06070 · 89831-0E020
89860Right side airbag sensor assembly89831-06060 · 89831-0R010
89860ALeft side air bag sensor assembly89831-06060 · 89831-0R010
89860BRight No. 2 side airbag sensor assembly89831-06060 · 89831-0R010
89860CLeft No. 2 side airbag sensor assembly89831-06060 · 89831-0R010
89865Right door side air bag sensor89831-06070 · 89831-0E020
89952Occupant detection ECU89952-06030 · 89952-06031 · 89952-0E011
