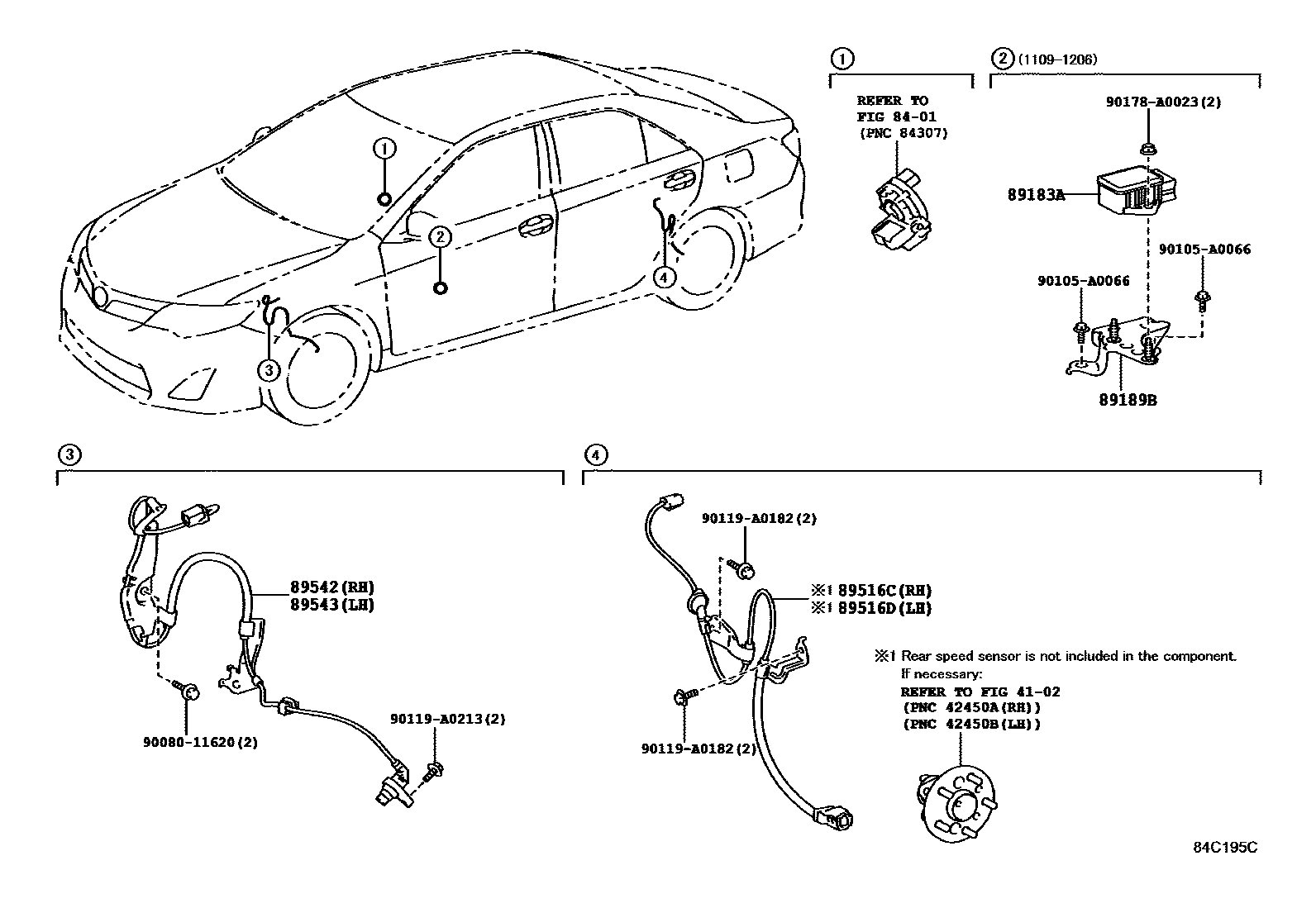

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89183A | Yaw rate sensor | 89183-0T010 |
| 89189B | Yaw rate sensor bracket | 89189-33010 |
| 89516C | Right anti-skid control sensor harness | 89516-06150 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-06160 |
| 89542 | Right front wheel speed sensor | 89542-06040 · 89542-06120 · 89542-33110 |
| 89543 | Left front wheel speed sensor | 89543-06040 · 89543-06120 · 89543-33100 |
