Toyota CAMRY 开关和继电器和ECU — Figure 8401

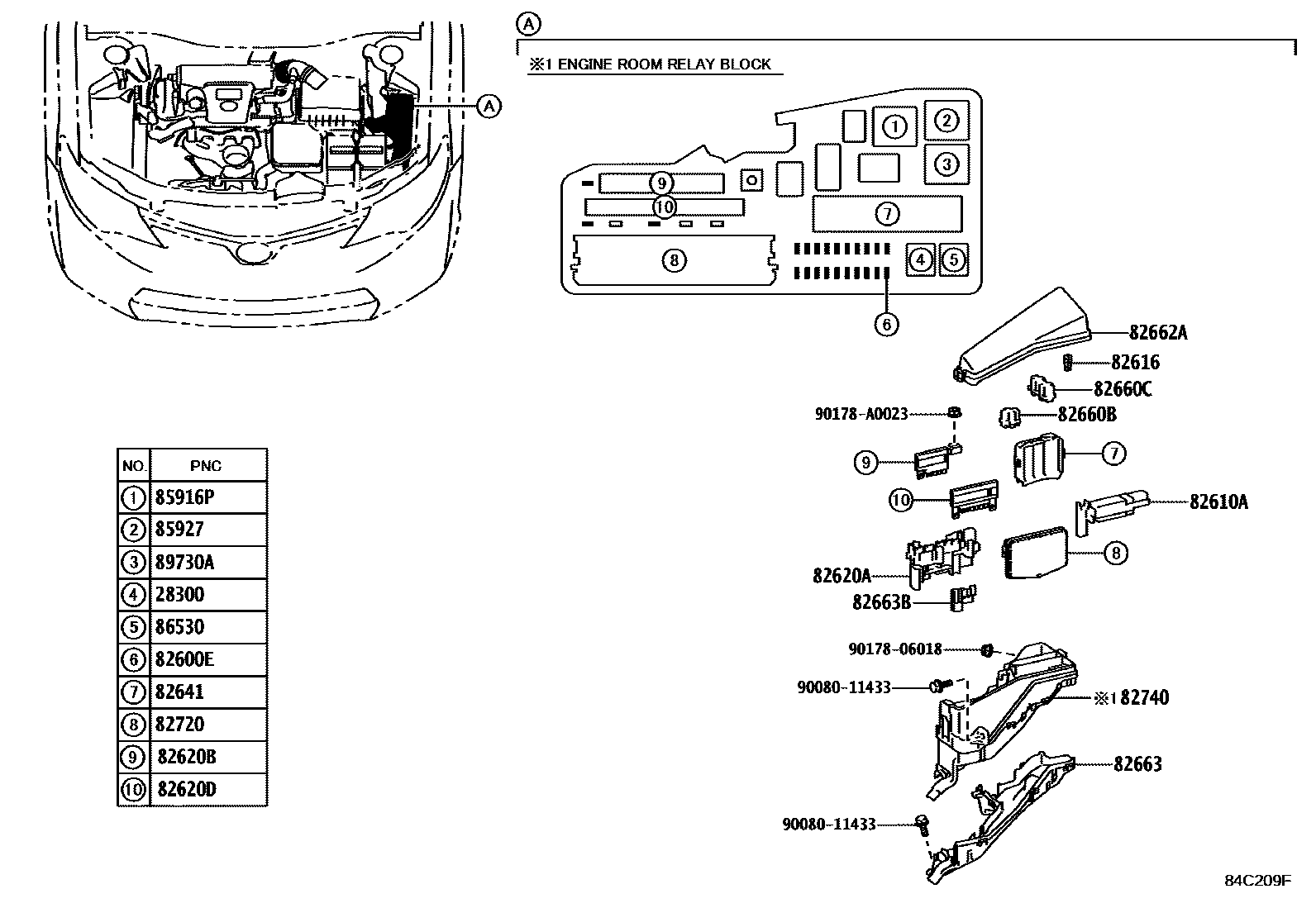

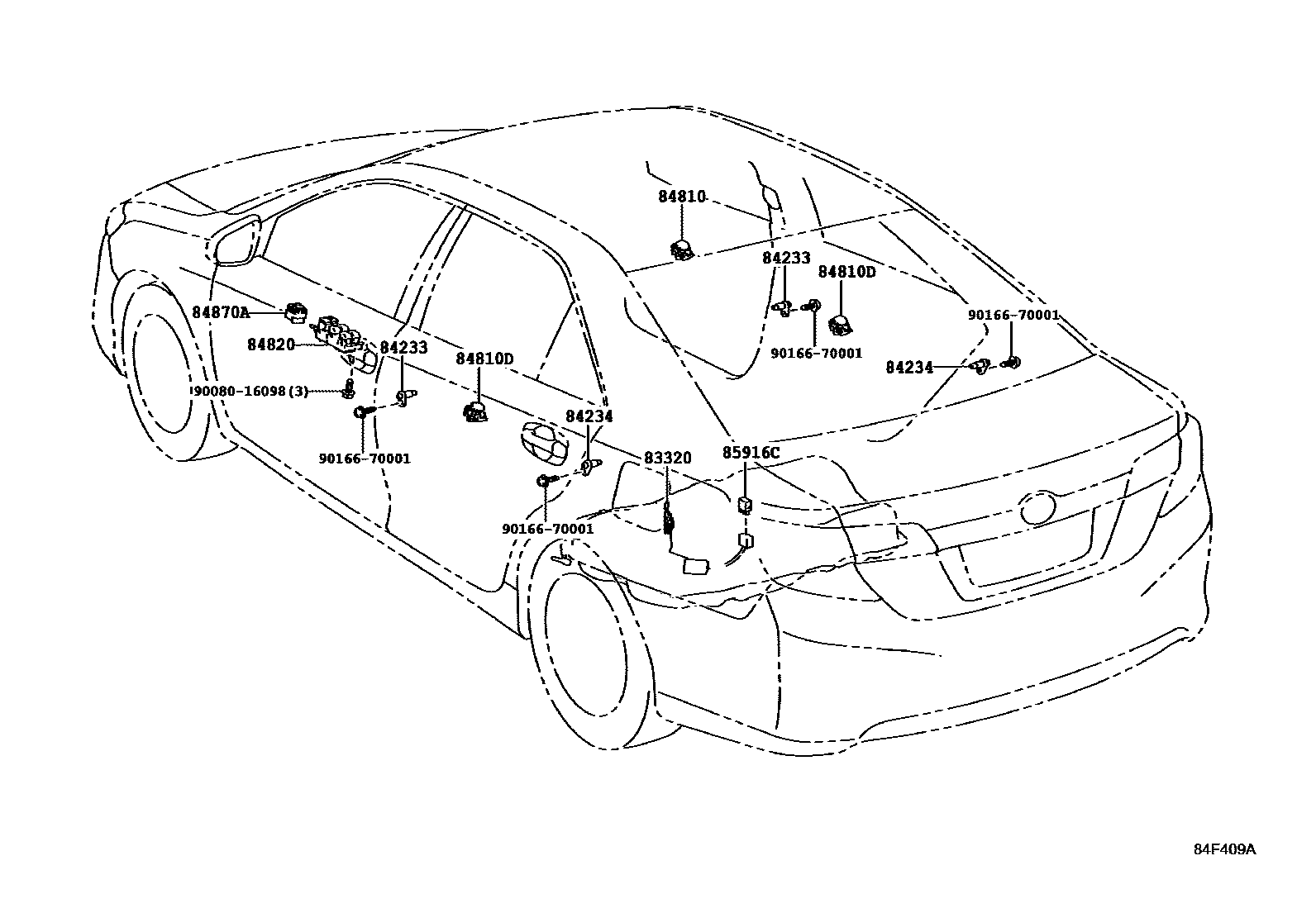

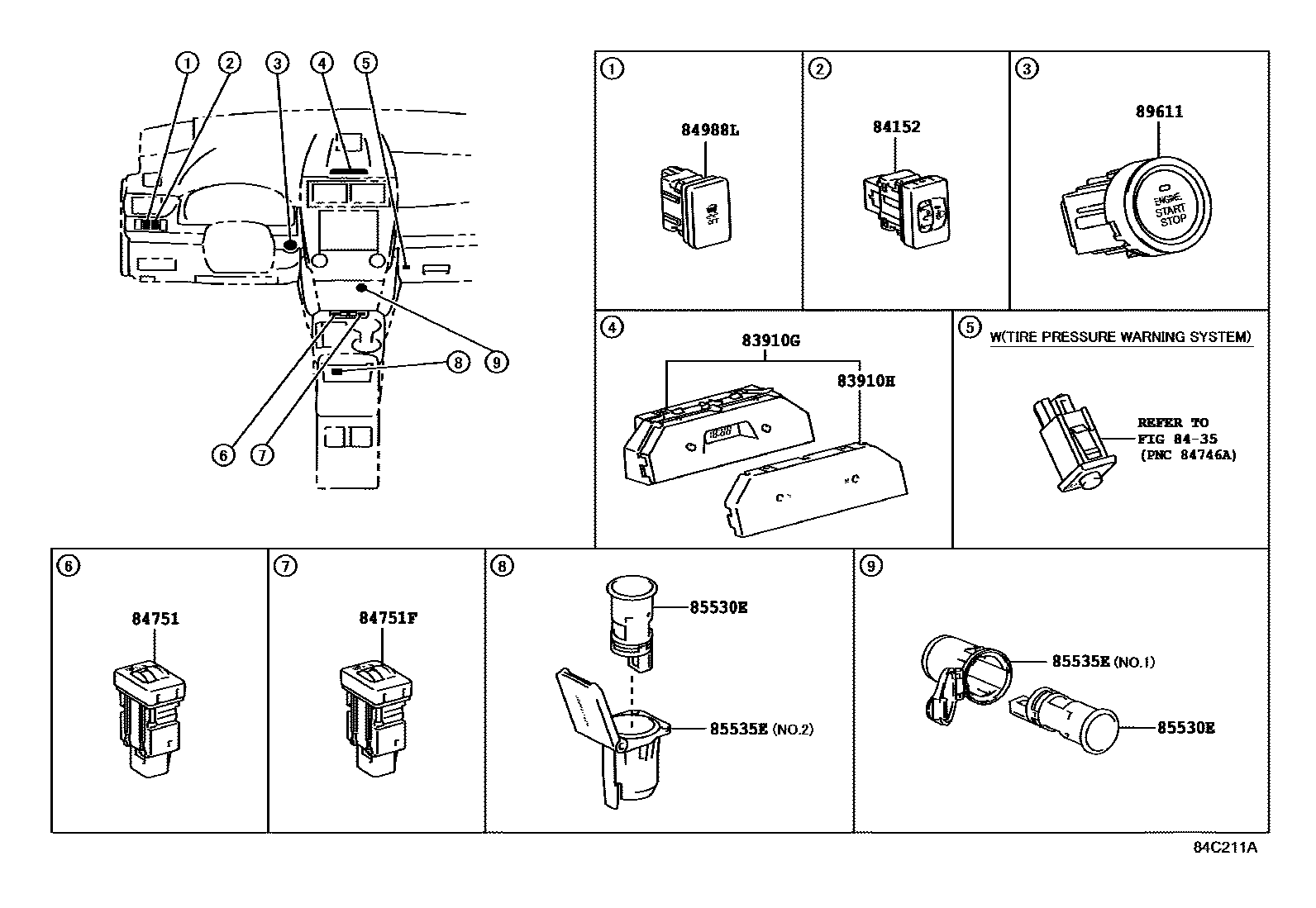

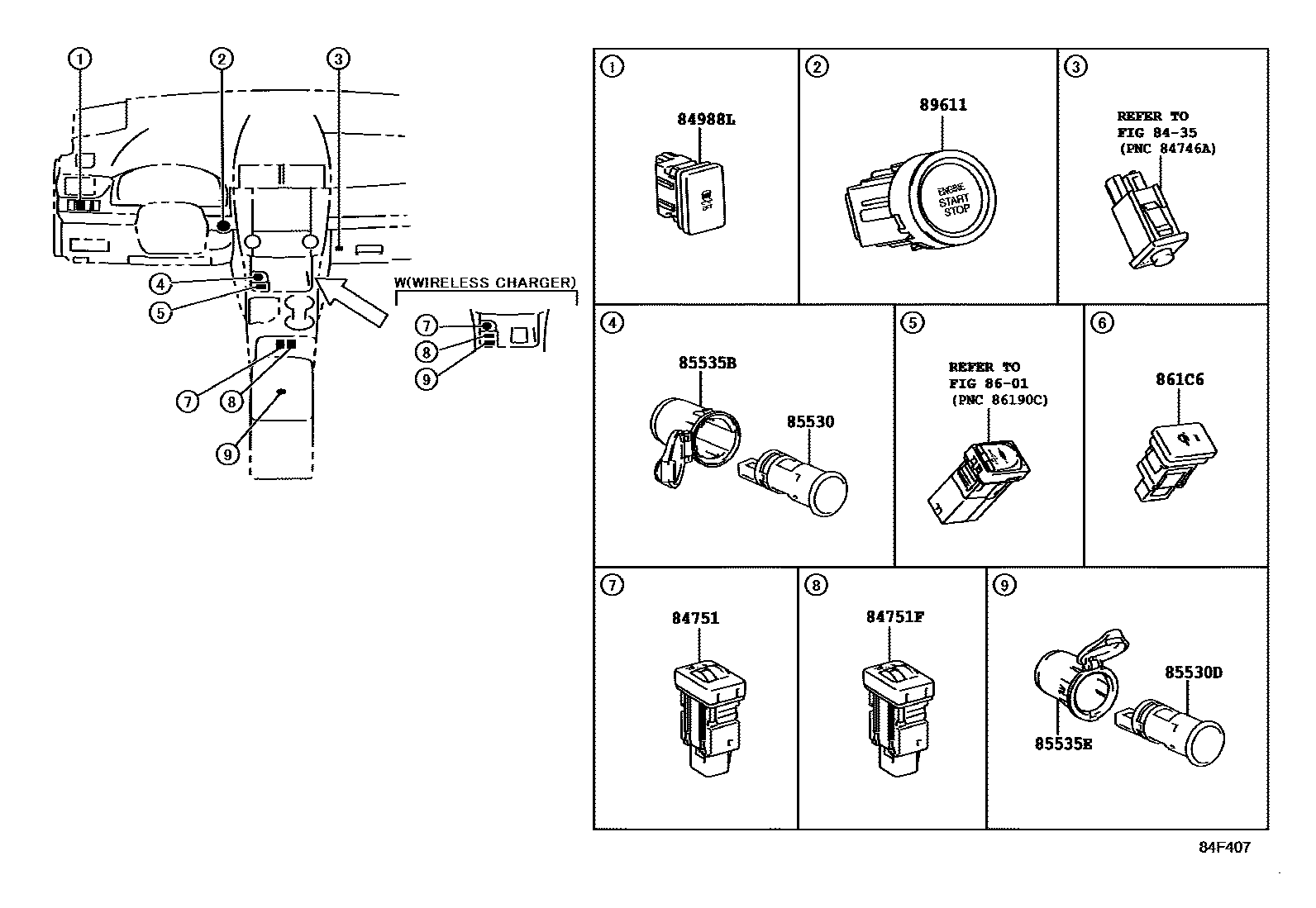

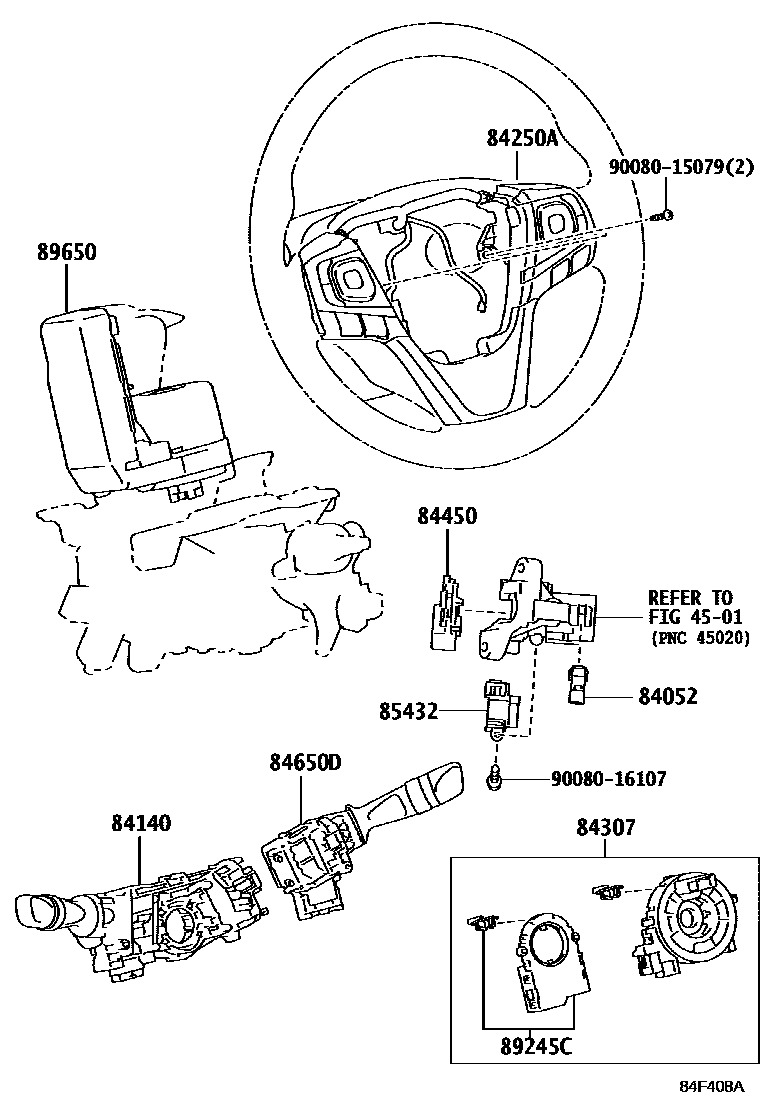

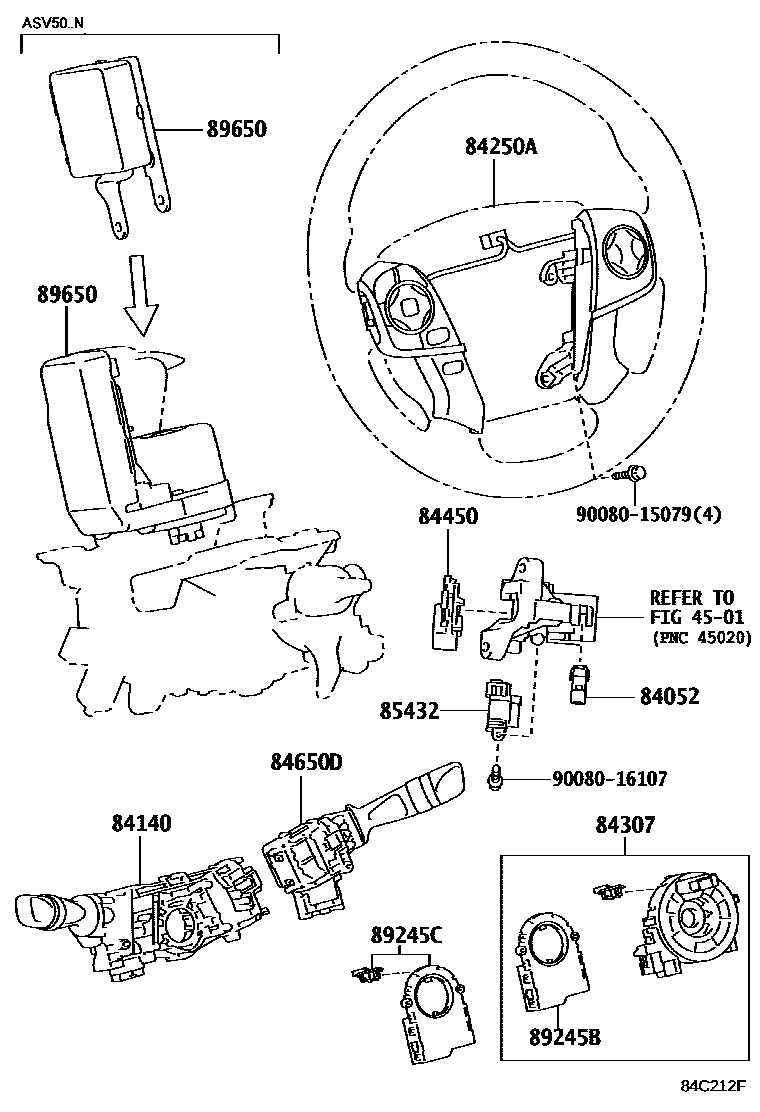

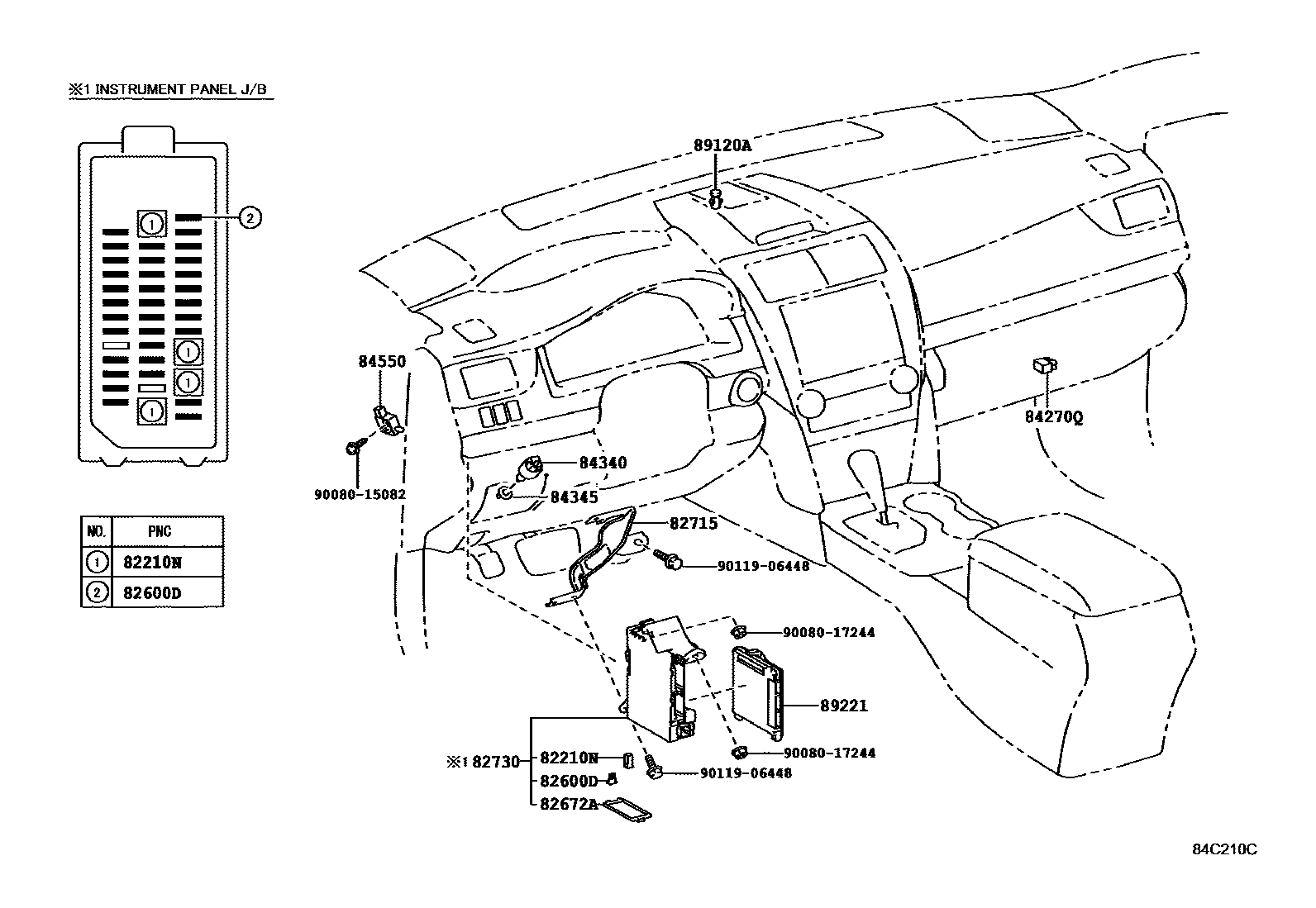

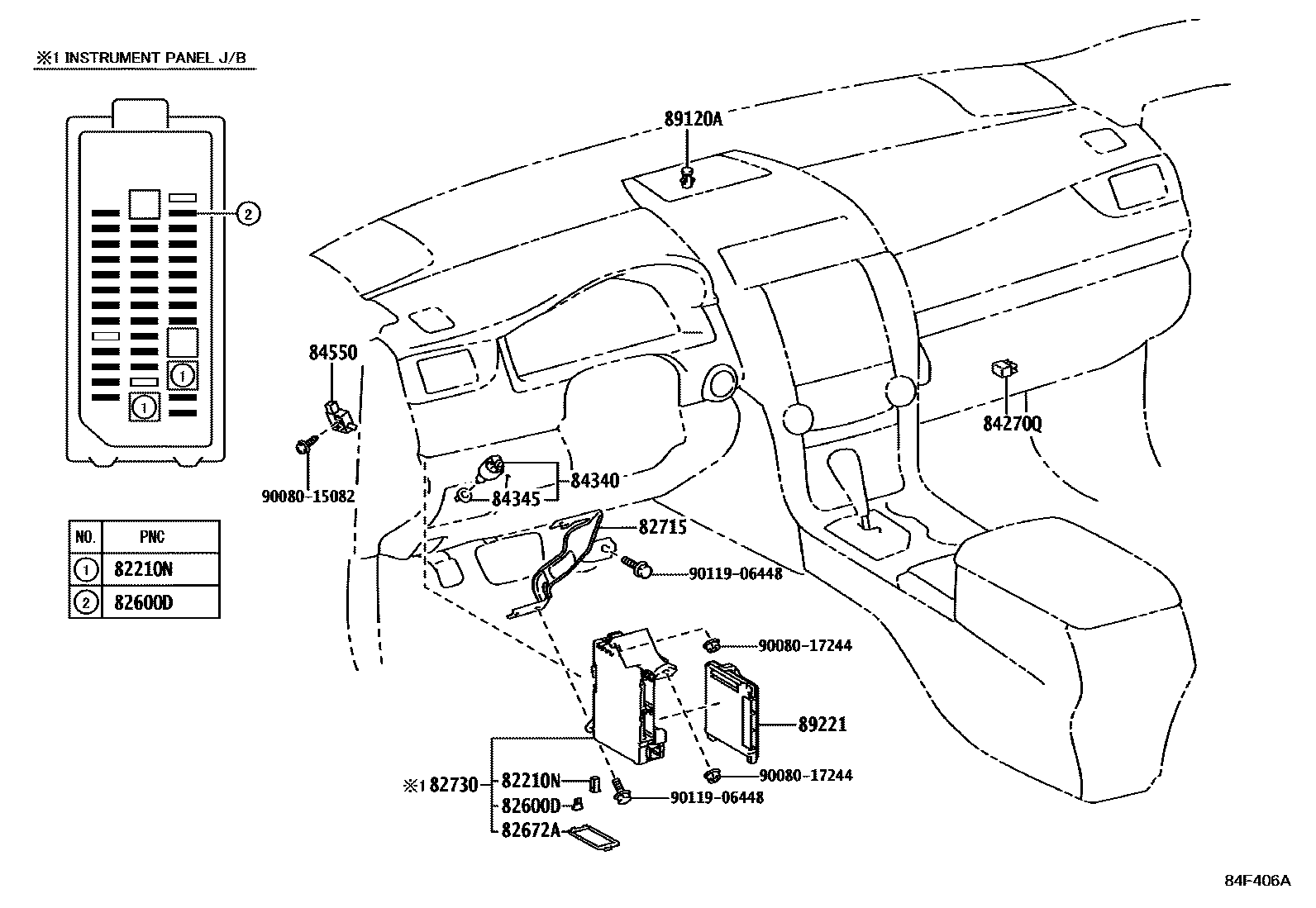

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 11 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A010 · 28300-0A011 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82641 | Integrated relay No. 1 | 82641-33150 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 |
| 82662A | No. 1 relay box upper cover | 82662-06170 · 82662-06190 · 82662-06390 |
| 82663 | Relay box lower cover | 82663-33110 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82672A | Junction box cover | 82672-06241 · 82672-06242 · 82672-06243 |
| 82715 | Wire harness clamp bracket | 82715-06F90 |
| 82720 | Engine room junction box assembly | 82720-06130 · 82720-06131 · 82720-33220 · 82720-33250 · 82720-33300 · 82720-33301 |
| 82730 | Instrument panel junction box assembly | 82730-06751 · 82730-06752 · 82730-06753 |
| 82740 | Engine room relay box assembly | 82740-33030 |
| 83320 | Fuel gauge sensor assembly | 83320-06120 · 83320-06121 |

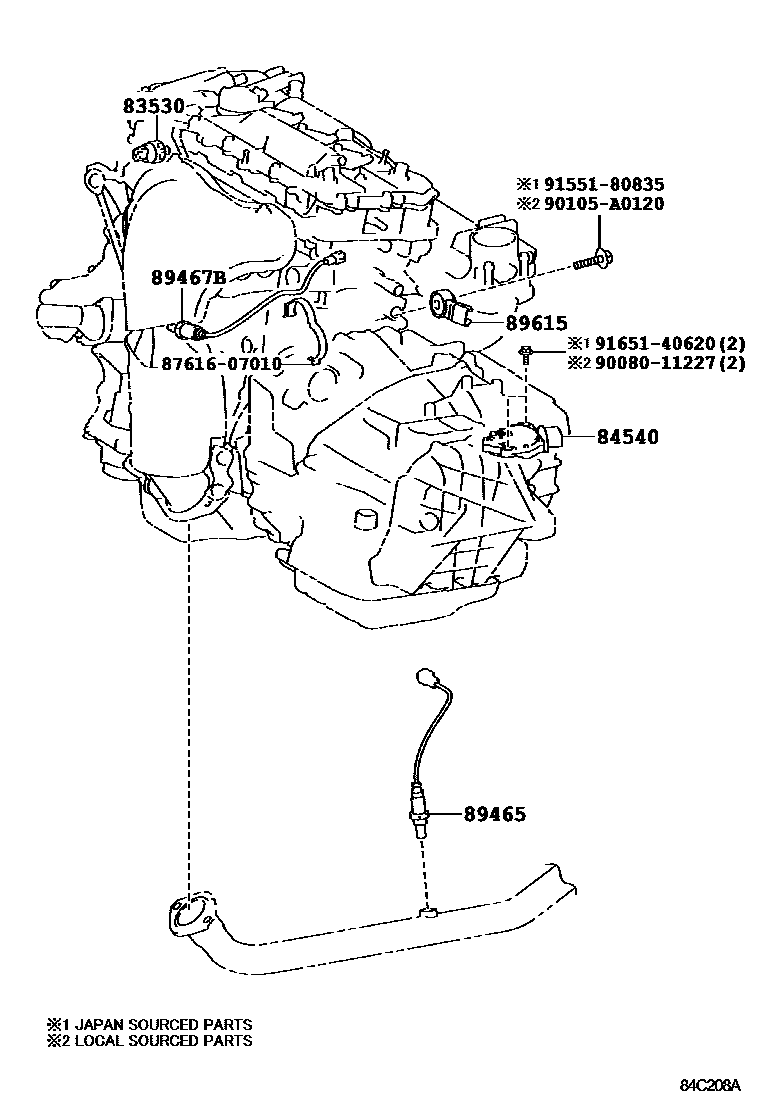

| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 |
| 83910G | clock assembly | 83910-06230 |
| 83910H | clock cover | 8391B-06020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-06510 · 84140-06530 · 84140-06540 |
| 84152 | Headlight beam height adjustment switch | 84152-08010 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06270 · 84250-06290 · 84250-06550 · 84250-06560 · 84250-06570 |
| 84270Q | headlight relay | 90080-87026 · 90987-02027 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02220 · 84307-06090 · 84307-06130 |
| 84340 | brake light switch assembly | 84340-09070 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84450 | Ignition or starter switch assembly | 84450-06020 |
| 84540 | Neutral start switch assembly | 84540-07010 · 84540-33010 |
| 84550 | Parking brake switch assembly | 84550-0E010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-06340 · 84652-06350 |

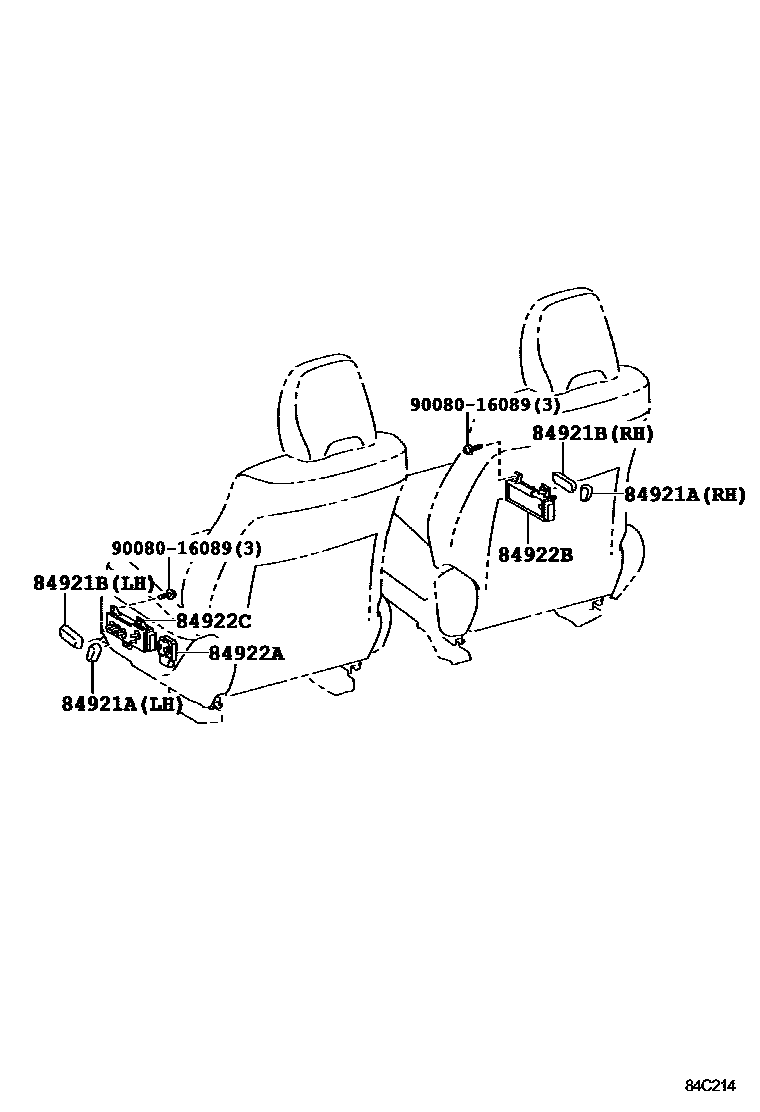

| 84751 | Seat heater switch | 84751-06050 · 84751-06090 · 84751-06120 · 84751-06121 |
| 84751F | Seat heater switch | 84751-06100 · 84751-06110 · 84751-06111 · 84751-0T020 |

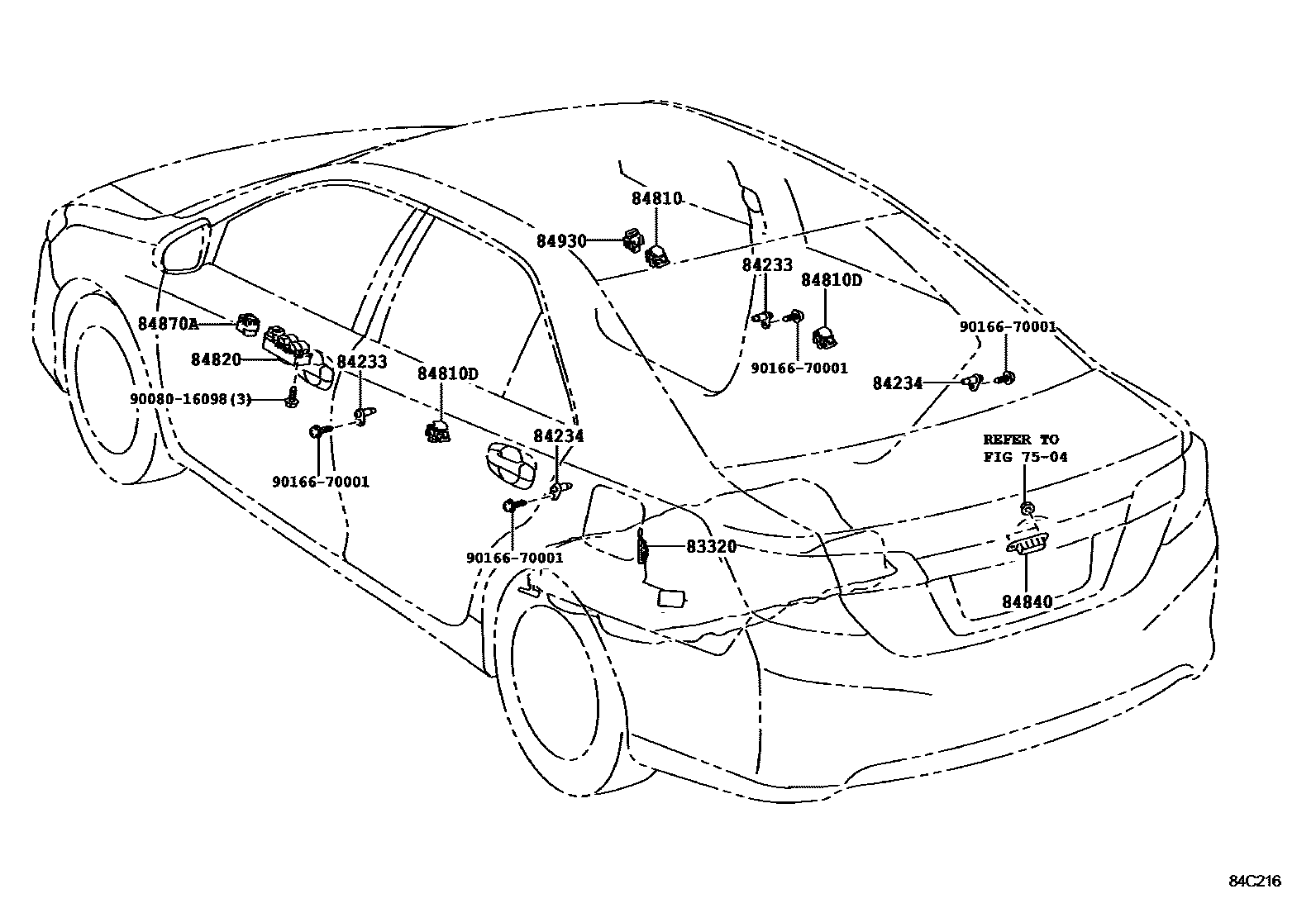

| 84810 | Electric window lift switch assembly | 84810-06030 · 84810-0E040 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 · 84810-0E050 |
| 84820 | Electric window lift main switch assembly | 84820-06061 · 84820-06120 |
| 84840 | Trunk door opening switch assembly | 84840-0T010 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02060 · 84872-02200 · 84872-06050 |
| 84922B | Front right electric seat switch | 84922-08010 |
| 84922C | Front left electric seat switch | 84922-08020 |
| 84930 | Door control switch assembly | 84930-0C010 · 84930-0E160 |
| 84988L | VSC off switch | 84988-0R070 · 84988-0R071 · 84988-0T010 |
| 85432 | Key interlock solenoid valve | 85432-06030 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530D | No. 2 power socket assembly | 85530-06030 |
| 85530E | No. 3 power socket assembly | 85530-06030 |
| 85535E | No. 2 power outlet cover | 85535-06070 |
| 85916C | Reversing light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87024 |
| 85927 | cooling fan relay | 90084-98032 |
| 861C6 | INTERRUPTEUR, CHARGEUR SANS FIL PORTABLE | 861C6-06020 · 861C6-06021 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 89120A | Automatic light control sensor | 89121-06020 · 89121-50020 · 89121-52010 |
| 89221 | Multi-channel network body ECU | 89220-06010 · 89220-06011 · 89220-06020 · 89220-06021 · 89220-06030 · 89220-06031 · 89220-06120 · 89220-06190 |
| 89245B | steering sensor | 89245-09030 |
| 89245C | steering sensor | 8924B-06010 · 8924B-0E020 |
| 89465 | oxygen sensor | 89465-06290 |
| 89467B | air fuel ratio sensor | 89467-06120 · 89467-06160 |
| 89611 | push button start switch | 89611-06040 · 89611-06041 · 89611-0R020 · 89611-0R021 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-06060 · 89650-06150 · 89650-06170 · 89650-06171 · 89650-33220 · 89650-33221 · 89650-33222 · 89650-33320 · 89650-33321 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
