Toyota CAMRY 仪表 — Figure 8301

Toyota CAMRY EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.

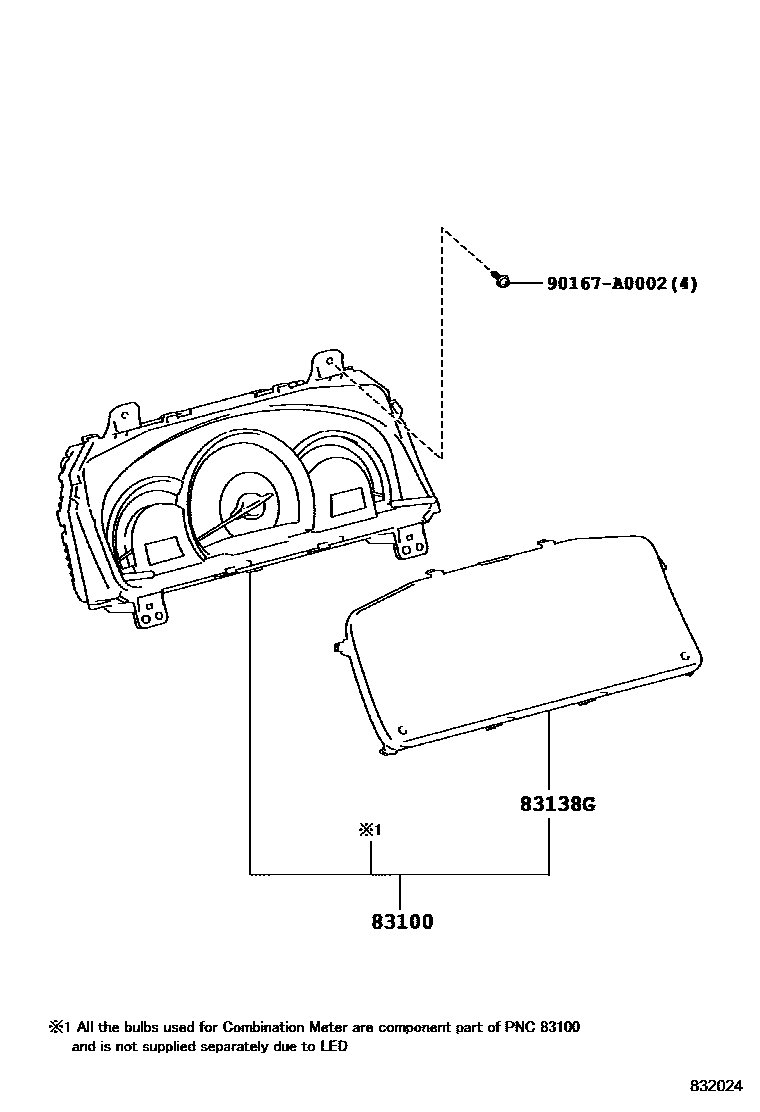

Toyota CAMRY 仪表 EPC diagram — 832024
仪表 — 832024 (201109 – 999999)

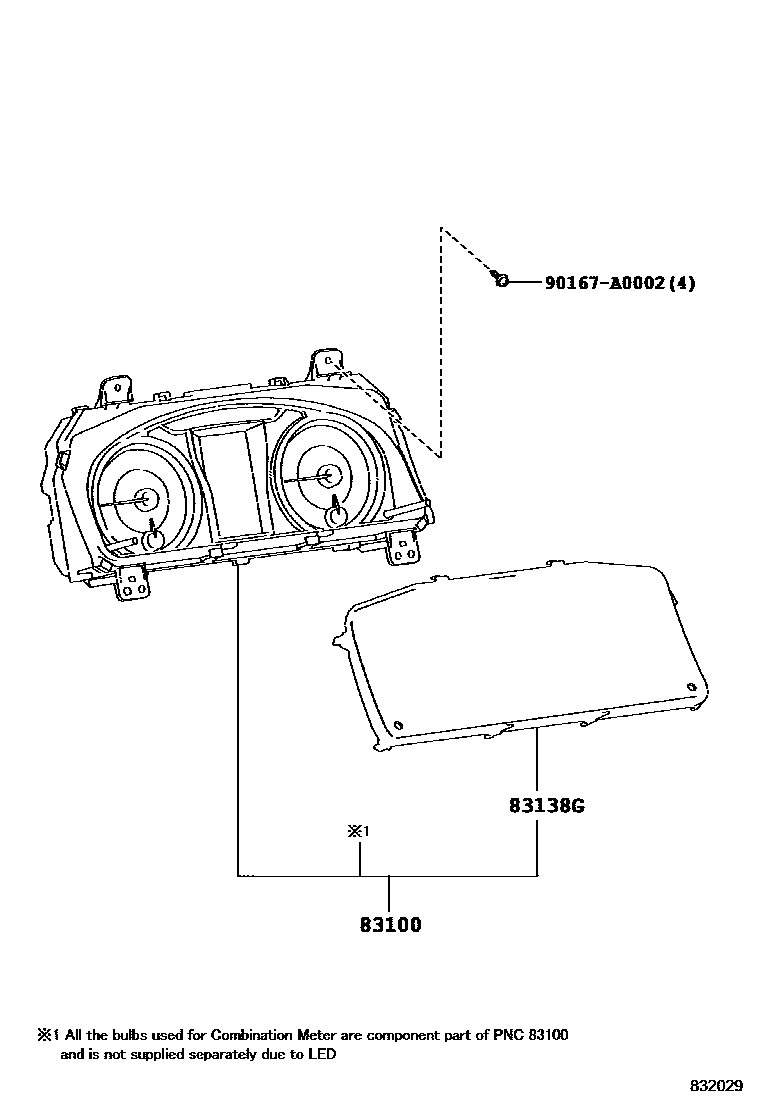

Toyota CAMRY 仪表 EPC diagram — 832029
仪表 — 832029 (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-0X090 · 83800-0X100 · 83800-0X120 · 83800-0X620 · 83800-0X630 · 83800-0X650 · 83800-0X790 · 83800-0X820 · 83800-0XK00
83138GInstrument cluster glass83852-0X090 · 83852-0X150
