Toyota CAMRY 倒车灯 — Figure 8112

Toyota CAMRY EPC diagram 8112, 倒车灯, with 2 images and 8 PNC and OE references.

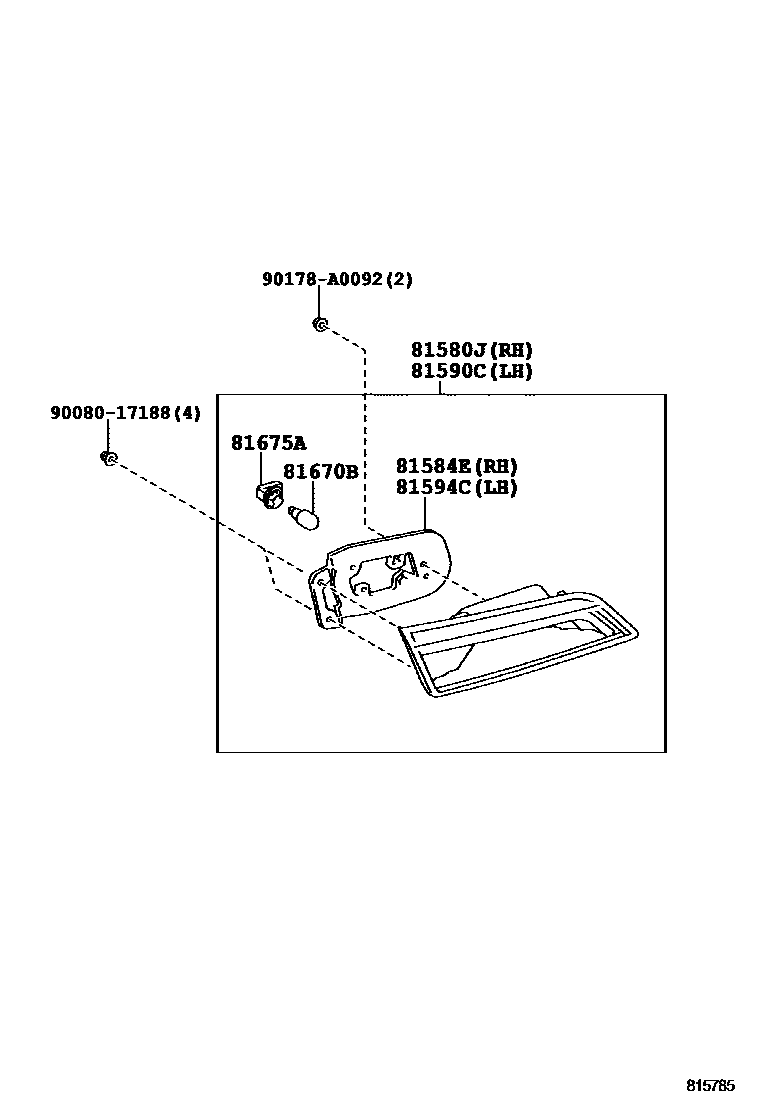

Toyota CAMRY 倒车灯 EPC diagram — 815785
倒车灯 — 815785 (201109 – 201409)

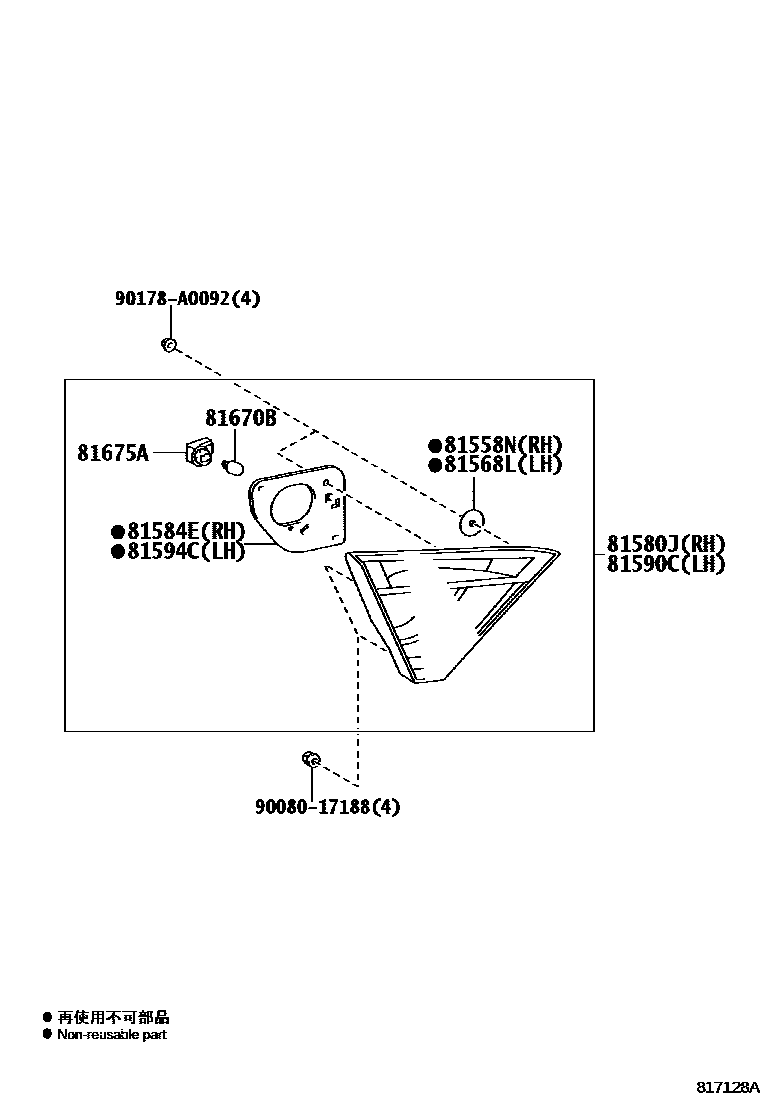

Toyota CAMRY 倒车灯 EPC diagram — 817128A
倒车灯 — 817128A (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
81558NPROTECTEUR, ECLAIRAGE ARRIERE COMBINE, DROIT81558-06410
81568LPROTECTEUR, ECLAIRAGE ARRIERE COMBINE, GAUCHE81558-06410
81580JRight rear light assembly81580-06380 · 81580-06410
81584ERight rear light gasket81584-06380 · 81584-06410
81590CLeft rear light assembly81590-06380 · 81590-06410
81594CLeft rear light gasket81584-06380 · 81584-06410
81670BBulb (for reversing lights)90981-11059
81675ALamp holder plug (for reversing lights)90075-60037
