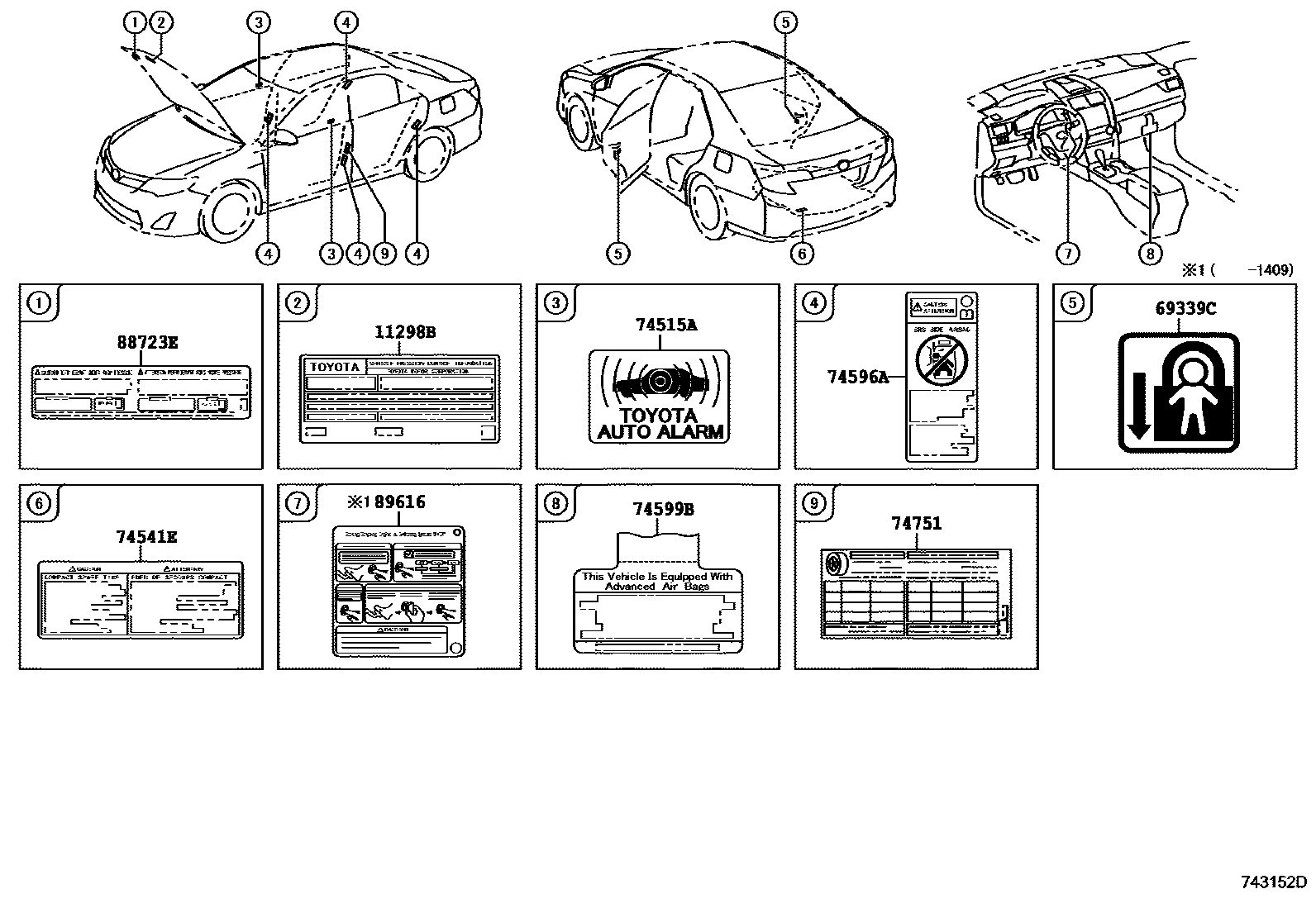

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-0V010 · 11298-0V020 · 11298-0V130 · 11298-0V140 · 11298-0V240 · 11298-0V250 · 11298-0V320 · 11298-0V331 · 11298-0V332 · 11298-0V341 · 11298-0V342 · 11298-0V361 · 11298-0V362 · 11298-0V371 · 11298-0V372 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-28020 · 16793-36040 |
| 69339C | Child Restraint Information Label | 69339-06040 |
| 74515A | Anti-theft warning nameplate | 74515-06010 |
| 74541E | Small spare tire warning plate | 42668-06010 · 42668-0E010 |
| 74596A | Side air bag warning label | 74596-53010 |
| 74599B | Driver and passenger air bag information labels | 74599-0E020 |
| 74751 | tire pressure information label | 42661-06722 |
| 88723E | Cooler maintenance warning label | 88723-07030 |
| 89616 | Button start information label | 89616-30031 |
