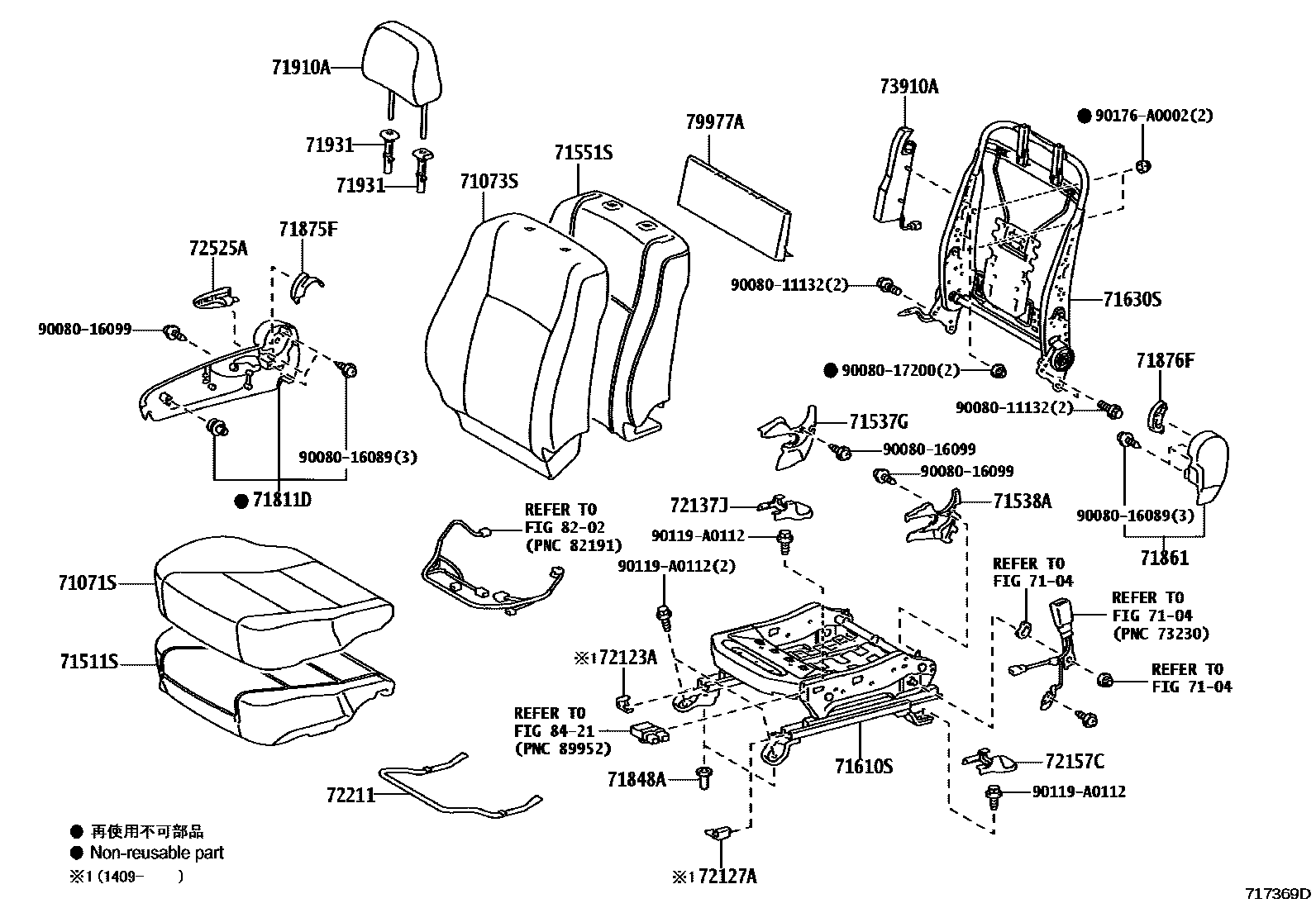

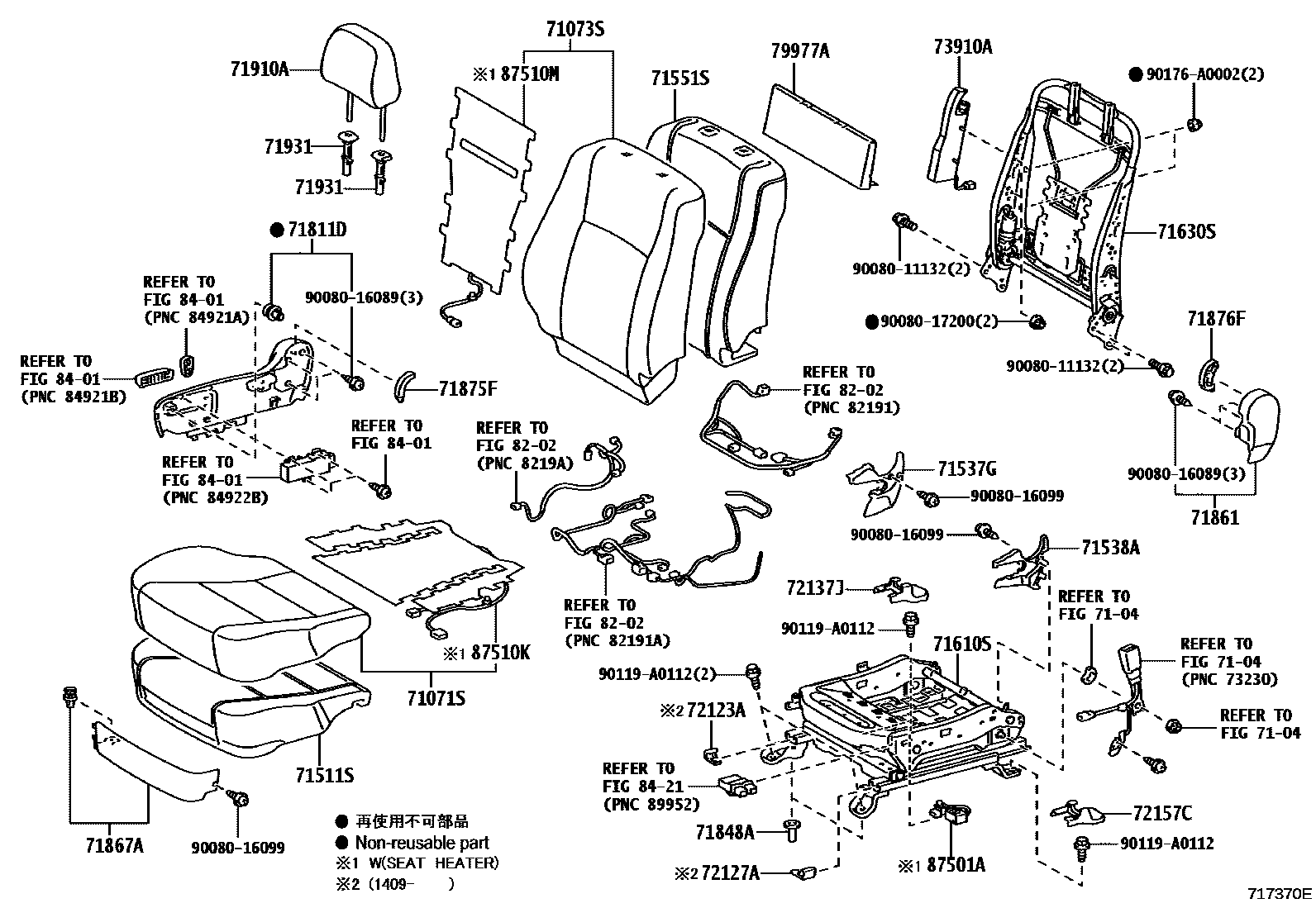

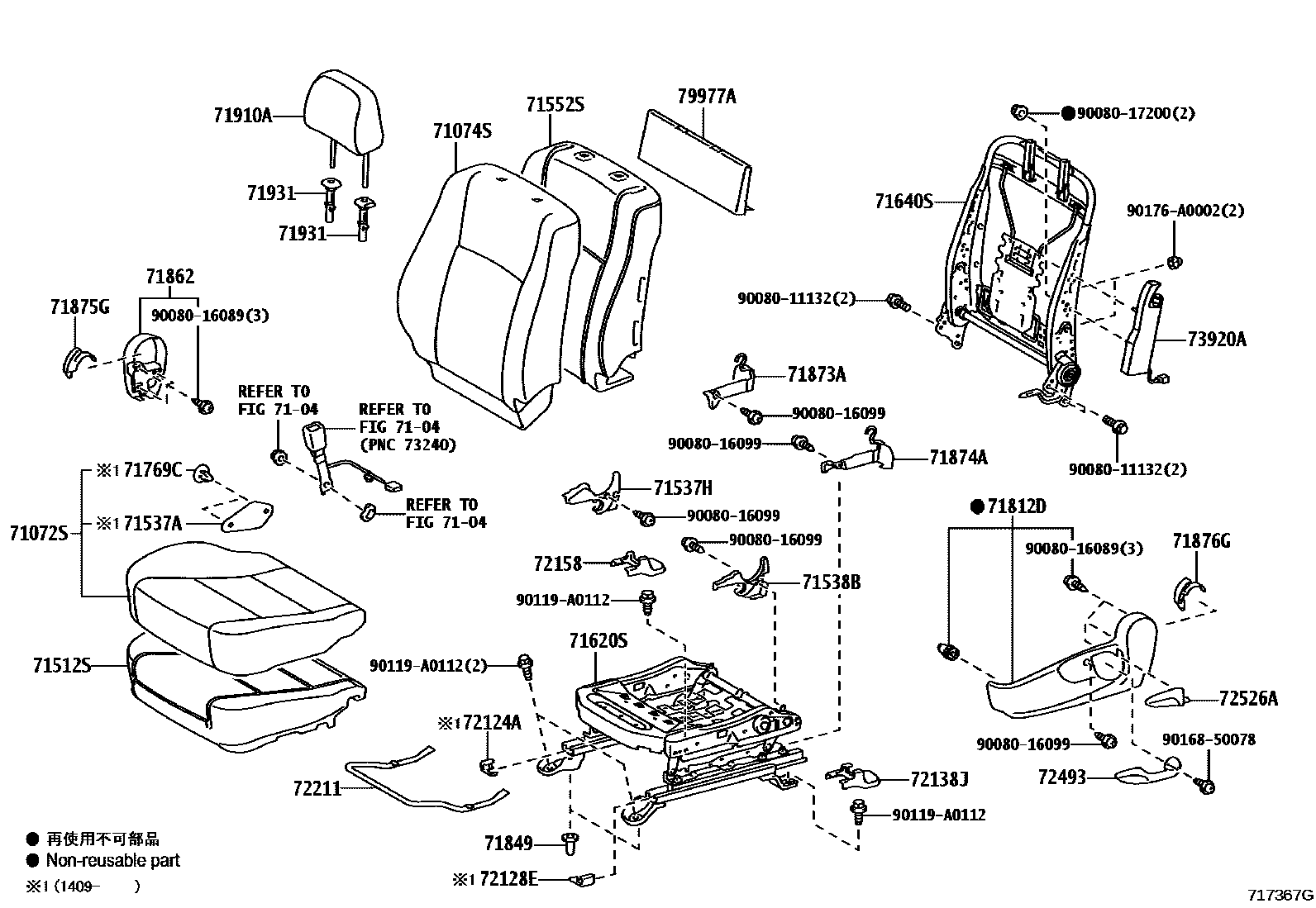

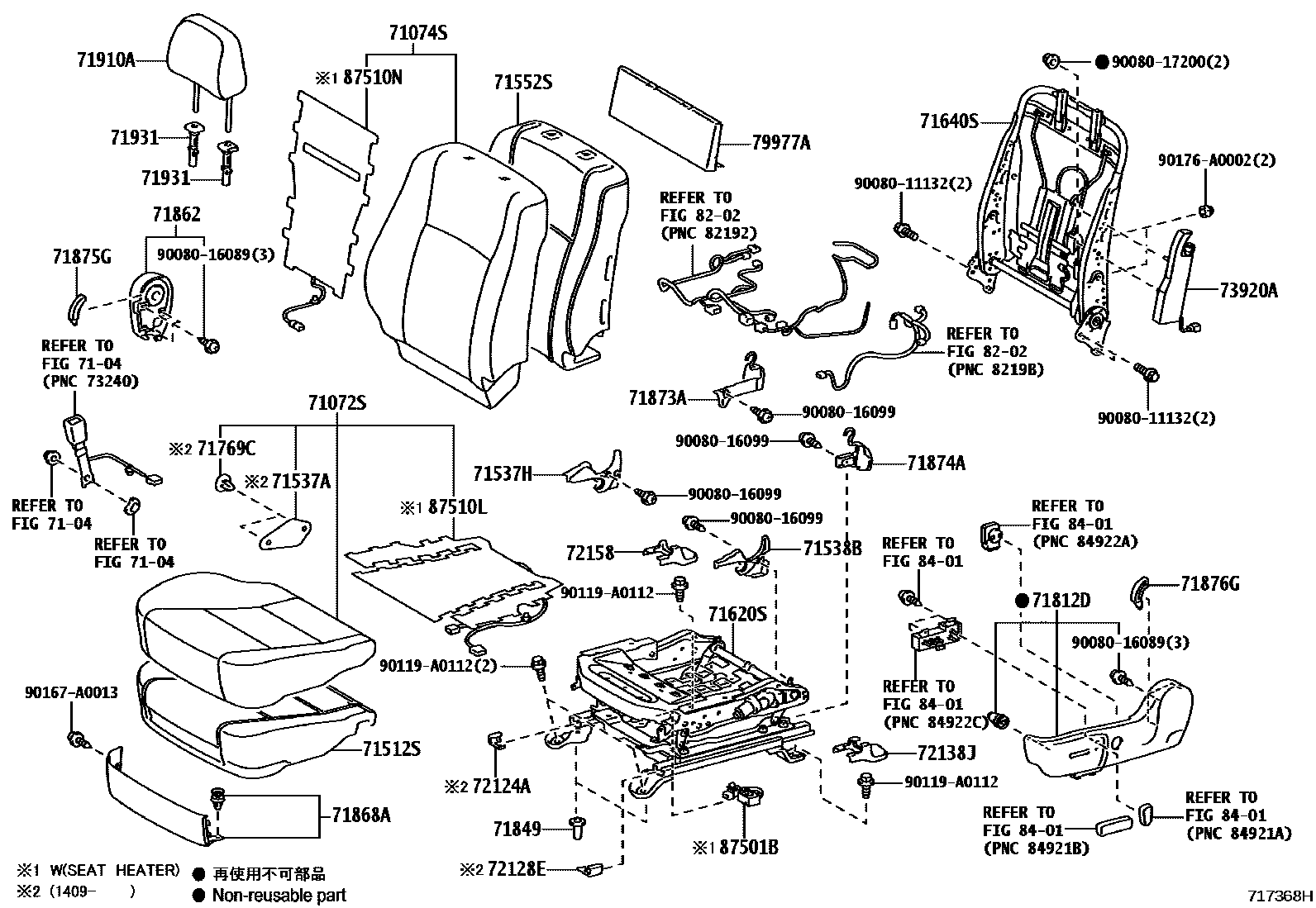

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-06550 · 71511-06551 · 71511-06560 · 71511-06561 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06450 · 71512-06451 · 71512-06460 · 71512-06461 |
| 71537A | Front seat cushion protective cover | 71537-06200 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06421 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06341 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06240 · 71610-06320 · 71610-06341 · 71610-06342 · 71610-06343 · 71610-06361 · 71610-06362 · 71610-06363 · 71610-06371 · 71610-06372 · 71610-06373 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06341 · 71620-06342 · 71620-06351 · 71620-06352 · 71620-06361 · 71620-06362 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06460 · 71630-06470 · 71630-06510 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06420 · 71640-06430 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71873A | Front seat cushion lower guard | 71873-06420 |
| 71874A | Front left seat cushion lower guard | 71874-06540 · 71874-08010 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06200 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-06200 |
| 72127A | Front right seat inner slide rail bracket cover | 72127-06120 |
| 72128E | COUV. EXT. AVANT GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72127-06120 |
| 72211 | Seat slide adjustment handle | 72211-06080 |
| 73910A | Front right seat airbag assembly | 73910-06110 · 73910-06170 |
| 73920A | Front left seat airbag assembly | 73920-06120 · 73920-06180 |
| 79977A | Seat back felt pad | 79977-06020 |
| 87501A | Right seat heater control sub-assembly | 87501-60030 · 87501-60040 · 87501-60050 |
| 87501B | Left side seat heater control sub-assembly | 87501-60030 · 87501-60040 · 87501-60050 |
| 87510K | Front right seat cushion heater assembly | 87510-06130 |
| 87510L | Front left seat cushion heater assembly | 87510-06190 |
| 87510M | Front right seat back heater assembly | 87530-06110 |
| 87510N | Front left seat back heater assembly | 87530-06110 |
