Toyota CAMRY 前门锁和车门把手 — Figure 6703

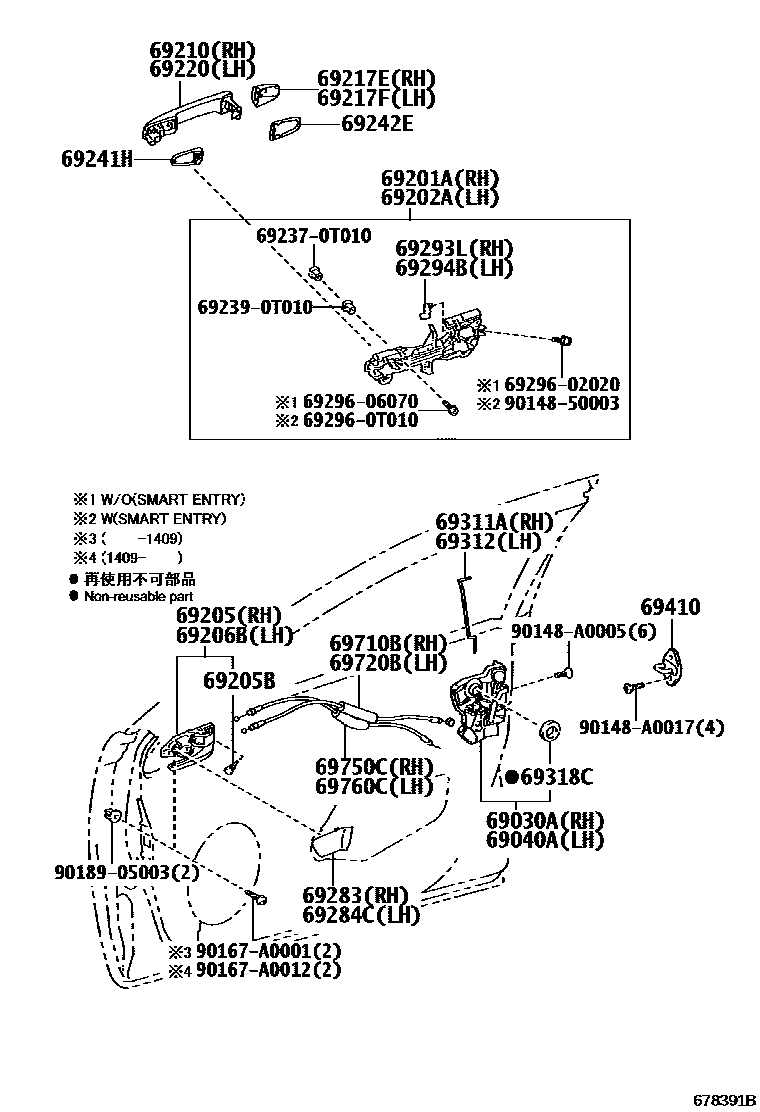

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-0C050 · 69030-0C060 |
| 69040A | Left front door door lock assembly with motor | 69040-0C050 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-06070 · 69201-06120 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-06080 · 69202-06120 |
| 69205B | Cushion pad (for inner front door handle) | 90080-54005 |
| 69241H | Front door exterior handle pad | 69241-06050 · 69241-06100 |
| 69242E | Front door rear outer handle pad | 69242-06050 · 69242-06100 |
| 69293L | Right front door outer handle buckle | 69293-12030 · 69293-33010 |
| 69294B | Left front door outer handle buckle | 69293-12040 · 69293-33020 |
| 69311A | Right front door lock opening lever | 69311-06101 · 69311-06150 |
| 69312 | Left front door lock opening lever | 69312-06101 · 69312-06150 |
| 69318C | door lock harness seal | 69318-AA010 |
| 69410 | Front door lock plate assembly | 69410-02020 · 69410-02030 |
| 69710B | Right front door lock remote control cable assembly | 69710-06100 |
| 69720B | Left front door lock remote control cable assembly | 69710-06100 |
| 69750C | Right front door inner lock cable assembly | 69750-06090 |
| 69760C | Left front door inner lock cable assembly | 69750-06090 |
