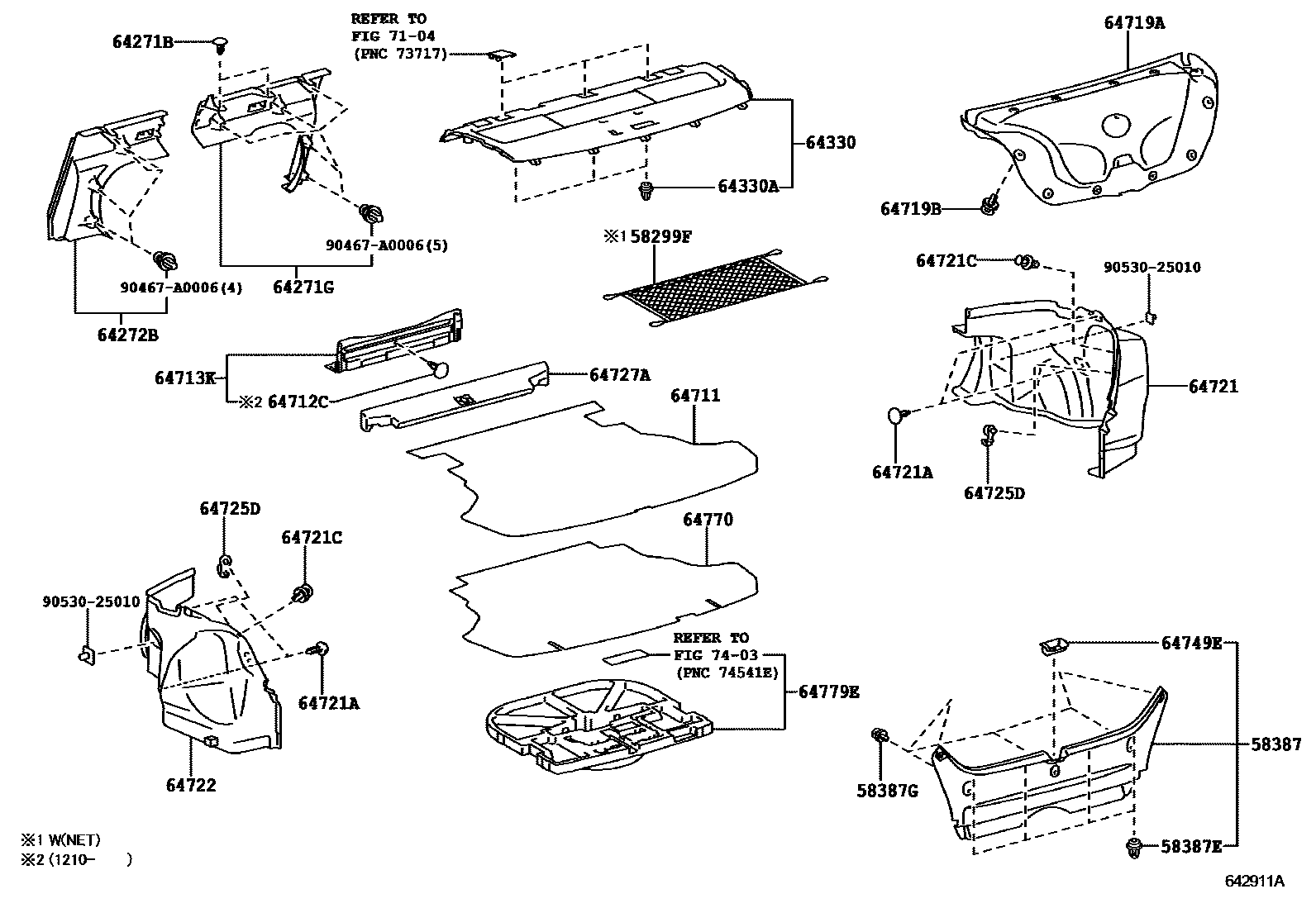

Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403
Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58299F | Luggage rack net | 58299-AA010 |
| 58387 | Rear floor decorative panel | 58387-06141 |
| 58387E | Clip (for rear floor trim panel) | 90467-A0006 |
| 58387G | Clip (for rear floor trim panel) | 90467-07201 · 90467-A0037 |
| 64271G | Right compartment partition | 64271-06040 |
| 64272B | Left compartment partition | 64272-06030 |
| 64330A | Clip (for glove box decorative panel) | 90467-A0006 |
| 64712C | Clip (for trunk decorative cover) | 63399-0R010 |
| 64719B | Catch (for trunk door) | 90467-07201 · 90467-A0037 |
| 64721C | Clip (suitcase) | 90467-07201 · 90467-A0037 |
| 64725J | Luggage decorative hook No. 1 | 64725-06080 |
| 64727A | Luggage interior decorative mat | 64727-06050 |
| 64749E | Trunk door latch cover | 64749-06010 |
| 64779E | Spare tire cover bracket | 64779-06010 |
