Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

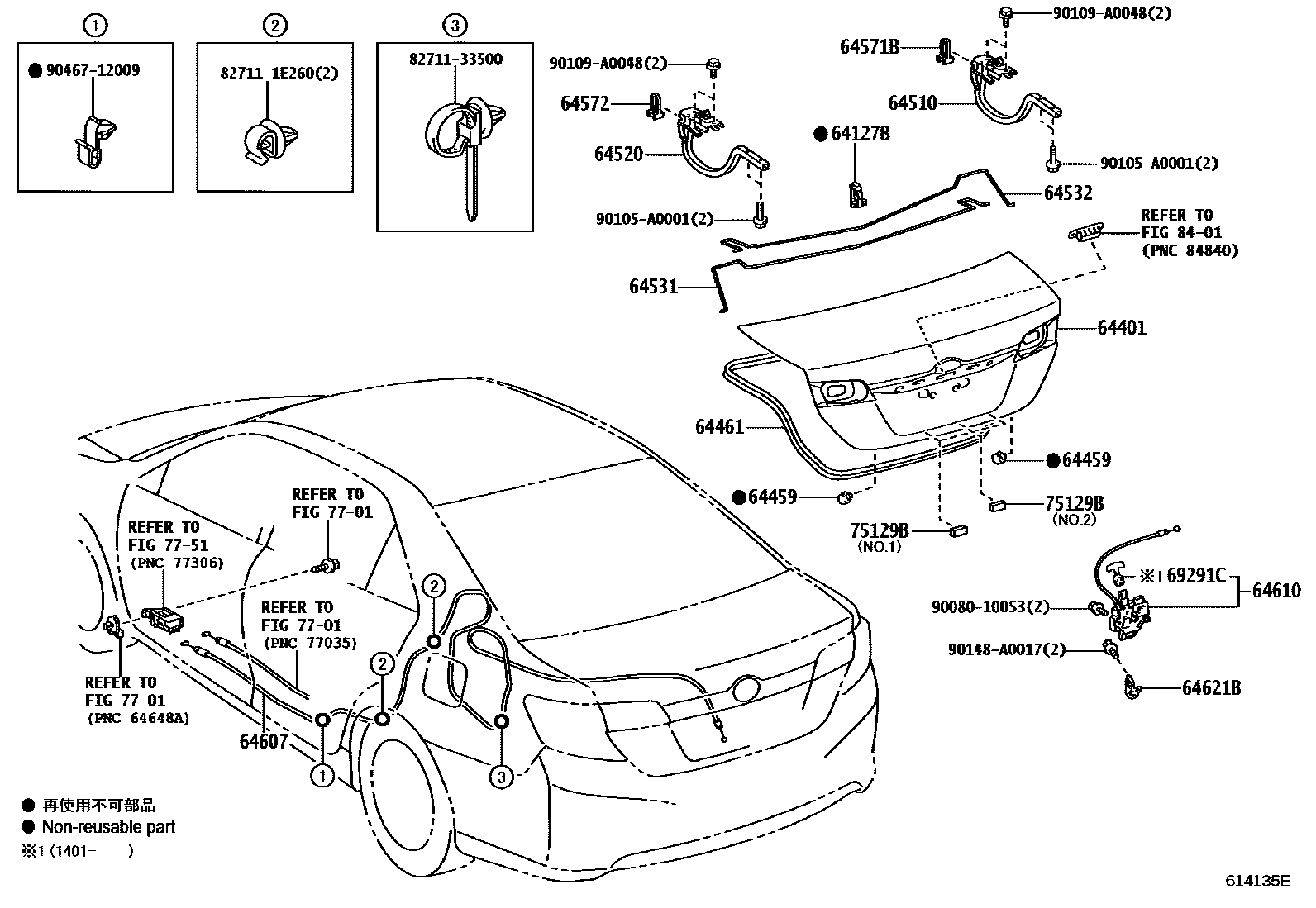

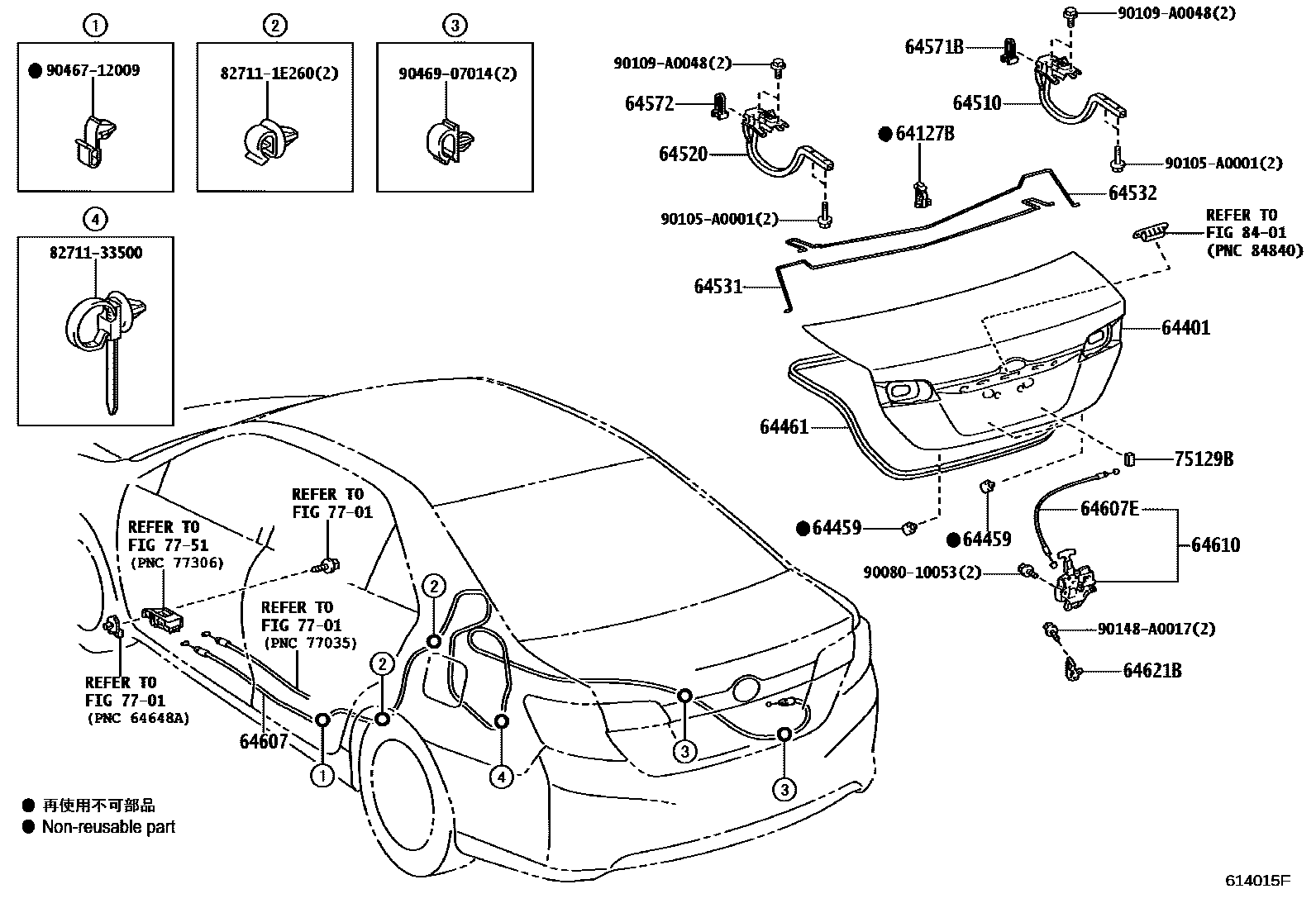

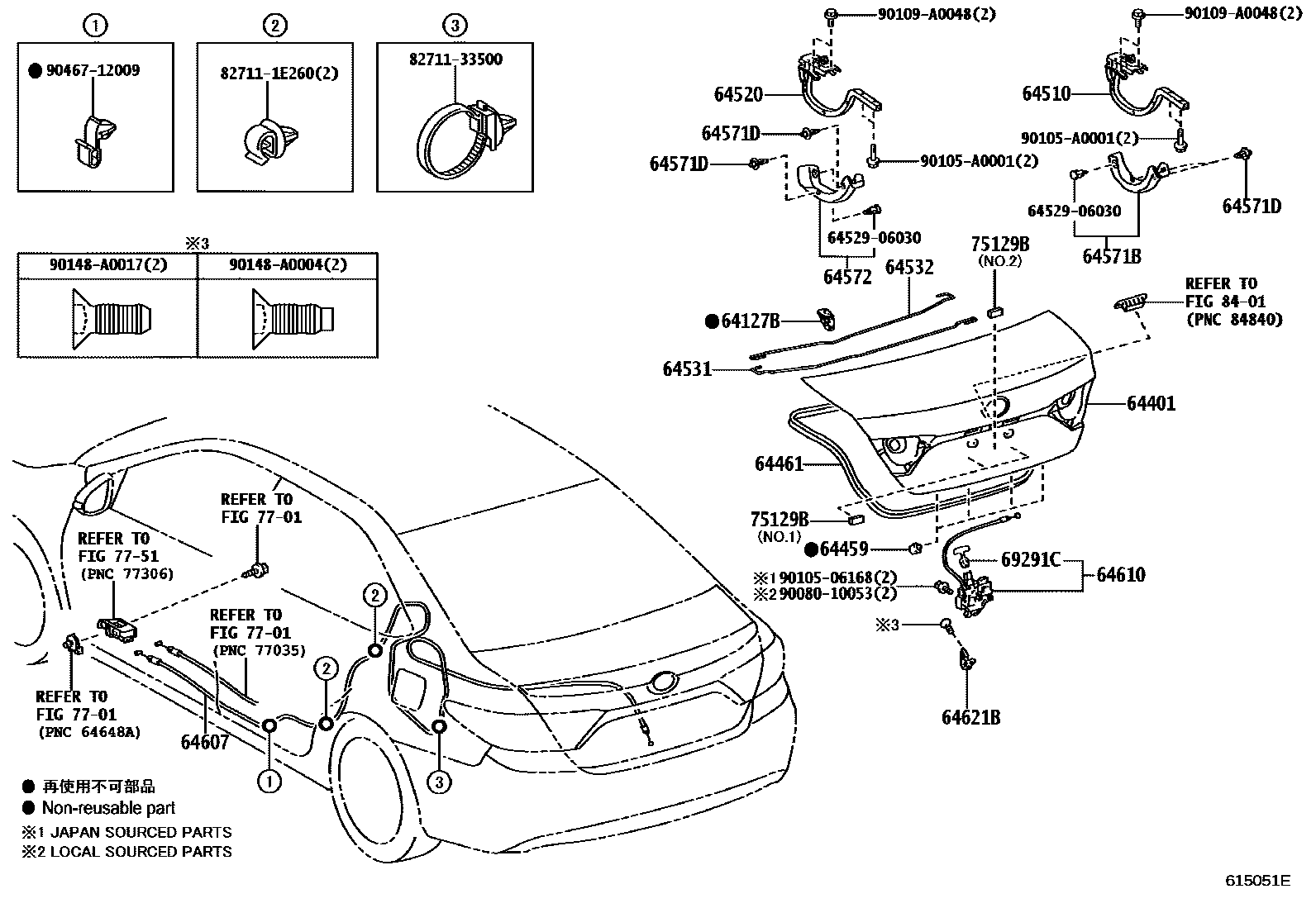

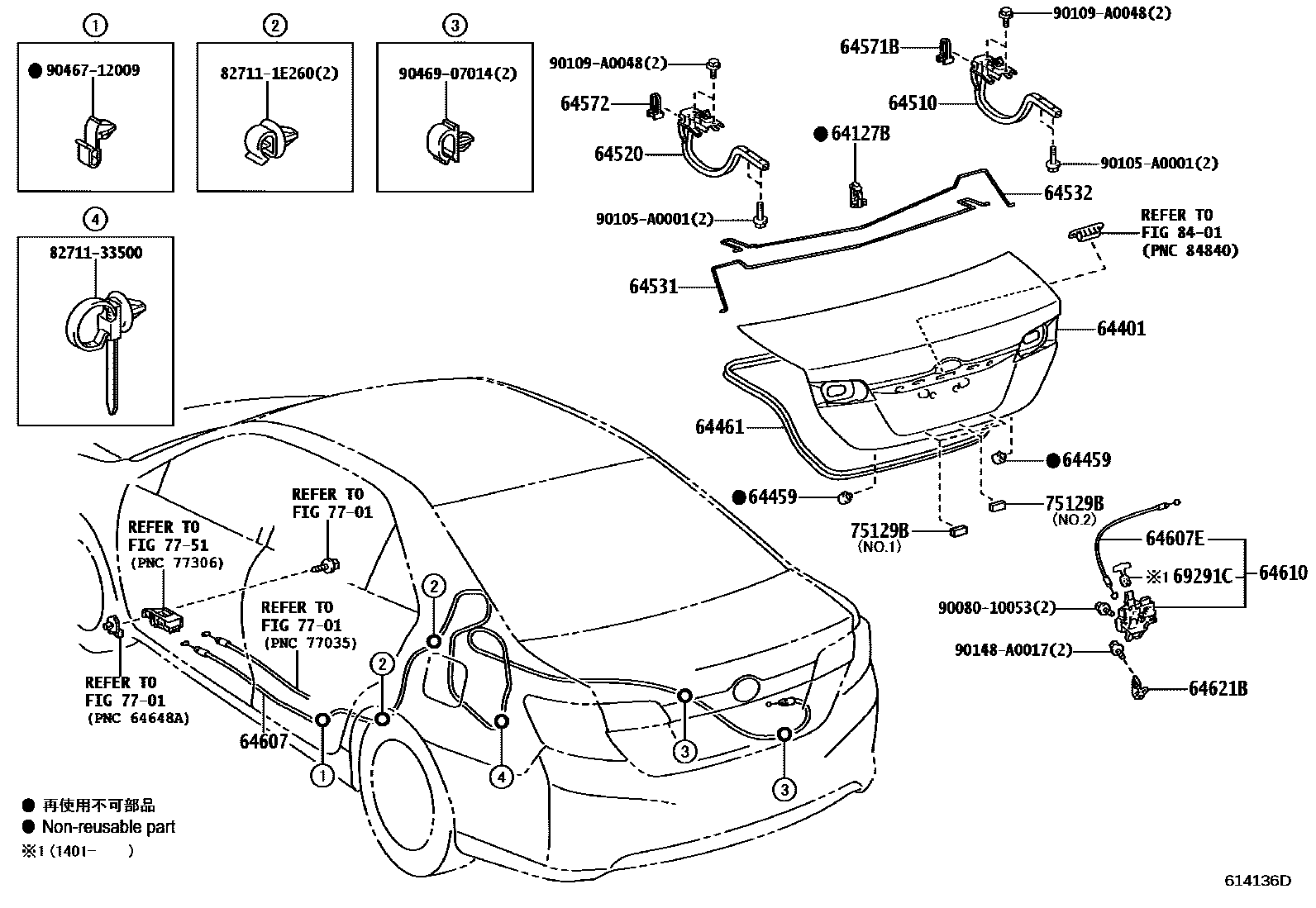

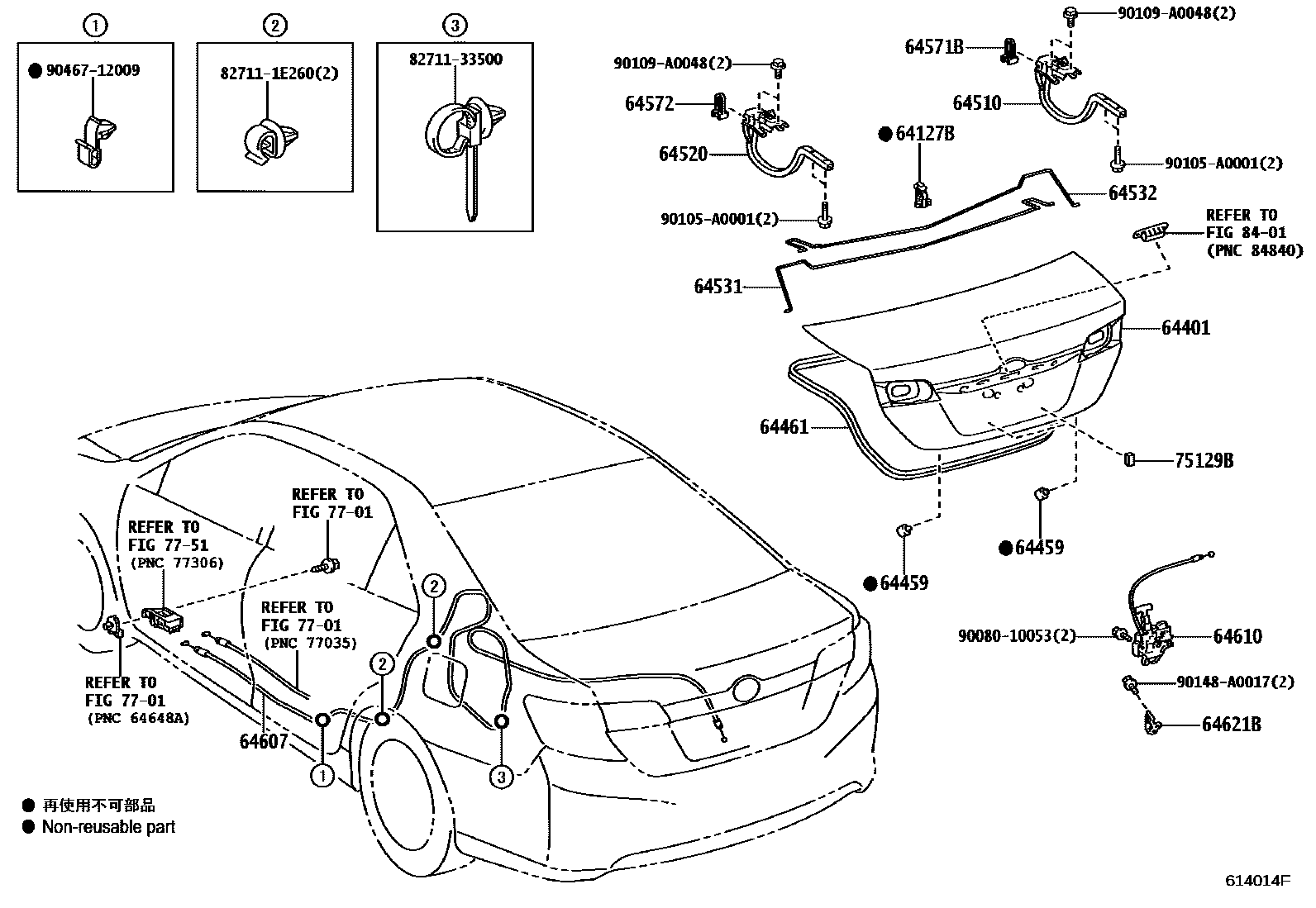

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06061 · 64127-06110 |
| 64401 | Trunk door panel sub-assembly | 64401-06580 · 64401-06590 · 64401-06600 · 64401-06610 · 64401-06840 · 64401-06A40 · 64401-06A50 · 64401-06D00 |
| 64459 | Trunk door cushion | 90084-54011 · 90541-09116 |
| 64461 | Trunk door seal | 64461-06110 · 64461-06180 |
| 64510 | Trunk door right hinge assembly | 64510-06090 · 64510-06220 |
| 64520 | Trunk door left hinge assembly | 64510-06090 · 64520-06030 |
| 64531 | Trunk door right hinge torsion bar | 64531-06192 · 64531-06232 · 64531-06380 |
| 64532 | Trunk door left hinge torsion bar | 64532-06212 · 64532-06252 · 64532-06390 |
| 64571B | Trunk door right hinge cover | 64571-33040 · 64571-33041 · 82817-06150 |
| 64572 | Trunk door left hinge cover | 64571-33040 · 64571-33041 · 82818-06020 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06190 · 64607-06210 |
| 64607E | Trunk door lock control cable sub-assembly | 64607-06200 |
| 64610 | Trunk door lock assembly | 64600-06040 · 64600-06041 · 64610-06030 · 64610-06031 |
| 64621B | Trunk door latch | 64621-06030 |
| 69291C | Luggage door inner handle | 69291-33020 |
| 75129B | rear license plate cushion | 75129-02020 · 75129-AC010 |
| 84944 | Trunk electronic key switch cover | 84944-06020 |
