Toyota CAMRY 中央扶手箱和支架 — Figure 5806

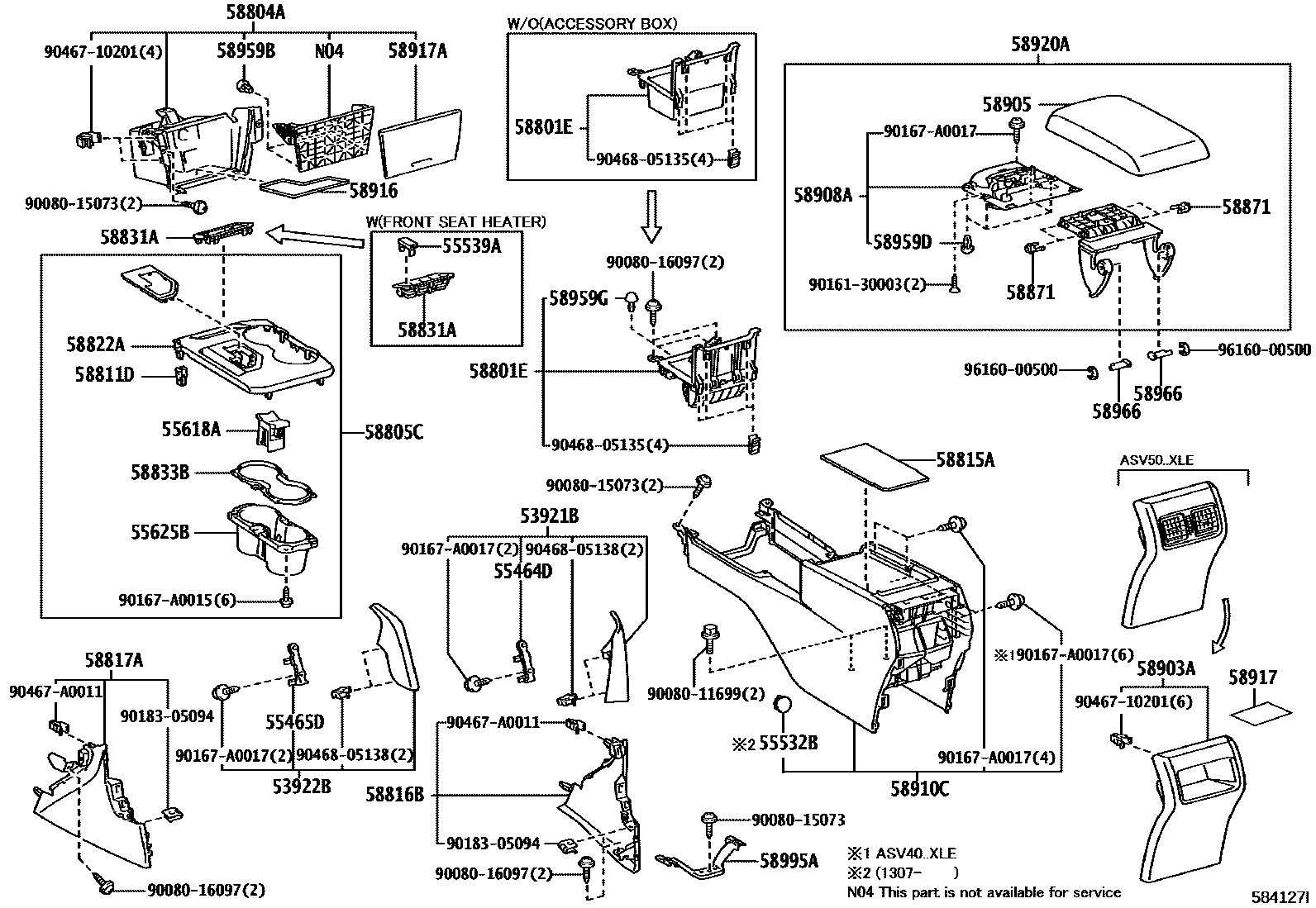

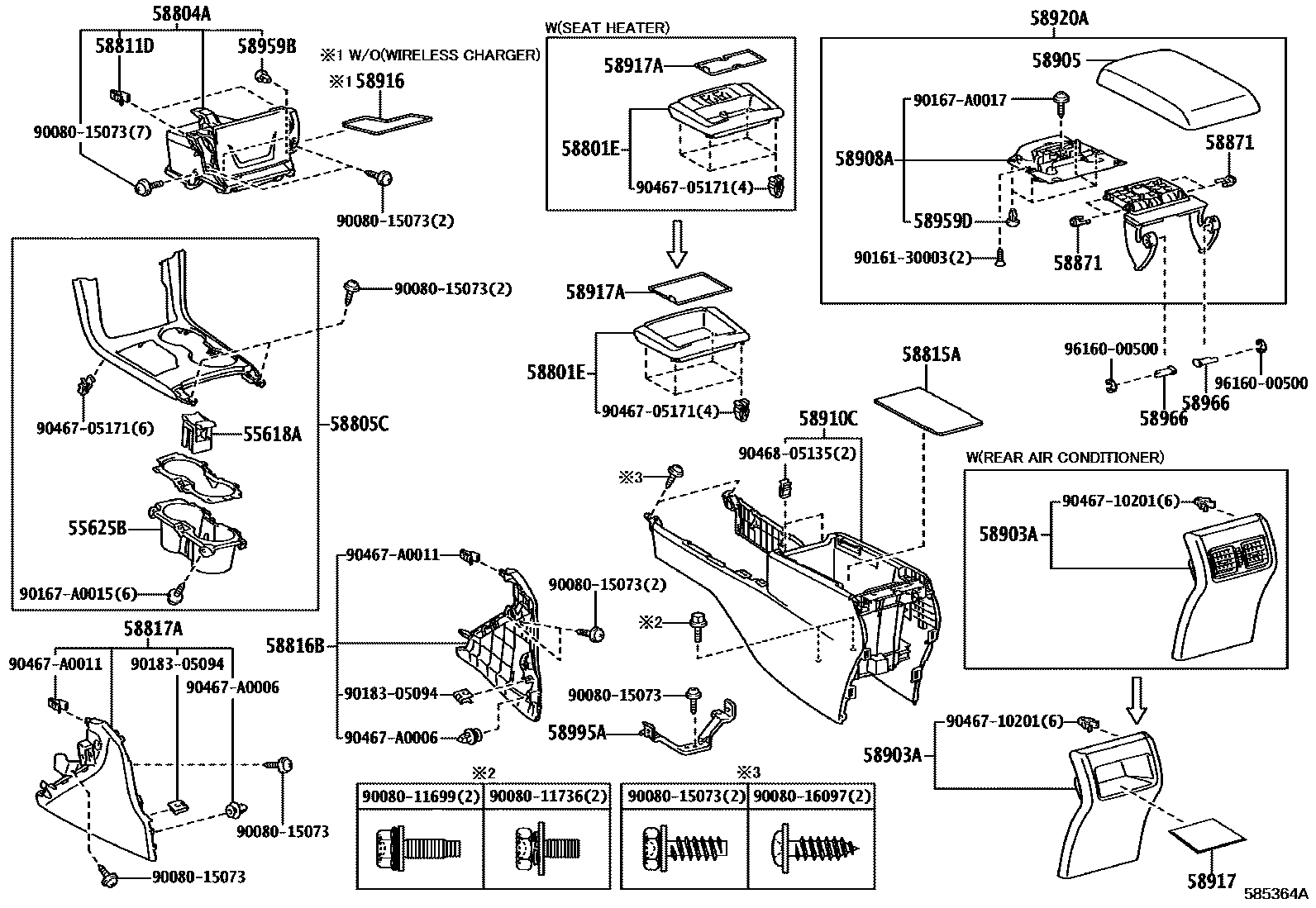

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55464D | Dashboard lower right pad insert | 55464-06010 |
| 55465D | Dashboard lower left pad insert | 55465-06010 |
| 55532B | Cigarette lighter hole cover | 55532-06010 |
| 55618A | Armrest box cup holder | 55618-06050 |
| 55625B | Dashboard cup holder tray | 55625-06100 · 55625-06110 |
| 58801E | Armrest box upper part assembly | 58801-06160 · 58801-06181 · 58801-06220 · 58801-06270 |
| 58804A | Armrest box upper panel sub-assembly | 58804-06241 · 58804-06251 · 58804-06370 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06351 |
| 58811D | Clip (for armrest box) | 90467-A0011 |
| 58815A | Armrest box felt pad | 58815-06100 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06570 · 58831-06600 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58831-06400 |
| 58871 | Armrest box cushion | 58871-30070 |
| 58905 | Armrest box cover sub-assembly | 58905-06271 |
| 58908A | Armrest box lid lock assembly | 58908-06081 |
| 58916 | Armrest box bottom pad | 58916-06090 · 58916-06110 |
| 58917 | Armrest box bottom pad No. 2 | 58917-06090 |
| 58917A | Rear armrest box cover | 58917-06030 · 58917-06050 · 58917-06120 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58959D | Rear armrest box cushion | 58959-60060 |
| 58959G | Armrest box cover cushion | 58959-60060 |
| 58966 | Armrest box cover hinge shaft | 58966-30030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06140 · 58995-06160 |
