Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

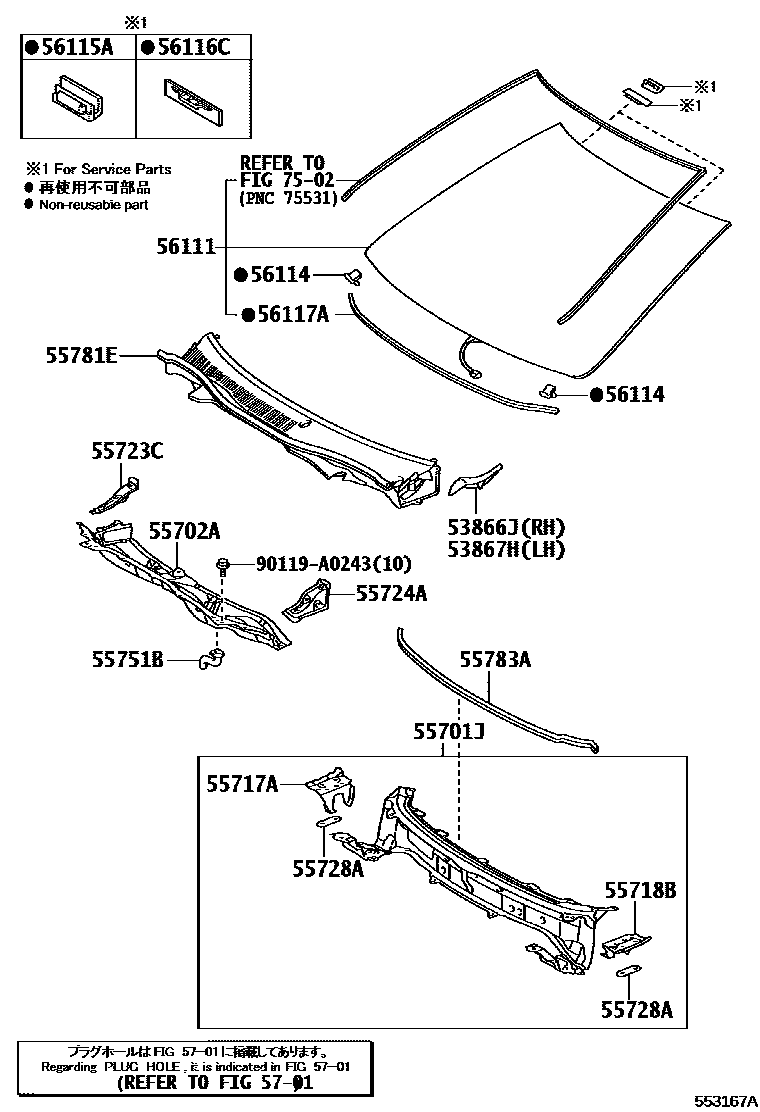

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-06060 · 53866-06110 |
| 53867H | Left front fender to cowl side seal | 53867-06060 · 53867-06110 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06190 · 55701-06270 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-06090 |
| 55717A | Upper right inner panel of cowl | 55717-06120 |
| 55718B | Upper left inner panel of front wall | 55718-06120 |
| 55723C | Right front wall upper side reinforcement | 55723-06110 |
| 55724A | Left front wall upper side reinforcement | 55724-06120 |
| 55728A | Engine cover block reinforcement | 55728-06090 |
| 55751B | Front no. 1 water hose | 55751-06110 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06140 · 55708-06210 |
| 55783A | Front cowl upper cover silencer pad | 55783-06090 |
| 56111 | windshield | 56101-06540 |
| 56114 | windshield stopper | 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
