Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705

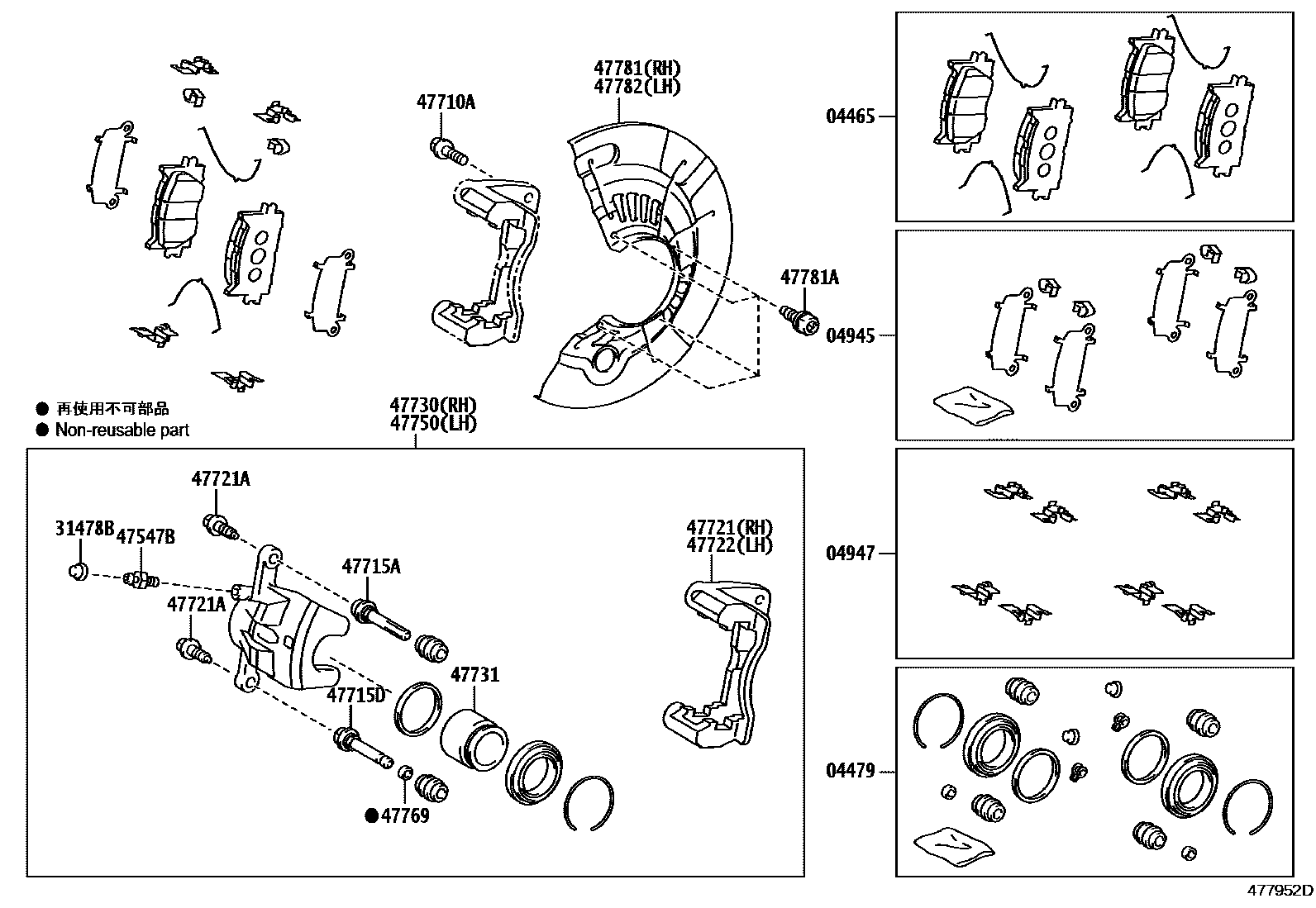

Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-07010 · 04465-07011 |
| 04479 | Front disc brake cylinder assembly | 04478-06220 · 04478-06290 |
| 04945 | Front silencer gasket assembly | 04945-06150 |
| 04947 | Front disc brake mounting kit | 04947-33240 · 04947-33260 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-06040 · 47547-12130 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90080-10067 |
| 47715A | Front disc brake cylinder sliding pin | 47714-07071 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-33340 |
| 47721 | Right front disc brake cylinder retainer | 47721-07071 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90016-AA103 |
| 47722 | Left front disc brake cylinder retainer | 47722-07071 |
| 47730 | Right front disc brake cylinder assembly | 47730-07071 |
| 47731 | Front disc brake piston | 47731-06220 |
| 47750 | Left disc brake cylinder assembly | 47750-07071 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 |
| 47781 | Right front disc brake dust cover | 47781-06130 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90080-11429 |
| 47782 | Left front disc brake dust cover | 47782-06130 |
