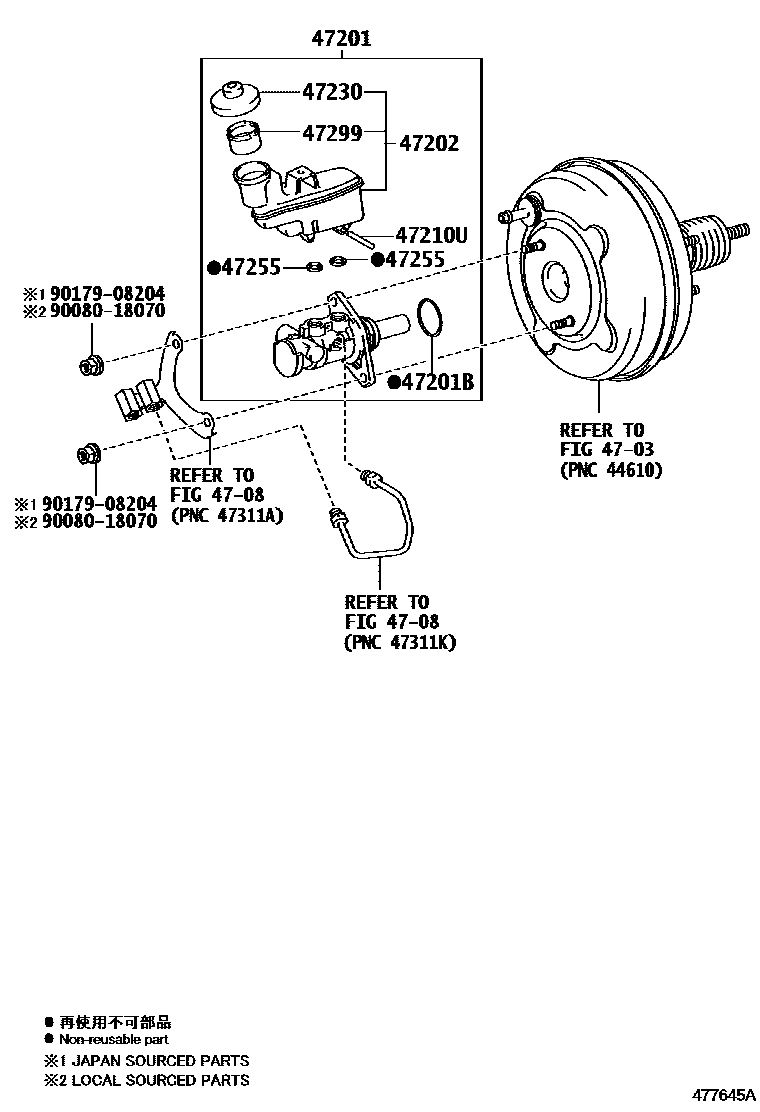

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-06440 · 47201-06441 · 47201-06443 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06180 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-01030 · 47230-01031 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47299 | Brake master cylinder reservoir filter | 47299-06180 · 47299-25010 |
