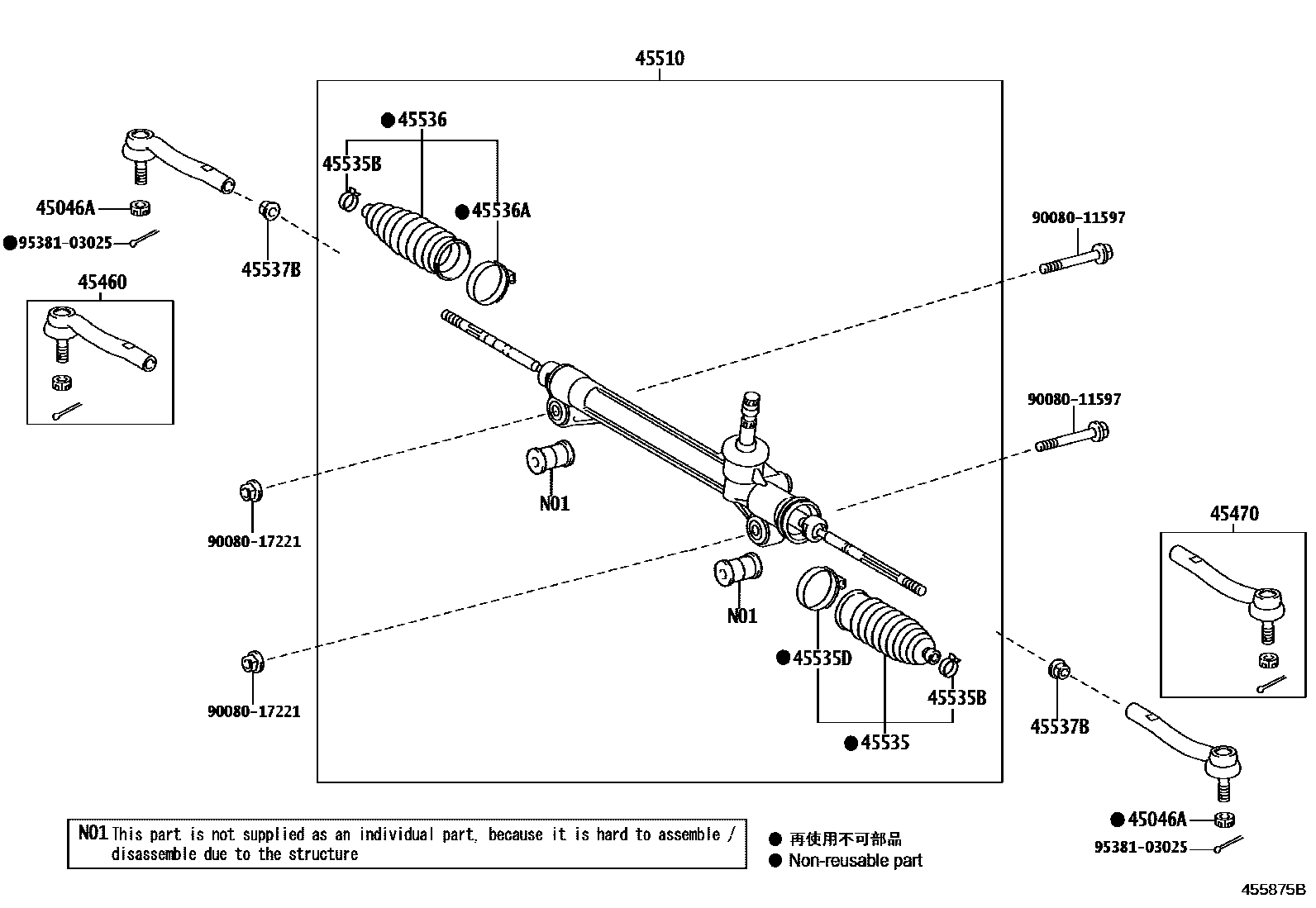

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046A | Castle nuts (for tie rod ends) | 90080-17220 |
| 45460 | Right tie rod assembly | 45460-09230 |
| 45470 | Left tie rod assembly | 45470-09140 |
| 45510 | Steering gear assembly | 45510-06011 · 45510-06031 |
| 45535 | No. 1 steering rack dust cover | 45535-06060 · 45535-09430 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0T010 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0T010 |
| 45536 | No. 2 steering rack dust cover | 45535-06060 · 45535-09430 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0T010 |
| 45537B | Rack end lock nut | 90178-15003 |
