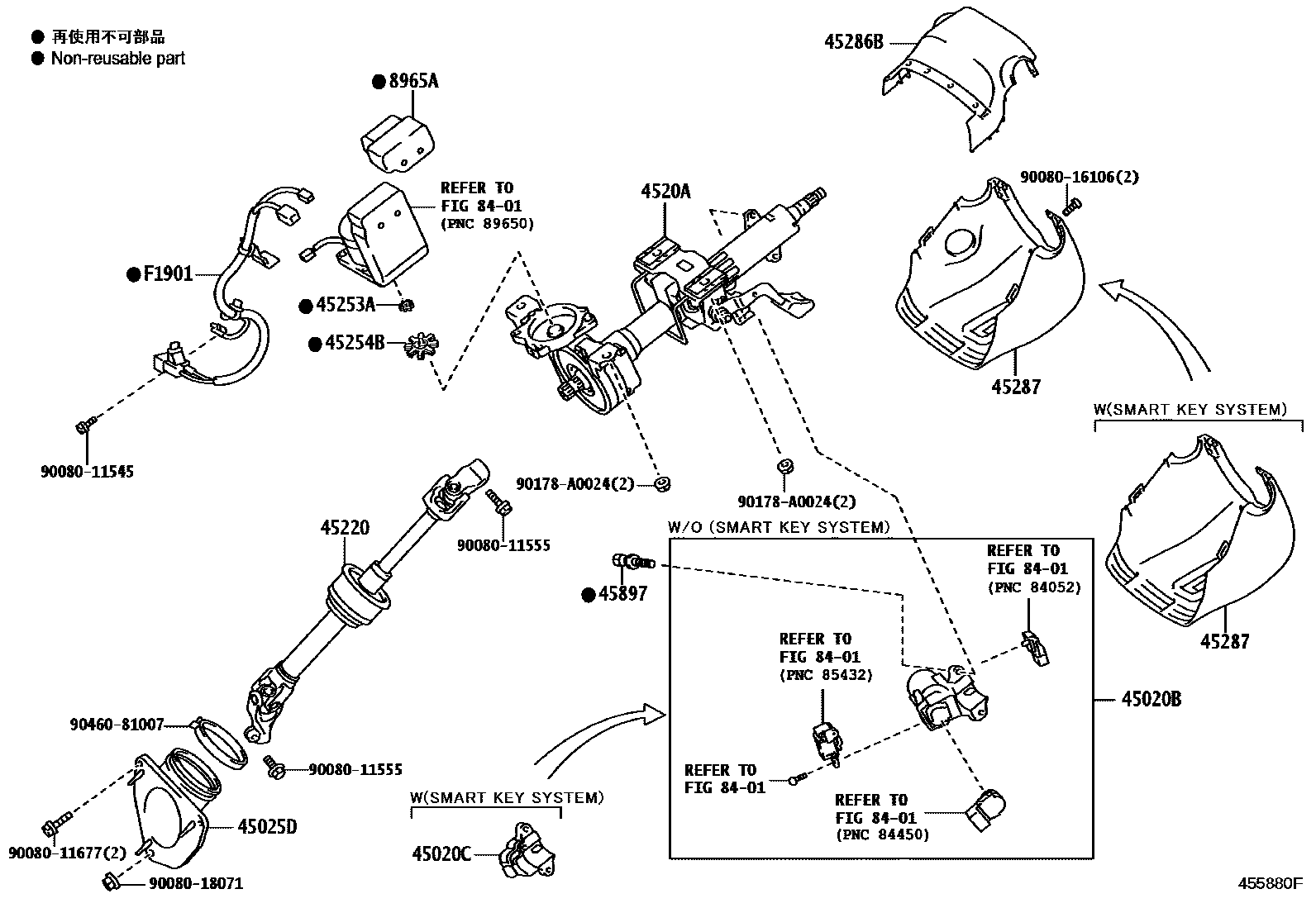

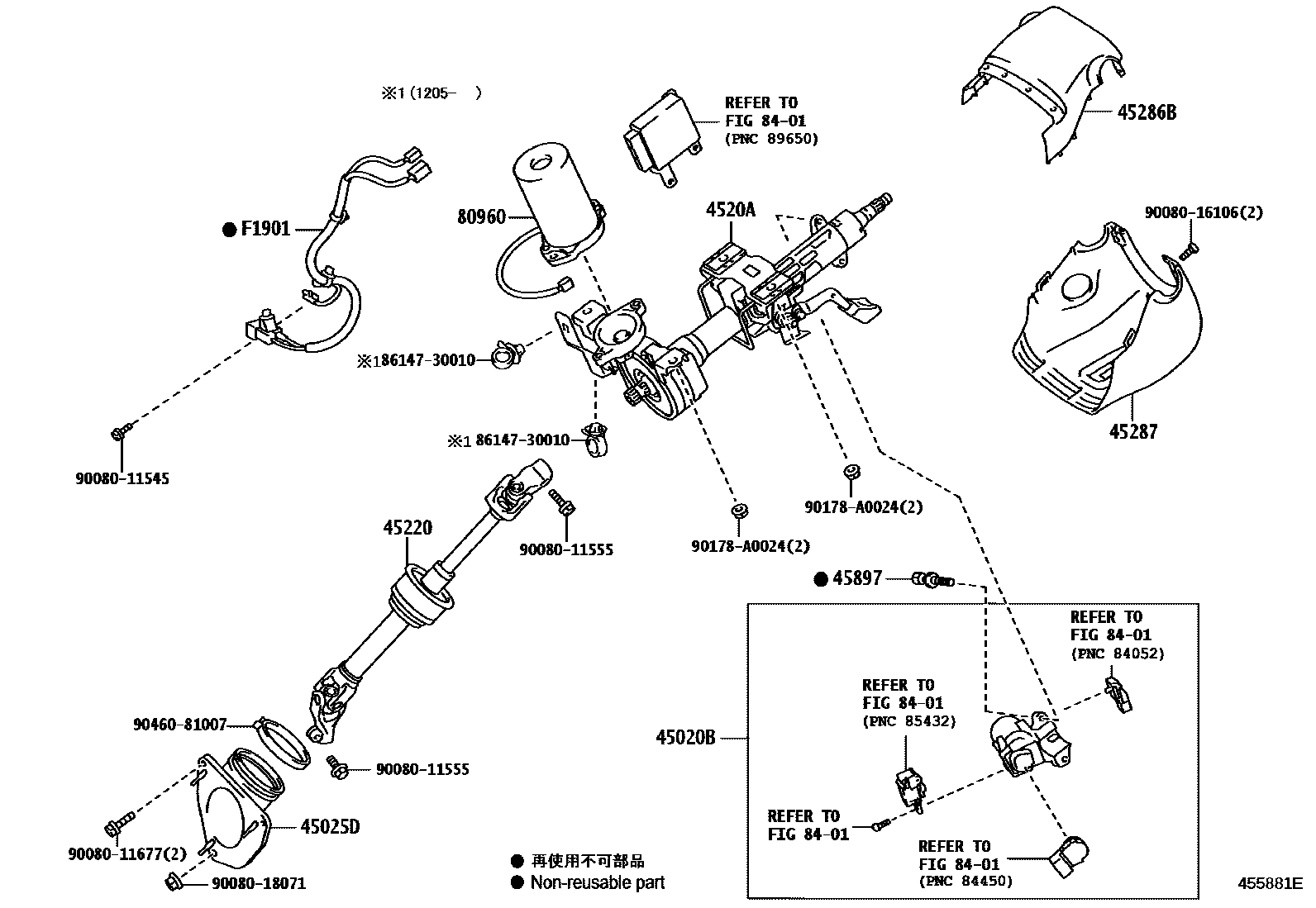

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45020-06140 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-06130 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06150 |
| 4520A | Electric steering column sub-assembly | 4520A-06010 · 4520A-06011 · 4520A-06012 · 4520A-06013 · 4520A-06030 · 4520A-06031 · 4520A-06032 · 4520A-06033 · 4520A-06040 · 4520A-06041 · 4520A-06042 |
| 45220 | Steering intermediate shaft assembly | 45220-06150 |
| 45253A | Electric steering motor shaft spacer | 45253-28130 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45897 | Steering lock fixing bolt | 45897-08010 |
| 80960 | Power steering motor assembly | 80960-33020 |
| 8965A | Power steering ECU protection device | 8965A-06010 · 8965A-06011 |
| F1901 | ECU wiring harness sub-assembly | F1901-06020 · F1901-06030 |
