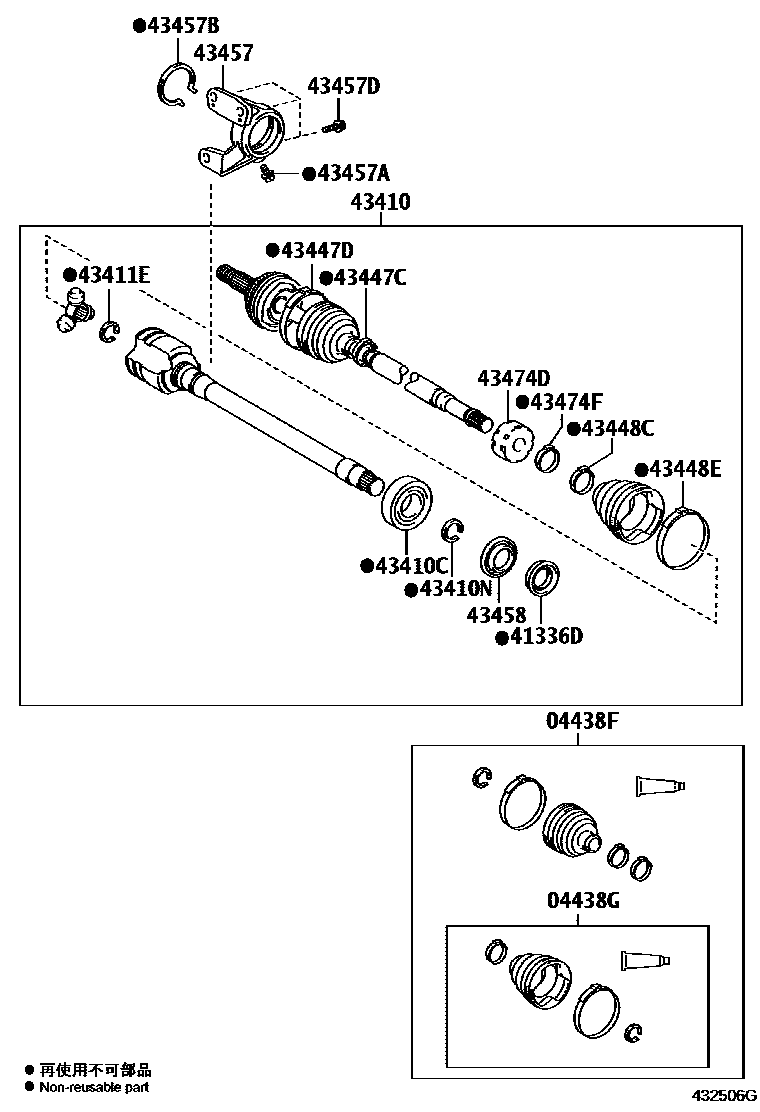

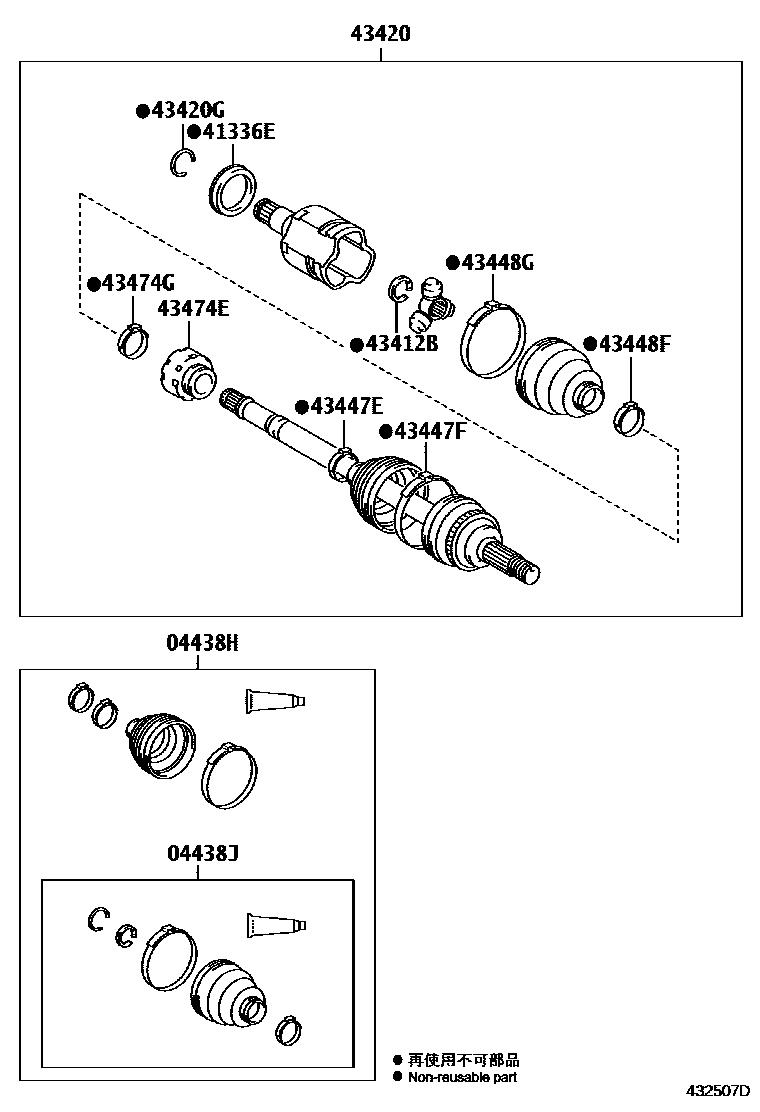

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0R090 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0R020 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06610 · 04428-0R050 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-0R010 |
| 41336D | Right front driveshaft dust cover | 41336-07020 |
| 41336E | Left front driveshaft dust cover | 41336-07040 |
| 43410 | Right front driveshaft assembly | 43410-06730 · 43410-06731 |
| 43410C | Bearings (for front driveshaft) | 90363-A0004 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-07010 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0R030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0R030 |
| 43420 | Left front drive shaft assembly | 43420-06810 · 43420-06811 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-07040 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0R040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0R030 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0R040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0R030 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0R060 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0R050 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0R060 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0R050 |
| 43457 | drive shaft bearing bracket | 43457-0T010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90080-10087 |
| 43458 | Front drive shaft dust cover | 43458-07010 |
| 43474D | Right front driveshaft shock absorber | 43474-06270 · 43474-07010 |
| 43474E | Left front driveshaft shock absorber | 43474-06400 · 43474-07030 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-07090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-07090 |
