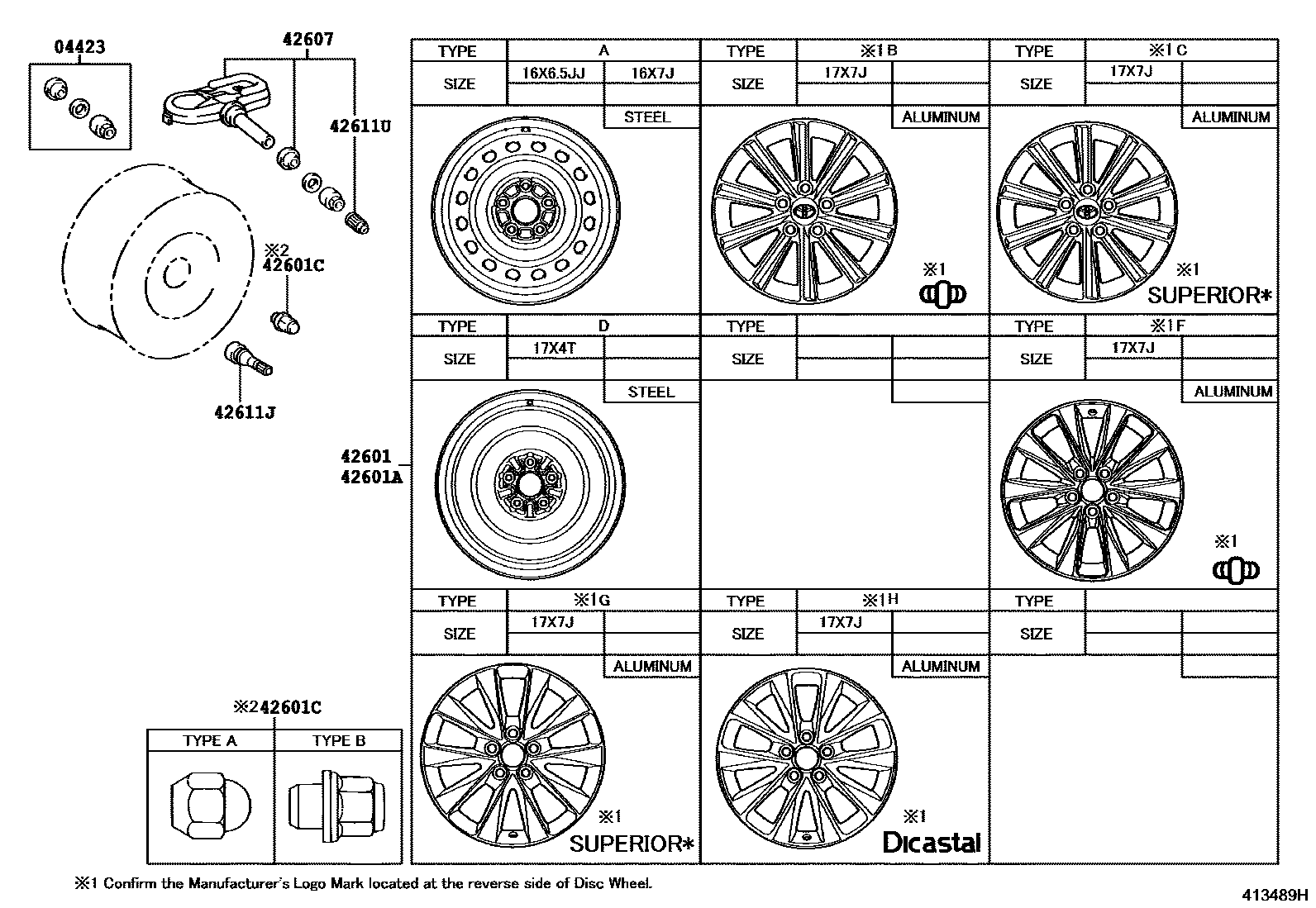

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-06720 · 42611-06730 · 42611-06A40 · 42611-06B10 · 4261A-06030 · 4261A-06040 · 4261A-06050 |
| 42601A | Spoke wheel (for spare tire) | 42611-06380 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01082 · 90942-A1002 |

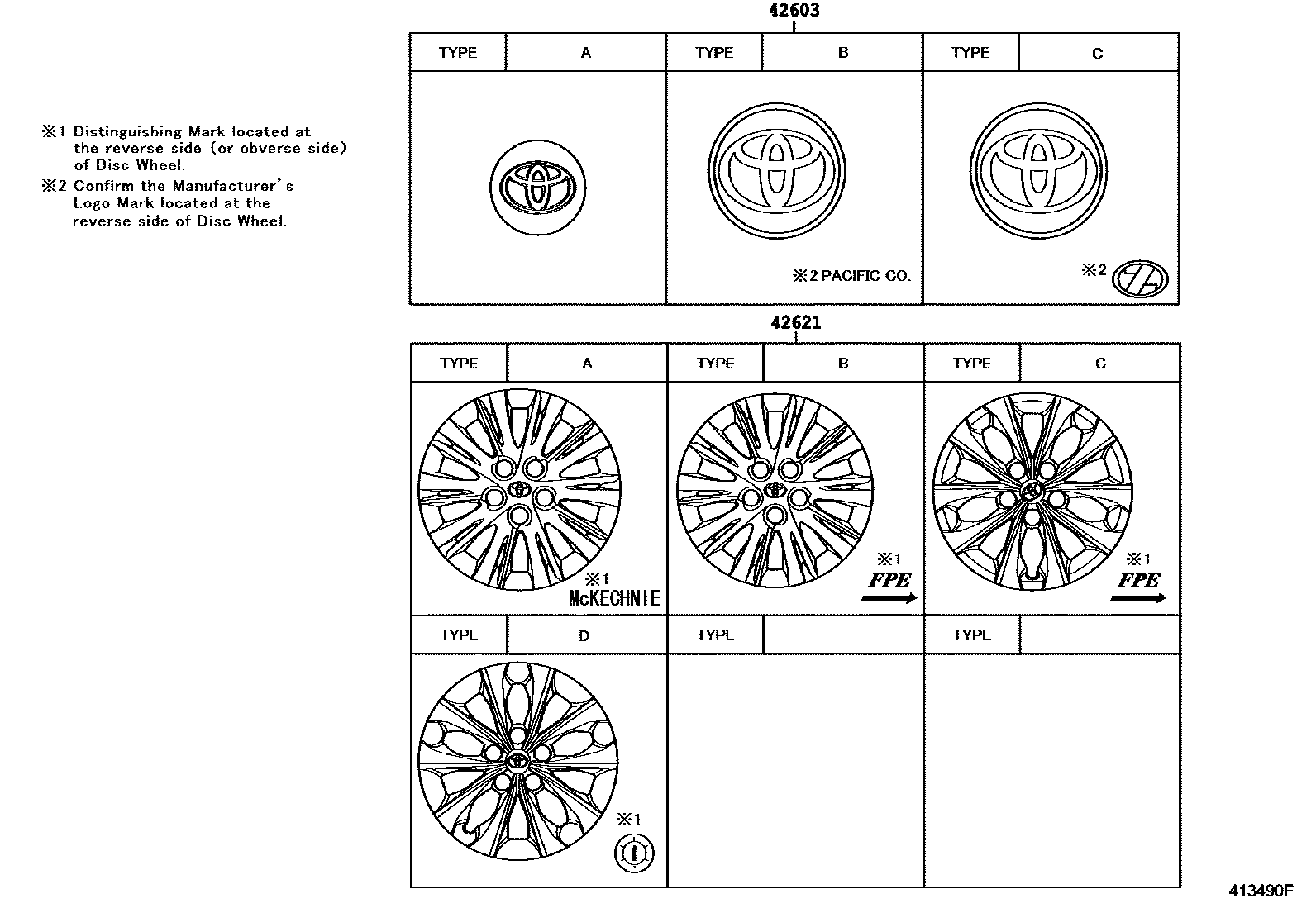

| 42603 | Wheel hub decorative parts sub-assembly | 42603-06150 · 42603-06160 · 42603-08030 · 42603-12730 · 42603-48140 · 42603-YY100 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06020 · 42607-06030 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42621 | wheel cover | 42602-06070 · 42602-06091 · 42602-06101 · 42602-06120 |
