Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

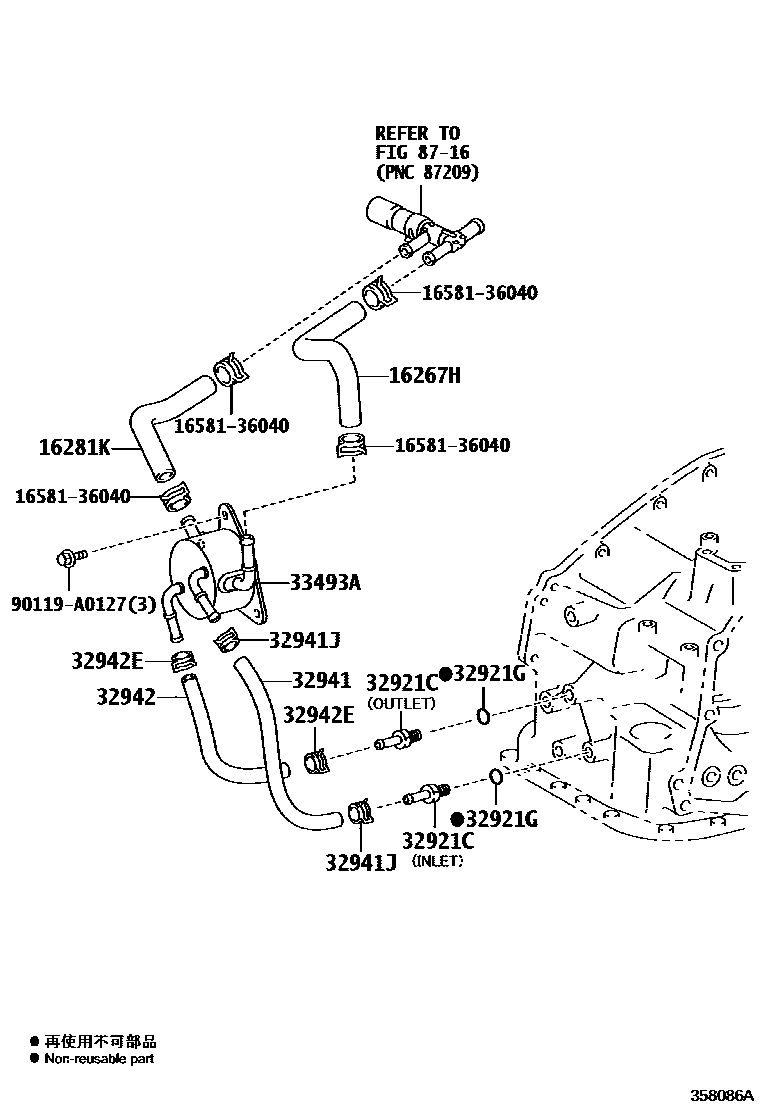

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16267H | HOSE, WATER BY-PASS, NO.3 | 16267-0V020 |
| 16281K | HOSE, WATER BY-PASS, NO.4 | 16281-0V020 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14027 · 90404-A0002 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11006 · 90301-11031 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 90445-A0005 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 90467-A0012 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 90445-A0003 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 90467-A0012 |
| 33493A | Transmission oil cooler | 33493-33030 |
