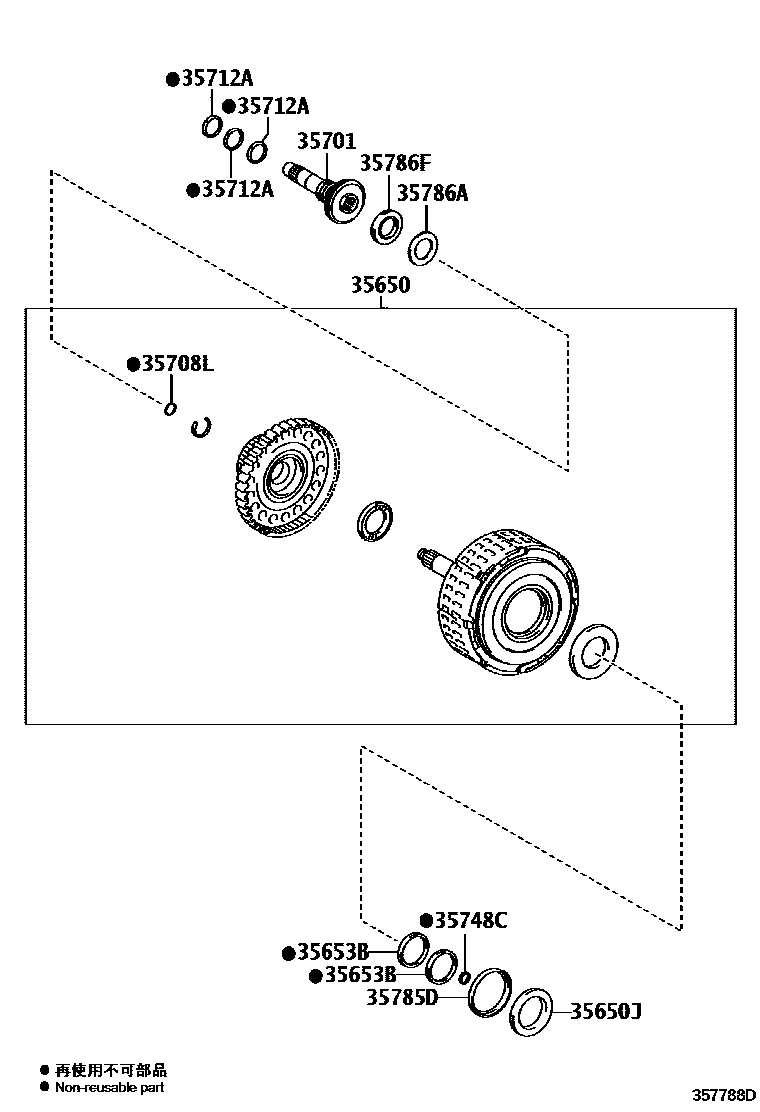

Toyota CAMRY 制动带和多片式离合器(ATM) — Figure 3507
Toyota CAMRY EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35650 | Rear multi-plate clutch assembly | 35650-33090 · 35650-73020 |
| 35650J | Thrust needle roller bearing (for direct gear disc clutch) | 90374-48006 · 90374-48009 · 90374-A0032 |
| 35653B | Direct clutch drum oil guard ring | 35653-33010 |
| 35701 | Input shaft sub-assembly | 35711-33080 · 35711-33090 |
| 35708L | O-ring (for intermediate shaft) | 90301-11027 · 90301-11032 |
| 35712A | Input shaft oil ring | 35712-0R010 · 35712-33010 · 35712-33020 |
| 35748C | Intermediate shaft oil ring | 35748-33010 |
| 35785D | No. 4 thrust bearing race | 35785-06010 · 35785-33020 · 35785-48020 |
| 35786A | No. 1 thrust bearing race | 35786-07010 · 35786-33010 |
| 35786F | Thrust needle roller bearing | 90374-29005 · 90374-29007 · 90374-A0025 · 90374-A0040 |
