Toyota CAMRY 燃油喷射系统 — Figure 2211

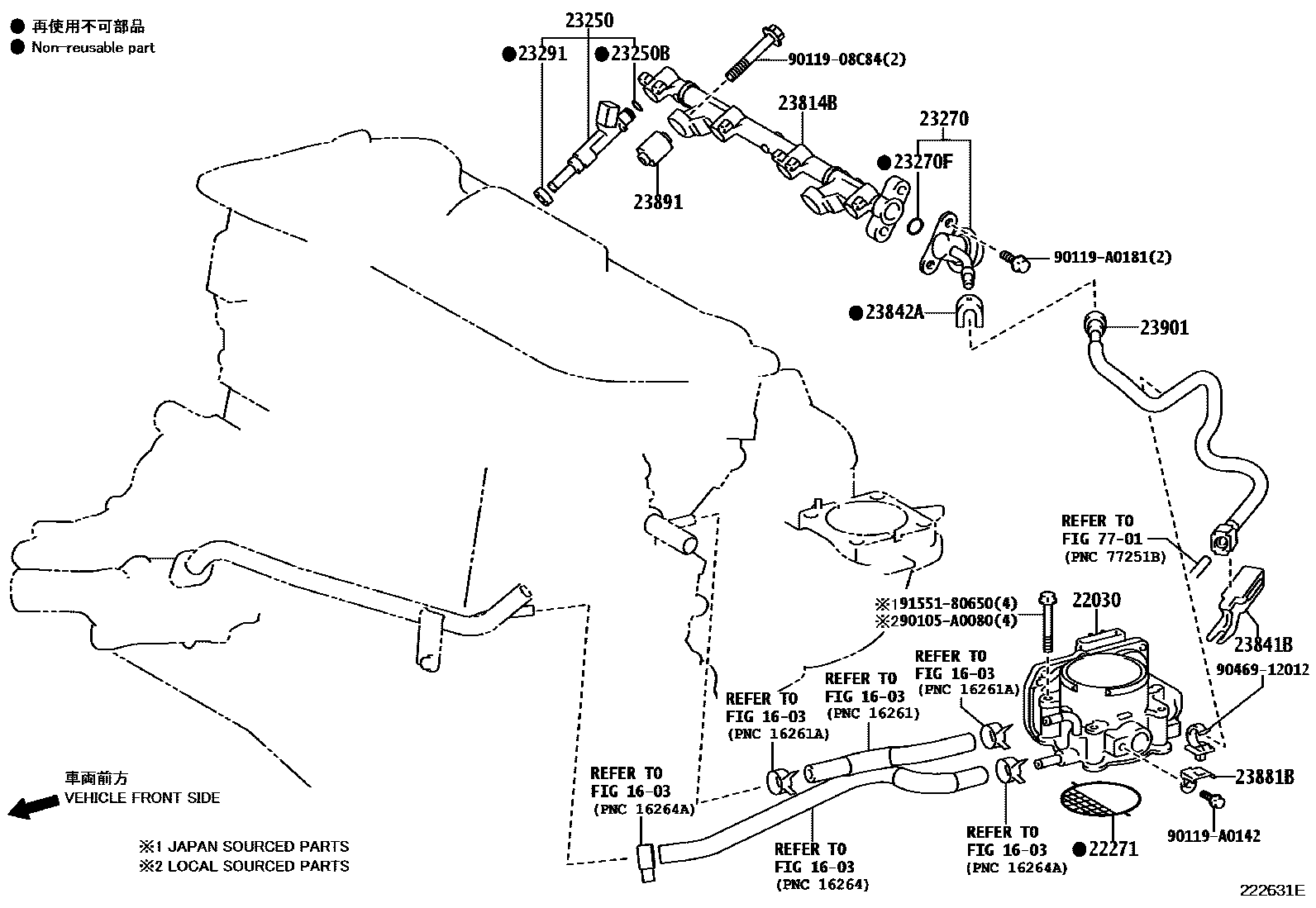

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0V010 |
| 22271 | Throttle body gasket | 22271-0V010 |
| 23250 | Fuel injector assembly | 23209-09175 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-A0036 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-36031 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0V020 · 23291-28020 |
| 23814B | oil pipeline | 23814-36040 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0P070 · 23841-31070 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-28010 |
| 23881B | fuel hose bracket | 23881-0V010 |
| 23891 | oil pipe septum | 23891-36010 |
| 23901 | Fuel pipe sub-assembly | 23901-0V060 |
