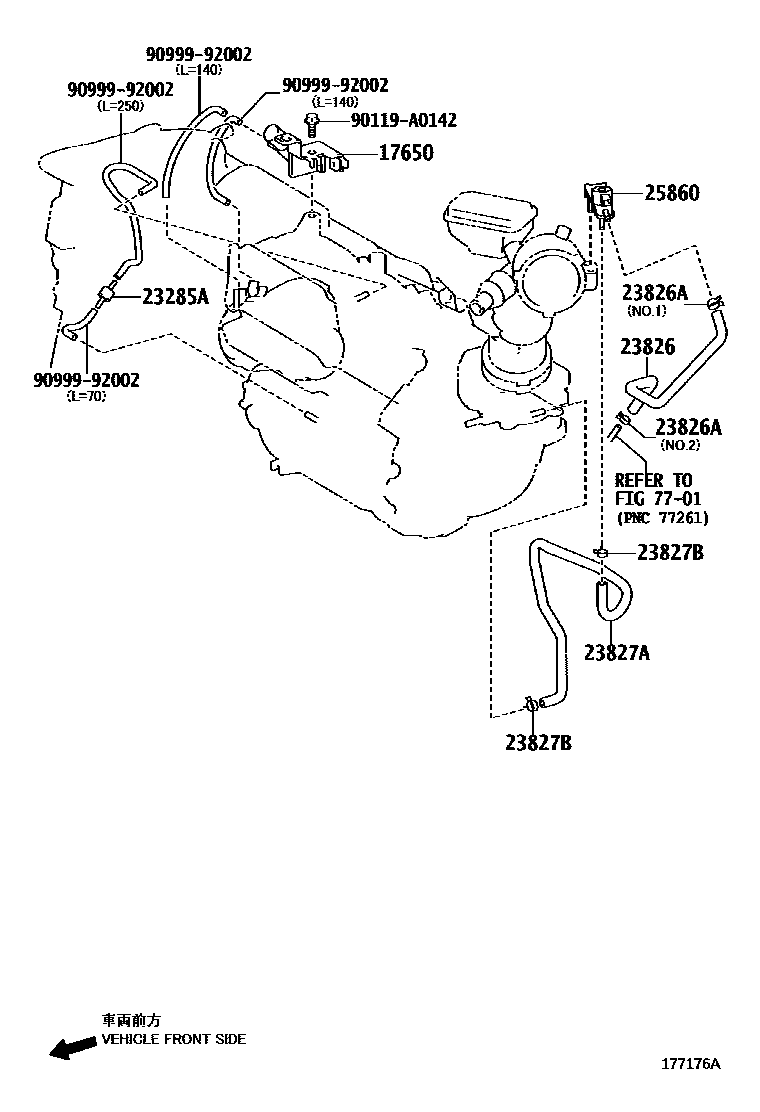

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 25860-0V050 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0V100 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 90466-13004 · 90466-13005 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0V050 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-13004 · 90466-13005 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0V040 |
