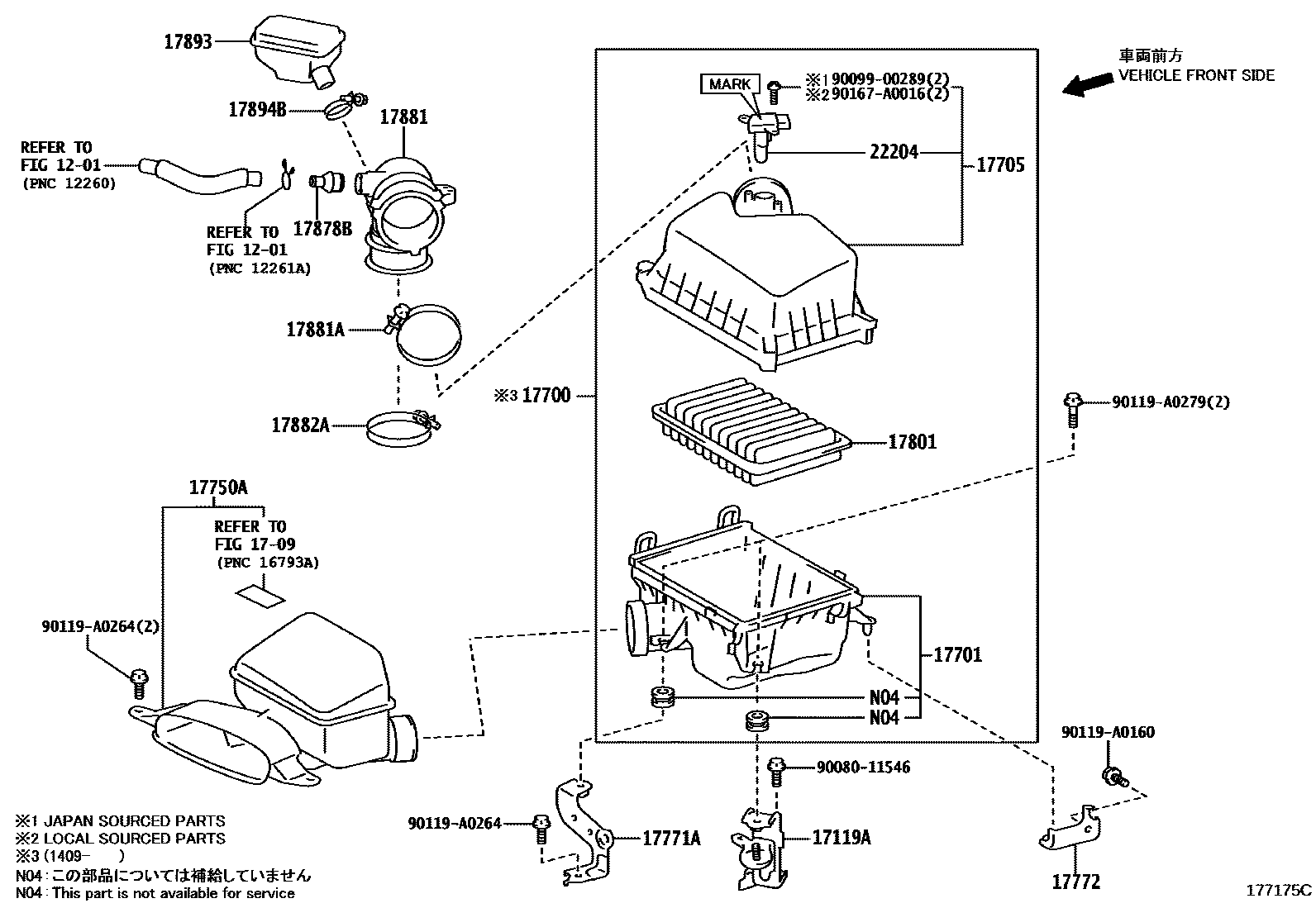

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0V020 |
| 17700 | air filter assembly | 17700-0V020 |
| 17701 | Air filter housing sub-assembly | 17701-0V020 |
| 17705 | Air filter cover sub-assembly | 17705-0V020 |
| 17750A | Air filter air inlet assembly | 17750-0V030 · 17750-0V031 |
| 17771A | air filter bracket | 17771-0V010 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-0V010 |
| 17801 | Air filter element sub-assembly | 17801-0H050 · 17801-28030 |
| 17878B | ventilation duct | 17878-0V010 |
| 17881 | No. 1 air cleaner hose | 17881-0V070 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10850 |
| 17893 | Intake resonator | 17893-0V060 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0V010 · 22204-0V020 · 22204-28010 |
